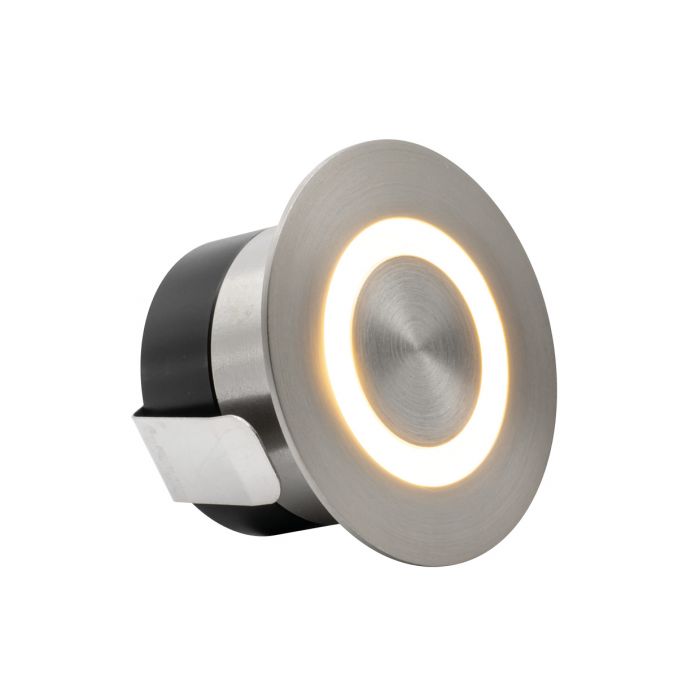

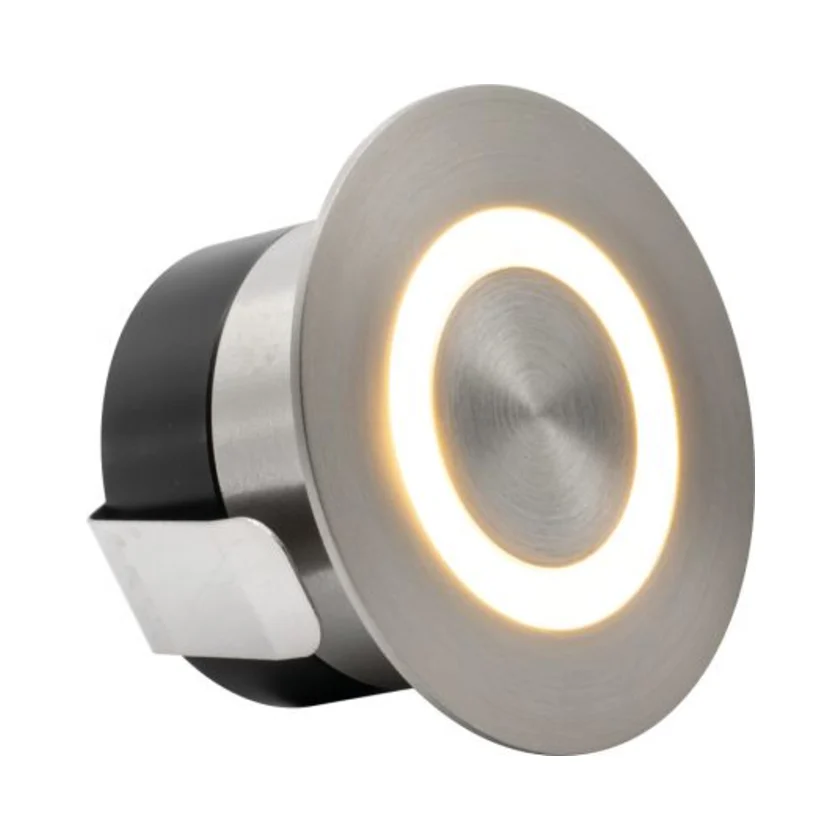

ALL LED AGLH035SS/27 Halo Marker Light
The ALL LED AGLH035SS/27 Halo Marker Light is a compact 1W recessed ground light featuring high-grade 316L stainless steel and extra warm white 2700K illumination. Designed for discreet architectural and landscape lighting, this IP65-rated fitting combines a durable metallic finish with flush anti-glare optics for decorative low-level illumination.
Its warmer colour temperature creates a welcoming effect around garden features, building entrances and carefully planned exterior lighting installations. Unlike larger outdoor luminaires, the Halo is intended for subtle marker lighting rather than general area illumination.
Key Features – Halo 316L Stainless Steel Marker Light
- 1W low-energy LED marker light
- 2700K extra warm white illumination
- High-grade 316L stainless steel construction
- IP65 protection against dust and water jets
- Flush anti-glare optics for low-level illumination
- Toughened optical design
- Recessed in-ground installation
- Suitable for appropriately assessed landscape and architectural lighting
- 350mA constant current operation
- Dimmable using a compatible dimmable LED driver
- Supplied with a 1-metre pre-wired cable
- Requires a separately purchased 350mA constant current driver
- Multiple fittings must be connected in series
2700K Extra Warm White Garden Lighting
The 2700K colour temperature is particularly suitable for decorative outdoor lighting where a warmer, more relaxing atmosphere is preferred.
It complements natural stone, timber decking, brickwork and planted areas, offering a softer appearance than the 3000K and 4000K alternatives in the Halo range.
When several Halo marker lights are arranged around suitable architectural features, they can create a coordinated lighting effect without the visual impact of larger surface-mounted fittings.
316L Stainless Steel Construction
The ALL LED AGLH035SS/27 Halo Marker Light uses 316L stainless steel, a high-grade material offering good resistance to corrosion and a contemporary metallic appearance.
This makes the fitting attractive for architectural designs featuring exposed metalwork, natural stone and modern exterior finishes.
However, 316L stainless steel does not guarantee suitability for every environment. Coastal exposure, cleaning chemicals, standing water and installation conditions should be assessed against the manufacturer’s requirements.
Flush Anti-Glare Optics
The Halo incorporates a flush optical design that allows the luminaire to integrate discreetly into suitable recessed surfaces.
Its anti-glare optics help limit direct visual discomfort, making the light particularly useful in decorative installations where people may approach or pass close to the fitting.
The compact design is intended to provide subtle illumination while maintaining a neat appearance during daylight hours.
Technical Specifications
| Manufacturer | ALL LED |
|---|---|
| Product Code | AGLH035SS/27 |
| Range | Halo |
| Product Type | Recessed LED Marker Light |
| Rated Power | 1W |
| Operating Current | 350mA Constant Current |
| Colour Temperature | 2700K Extra Warm White |
| Material | 316L Stainless Steel |
| Optics | Flush Anti-Glare |
| IP Rating | IP65 |
| Installation | Recessed In-Ground |
| Connection Cable | 1 Metre Pre-Wired |
| Dimmable | With Compatible Dimmable Driver |
| Driver Included | No – Sold Separately |
| Multiple Fitting Wiring | Series Only |
In-Ground Marker Lighting Applications
This recessed Halo light can be incorporated into professionally planned outdoor lighting schemes where compact ground-level illumination is required.
Potential locations include decorative garden features, architectural entrance areas, landscaping details and appropriate pathway edges.
The IP65 rating protects against dust ingress and water jets but does not establish suitability for continuous immersion, standing water or vehicle loading. Correct drainage and mounting conditions are essential, and the manufacturer’s installation instructions must be followed.
Installation and Driver Requirements
The Halo marker light features a factory-fitted 1-metre cable for connection to a suitable 350mA constant current LED driver.
Before installation, confirm the mounting dimensions, recess depth, drainage arrangements, connection protection, cable routes and driver accessibility.
The light must never be connected directly to a 230V mains supply. Several fittings powered by one compatible constant current driver must be connected in series.
ALL LED 350mA Constant Current Driver Options
The ALL LED AGLH035SS/27 Halo Marker Light requires a compatible 350mA constant current LED driver, which is sold separately.
Driver selection must account for the number of connected fittings, their combined forward voltage, the driver’s output voltage range and the required lighting controls.
Electrical4Less offers the following ALL LED driver options for consideration, subject to confirmation of electrical compatibility:
- ALL LED ADRCC350/1-11 – 1–11W non-dimmable 350mA constant current driver.
- ALL LED ADRCC350TD/1-4 – 1–4W dimmable 350mA driver.
- ALL LED ADRCC350ANOTD/2-4 – 2–4W dimmable 350mA Nano driver.
- ALL LED ADRCC350TD/4-9 – 4–9W dimmable 350mA driver.
- ALL LED ADRCC350TD/9-18 – 9–18W dimmable 350mA driver.
- ALL LED ADRCC350TD/12-25 – 12–25W dimmable 350mA driver.
- ALL LED ADRCC12D/100-440MA – Adjustable 12W constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
- ALL LED ADRCC30D/300-900MA – Adjustable 30W constant current driver with DALI and 1–10V dimming. Must be configured to 350mA.
Browse our ALL LED 350mA mains dimmable LED drivers for additional driver options.
Important: Driver wattage alone does not guarantee compatibility. Always check the permitted output voltage, minimum and maximum loads, and the total forward voltage of connected fittings before installation.
IMPORTANT INSTALLATION INSTRUCTIONS – SERIES WIRING ONLY
WARNING: INCORRECT CONNECTIONS WILL DAMAGE THE LED FITTINGS!
The ALL LED AGLH035SS/27 Halo Marker Light is a 350mA CONSTANT CURRENT fitting and must be connected to a correctly specified constant current LED driver.
MULTIPLE LED FITTINGS MUST BE CONNECTED IN SERIES – NEVER IN PARALLEL.
- Connect the positive (+) output of the driver to the positive (+) connection of the first LED fitting.
- Connect the negative (-) connection of the first fitting to the positive (+) connection of the next fitting.
- Continue connecting additional fittings using the same series arrangement.
- Connect the negative (-) connection of the final fitting to the negative (-) output of the driver.
- Never connect these LED fittings directly to a 230V mains supply.
- Never connect or disconnect fittings while the driver is energised.
- Complete and inspect all connections before switching on the power.
- Observe correct polarity and ensure secure connections.
- Protect all electrical connections against the installation environment.
- Check the driver’s output voltage range and minimum and maximum loads.
- Configure adjustable drivers to 350mA before energising the circuit.
DO NOT CONNECT THESE FITTINGS IN PARALLEL. INCORRECT WIRING WILL DAMAGE THE LEDs. ALWAYS COMPLETE CONNECTIONS BEFORE SWITCHING ON THE DRIVER.
Follow the manufacturer’s installation instructions and driver wiring diagram. Installation must be carried out by a competent person.
Dimming and Multiple Halo Marker Lights
Several Halo marker lights can be used together to create a coordinated decorative lighting arrangement, provided the driver is correctly specified and the fittings are connected in series.
Compatible dimmable drivers may support mains dimming, DALI or 1–10V control, depending on their model and installation requirements.
For larger installations, the total forward voltage of the series-connected fittings must remain within the driver’s permitted operating range.
Suitable Applications
- Decorative recessed ground lighting
- Garden and landscape accent lighting
- Architectural entrance features
- Suitable pathway-edge installations
- Residential exterior lighting schemes
- Commercial landscape lighting
- Warm white low-level decorative illumination
Why Choose the ALL LED Halo Stainless Steel Marker Light?
The ALL LED AGLH035SS/27 Halo Marker Light combines corrosion-resistant 316L stainless steel, 2700K extra warm white illumination and flush anti-glare optics in a compact 1W fitting.
Its IP65 protection and 350mA constant current operation make it a practical option for professionally designed lighting installations using compatible drivers and appropriate mounting arrangements.
Order the Halo 316L stainless steel LED marker light from Electrical4Less together with suitable ALL LED drivers and installation accessories.
