Why the Hager Design 30 Stands Out
This guide to Hager Design 30 consumer unit explains why this range is a favourite among electricians seeking both safety and modern aesthetics. Building on the reliability of the Design 10 series, the Design 30 adds premium features and a refined look, making it perfect for visible installations or high-spec projects.
Available in both surface-mounted and flush-fit models, the range covers 2–40 ways, suitable for everything from compact flats to large residential properties.
Key Features of Hager Design 30 Consumer Unit
The Hager Design 30 Consumer Unit Range delivers advanced safety, style, and installation benefits:
- Pre-installed cable clamp for secure meter tail connections
- Padlockable main switch for safe circuit isolation
- Factory-fitted rear cable protector plate
- Fully compliant with BS 7671 (18th Edition)
- SPD, dual RCD, or main switch only models
- Suitable for Type A RCBOs, including reduced height versions
- Hinged metal front cover for easier access
- Arc fault detection device (AFDD) compatible
- Available in sizes from 2-way to 40-way
- Works with Hager Consumer Unit Accessories for a tailored setup
Technical Overview
- Enclosure: Steel, surface or flush fit
- Knockouts: 20 mm, 25 mm, 32 mm
- Standards: BS EN 61439-3, BS 7671 compliant
- Main switch: 100 A double pole
- IP rating: IP3X (enclosure), IP2XC (with cover)
- Finish: White powder-coated steel
- Options: SPD-ready, dual RCD, main switch only
Safer

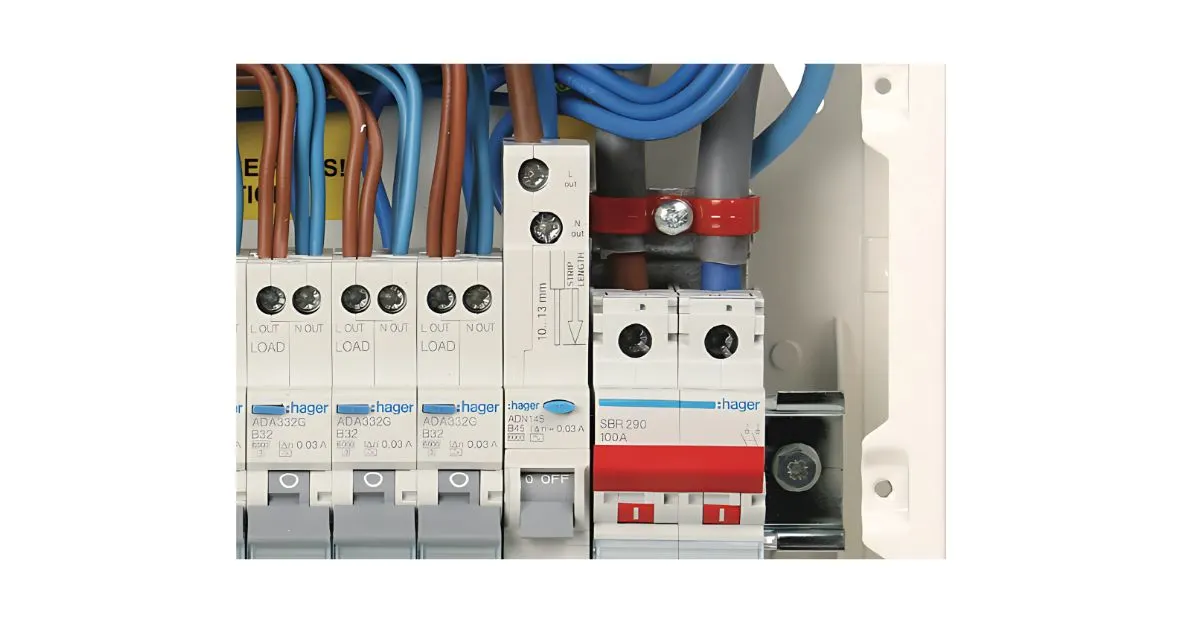

The Design 30 consumer unit features a pre-installed cable clamp that secures meter tails with a single screw. This keeps main switch terminals tight and prevents loosening over time, improving long-term safety.
Easier Installation
With ample wiring space and reduced height RCBOs (up to 32A) designed to match MCB height, the Design 30 simplifies installations — even in tight consumer unit enclosures.
Secure
A Health & Safety Lock Kit And Padlock (VMHBL and JK25A) let you lock off the consumer unit before occupation, enhancing site safety. Once the lock is removed, the retained cover can be clipped back in place with ease.
The Full Package
This range is backed by a wide portfolio of installation accessories — including protector plates, cable clamps, and mounting brackets — to create a neat, professional finish tailored to the project.
Hager Design 30 vs Other Ranges
- Versus Design 10: Adds premium features like pre-fitted clamp, lockable switch, and rear cable protector.
- Versus Design 50: Offers premium safety and style while Design 50 focuses on a flush-only, ultra-minimal aesthetic.
See also:
Ideal Applications
- Consumer unit upgrades with visible locations like kitchens and utility rooms
- Premium new builds or renovations
- Projects requiring AFDD or SPD protection
- Installations demanding additional security and neat cable management
Related Products Worth Exploring
- Explore All Hager Boards – from entry-level to premium
- Hager Design 10 Range – practical everyday choice
- Hager Design 50 Flush Fit – discreet and stylish
- Hager Consumer Unit Accessories – finishing touches for professional installs
- Hager Consumer Unit Guide – learn what to look for
❓ FAQs
Q1: What Makes The Hager Design 30 Consumer Unit Premium?
It offers added safety and convenience features such as a pre-installed cable clamp, lockable switch, and rear cable protector plate.
Q2: Can I Get A Hager Design 30 Consumer Unit With SPD?
Yes — there are models with factory-fitted Type 2 surge protection.
Q3: Is The Hager Design 30 Range 18th Edition Compliant?
Yes, all models meet BS 7671 standards.
Q4: Is The Hager Design 30 Compatible With AFDDs?
Yes — it’s designed for arc fault detection device compatibility.
