Description

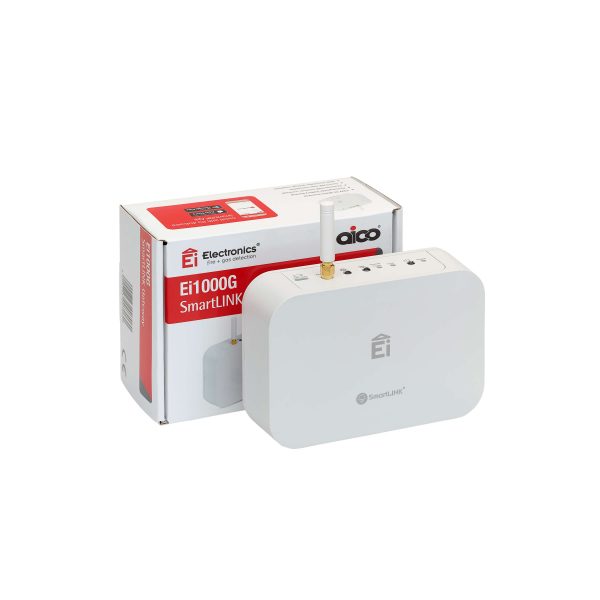

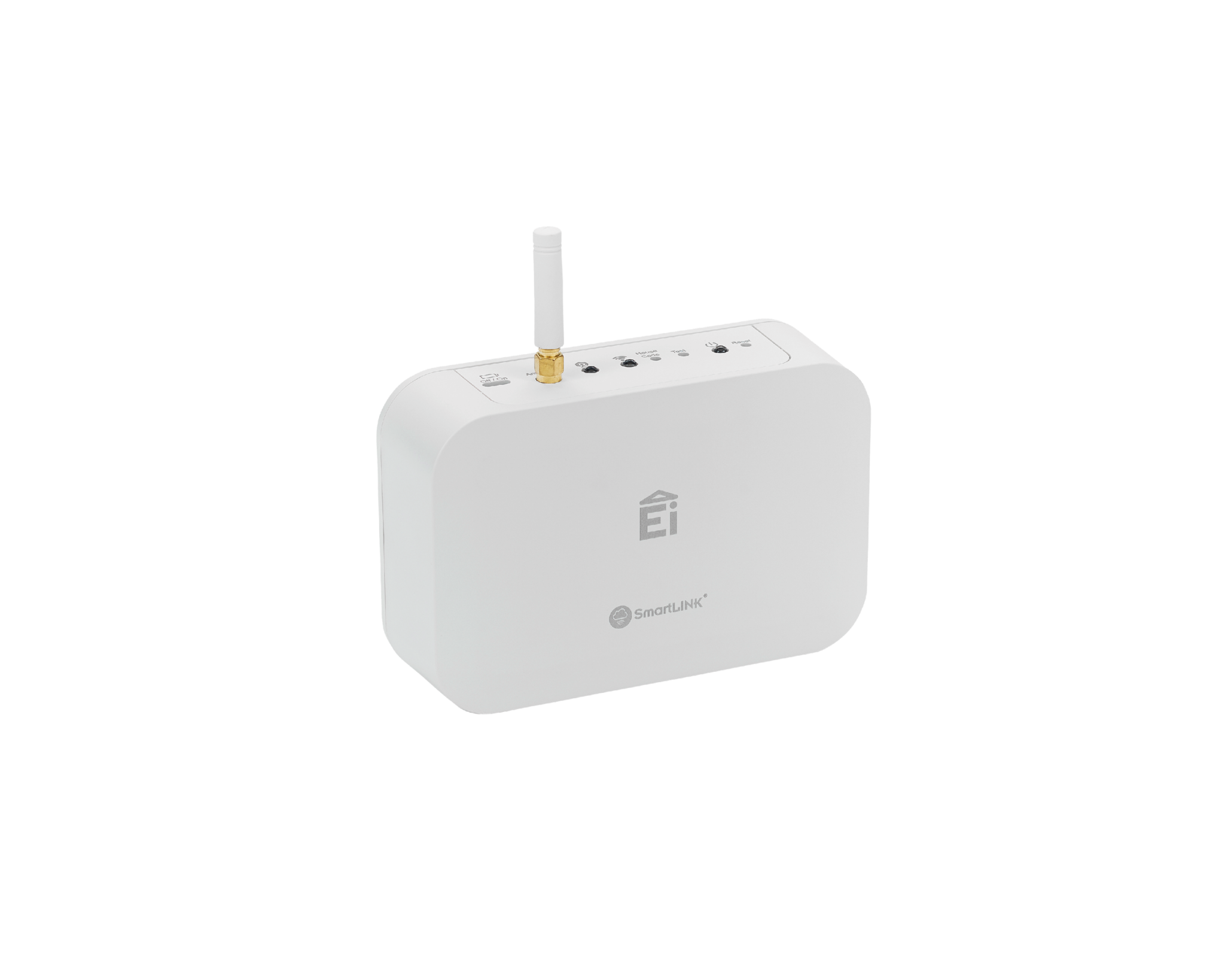

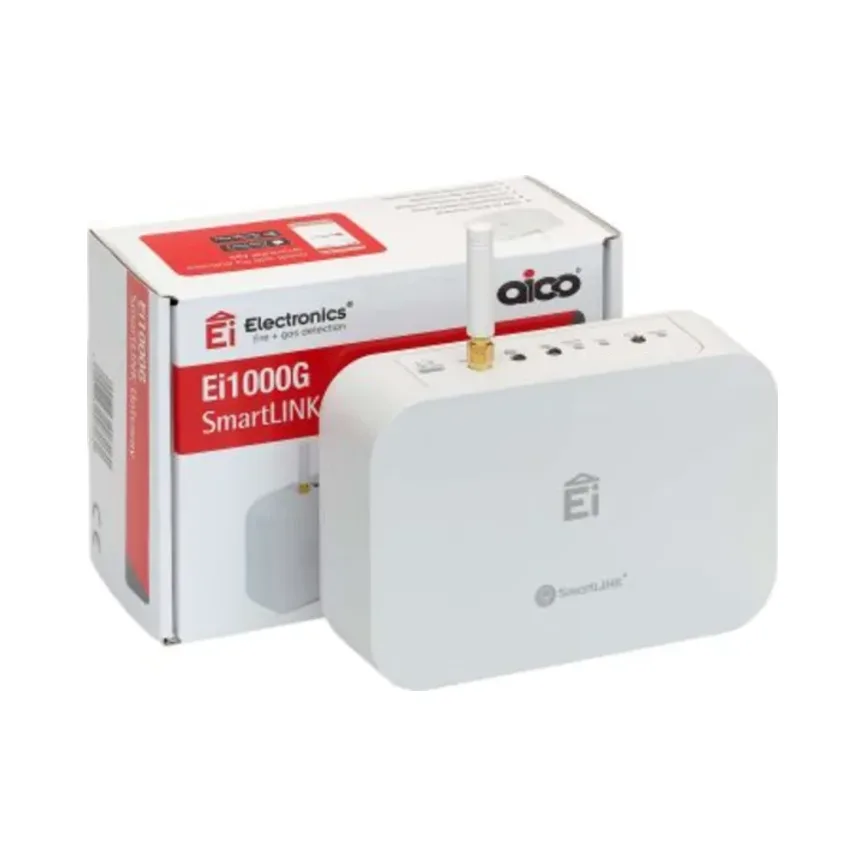

Aico Ei1000G SmartLINK Gateway
The Ei1000G SmartLINK Gateway is designed for use with the Aico Radio Frequency devices and tracks when events are triggered within an alarm system.
- Enables remote management of RF Alarms
- Receives RF specific data from RF devices
- Transmits data over GSM network
- Not GSM provider dependent
- Bidirectional data encryption
- Unique House Coding feature
- Easy setup and configuration
- Compatible with SmartLINK & RadioLINK+
- 10-year life
SmartLINK Gateway
- The Gateway and Cloud portal use Aico’s SmartLINK technology to bring together data from all SmartLINK-enabled alarms in a property in a simple, online dashboard format – so viewing and managing them is easier and more effective.Say goodbye to manual checks, spreadsheets and access issues
- Track alarm performance in real-time
- Easy installation, reliable connection
- Forecast replacement and maintenance
Which Aico Alarms are Compatible with the SmartLINK Gateway?
The SmartLINK Gateway is designed for use with the Aico Radio Frequency (RF) devices. It provides a mechanism to transfer information from the Radio Frequency network to a portal over the GSM network
Technical Specification
- Product Life: 10 years
- Supply Voltage: 230V AC, 50Hz
- Battery back-up: Rechargeable battery
- Power consumption: 40mA
- RF frequency: 868MHz band (1% duty cycle)
- RF Range: > 100 Metres in free air
- RF Protocol type: Mesh architecture
- RF Protocol: SmartLINK
- RF System size: Up to 12 RF devices
- Data upload: via 2G GSM network (Roaming SIM card supplied)
- Modem: Quad-Band GPRS modem
- Data storage: Cloud based
- Indicators: Green LED – Power
- Blue LED – RF communication
- Yellow LED – GSM communication
- Normal Operating and Storage Temperature Range: -10°C to 40°C
- Normal Operating and Storage Humidity Range: 15 % to 95 % Relative Humidity (non condensing)
- Dimensions: Product – 150mm x 145mm x 55mm
- Weight: 550g
- Warranty: 5 years
