The Complete Guide to ALL LED Marker Lights

The ALL LED Marker Lights collection offers a versatile selection of lighting solutions designed to enhance both residential and commercial spaces. With a focus on performance, durability, and aesthetic appeal, this range caters to a wide variety of applications, including path lighting, low-level lighting, and decorative accents. Each range is crafted to meet the highest standards, ensuring long-lasting and energy-efficient performance.

Britannia Range

ALL LED AGLX020WH/40 - Britannia 1W LED 350mA IP67 Baffle Honeycomb Ground Light Polar White Finish 4000K
ALL LED AGLX020WH/40 – Britannia 1W LED 350mA IP67 Baffle Honeycomb Ground Light Polar White Finish 4000K
  • Power Consumption: 1W LED
  • Ingress Protection: IP67 (dust-tight and water-resistant)
  • Finishes: 316L Stainless Steel or Polar White
  • Light Output: Up to 81 lumens
  • Special Features: Glare-reducing honeycomb, drive-over rated (2 metric tonnes), toughened flush glass
  • Beam Angle: 15° (narrow)
  • Dimensions: Overall Diameter: 27mm; Cutout Diameter: 20mm; Depth: 32mm

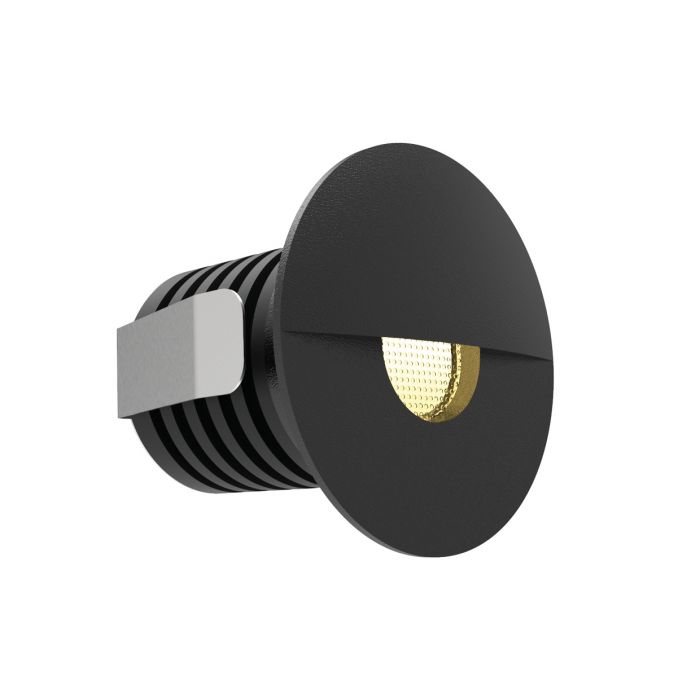

Dawn Range

ALL LED ALRE032BZBK - Carbon Black Bezel for Dawn Eyelid Marker Light (ALRE032AL)
ALL LED ALRE032BZBK – Carbon Black Bezel for Dawn Eyelid Marker Light (ALRE032AL)
  • Power Consumption: 1W LED
  • Ingress Protection: IP65 (dust-tight and water-resistant)
  • Finish: Matte Brushed Aluminium
  • Light Output: Up to 50 lumens
  • Special Features: Low glare, Cree diode, super slim bezel, flush toughened glass, interchangeable bezels (Carbon Black and Polar White)
  • Dimensions: Overall Diameter: 42mm; Cutout Diameter: 32mm; Depth: 37mm

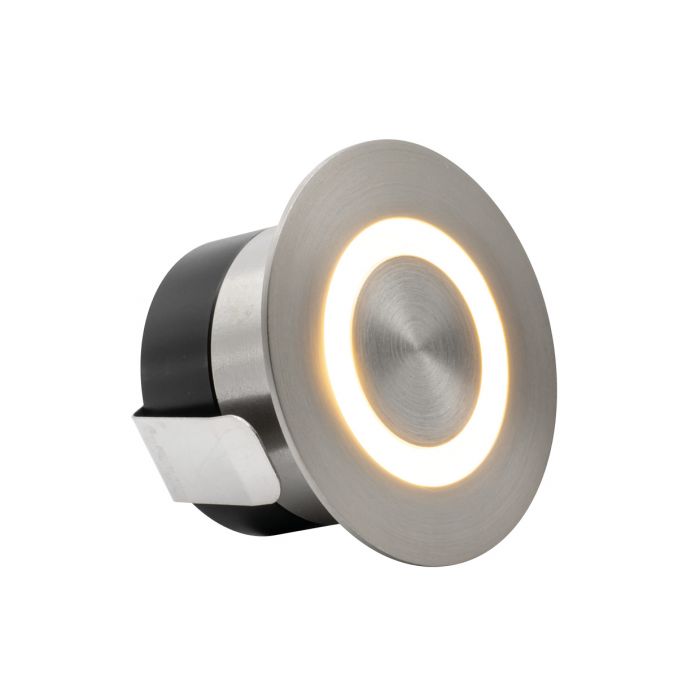

Halo Range

ALL LED AGLH035SS40 - Halo 1W LED 350mA IP65 Stainless Steel 316L Marker Light 4000K
ALL LED AGLH035SS40 – Halo 1W LED 350mA IP65 Stainless Steel 316L Marker Light 4000K
  • Power Consumption: 1W LED
  • Ingress Protection: IP65 (dust-tight and water-resistant)
  • Finishes: 316L Stainless Steel or Polar White
  • Special Features: Anti-glare optics, toughened flush optics, dimmable options, 50,000-hour lifespan
  • Applications: Residential spaces, commercial areas, outdoor settings

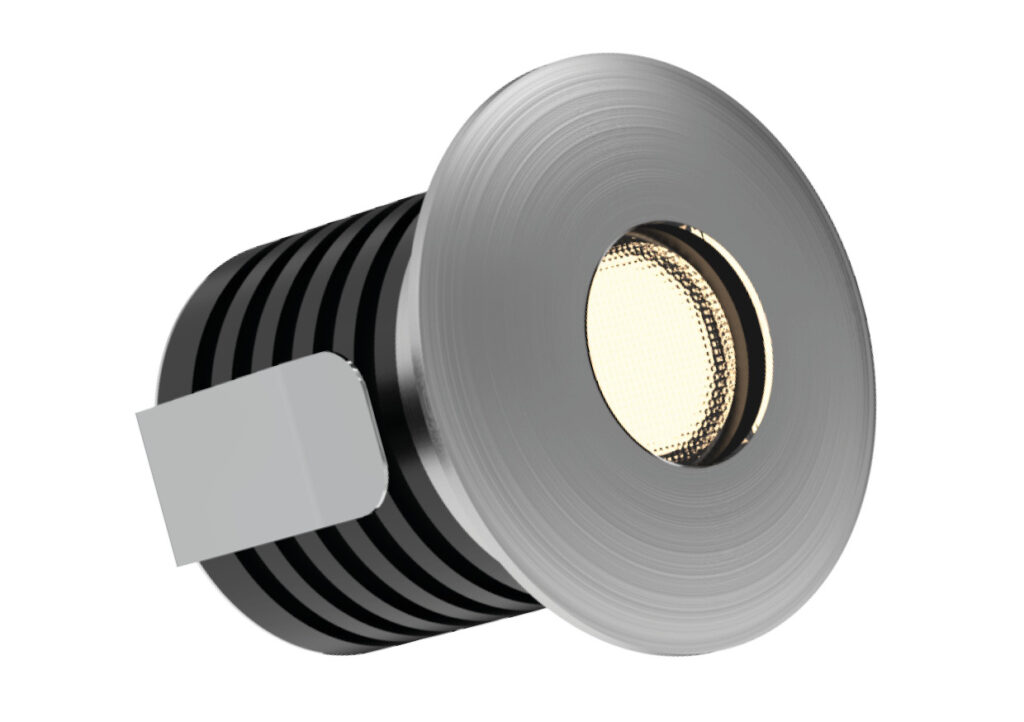

Midi Range

ALL LED AMKR032AL/BL ALL LED Midi 1W LED 350 mA IP65 Blue Matte Brushed Aluminium Marker Light
ALL LED AMKR032AL/BL ALL LED Midi 1W LED 350 mA IP65 Blue Matte Brushed Aluminium Marker Light
  • Power Consumption: 1W LED
  • Ingress Protection: IP65 (dust-tight and water-resistant)
  • Finish: Polar White (paintable)
  • Light Output: Warm White (3000K): ≤85lm; Cool White (4000K): ≤95lm; Blue: ≤40lm
  • Special Features: Diamond-cut lens, Cree diode, flush toughened glass, interchangeable bezels (Brushed Brass, Antique Brass, Polished Copper, Carbon Black), drive-over rated (2 metric tonnes)
  • Dimensions: Cutout: Ø32mm; Overall Diameter: Ø37mm; Depth: 37mm

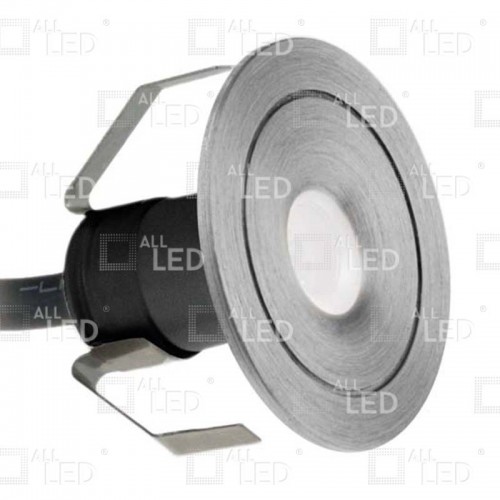

Mini Range

ALL LED Marker Lights - Mini Range
ALL LED Marker Lights – Mini Range
  • Power Consumption: 1W LED
  • Ingress Protection: IP44 (indoor use)
  • Finishes: Brushed Aluminium, Polar White
  • Light Output: Warm White (3000K): ≤70lm; Cool White (4000K): ≤70lm; Blue: ≤25lm
  • Special Features: Anti-glare design, distinct beam effect, ultra-slim profile, interchangeable bezels (Brushed Brass, Antique Brass, Polished Copper, Carbon Black)
  • Dimensions: Cutout: Ø20mm; Overall Diameter: Ø30mm; Depth: 25mm

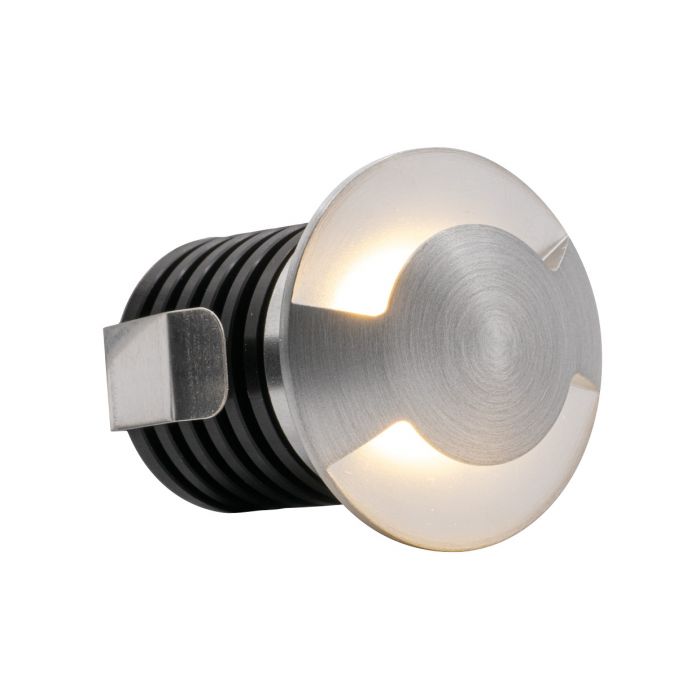

Pathfinder Range

ALL LED APF032AL/02/30 - Pathfinder 1W LED IP65 Low Level Matte Brushed Aluminium Finish Bi-Directional 3000K
ALL LED APF032AL/02/30 – Pathfinder 1W LED IP65 Low Level Matte Brushed Aluminium Finish Bi-Directional 3000K
  • Power Consumption: 1W LED
  • Ingress Protection: IP65 (dust-tight and water-resistant)
  • Light Output: Up to 90 lumens
  • Special Features: Unidirectional & bi-directional options, anti-glare lighting, drive-over rated (2 metric tonnes)
  • Dimensions: Overall Diameter: 37mm; Cutout Diameter: 32mm; Depth: 33mm

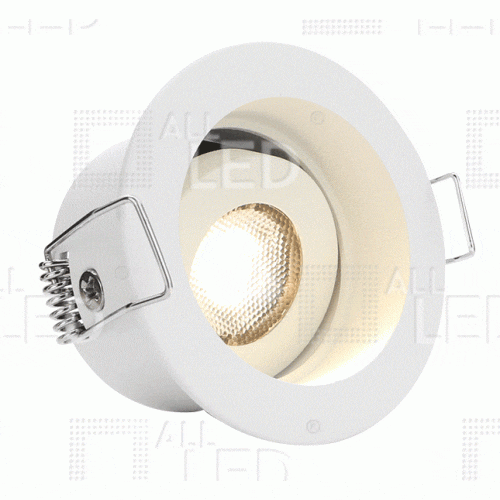

Vector Range

ALL LED Marker Lights - Vector Range
ALL LED Marker Lights – Vector Range
  • Power Consumption: 3W LED
  • Ingress Protection: IP44 (indoor use)
  • Finish: Matte Polar White
  • Special Features: Adjustable spotlight, higher light output suitable for areas requiring more illumination

Each range is designed to meet specific lighting needs, offering flexibility in design and application. Whether for residential pathways, commercial exteriors, or decorative indoor settings, the ALL LED Marker Lights provide reliable and efficient lighting solutions. The Complete Guide to ALL LED Marker Lights

Frequently Asked Questions (FAQs) about ALL LED Marker Lights

General Information – The Complete Guide to ALL LED Marker Lights

Q1: What power options are available for ALL LED Marker Lights?
Britannia, Dawn, Halo, Midi, Mini, and Pathfinder Ranges: Each utilizes a 1W LED, providing energy-efficient lighting suitable for various applications.
Vector Range: Features a 3W LED, offering a brighter output for areas requiring enhanced illumination.
Q2: Are these marker lights suitable for outdoor installations?
Britannia Range: IP67 rated, fully dust-tight and water-resistant, ideal for outdoor environments.
Dawn, Halo, Midi, Pathfinder Ranges: IP65 rated, offering dust-tight and water-resistant protection, suitable for outdoor installations.
Mini and Vector Ranges: IP44 rated, providing basic protection against moisture and dust, recommended for indoor use.
Q3: What finish options are available for these marker lights?
Britannia Range: 316L Stainless Steel or Polar White finishes.
Dawn Range: Matte Brushed Aluminium finish with interchangeable bezels in Carbon Black and Polar White.
Halo Range: 316L Stainless Steel or Polar White finishes.
Midi Range: Polar White finish, paintable to match desired color schemes, with interchangeable bezels in Brushed Brass, Antique Brass, Polished Copper, and Carbon Black.
Mini Range: Brushed Aluminium or Polar White finishes, with interchangeable bezels in Brushed Brass, Antique Brass, Polished Copper, and Carbon Black.
Pathfinder Range: Matte Brushed Aluminium finish.
Vector Range: Matte Polar White finish.
Q4: Are these marker lights dimmable?
Yes, all ranges are compatible with dimmable LED drivers, allowing for adjustable brightness levels to suit various settings and preferences.
Q5: What beam angles do these marker lights offer?
Britannia Range: Features a narrow 15° beam angle, ideal for focused lighting on pathways and accent features.
Other Ranges: Designed to provide effective illumination for their intended applications, with specific beam angles varying by model.

FAQs – Technical Specifications

Q6: Can these marker lights withstand vehicular traffic?
Britannia and Midi Ranges: Drive-over rated up to 2 metric tonnes when installed with the appropriate mounting sleeve, making them suitable for driveways and high-traffic areas.
Other Ranges: Not specified as drive-over rated; it’s recommended to consult product specifications for detailed information.
Q7: What are the available colour temperatures and lumen outputs?
Britannia Range: Up to 81 lumens.
Dawn Range: Up to 50 lumens.
Halo Range: Specific lumen output not specified; designed for energy-efficient brightness.
Midi Range: Warm White (3000K): ≤85lm; Cool White (4000K): ≤95lm; Blue: ≤40lm.
Mini Range: Warm White (3000K) and Cool White (4000K): ≤70lm; Blue: ≤25lm.
Pathfinder Range: Up to 90 lumens.
Vector Range: Specific lumen output not specified; designed for areas requiring more illumination.
Q8: Are interchangeable bezels available for these marker lights?
Dawn Range: Yes, bezels are available in Carbon Black and Polar White.
Midi and Mini Ranges: Yes, bezels are available in Brushed Brass, Antique Brass, Polished Copper, and Carbon Black.
Other Ranges: Interchangeable bezels are not specified; please refer to product details for more information.
Q9: What are the typical applications for these marker lights?
Britannia Range: Suitable for gardens, pathways, stairs, and high-traffic areas.
Dawn Range: Ideal for staircases, pathways, walls, and accent lighting.
Halo Range: Perfect for residential spaces, commercial areas, and outdoor settings.
Midi Range: Great for gardens, pathways, and architectural detailing.
Mini Range: Designed for stairs, hallways, living areas, and retail displays.
Pathfinder Range: Suitable for gardens, staircases, pathways, and driveways.
Vector Range: Ideal for areas requiring adjustable and brighter illumination.

For more detailed information, please refer to the specific product specifications or contact our support team. team.
