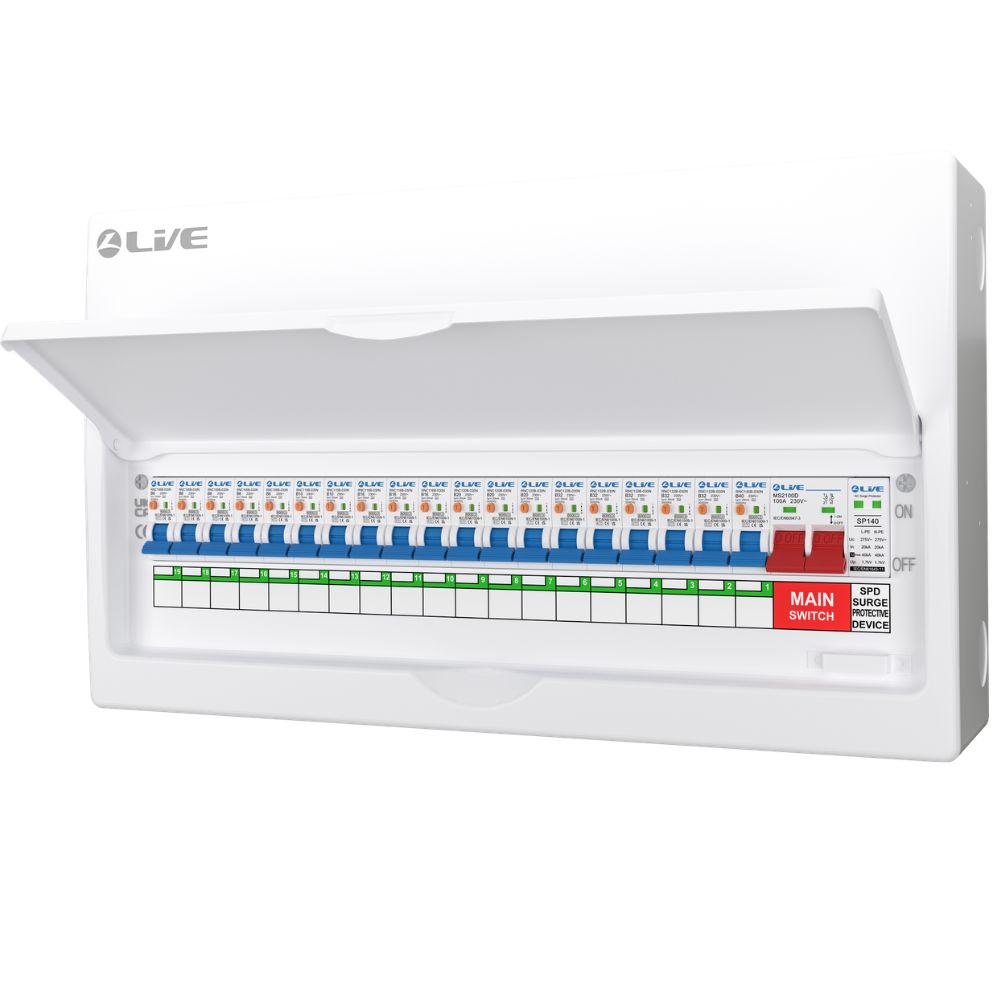

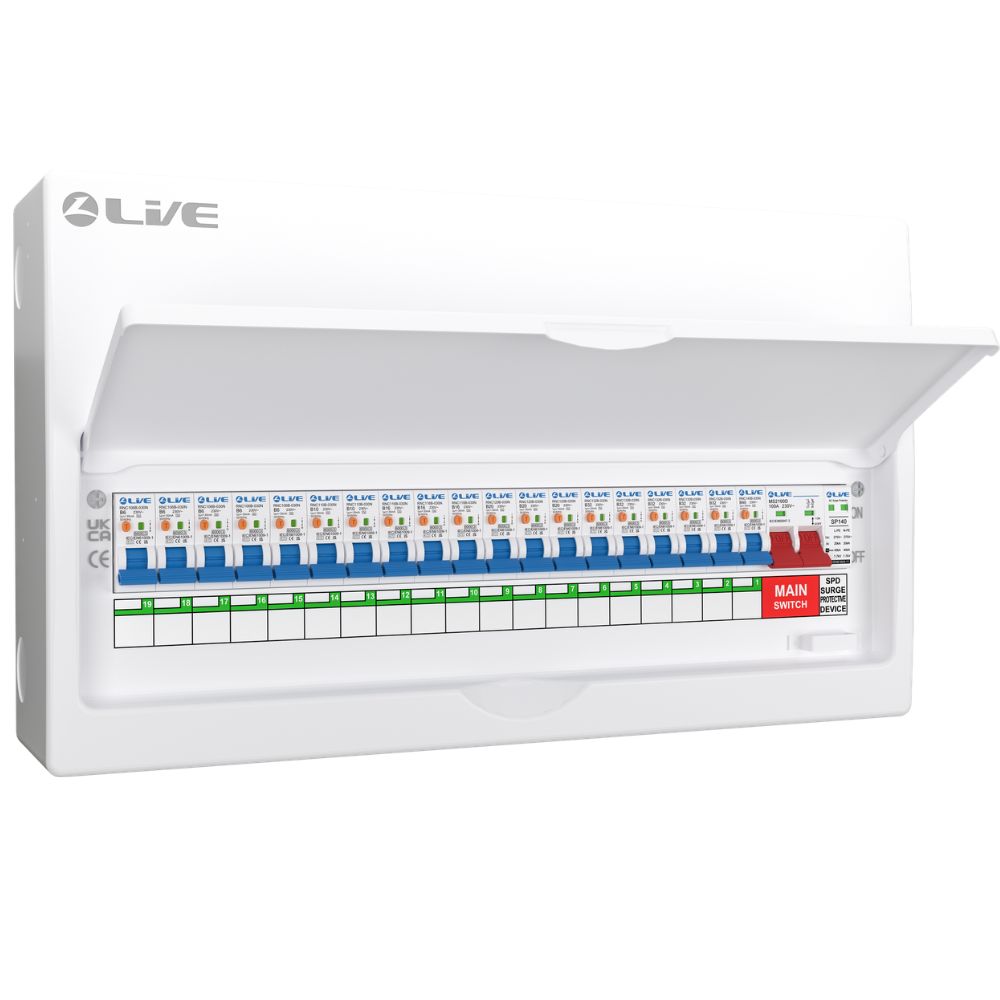

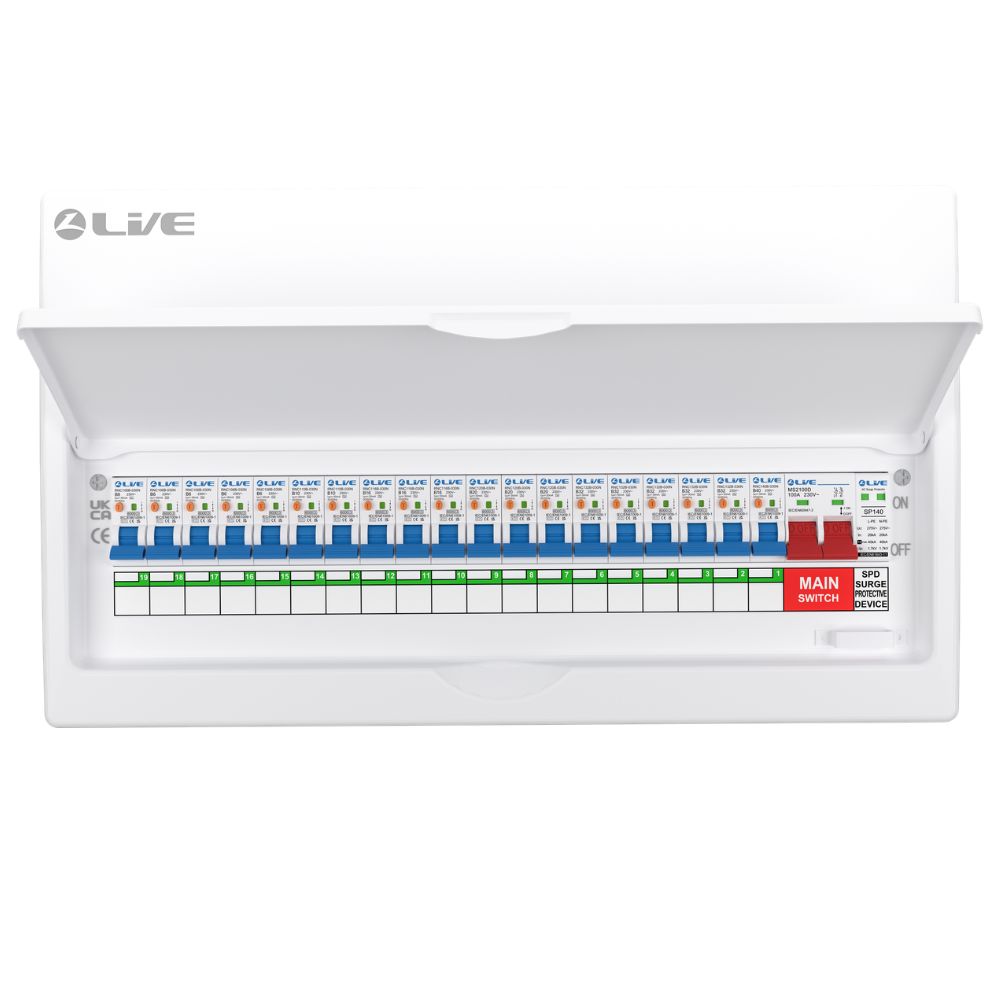

Live 19 Way Double Pole Busbar RCBO Consumer Unit
Important: SRN Devices only — this consumer unit is only compatible with Live Electrical SRN RCBOs and MCBs due to its double pole busbar design. Standard RCBOs are not compatible. View SRN Devices.
Fixed RCBO configuration only: 5 x 6A, 2 x 10A, 3 x 16A, 3 x 20A, 5 x 32A and 1 x 40A — no RCBO selection or swapping available.
Live 19 Way Double Pole Busbar RCBO Consumer Unit is designed for faster, cleaner electrical installations using a double pole busbar system that eliminates the need for neutral fly leads. This helps reduce wiring clutter, speeds up installation and gives the board a cleaner internal layout.
The LSMC22SRN/100 is supplied preconfigured with 19 double pole RCBOs, a Type 2 surge protection device and a 100A main switch, making it suitable for large domestic and light commercial installations where a high-capacity populated RCBO consumer unit is required.

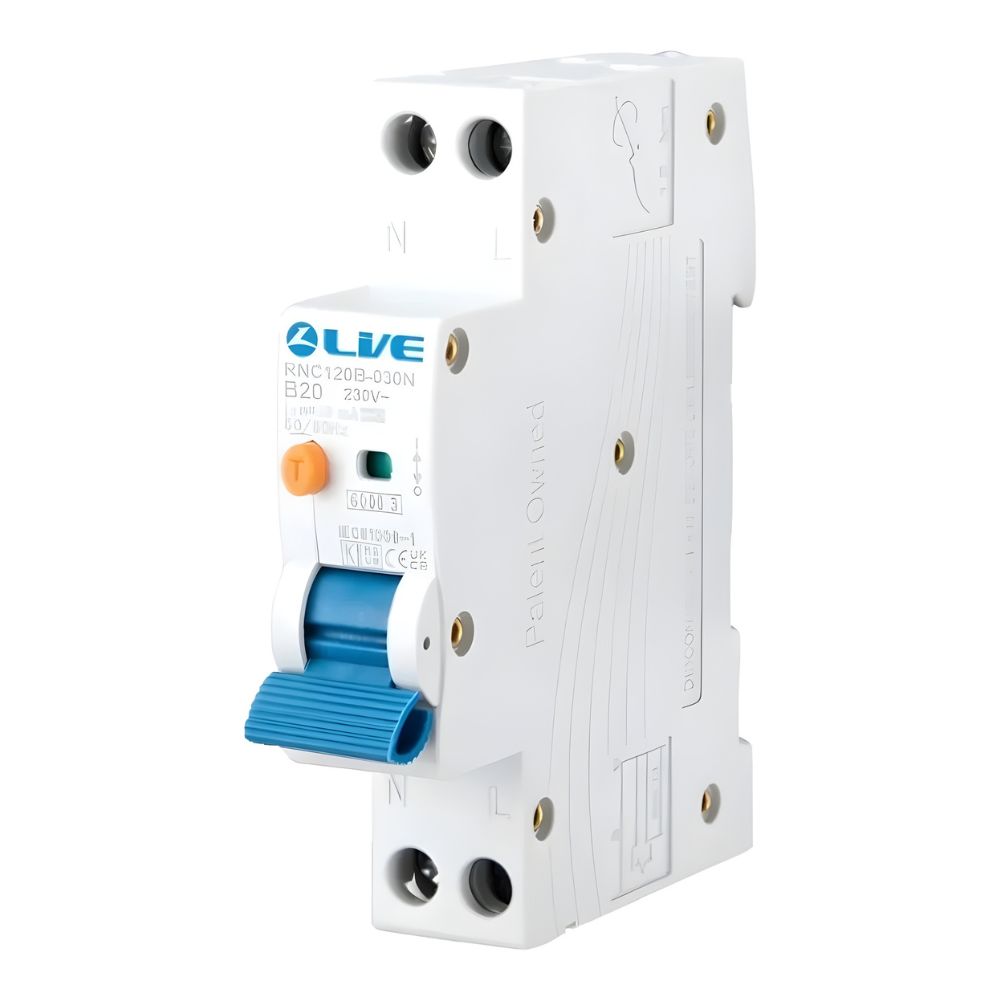

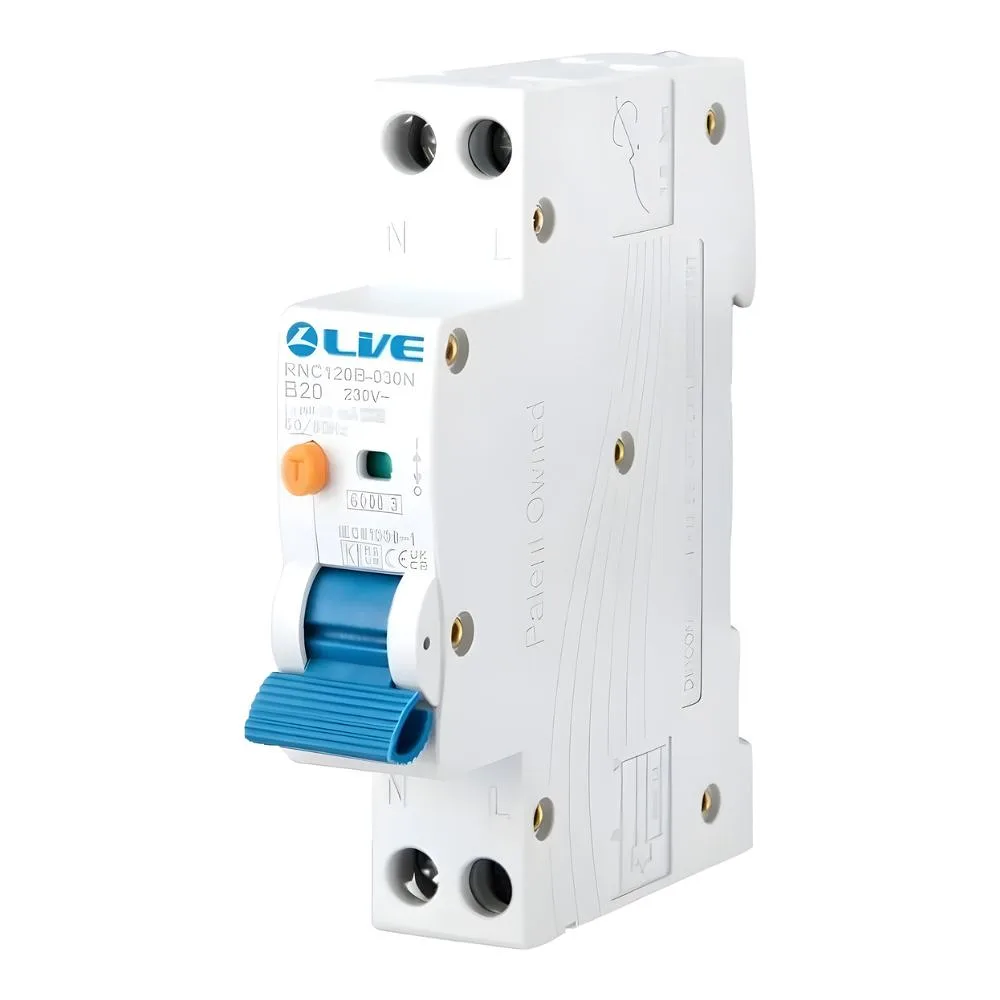

Included RCBO Configuration
- 5 x 6A DP RCBOs
- 2 x 10A DP RCBOs
- 3 x 16A DP RCBOs
- 3 x 20A DP RCBOs
- 5 x 32A DP RCBOs
- 1 x 40A DP RCBO
Please note: The RCBO configuration is fixed. The RCBOs cannot be changed, swapped or selected at checkout.
SRN Compatible Devices
This consumer unit must be used with compatible Live Electrical SRN devices due to its double pole busbar design. Standard RCBOs are not suitable for this board. For compatible RCBOs, MCBs and accessories, view the compatible range here: SRN Devices.
Key Features
- 19 usable way metal consumer unit
- Preconfigured with 19 x double pole RCBOs
- Fixed RCBO configuration: 5 x 6A, 2 x 10A, 3 x 16A, 3 x 20A, 5 x 32A and 1 x 40A

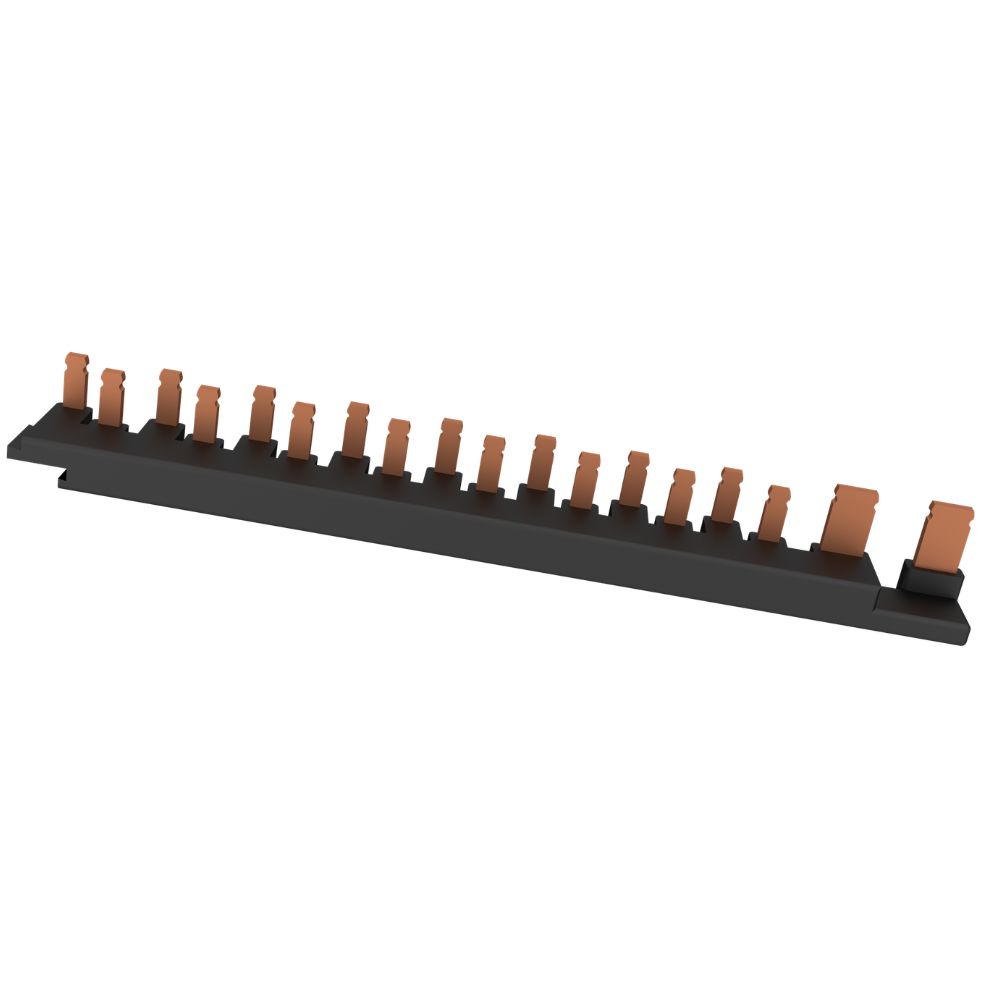

- Double pole busbar design
- No neutral fly leads
- Single module Type 2 surge protection device
- 100A main switch
- Compatible with Live Electrical SRN devices only
- Robust metal enclosure for modern consumer unit installations
- Spacious layout for high circuit capacity
Installation Benefits
- Faster installation with no neutral fly leads
- Cleaner and more organised internal wiring
- Improved access for testing and maintenance
- Professional populated board layout
Typical Applications
Ideal for large domestic installations, light commercial projects, refurbishments and larger properties requiring high circuit capacity with surge protection.
