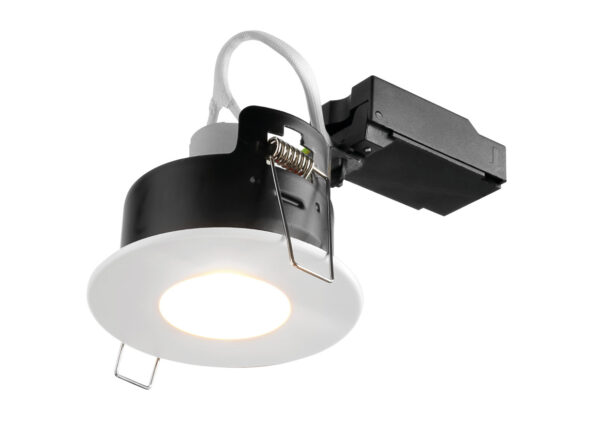

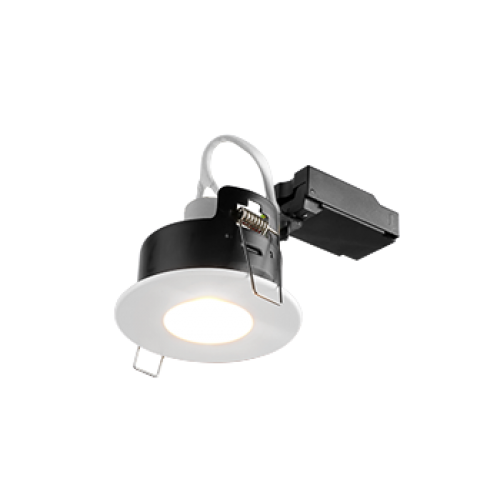

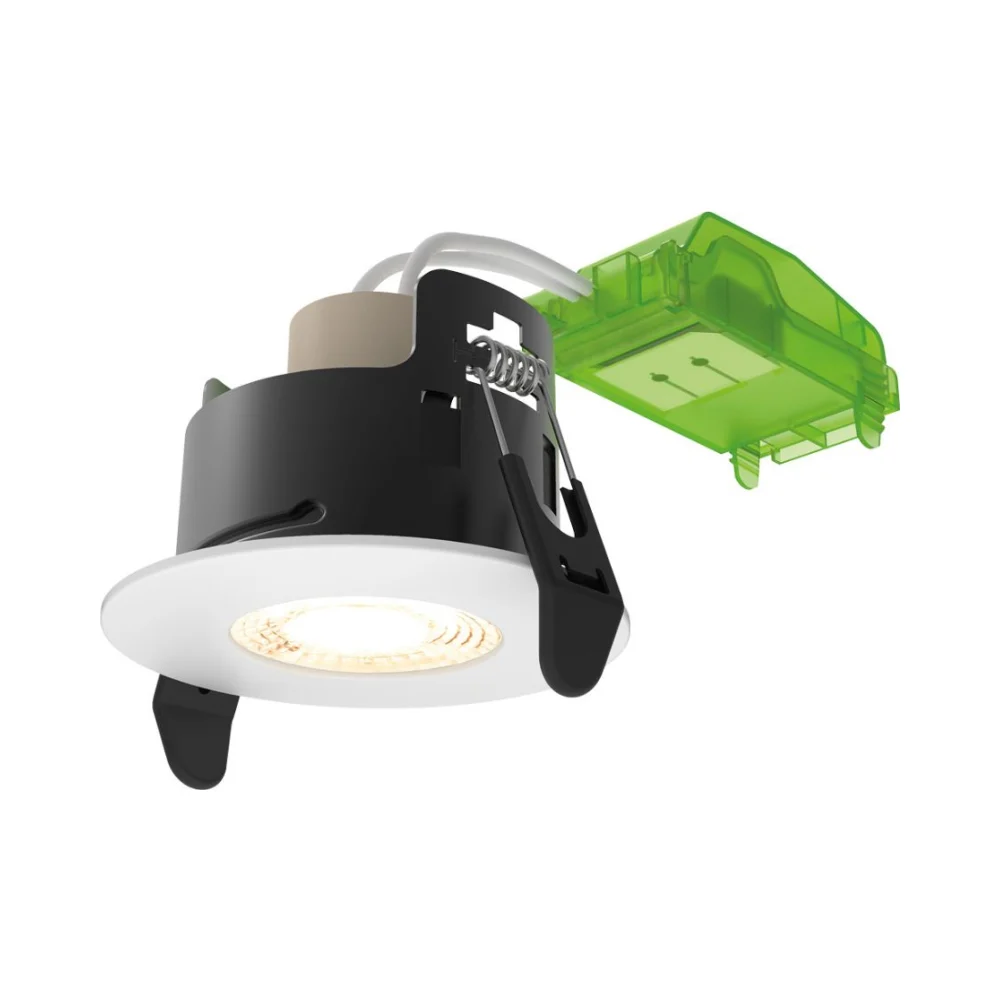

ALL LED AFD65 iCan65 GU10 Fire Rated Downlight – Low-Profile Ceiling Fitting
The ALL LED AFD65 iCan65 GU10 Fire Rated Downlight offers a compact and installer-friendly lighting solution for domestic and commercial ceilings. Its low-profile housing is designed for installations with restricted ceiling voids, while the green push-fit terminal box provides straightforward electrical connections without the need for terminal screws.
Part of the ALL LED iCan65 range, the AFD65 features a twist-and-lock bezel system, allowing electricians to select a compatible finish separately. The ventilated housing assists with LED heat dissipation, and the extended GU10 lamp holder provides convenient access when installing or replacing lamps.
The ALL LED AFD65 iCan65 GU10 Fire Rated Downlight offers 30, 60 and 90-minute fire ratings for specified timber ceiling constructions, together with 30-minute ratings for specified i-joist and metal web joist applications.
Please note: Bezels and GU10 LED lamps are sold separately and are required to complete the downlight.
Complete Your iCan65 Downlight Installation
Choose the compatible components needed to finish your lighting installation:
- Bezels for iCan65 Downlights – select a suitable twist-and-lock bezel for your preferred finish and application.
- Accessories for iCan65 Downlights – browse compatible installation accessories.
- GU10 Lamps from ALL LED – explore Caterham, Jaguar and Morgan LED lamp ranges.
Key Features of the AFD65 iCan65 Downlight
- Low-profile construction suitable for restricted ceiling voids
- 30, 60 and 90-minute fire ratings for specified timber ceiling constructions
- 30-minute fire rating for specified i-joist and metal web joist constructions
- Compatible twist-and-lock bezel system
- IP20 or IP65 rating depending on the selected bezel
- Green push-fit terminal box for tool-free conductor termination
- Loop-in and loop-out wiring connections
- Ventilated housing to assist LED heat dissipation
- Extended GU10 lamp holder for convenient access
- Compatible with suitable GU10 LED lamps up to the specified wattage
Technical Specifications
- Manufacturer: ALL LED
- Product Code: AFD65
- Product Range: iCan65
- Product Type: Fire-rated GU10 downlight housing
- Lamp Type: GU10 LED
- Maximum Lamp Wattage: 10W LED
- Maximum Wattage with IP65 Bezel: 7W LED
- Fire Rating: 30 / 60 / 90 minutes for specified timber ceiling constructions
- IP Rating: IP20 / IP65 depending on compatible bezel
- Connection Type: Green push-fit terminal box
- Wiring Arrangement: Loop-in / loop-out
- Bezel Fixing: Twist-and-lock
- Housing Design: Low-profile, ventilated construction
- Bezel: Sold separately
- GU10 Lamp: Sold separately
Low-Profile Design for Shallow Ceiling Voids
The ALL LED AFD65 iCan65 GU10 Fire Rated Downlight is particularly useful for lighting projects where ceiling depth is restricted. Its compact housing allows installers to work within suitable shallow voids without sacrificing the convenience of a replaceable GU10 LED lamp.
Open ventilation around the housing assists with heat dissipation, while the extended lamp holder makes handling the GU10 connection more convenient during installation and maintenance.
Fast Wiring with Green Push-Fit Terminals
The AFD65 includes a green push-fit terminal box designed to reduce the time required for electrical connections. Its loop-in and loop-out arrangement supports efficient installation when connecting multiple downlights along a lighting circuit.
The distinctive green connector also makes the termination point easy to identify, providing a practical feature for electricians working on residential refurbishments, new-build developments and commercial lighting installations.
Interchangeable Twist-and-Lock Bezels
The ALL LED AFD65 iCan65 GU10 Fire Rated Downlight uses a separate bezel system, allowing the final appearance and protection rating to be selected according to the installation requirements.
A compatible IP65 bezel can provide additional ingress protection for suitable bathroom applications, while other compatible bezels offer alternative decorative finishes.
View the available iCan65 Downlight Bezels before completing your order.
Fire-Rated Ceiling Protection
The AFD65 is designed for use in specified fire-rated ceiling constructions. It provides 30, 60 and 90-minute fire ratings in suitable timber joist applications, plus a 30-minute rating in specified i-joist and metal web joist arrangements.
Always check the manufacturer’s fire-test information and confirm that the ceiling construction and installation conditions match the relevant tested arrangement.
What’s Included?
- 1 × ALL LED AFD65 iCan65 downlight housing
- GU10 lamp holder
- Green push-fit terminal connection
Important: GU10 LED lamps and decorative bezels are not included.
Suitable Applications
The ALL LED AFD65 iCan65 GU10 Fire Rated Downlight is suitable for a wide range of lighting installations, including:
- Living rooms, bedrooms and hallways
- Kitchen and dining area lighting
- Bathrooms with a suitable IP65 bezel and appropriate installation conditions
- Residential properties and apartment developments
- Retail premises and commercial interiors
- New-build and refurbishment projects
- Ceilings with restricted installation space
- Compatible fire-rated ceiling constructions
Explore the Full ALL LED iCan Range
Looking for a different downlight configuration? Compare other products from the ALL LED iCan range:
- ALL LED AFD75 iCan75 GU10 Fire Rated Downlight – a larger 75mm cut-out downlight with fixed, adjustable and IP65 bezel options.
- ALL LED iCan75 Platinum Anti-Glare Downlight – an alternative within the premium Platinum range.
- ALL LED GU10 Lamps – browse suitable Caterham, Jaguar and Morgan LED lamps.
Why Choose the ALL LED AFD65 iCan65?
The ALL LED AFD65 iCan65 GU10 Fire Rated Downlight combines compact construction, convenient push-fit wiring and a replaceable GU10 lamp system. Its low-profile design makes it a practical option for electricians requiring a fire-rated fitting that is straightforward to install and maintain.
Order the ALL LED AFD65 iCan65 GU10 Fire Rated Downlight from Electrical4Less and complete your installation with suitable iCan65 bezels, iCan65 accessories and ALL LED GU10 lamps.
