Hafele 850.00.957 Connect Mesh Eco 12V Distributor
The Hafele 850.00.957 Connect Mesh Eco 12V Distributor is a four-way tuneable white controller for compatible Loox5 12V multi-white LED lights. It provides wireless on/off switching, continuous dimming from 0–100% and adjustment of the white colour temperature through the Häfele Connect Mesh Eco system. Manufactured from black plastic, the compact IP20 distributor measures 150 x 50 x 16mm, features one control channel and supports networks containing up to four distributors. One four-way distributor is supplied, while the compatible Connect Mesh Eco remote control must be ordered separately.

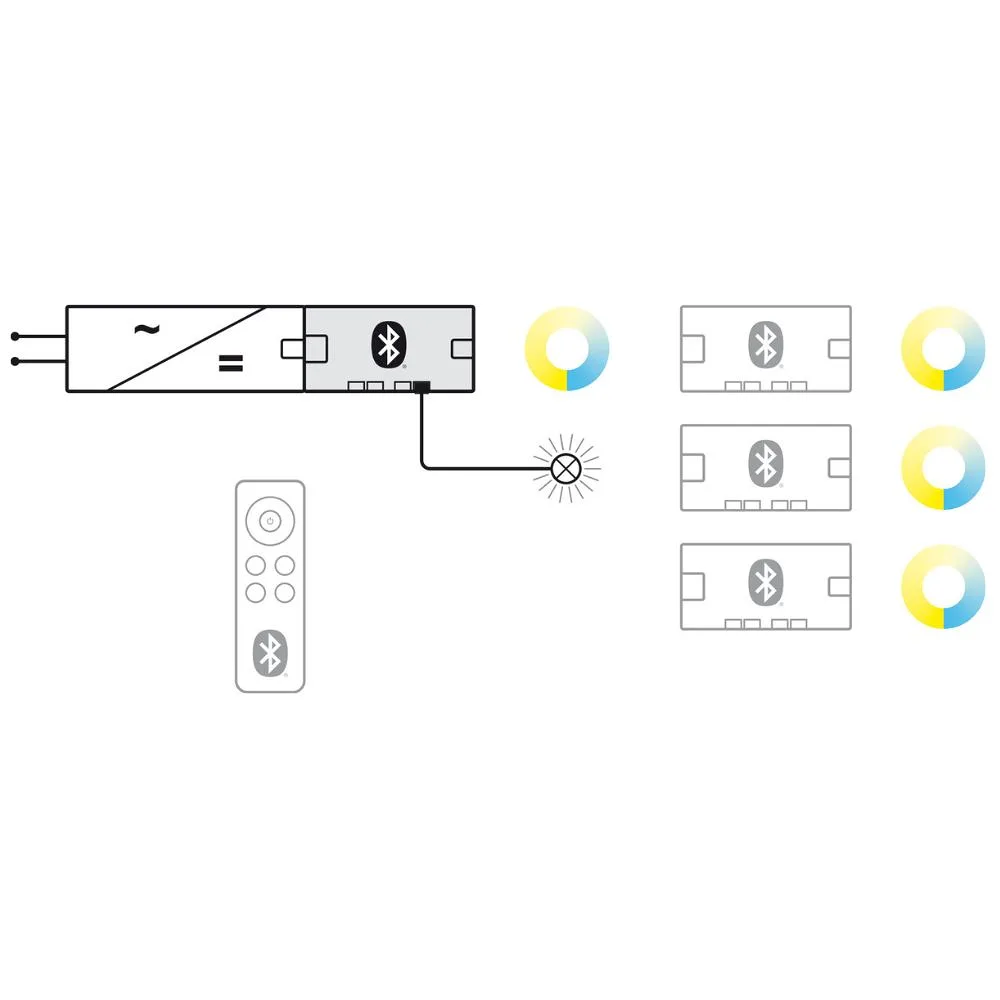

All four outputs are controlled simultaneously, allowing the connected lights to be switched, dimmed or adjusted together. A compatible remote control can also be used to select stored lighting scenes using buttons 1–4.
The distributor uses Bluetooth and Häfele EasyPairing technology to communicate with compatible Connect Mesh components. The approximate distance from a smartphone or tablet to the nearest mesh component is 10m, while additional mesh components can be positioned approximately 10m apart to extend the network.
The maximum recommended lead length between the driver and distributor is 2m. The distributor is intended for installation in enclosed, dry indoor areas and has a standby power consumption of 0.50W.
Key Features – Hafele 850.00.957 Connect Mesh Eco 12V Distributor
- Designed for compatible Loox5 12V multi-white LED lights
- Tuneable white lighting control
- Four output connections for compatible lights
- Wireless on/off switching
- Continuous dimming from 0–100%
- Adjustable white colour temperature
- All four outputs are controlled simultaneously
- Supports lighting-scene selection using remote buttons 1–4
- One control channel
- Maximum four distributors per network
- Maximum stated network distance: 5m
- Approximate smartphone or tablet connection range: 10m
- Bluetooth and EasyPairing compatibility
- No integrated memory function
- Standby power consumption: 0.50W
- Black plastic housing
- Dimensions: 150 x 50 x 16mm
- IP20 degree of protection
- Protection class III
- Suitable only for enclosed, dry indoor areas
- Covered by the 7-year Häfele Lifetime Guarantee
Compatibility
- Suitable for compatible Loox5 12V multi-white lights
- Uses the Loox5 2-pin 12V connection system
- Compatible with the Häfele Connect Mesh Eco system
- Compatible Connect Mesh Eco remote control required for remote operation
Installation Information
- Maximum recommended lead length from driver to distributor: 2m
- Install only in an enclosed, dry indoor location
- Ensure all connected components are compatible with the 12V tuneable white system
- Observe the output capacity of the connected LED driver
Supplied With
- 1 x Connect Mesh Eco four-way tuneable white distributor
Ordering Information
The compatible Häfele Connect Mesh Eco remote control must be ordered separately. The LED driver, multi-white lights, connecting leads and additional accessories are also available separately.
