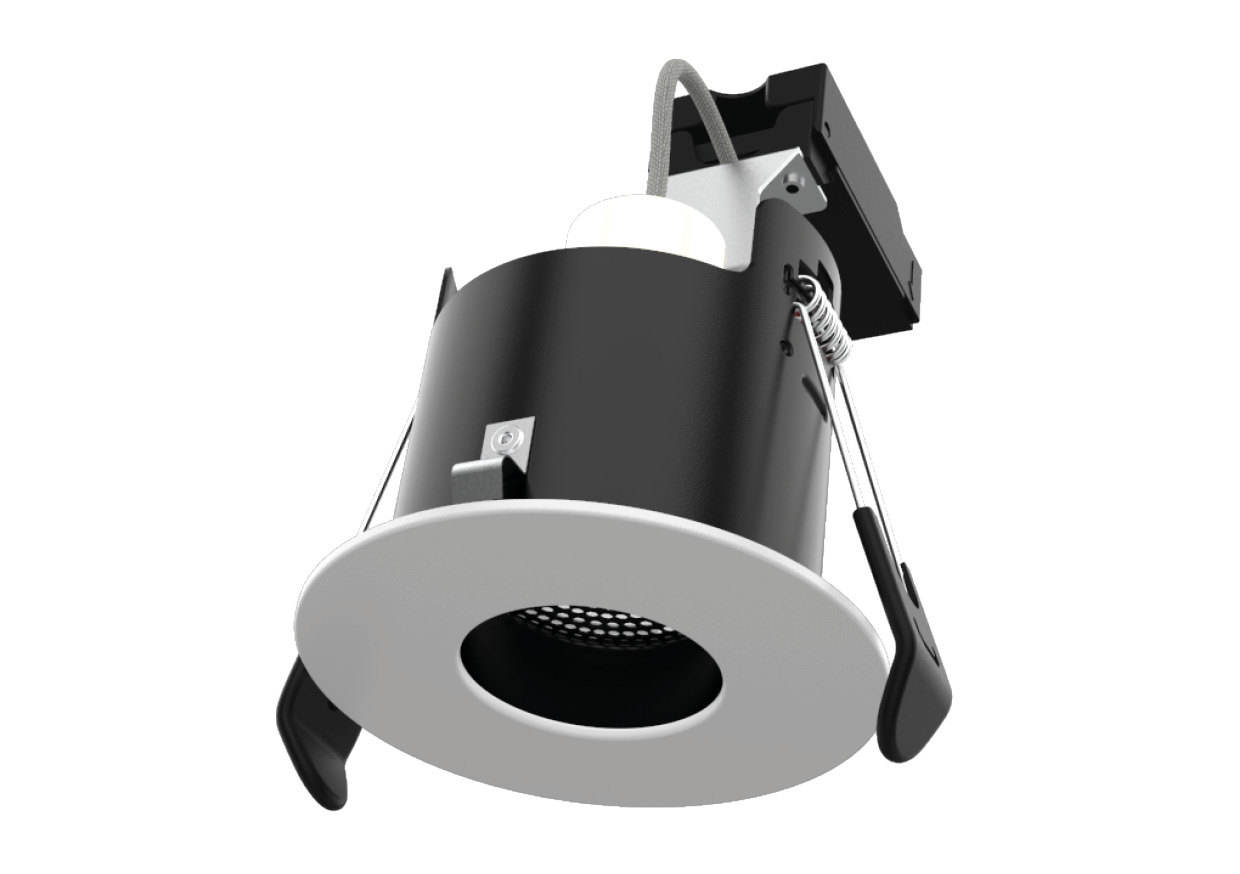

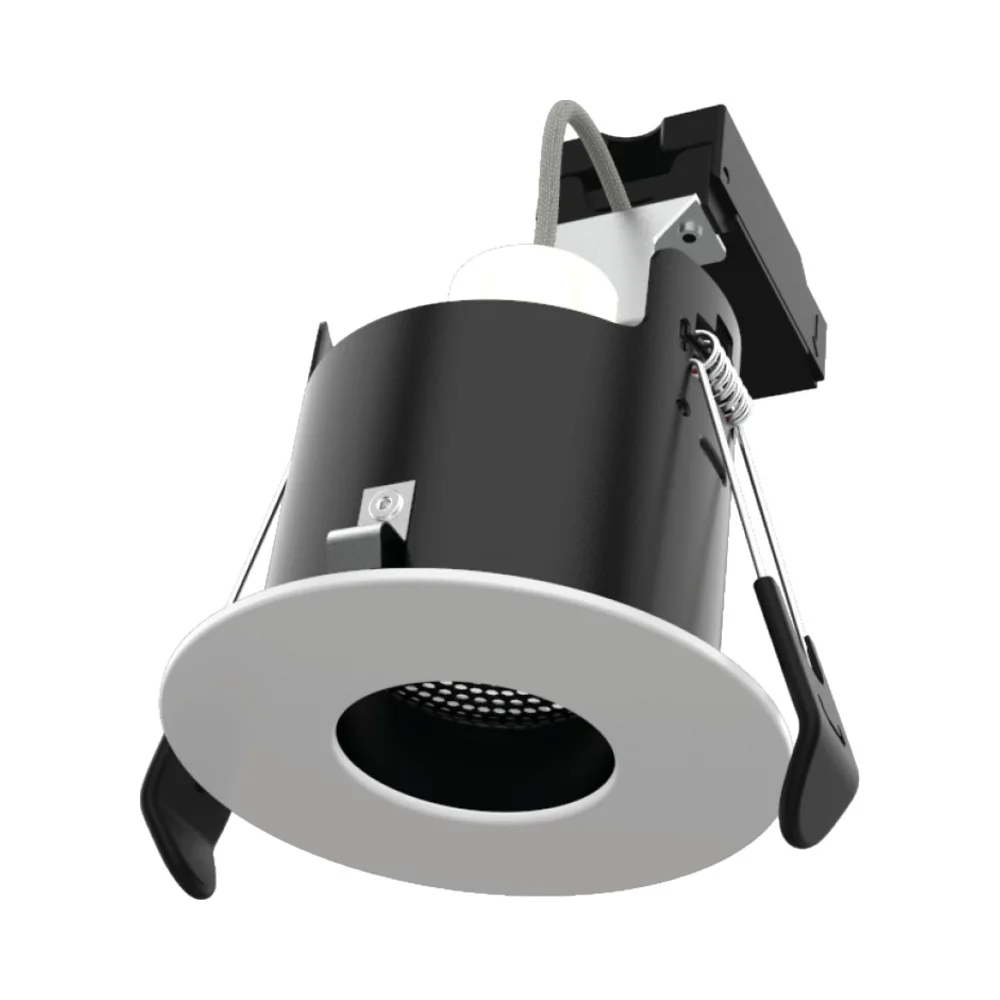

ALL LED AFDP75 iCan75 Platinum Anti-Glare GU10 Fire Rated Downlight – 75mm Cut-Out
The ALL LED AFDP75 iCan75 Platinum Anti-Glare GU10 Fire Rated Downlight combines fire-rated ceiling protection with refined lighting control. Designed for professional installations, this premium downlight features a 75mm cut-out, push-fit wiring terminals and a customisable anti-glare system for residential and commercial interiors.
Part of the ALL LED iCan75 Platinum range, the AFDP75 provides flexibility in both appearance and light distribution. Its interchangeable baffle options, available in Carbon Black and Polar White, allow installers to create a coordinated finish, while the removable honeycomb insert helps reduce direct glare from the GU10 lamp.
The downlight offers 30, 60 and 90-minute fire ratings for specified timber joist constructions and 30-minute protection for specified Staircraft iJoist applications. Acoustic performance features also make it suitable for projects where sound transmission through ceilings is a consideration.
Please note: Bezels are sold separately. Select a compatible iCan75 Platinum bezel to complete your installation.
Premium Anti-Glare Lighting Control
The ALL LED AFDP75 iCan75 Platinum Anti-Glare GU10 Fire Rated Downlight is designed for applications where visual comfort is particularly important. Its customisable baffle arrangement and removable honeycomb insert allow the appearance of the fitting and the level of glare control to be tailored to the room.
Choose from Carbon Black or Polar White baffles to complement darker or lighter ceiling finishes. The honeycomb accessory helps shield direct views of the lamp, making the Platinum range an attractive option for living rooms, bedrooms, hospitality settings and other interiors requiring comfortable illumination.
Key Features of the AFDP75 Platinum Downlight
- 75mm ceiling cut-out for the iCan75 Platinum system
- 30, 60 and 90-minute fire ratings for specified timber joist constructions
- 30-minute fire rating for specified Staircraft iJoist constructions
- Customisable anti-glare baffle system
- Carbon Black and Polar White baffle options
- Removable honeycomb insert for additional glare control
- Compatible fixed and adjustable bezel options
- Twist-and-lock bezel installation system
- Push-fit terminals for straightforward electrical connections
- Acoustic-rated design
- IP-rated glass for suitable applications
- Optional insulation covers and trimless installation kits
Technical Specifications
- Brand: ALL LED
- Product Code: AFDP75
- Product Range: iCan75 Platinum
- Product Type: Anti-glare GU10 fire-rated downlight
- Ceiling Cut-Out: 75mm
- Lamp Compatibility: GU10
- Fire Rating: 30 / 60 / 90 minutes for specified timber joist constructions
- iJoist Fire Rating: 30 minutes for specified Staircraft constructions
- Connection Type: Push-fit terminals
- Bezel Installation: Twist-and-lock
- Bezel Options: Fixed and adjustable
- Baffle Finishes: Carbon Black and Polar White
- Anti-Glare Feature: Removable honeycomb insert
- Additional Features: Acoustic-rated design and IP-rated glass
- Compatible Accessories: Insulation covers and trimless kits
- Bezel: Sold separately

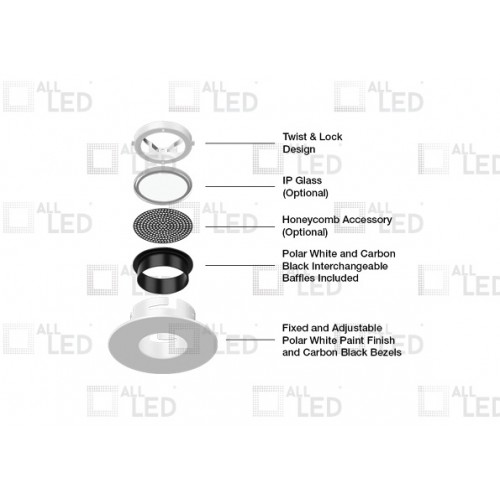

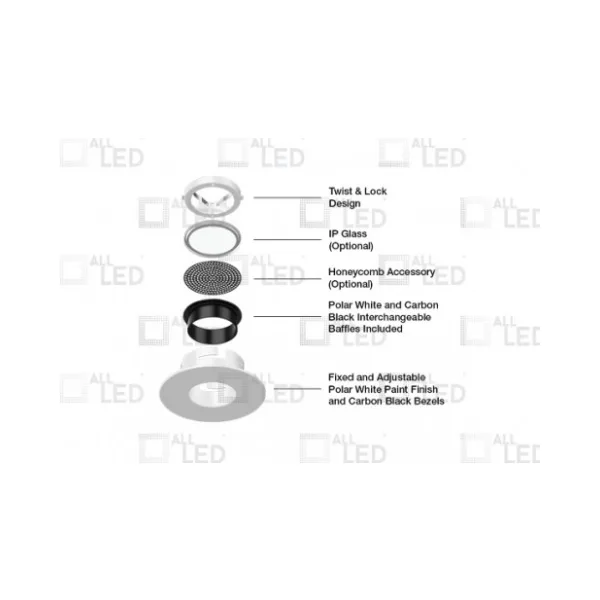

Customisable Platinum Bezels and Baffles
Unlike a conventional one-piece downlight, the iCan75 Platinum system offers greater flexibility when selecting the visible finish. Compatible fixed and adjustable bezels are available in Carbon Black and Polar White, allowing the appearance to be matched to the lighting scheme.
The customisable baffle and removable honeycomb insert provide additional options for controlling direct glare. This makes the ALL LED AFDP75 iCan75 Platinum Anti-Glare GU10 Fire Rated Downlight particularly useful for installations where lighting comfort and architectural appearance are priorities.
Explore our iCan75 downlight bezels and confirm compatibility with the Platinum range before ordering.
Installer-Friendly Push-Fit Wiring
The AFDP75 uses push-fit terminals to simplify electrical connections and reduce the need for conventional screw-terminal wiring. Combined with the twist-and-lock bezel arrangement, this helps make installation more convenient for electricians working across multiple ceiling fittings.
The downlight is suitable for both new installations and refurbishment projects where a fire-rated GU10 fitting with a premium appearance is required.
Fire-Rated and Acoustic Performance
The ALL LED AFDP75 iCan75 Platinum Anti-Glare GU10 Fire Rated Downlight provides 30, 60 and 90-minute fire ratings for specified timber joist constructions, together with 30-minute protection for specified Staircraft iJoist applications.
Its acoustic-rated design supports installations where sound transmission is a consideration. Always check the manufacturer’s relevant fire and acoustic test documentation to confirm suitability for the intended ceiling construction.
What’s Included?
- 1 × ALL LED AFDP75 iCan75 Platinum downlight housing
- Integrated push-fit terminal arrangement
Important: Decorative bezels are sold separately. Confirm the selected configuration and included anti-glare accessories before installation.
Suitable Applications
The ALL LED AFDP75 iCan75 Platinum Anti-Glare GU10 Fire Rated Downlight is suitable for a variety of interior lighting projects, including:
- Living rooms, bedrooms and dining areas
- High-quality residential developments
- Hotels and hospitality interiors
- Offices and commercial spaces
- Architectural and decorative ceiling lighting
- Directional illumination with compatible adjustable bezels
- Projects requiring compatible fire-rated ceiling protection
- Interiors where reduced glare and visual comfort are priorities
Complete Your Installation with Compatible Accessories
Find suitable lighting components and related downlights at Electrical4Less:
- Bezels for iCan75 Downlights – check the available compatible bezel options.
- Accessories for iCan75 Downlights – explore installation accessories and specialist components.
- ALL LED GU10 Lamps – choose suitable LED lamps for your lighting requirements.
Alternative ALL LED Fire Rated Downlights
- ALL LED AFD75 iCan75 GU10 Fire Rated Downlight – standard 75mm cut-out downlight with interchangeable bezel options.
- ALL LED AFD65 iCan65 GU10 Fire Rated Downlight – compact alternative with a 65mm ceiling cut-out.
Why Choose the ALL LED AFDP75 iCan75 Platinum?
The ALL LED AFDP75 iCan75 Platinum Anti-Glare GU10 Fire Rated Downlight offers a combination of fire-rated construction, acoustic performance and customisable lighting appearance. Its interchangeable baffles, removable honeycomb insert and push-fit wiring provide practical advantages for installers and greater design flexibility for the finished room.
