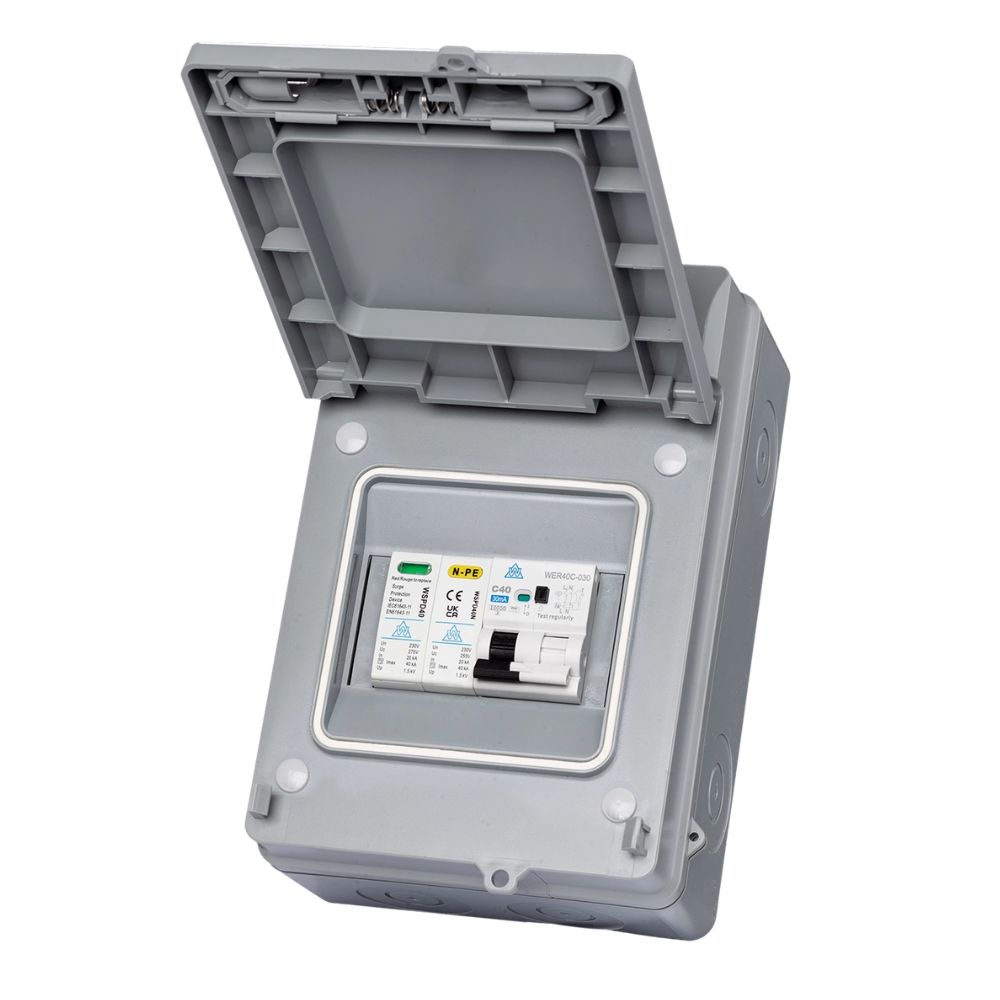

WCED IP65 EV Consumer Unit WPRC40CSP
WCED IP65 EV Consumer Unit WPRC40CSP is a weatherproof electric vehicle charger consumer unit designed for dedicated outdoor EV charging installations. It is supplied with a 40A Type A high immunity double pole C Curve RCBO, Type 2 surge protection device and IP65 rated enclosure, providing practical EV charger circuit protection for outdoor domestic and light commercial installations.
The WCED IP65 EV Consumer Unit WPRC40CSP is suitable for installations where a dedicated 40A EV charging circuit with C Curve protection is required. It provides 30mA AC and 6mA DC residual current detection, with an IP65 enclosure suitable for outdoor locations when installed correctly by a qualified electrician.
The installer should confirm the correct RCBO curve, circuit rating, cable size, enclosure position, glands and cable entries before installation to help maintain the IP65 rating and meet the requirements of the charger and property.
Key Features
- WCED IP65 EV Consumer Unit WPRC40CSP for outdoor EV charger installations
- Model / SKU: WPRC40CSP
- Supplied with 40A Type A high immunity double pole C Curve RCBO
- Type 2 SPD included for surge protection
- Residual current detection: 30mA AC and 6mA DC
- IP65 rated enclosure for suitable outdoor installation
- Suitable for domestic and light commercial EV charging applications
- Compact all-in-one unit for dedicated EV charger circuit protection
Technical Data
- Brand: WCED
- Model / SKU: WPRC40CSP
- Product type: IP65 EV consumer unit
- RCBO type: Type A high immunity double pole
- RCBO rating: 40A C Curve
- Surge protection: Type 2 SPD included
- Residual current detection: 30mA AC and 6mA DC
- Enclosure rating: IP65
- Application: Outdoor EV charger circuit protection
- Installation type: Dedicated EV charging circuit
Typical Applications
- Outdoor domestic EV charger installations
- Driveway and external wall-mounted EV charging setups
- Small commercial EV charging points
- Dedicated 40A EV charger circuits requiring C Curve protection
- Installations requiring combined RCBO and surge protection in an IP65 enclosure
Planning the Charger and Outdoor Supply
For a complete EV charging setup, the charger, protective device, cable route and accessories should be selected together. If you are also choosing the charger itself, browse our Ohme charger range, including Ohme Home Pro and Ohme ePod smart EV charger options.
For other board types, you can also view our main consumer units category. Depending on the installation design, you may also need suitable EV cables, EV cable clips and additional EV circuit protection.
Related IP65 WCED EV Consumer Units
Please see below other IP65 variants of this WCED EV consumer unit:
- IP65 WCED 32A B Curve EV consumer unit with Type A DP RCBO and SPD
- IP65 WCED 32A C Curve EV consumer unit with Type A DP RCBO and SPD
- IP65 WCED 40A B Curve EV consumer unit with Type A DP RCBO and SPD
Indoor EV Consumer Unit Options
If the unit will be installed indoors, these WCED EV consumer unit options may also be suitable depending on the required rating and tripping curve:
- WCED 32A B Curve EV consumer unit with Type A DP RCBO and SPD
- WCED 32A C Curve EV consumer unit with Type A DP RCBO and SPD
- WCED 40A B Curve EV consumer unit with Type A DP RCBO and SPD
- WCED 40A C Curve EV consumer unit with Type A DP RCBO and SPD
Type B RCD EV Consumer Unit Options
If the installation design requires a Type B RCD arrangement, please check the options below:
- IP65 EV consumer unit with Type B 40A RCD and C40 MCB
- EV consumer unit with Type B 40A RCD and C40 MCB
FAQs
Is the WCED IP65 EV Consumer Unit WPRC40CSP suitable for outdoor installation?
Yes. The WCED IP65 EV Consumer Unit WPRC40CSP is designed for suitable outdoor EV charger circuit protection when installed correctly with appropriate glands, fixings and cable entries to help maintain the enclosure rating.
What RCBO is supplied with this unit?
This unit is supplied with a 40A Type A high immunity double pole C Curve RCBO.
Does this unit include surge protection?
Yes. The WPRC40CSP includes a Type 2 surge protection device.
When would a C Curve RCBO be used?
A C Curve RCBO may be specified where the installation design requires higher short-duration inrush current tolerance than a B Curve device. The correct curve should always be confirmed by the electrician.
Who should install this EV consumer unit?
This EV consumer unit should be selected, installed and tested by a qualified electrician in accordance with current UK wiring regulations, the EV charger manufacturer’s instructions and the requirements of the property.
Installation Notes
EV consumer units should be selected and installed by a qualified electrician. For outdoor installations, the installer should confirm the mounting location, enclosure rating, glands, cable entries, fixings, cable route and all protection requirements before installation.
