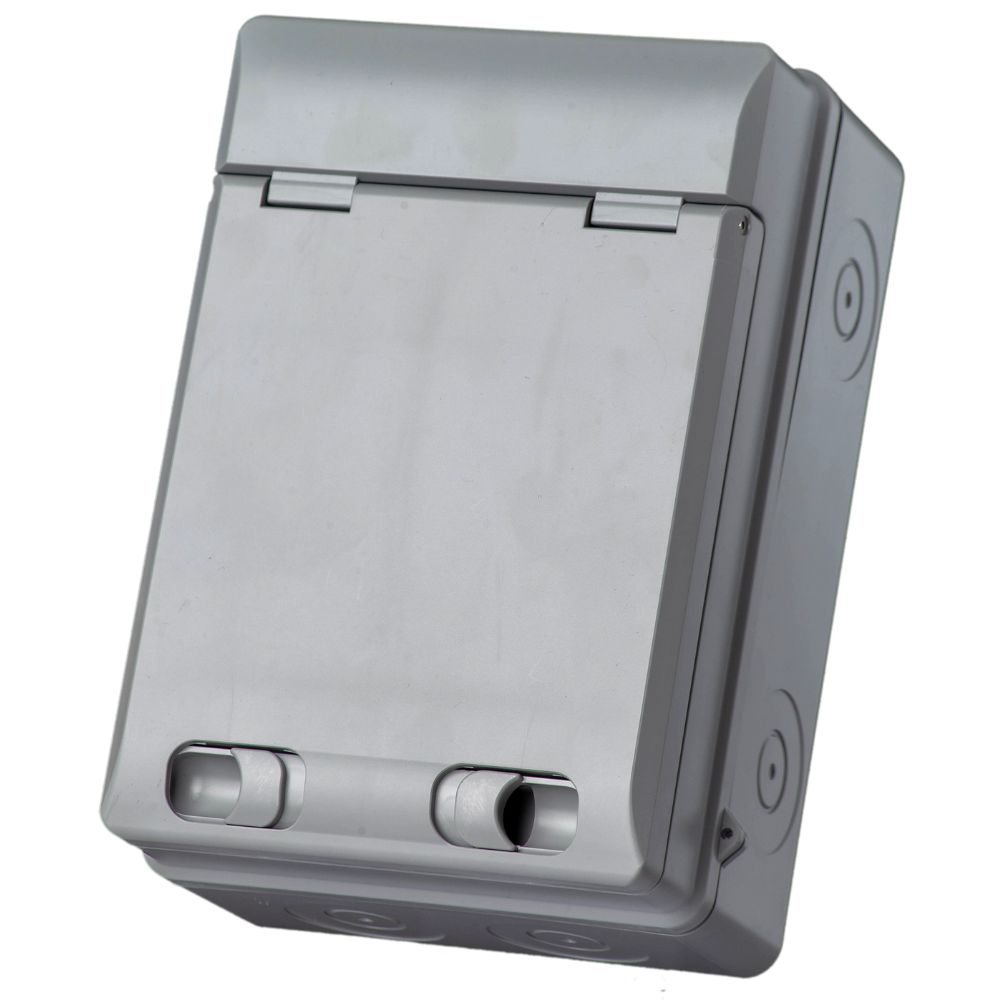

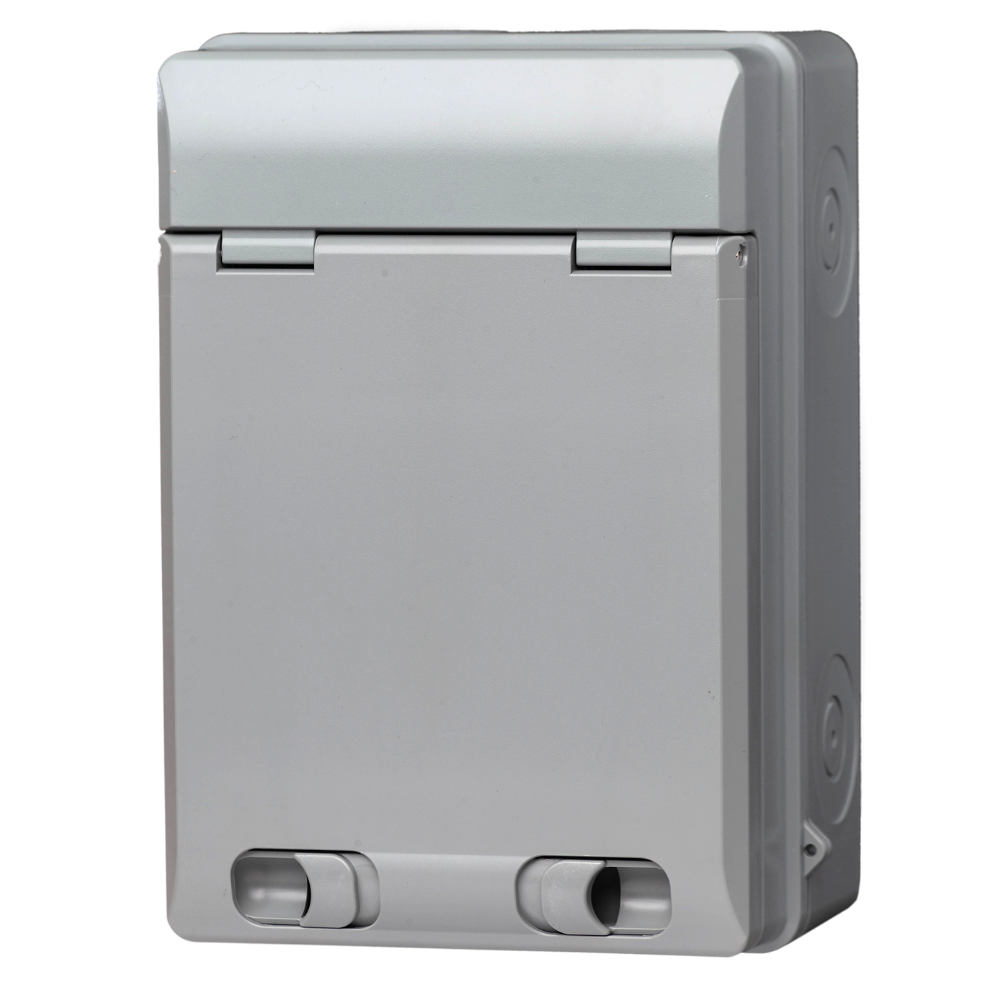

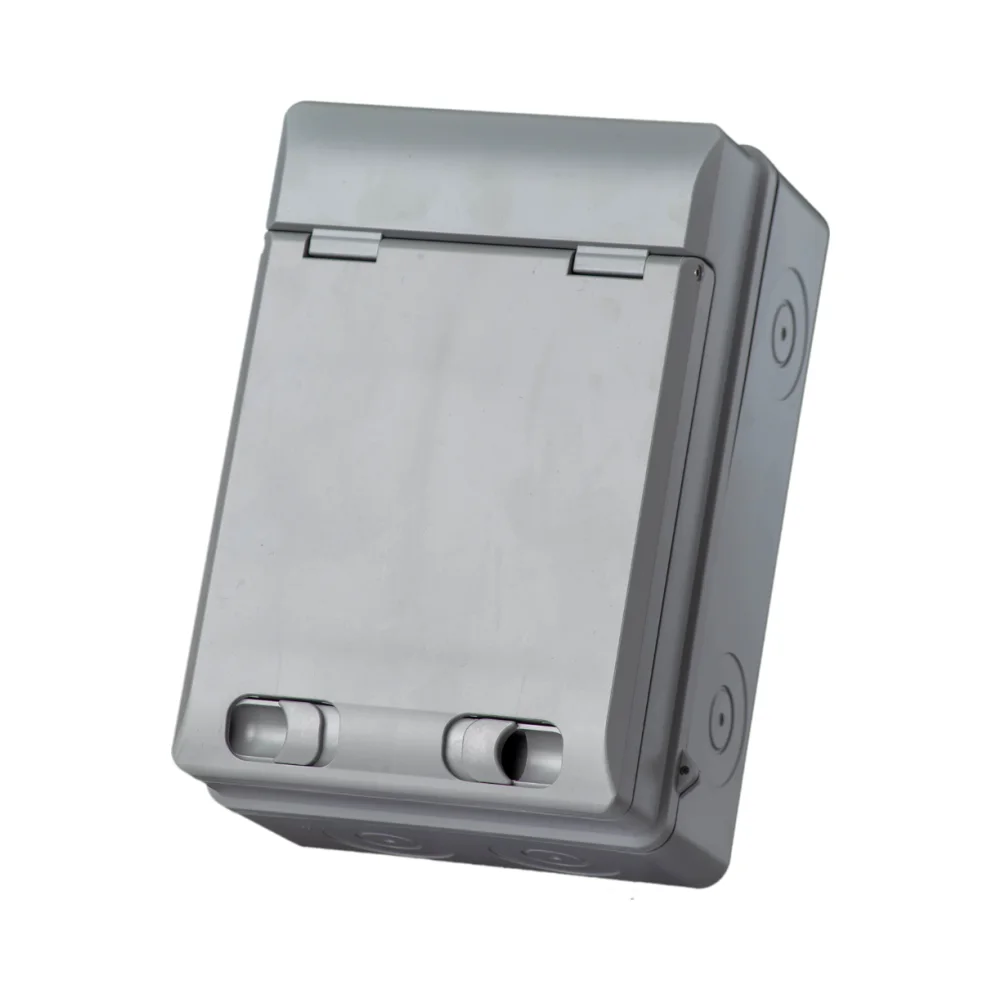

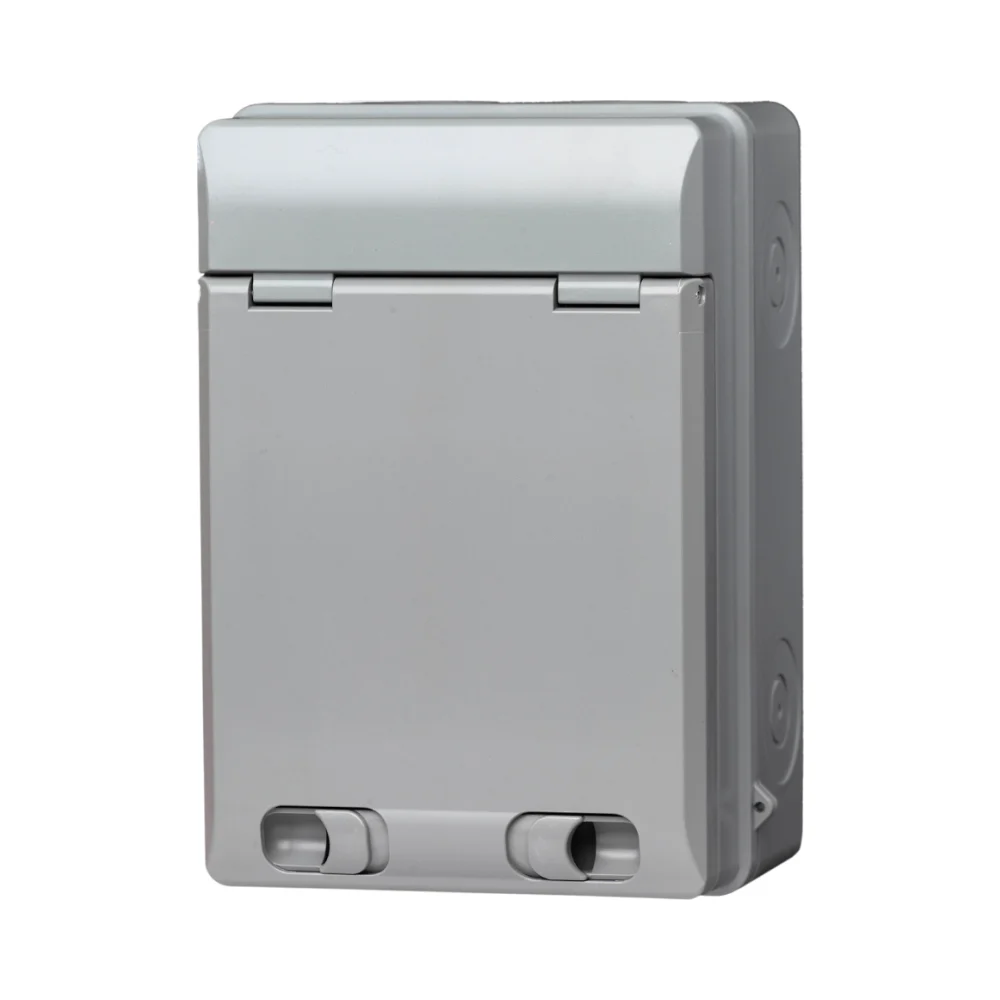

WCED IP65 EV Consumer Unit WPRC32CSP

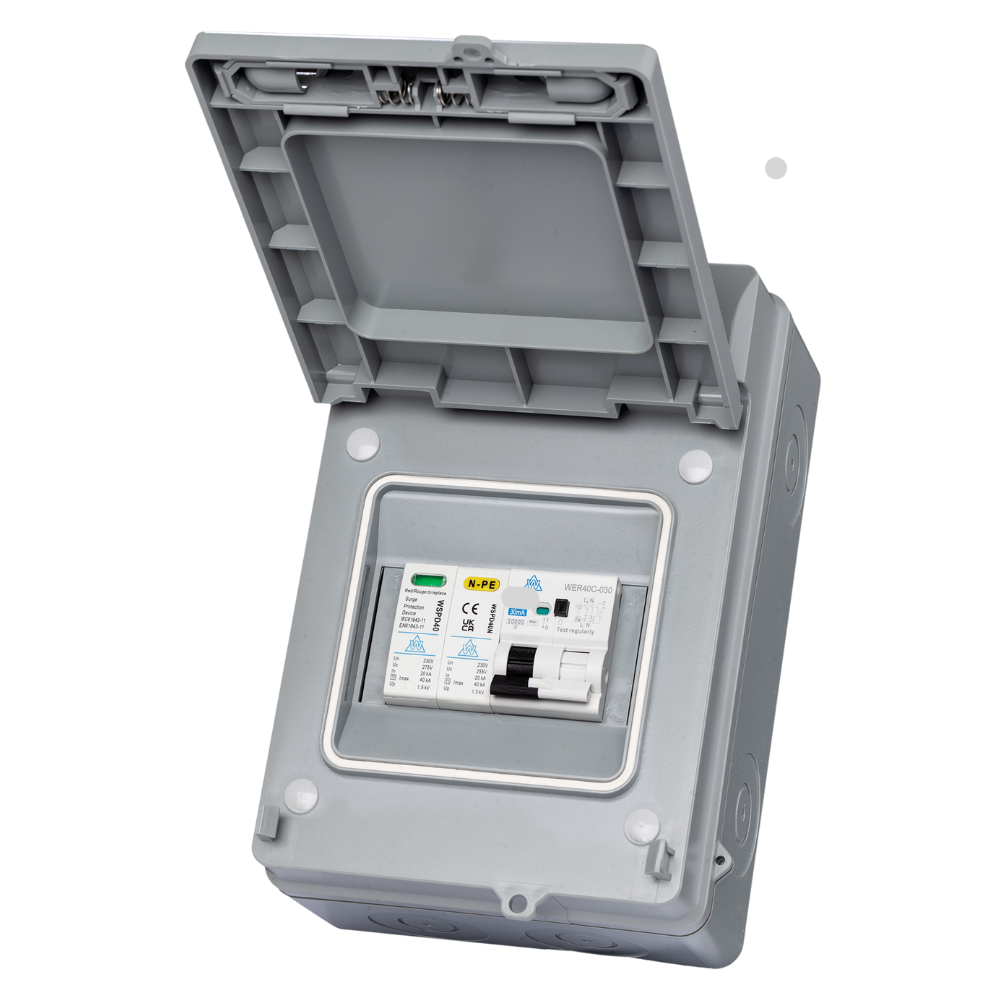

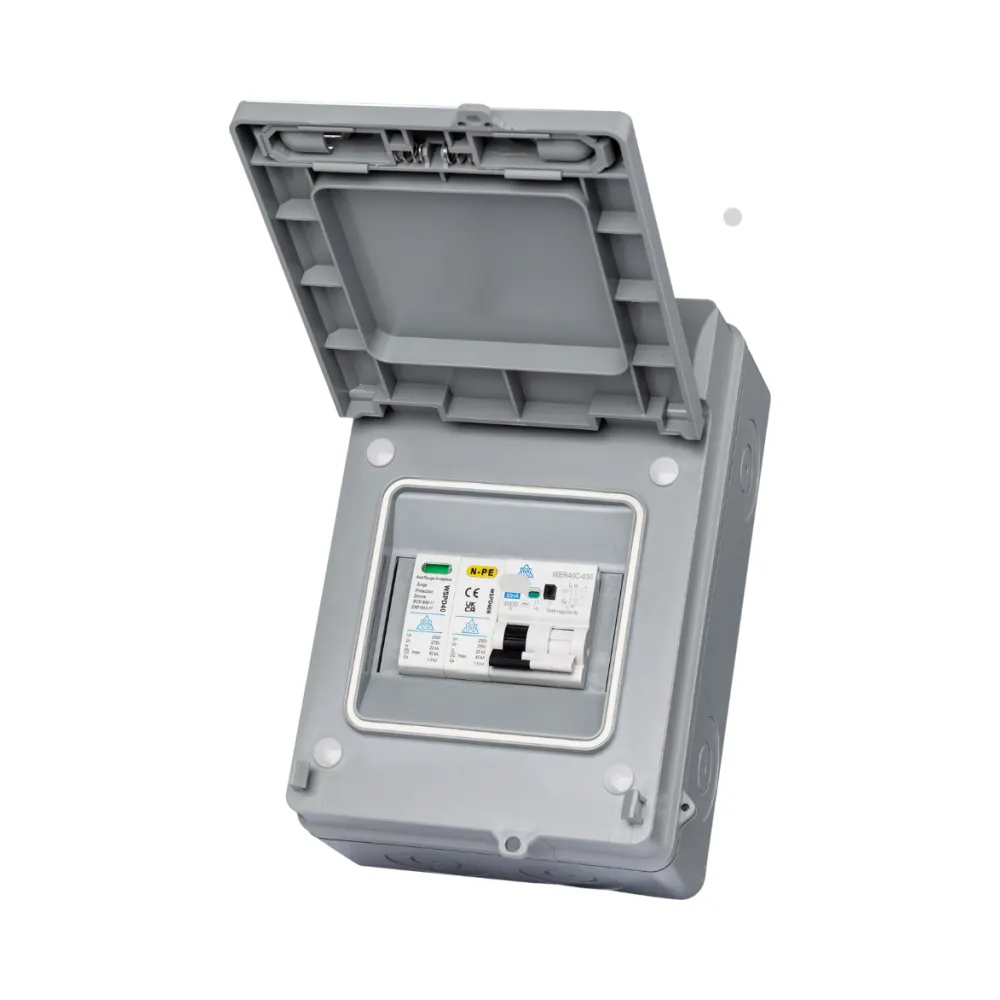

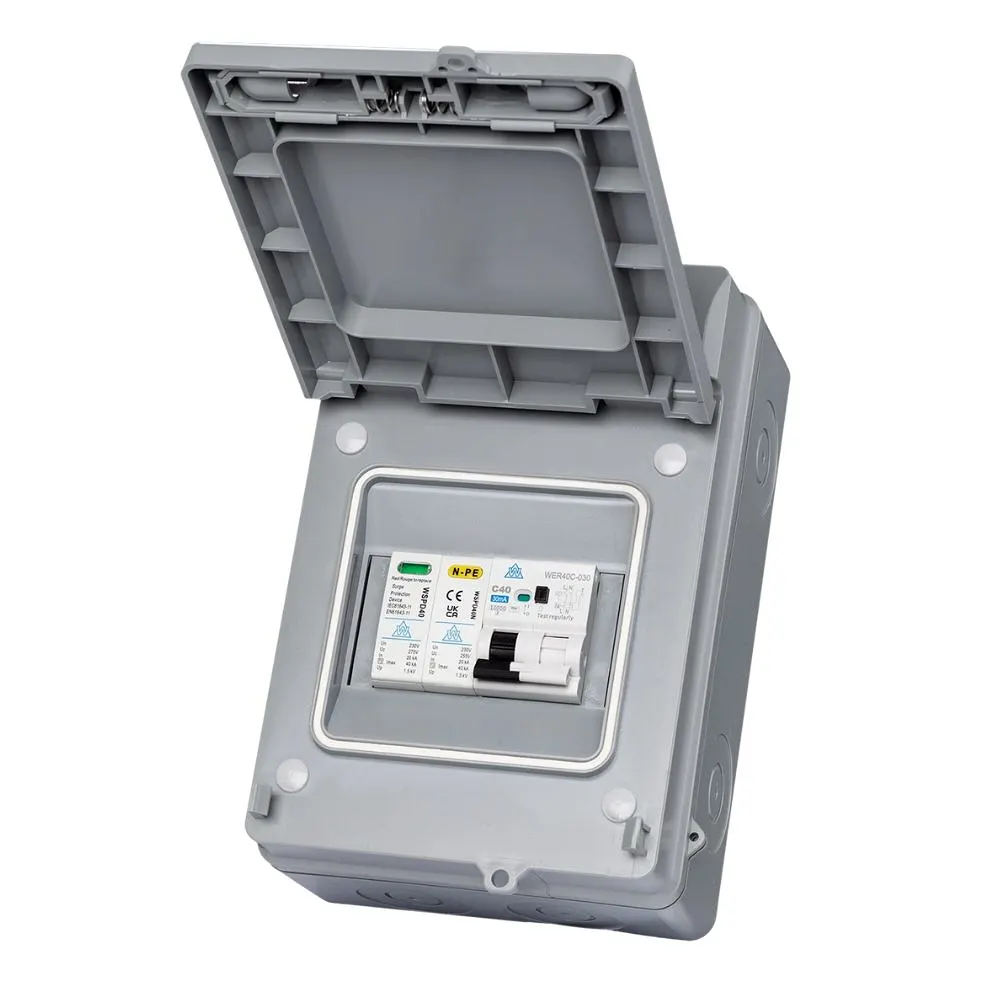

WCED IP65 EV Consumer Unit WPRC32CSP is a weatherproof electric vehicle charger consumer unit designed for dedicated outdoor EV charging installations. It is supplied with a 32A Type A high immunity double pole C Curve RCBO, Type 2 surge protection device and IP65 rated enclosure, providing practical protection for domestic and light commercial EV charger setups.
The WCED IP65 EV Consumer Unit WPRC32CSP is suitable for installations where a dedicated 32A EV charging circuit with C Curve protection is required. It provides 30mA AC and 6mA pulsating DC residual current detection, with an IP65 enclosure suitable for outdoor locations when installed correctly by a qualified electrician.
The installer should confirm the correct device rating, tripping curve, cable size, charger requirements and enclosure installation method before fitting. For outdoor installations, suitable glands, fixings and cable entries should be used to help maintain the IP65 rating.
Key Features
- WCED IP65 EV Consumer Unit WPRC32CSP for outdoor EV charger installations
- Model / SKU: WPRC32CSP
- Supplied with 32A Type A high immunity double pole C Curve RCBO
- Type 2 SPD included for surge protection
- Residual current detection: 30mA AC and 6mA pulsating DC
- IP65 rated enclosure for suitable outdoor installation
- Suitable for domestic and light commercial EV charging applications
- Compact all-in-one unit for dedicated EV charger circuit protection
Technical Data
- Brand: WCED
- Model / SKU: WPRC32CSP
- Product type: IP65 EV consumer unit
- RCBO type: Type A high immunity double pole
- RCBO rating: 32A C Curve
- Surge protection: Type 2 SPD included
- Residual current detection: 30mA AC and 6mA pulsating DC
- Enclosure rating: IP65
- Application: Outdoor EV charger circuit protection
- Installation type: Dedicated EV charging circuit
Typical Applications
- Outdoor domestic EV charger installations
- Driveway and external wall-mounted EV charging setups
- Small commercial EV charging points
- Dedicated 32A EV charger circuits requiring C Curve protection
- Installations requiring RCBO and surge protection in an outdoor-rated enclosure
Choosing the Charger, Cable and Outdoor Protection
This WCED IP65 unit can form part of a dedicated outdoor EV charger supply where 32A C Curve protection has been specified. If the charger is still being chosen, view our Ohme chargers, including tethered Home Pro and socketed ePod options.
To complete the installation, you may also need suitable EV cables and EV cable clips for the cable route. For wider protection options, browse our EV circuit protection category or view our main consumer units range.
Other IP65 WCED EV Consumer Units
Other outdoor WCED EV consumer unit variants are available below, depending on the required current rating and tripping curve:
- IP65 WCED 32A B Curve EV consumer unit with Type A DP RCBO and SPD
- IP65 WCED 40A B Curve EV consumer unit with Type A DP RCBO and SPD
- IP65 WCED 40A C Curve EV consumer unit with Type A DP RCBO and SPD
Indoor WCED EV Consumer Unit Options
For indoor installations, the following WCED EV consumer unit options may be suitable, subject to the required charger rating and installation design:
- WCED 32A B Curve EV consumer unit with Type A DP RCBO and SPD
- WCED 32A C Curve EV consumer unit with Type A DP RCBO and SPD
- WCED 40A B Curve EV consumer unit with Type A DP RCBO and SPD
- WCED 40A C Curve EV consumer unit with Type A DP RCBO and SPD
Alternative Type B RCD EV Consumer Units
Where the installation design calls for a Type B RCD arrangement, please check these alternative WCED EV consumer unit options:
- IP65 EV consumer unit with Type B 40A RCD and C40 MCB
- EV consumer unit with Type B 40A RCD and C40 MCB
FAQs
Is the WCED IP65 EV Consumer Unit WPRC32CSP suitable for outdoor EV charger installations?
Yes. The WCED IP65 EV Consumer Unit WPRC32CSP is designed for suitable outdoor EV charger circuit protection when installed correctly with suitable glands, fixings and cable entries to help maintain the enclosure rating.
What RCBO is supplied with this unit?
This unit is supplied with a 32A Type A high immunity double pole C Curve RCBO.
Does the WPRC32CSP include surge protection?
Yes. The WPRC32CSP includes a Type 2 surge protection device.
What is the difference between this and the 40A version?
This WPRC32CSP version is supplied with a 32A C Curve RCBO. The 40A versions are used where a 40A EV charging circuit has been specified by the installer.
Who should install this EV consumer unit?
This EV consumer unit should be selected, installed and tested by a qualified electrician in accordance with current UK wiring regulations, the EV charger manufacturer’s instructions and the requirements of the property.
Installation Notes
EV consumer units should be selected and installed by a qualified electrician. For outdoor installations, the installer should confirm the charger requirements, circuit design, enclosure mounting position, glands, cable entries, fixings and cable route before installation.
