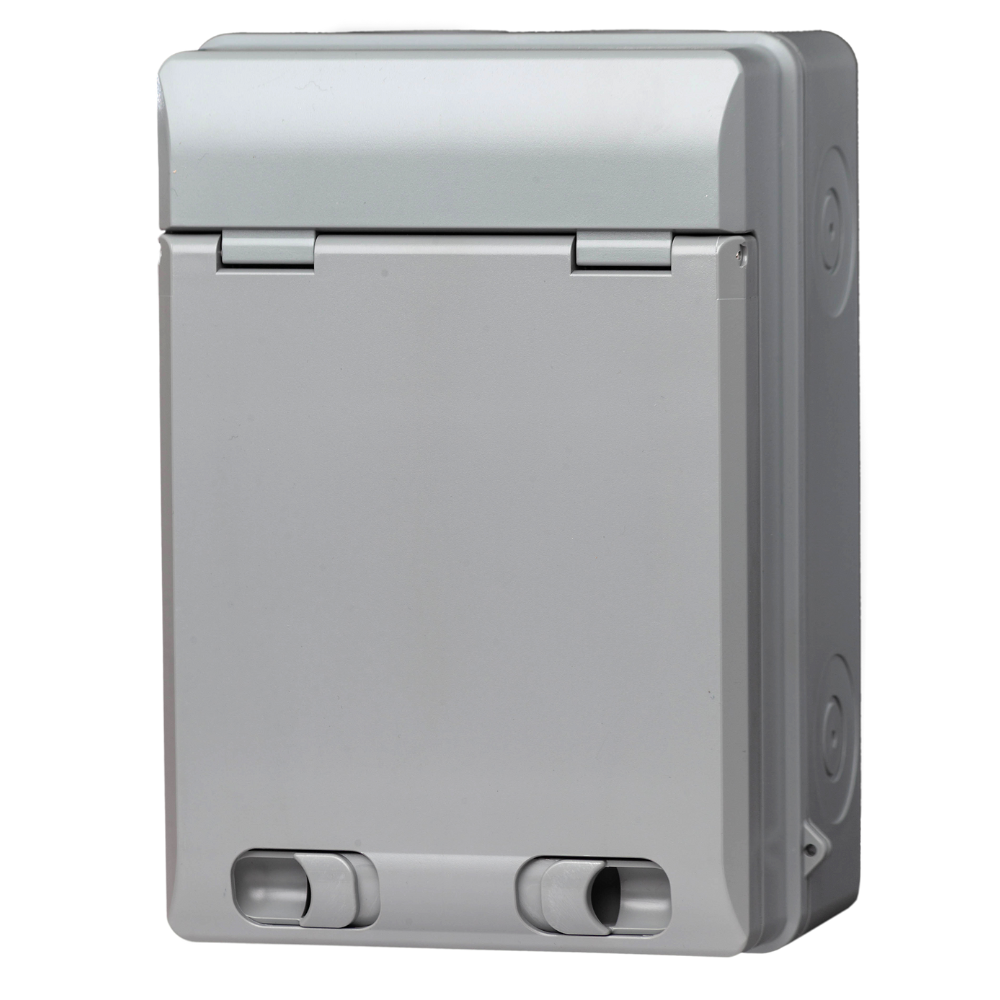

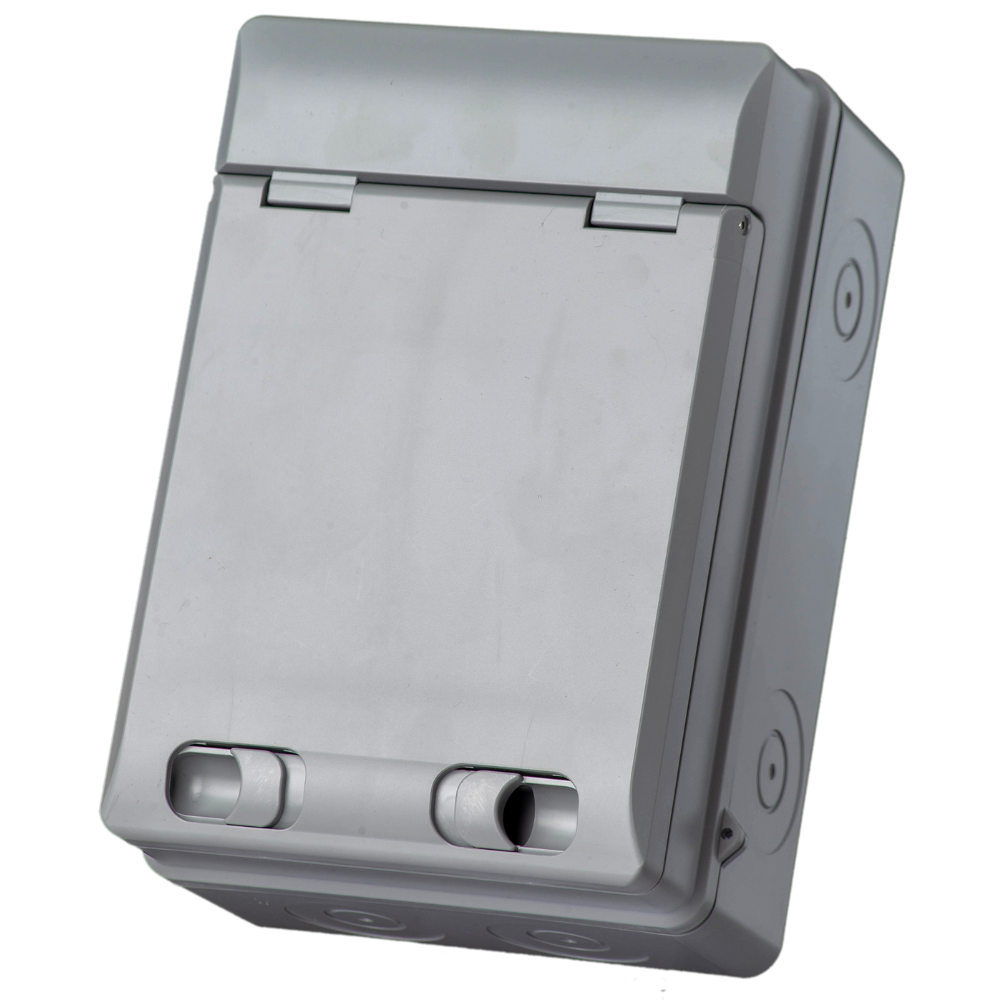

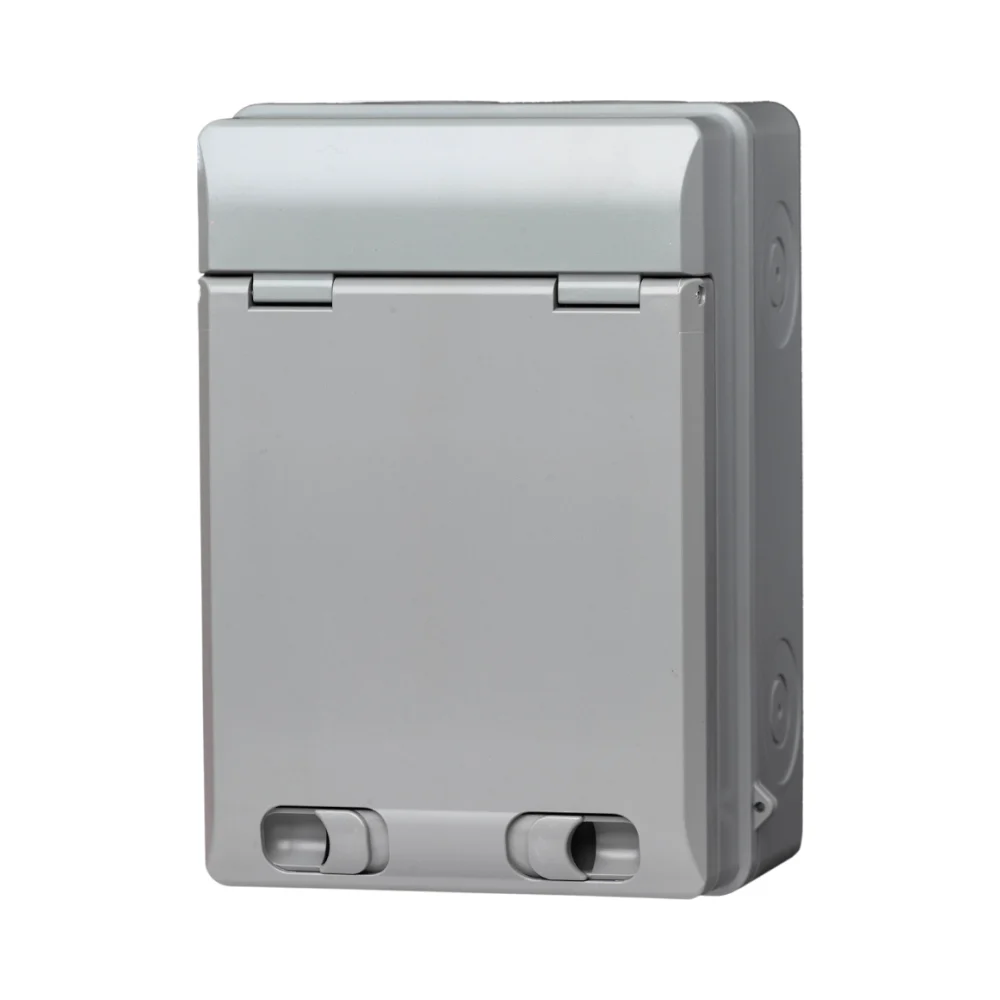

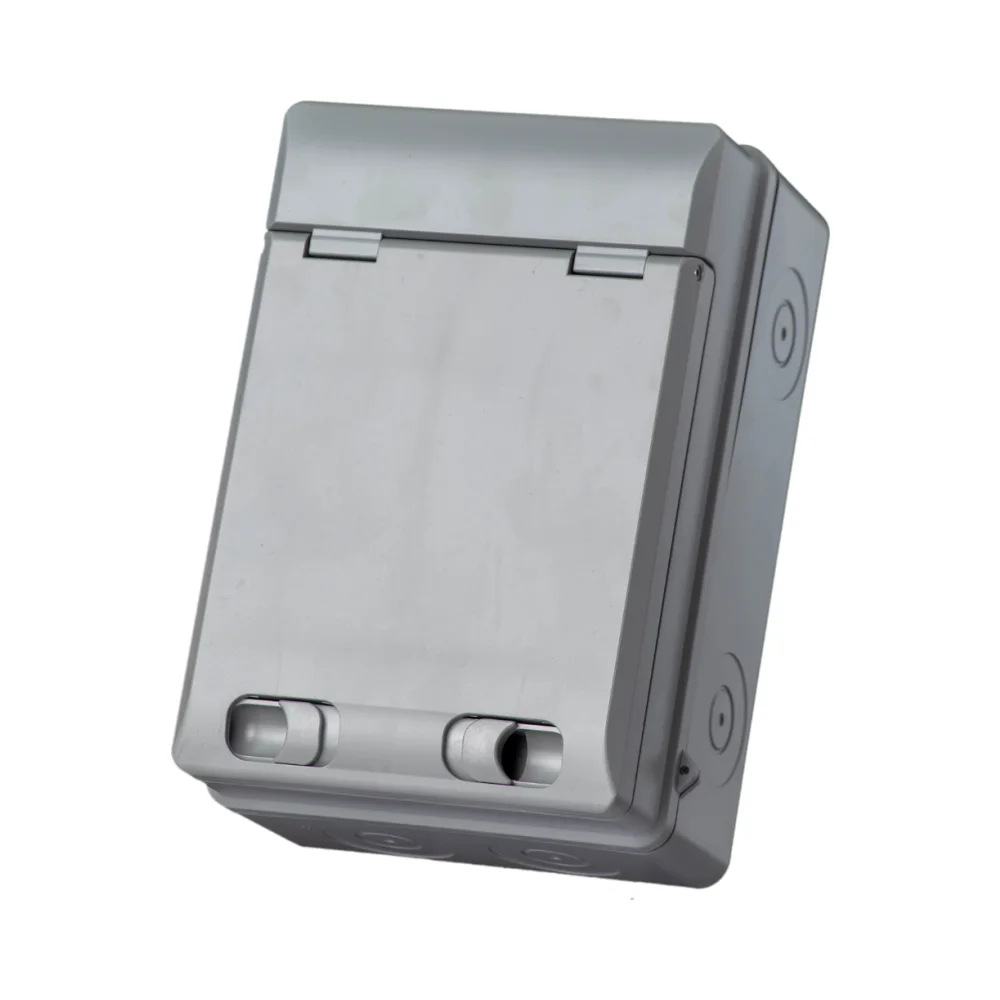

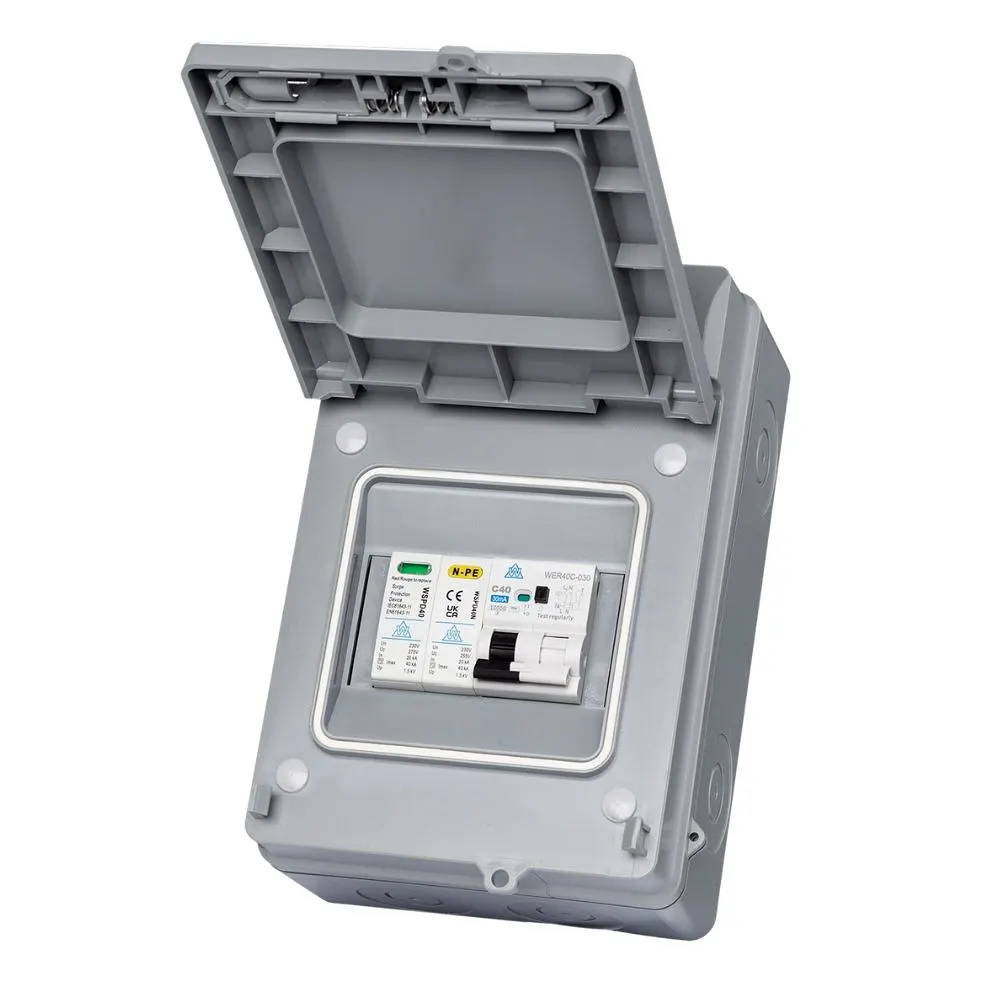

WCED IP65 EV Consumer Unit WPRC32BSP

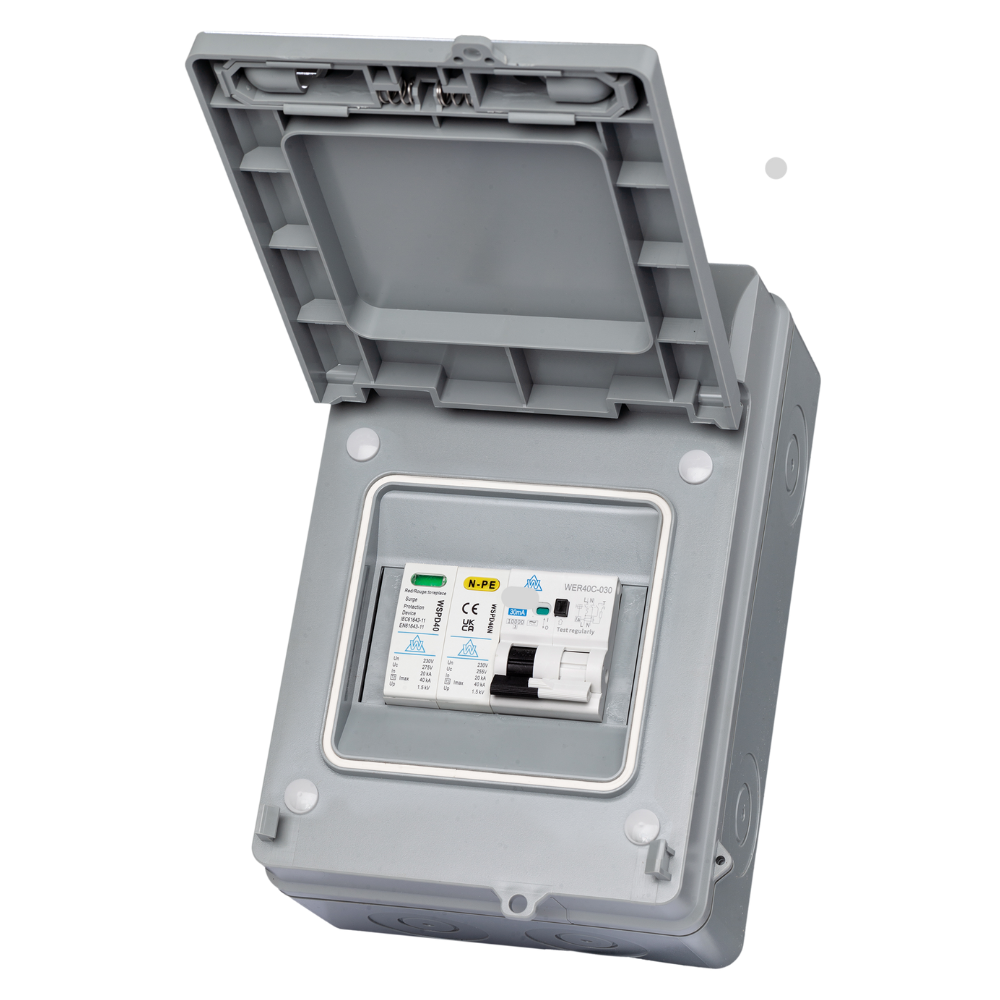

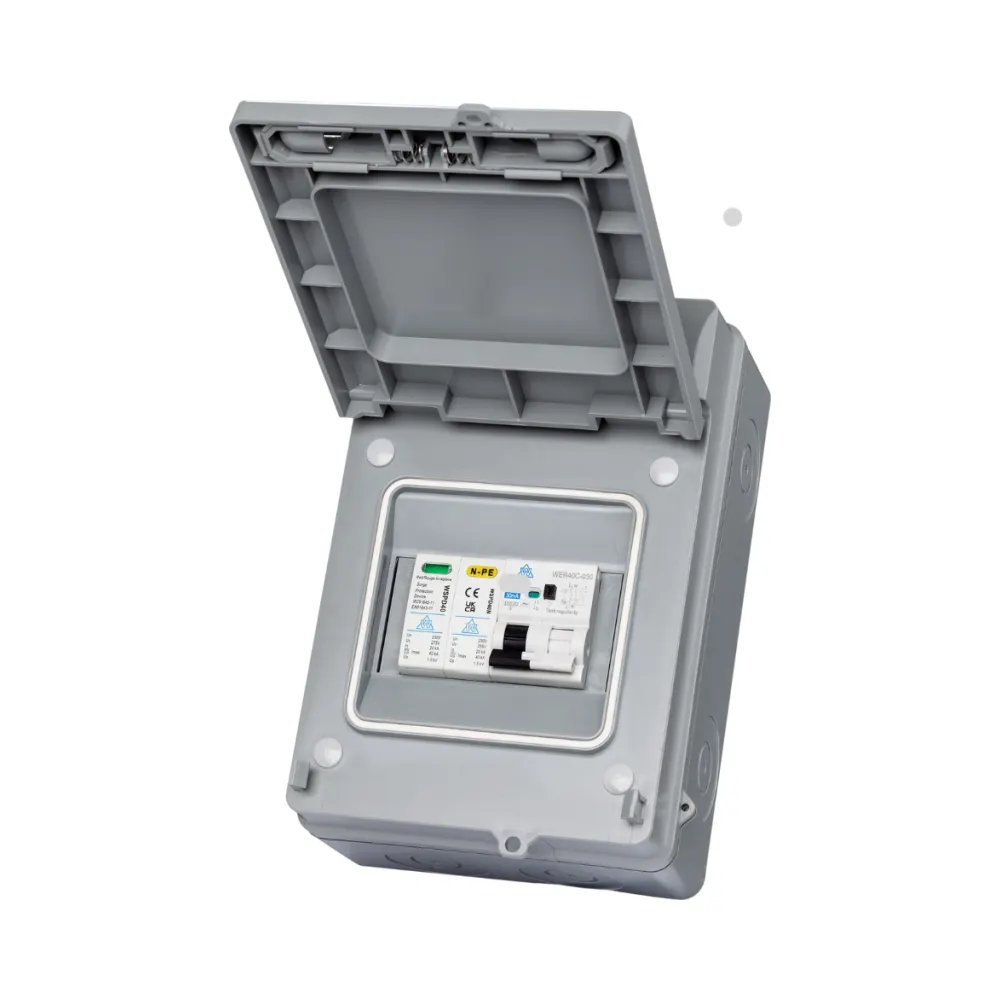

WCED IP65 EV Consumer Unit WPRC32BSP is a weatherproof electric vehicle charger consumer unit designed for dedicated outdoor EV charging installations. It is supplied with a 32A Type A high immunity double pole B Curve RCBO, Type 2 surge protection device and IP65 rated enclosure, providing practical EV charger circuit protection for domestic and light commercial outdoor installations.
The WCED IP65 EV Consumer Unit WPRC32BSP is suitable for installations where a dedicated 32A EV charging circuit with B Curve protection is required. It provides 30mA AC and 6mA pulsating DC residual current detection, with an IP65 enclosure suitable for outdoor locations when installed correctly by a qualified electrician.
For outdoor use, the installer should confirm the mounting position, cable route, glands, fixings and cable entries to help maintain the enclosure rating. The final product selection should also match the EV charger, circuit design and property requirements.
Key Features
- WCED IP65 EV Consumer Unit WPRC32BSP for outdoor EV charger installations
- Model / SKU: WPRC32BSP
- Supplied with 32A Type A high immunity double pole B Curve RCBO
- Type 2 SPD included for surge protection
- Residual current detection: 30mA AC and 6mA pulsating DC
- IP65 rated enclosure for suitable outdoor installation
- Suitable for domestic and light commercial EV charging applications
- Compact all-in-one unit for dedicated EV charger circuit protection
Technical Data
- Brand: WCED
- Model / SKU: WPRC32BSP
- Product type: IP65 EV consumer unit
- RCBO type: Type A high immunity double pole
- RCBO rating: 32A B Curve
- Surge protection: Type 2 SPD included
- Residual current detection: 30mA AC and 6mA pulsating DC
- Enclosure rating: IP65
- Application: Outdoor EV charger circuit protection
- Installation type: Dedicated EV charging circuit
Typical Applications
- Outdoor domestic EV charger installations
- Driveway and external wall-mounted EV charging setups
- Small commercial EV charging points
- Dedicated 32A EV charger circuits requiring B Curve protection
- Installations requiring RCBO and Type 2 SPD protection in an IP65 enclosure
Complete the Outdoor EV Charger Setup
This WCED IP65 unit is designed for use as part of a dedicated EV charger supply where 32A B Curve protection has been specified. For the charger itself, you can browse our Ohme charger range, including Ohme Home Pro and Ohme ePod smart EV charger options.
Depending on the installation design, suitable EV cables and EV cable clips may also be required for the cable route. You can also view our wider EV circuit protection range or browse main consumer units for other board options.
Other IP65 WCED EV Consumer Units
Other outdoor WCED EV consumer unit variants are available below, depending on the required current rating and tripping curve:
- IP65 WCED 32A C Curve EV consumer unit with Type A DP RCBO and SPD
- IP65 WCED 40A B Curve EV consumer unit with Type A DP RCBO and SPD
- IP65 WCED 40A C Curve EV consumer unit with Type A DP RCBO and SPD
Indoor WCED EV Consumer Unit Options
For indoor installations, these WCED EV consumer unit options may be suitable depending on the required charger rating, protection type and tripping curve:
- WCED 32A B Curve EV consumer unit with Type A DP RCBO and SPD
- WCED 32A C Curve EV consumer unit with Type A DP RCBO and SPD
- WCED 40A B Curve EV consumer unit with Type A DP RCBO and SPD
- WCED 40A C Curve EV consumer unit with Type A DP RCBO and SPD
Type B RCD EV Consumer Unit Alternatives
Where a Type B RCD arrangement is required by the installation design, the following WCED EV consumer unit options may be considered:
- IP65 EV consumer unit with Type B 40A RCD and C40 MCB
- EV consumer unit with Type B 40A RCD and C40 MCB
FAQs
Is the WCED IP65 EV Consumer Unit WPRC32BSP suitable for outdoor EV charger installations?
Yes. The WCED IP65 EV Consumer Unit WPRC32BSP is designed for suitable outdoor EV charger circuit protection when installed correctly with suitable glands, fixings and cable entries to help maintain the enclosure rating.
What RCBO is supplied with this unit?
This unit is supplied with a 32A Type A high immunity double pole B Curve RCBO.
Does the WPRC32BSP include surge protection?
Yes. The WPRC32BSP includes a Type 2 surge protection device.
What is the difference between the B Curve and C Curve versions?
The B Curve and C Curve versions have different tripping characteristics. The correct curve should be selected by the electrician based on the circuit design, charger requirements and installation conditions.
Who should install this EV consumer unit?
This EV consumer unit should be selected, installed and tested by a qualified electrician in accordance with current UK wiring regulations, the EV charger manufacturer’s instructions and the requirements of the property.
Installation Notes
EV consumer units should be selected and installed by a qualified electrician. For outdoor installations, the installer should confirm the charger requirements, circuit design, mounting position, enclosure suitability, cable entries, glands, fixings and cable route before installation.
