WCED IP65 EV Consumer Unit WPRC40BSP

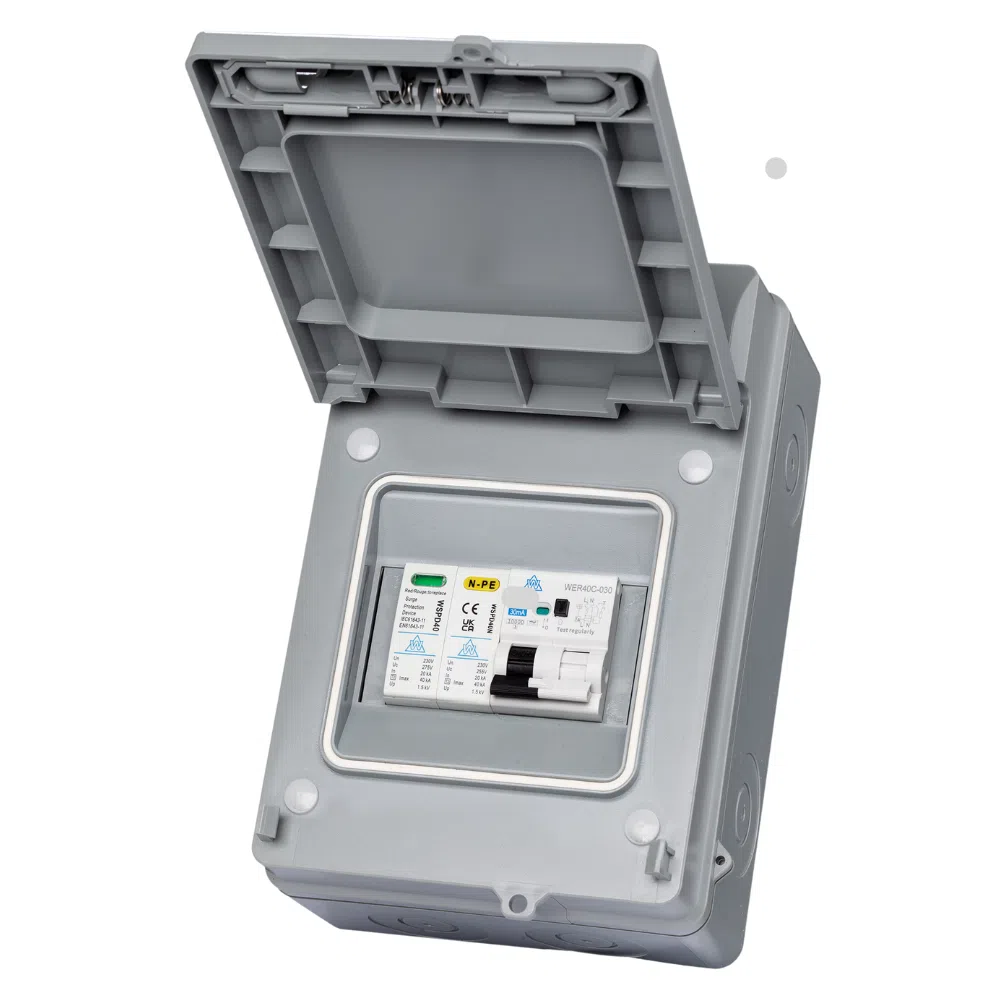

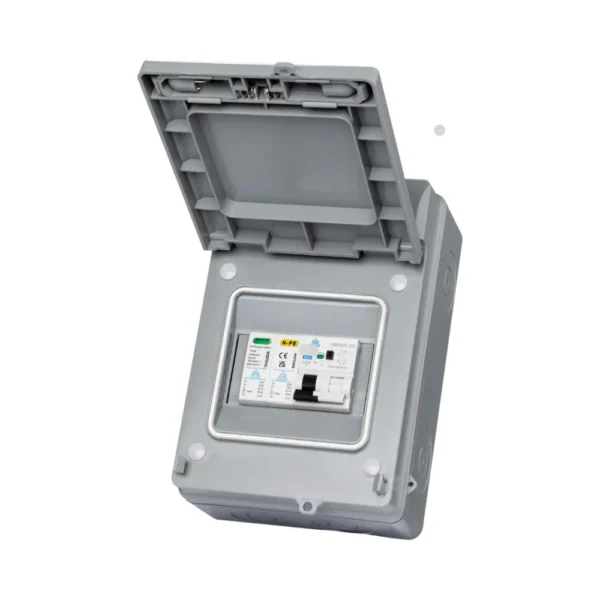

WCED IP65 EV Consumer Unit WPRC40BSP is a weatherproof electric vehicle charger consumer unit designed for dedicated outdoor EV charging installations. It is supplied with a 40A Type A double pole B Curve RCBO, integrated Type 2 surge protection device and IP65 rated enclosure, providing practical protection for domestic and light commercial EV charger setups.
The WCED IP65 EV Consumer Unit WPRC40BSP combines overcurrent protection, residual current protection and surge protection in one compact outdoor-rated enclosure. It is suitable for installations where a dedicated 40A EV charging circuit with B Curve protection is required, subject to correct design, installation and testing by a qualified electrician.

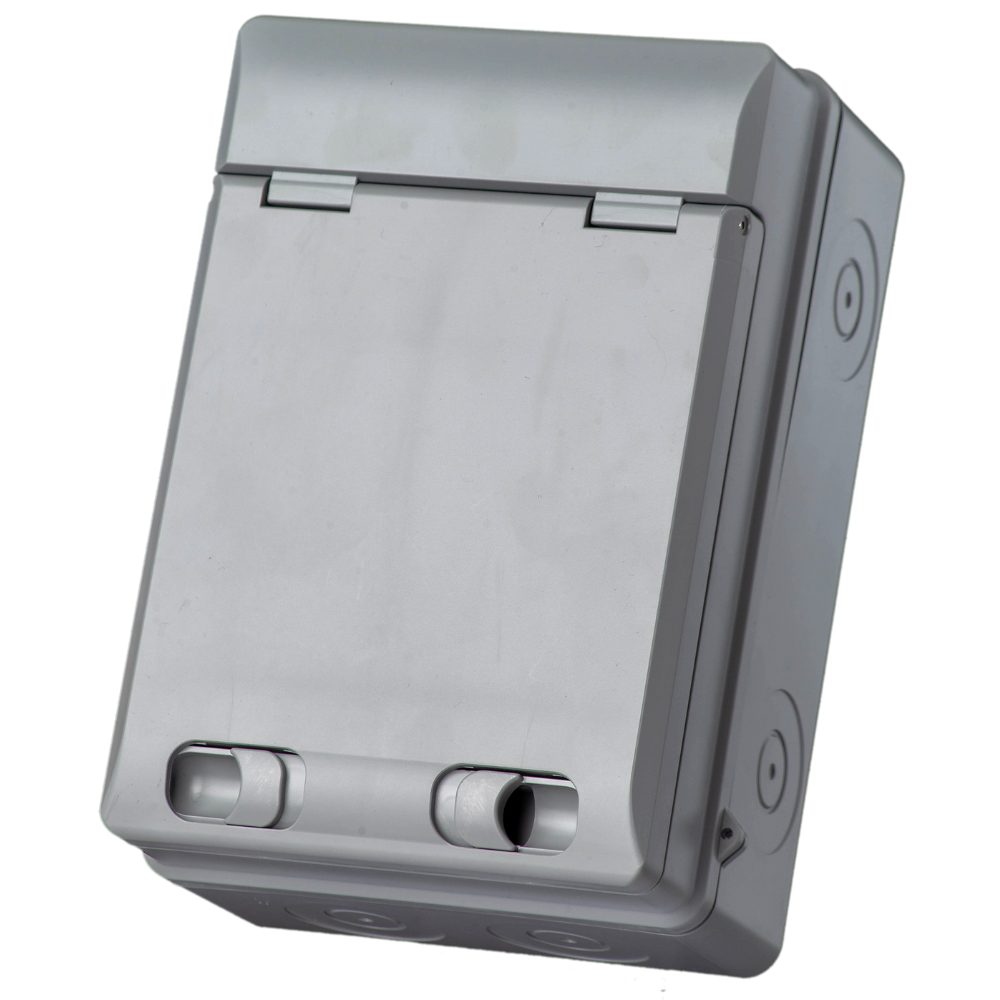

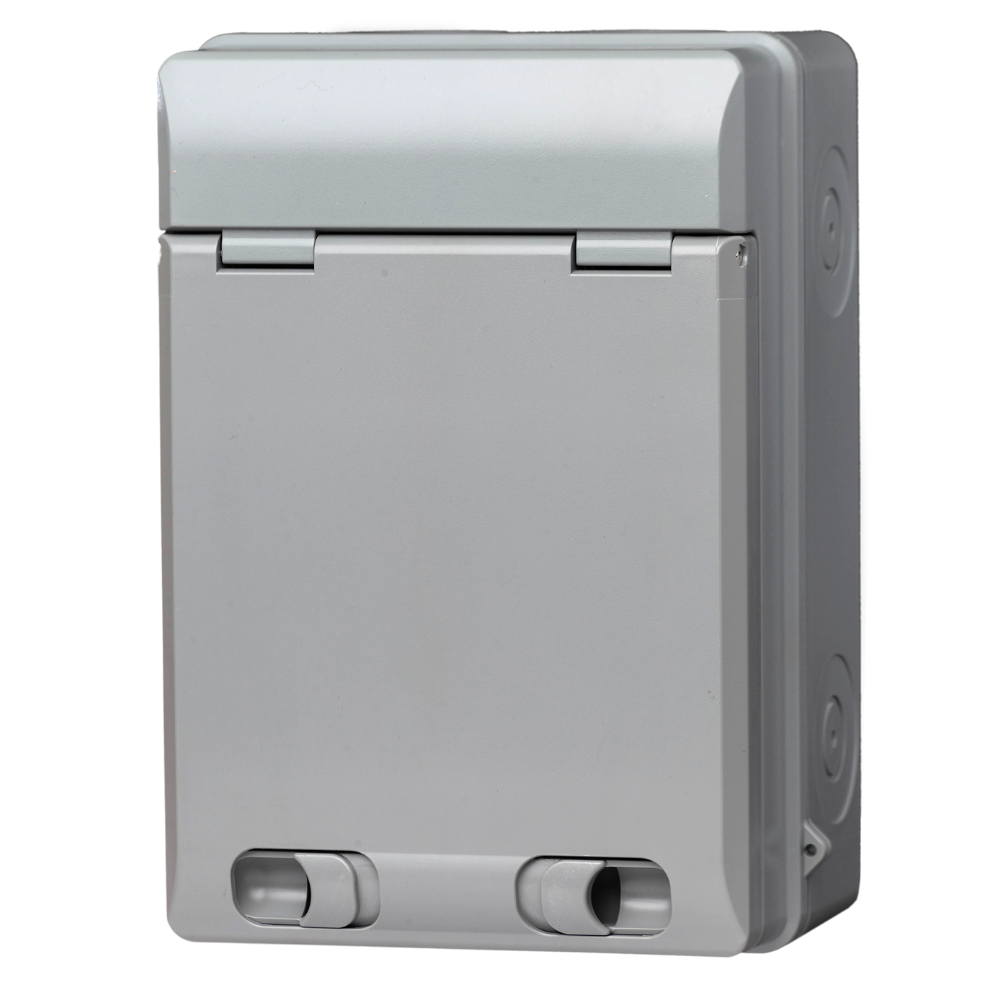

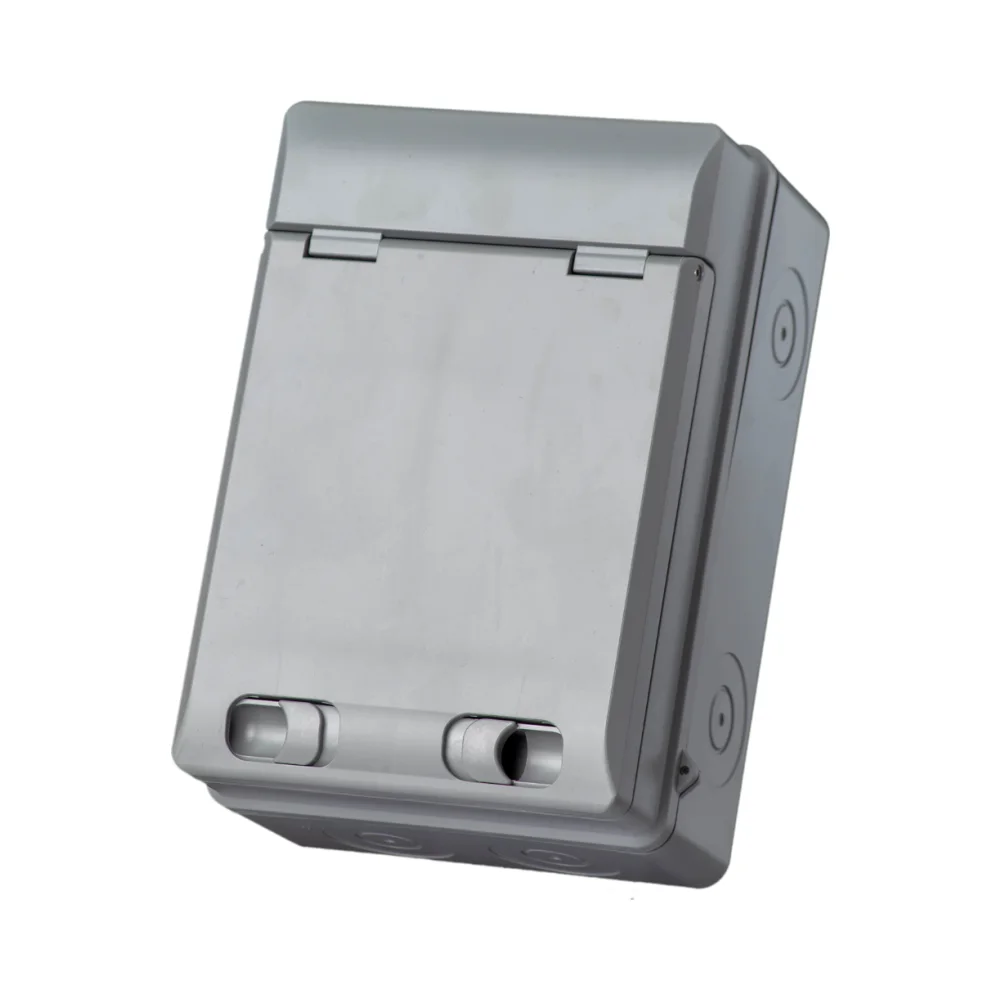

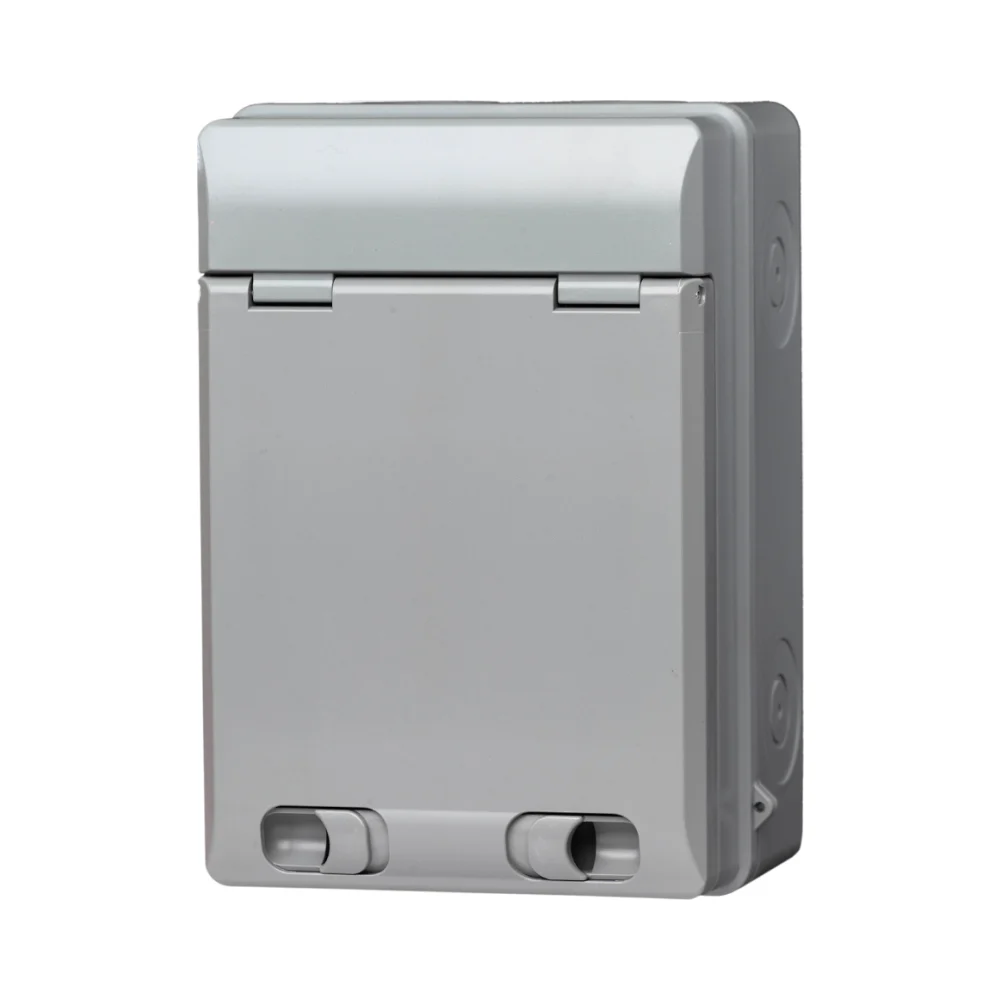

The IP65 enclosure helps protect the unit from dust and water ingress when installed correctly with suitable glands, fixings and cable entries. The installer should confirm the enclosure suitability, circuit rating, cable route and charger requirements before installation.
Key Features
- WCED IP65 EV Consumer Unit WPRC40BSP for outdoor EV charger installations
- Model / SKU: WPRC40BSP
- Supplied with 40A Type A double pole B Curve RCBO
- Integrated Type 2 SPD for surge protection
- EV-suitable residual current protection with 30mA AC and 6mA pulsating DC detection
- IP65 rated enclosure for suitable outdoor installation
- Suitable for domestic and light commercial EV charging applications
- Compact all-in-one unit for dedicated EV charger circuit protection
Technical Data
- Brand: WCED
- Model / SKU: WPRC40BSP
- Product type: IP65 EV consumer unit
- RCBO type: Type A double pole
- RCBO rating: 40A B Curve
- Surge protection: Type 2 SPD included
- Residual current detection: 30mA AC and 6mA pulsating DC
- Enclosure rating: IP65
- Application: Outdoor EV charger circuit protection
- Installation type: Dedicated EV charging circuit
Typical Applications
- Outdoor domestic EV charger installations
- Driveway and external wall-mounted EV charging setups
- Small commercial EV charging points
- Dedicated 40A EV charger circuits requiring outdoor-rated protection
- Installations requiring combined RCBO and surge protection in one enclosure
Planning an Outdoor EV Charger Installation?
This IP65 EV consumer unit is commonly used where the charger supply equipment needs to be installed outside or in a more exposed location. If you are also choosing the charger itself, view our Ohme charger range, including Ohme Home Pro and Ohme ePod smart EV charger options.
For wider board choices, you can also browse our main consumer units category. Depending on the installation design, suitable EV cables, EV cable clips and additional EV circuit protection may also be required.
Related IP65 WCED EV Consumer Units
Please see below other IP65 variants of this WCED EV consumer unit:
- IP65 WCED 32A B Curve EV consumer unit with Type A DP RCBO and SPD
- IP65 WCED 32A C Curve EV consumer unit with Type A DP RCBO and SPD
- IP65 WCED 40A C Curve EV consumer unit with Type A DP RCBO and SPD
Indoor EV Consumer Unit Options
If you need an indoor EV consumer unit version, please check the options below:
- WCED 32A B Curve EV consumer unit with Type A DP RCBO and SPD
- WCED 32A C Curve EV consumer unit with Type A DP RCBO and SPD
- WCED 40A B Curve EV consumer unit with Type A DP RCBO and SPD
- WCED 40A C Curve EV consumer unit with Type A DP RCBO and SPD
Type B RCD EV Consumer Unit Options
If you need a unit with a Type B RCD, please check the links below:
- IP65 EV consumer unit with Type B 40A RCD and C40 MCB
- EV consumer unit with Type B 40A RCD and C40 MCB
FAQs
Is the WCED IP65 EV Consumer Unit WPRC40BSP suitable for outdoor EV charger installations?
Yes. The WCED IP65 EV Consumer Unit WPRC40BSP is designed for suitable outdoor EV charger circuit protection when installed correctly with appropriate glands, fixings and cable entries to help maintain the enclosure rating.
What rating is the RCBO in this unit?
This unit is supplied with a 40A Type A double pole B Curve RCBO.
Does this WCED EV consumer unit include surge protection?
Yes. The WPRC40BSP includes an integrated Type 2 surge protection device.
Who should install this EV consumer unit?
This EV consumer unit should be selected, installed and tested by a qualified electrician in accordance with current UK wiring regulations, the EV charger manufacturer’s instructions and the requirements of the property.
Installation Notes
EV consumer units should be selected and installed by a qualified electrician in accordance with current UK wiring regulations, the EV charger manufacturer’s instructions and the requirements of the property. For outdoor installations, the installer should also confirm suitable glands, cable entries, fixings and mounting position to help maintain the enclosure rating.
