Description

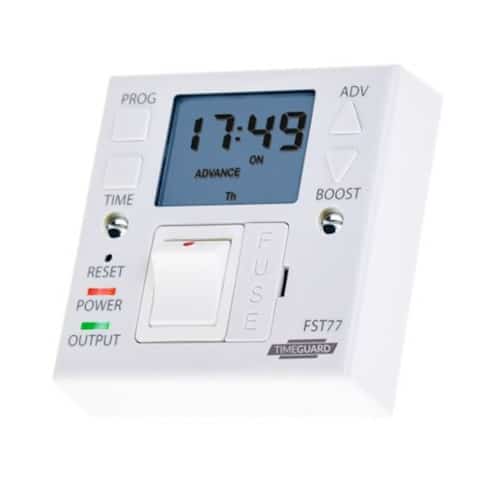

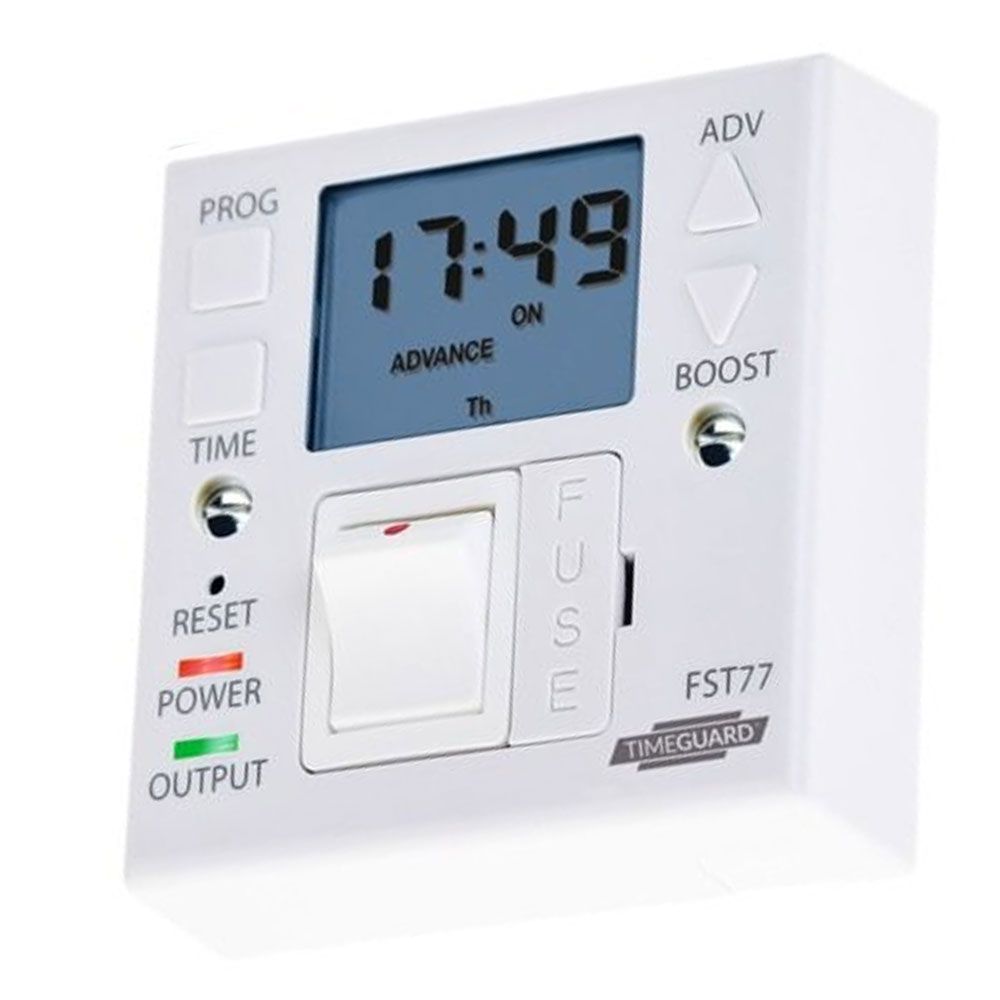

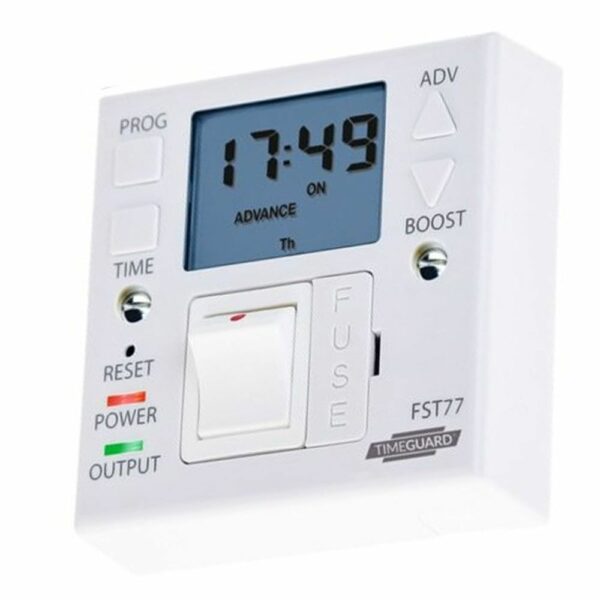

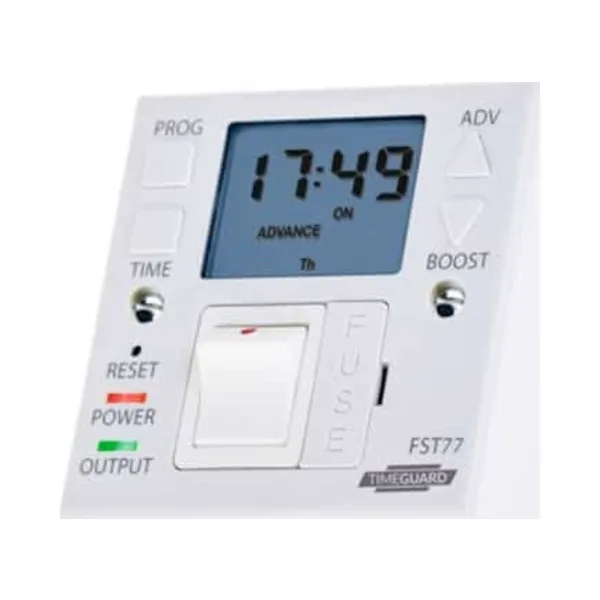

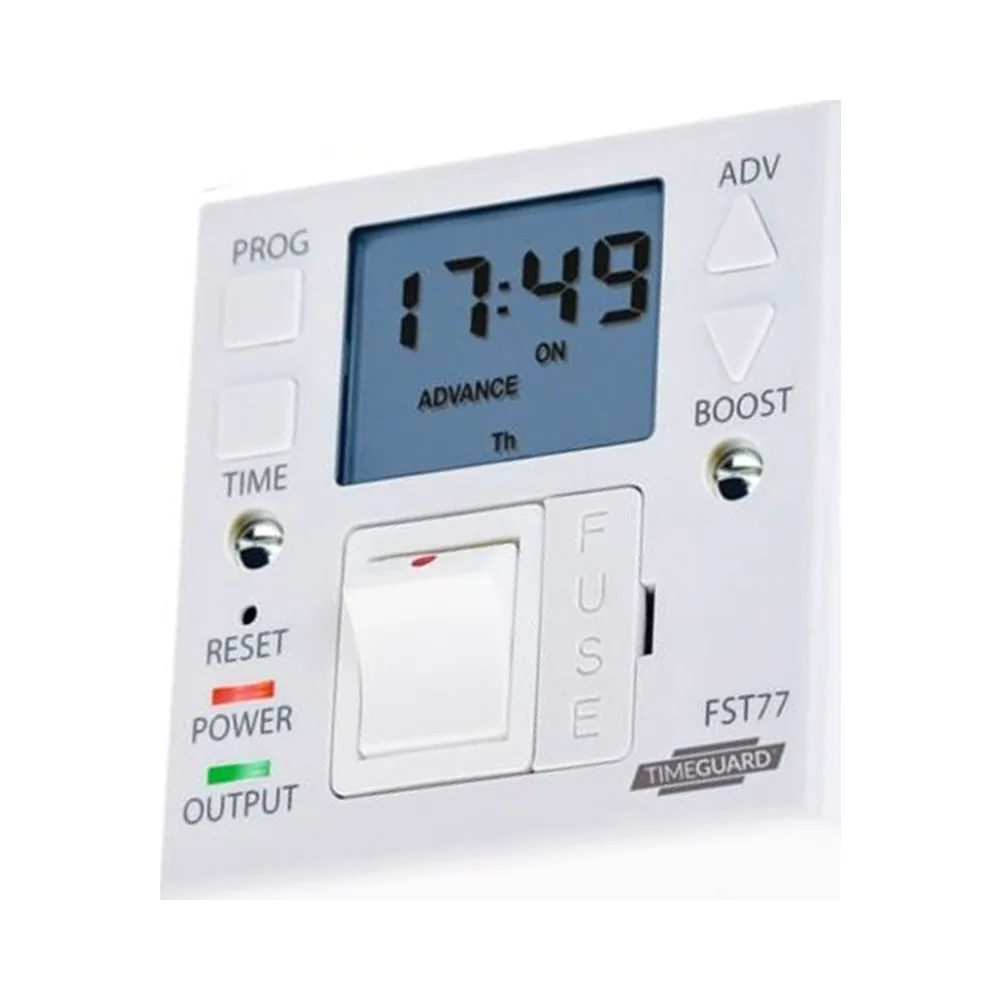

Fused Spur 7 Day Timeswitch
Timeguard FST77
The Timeguard FST77 7 Day Fused Spur Timeswitch provides reliable digital time control for fixed appliances and lighting circuits. Featuring an easy-view display, optional 1 or 2 hour boost function, and automatic summer/winter time changeover, it delivers the trusted performance of the SupplyMaster range.
Suitable for a wide range of lighting loads, the FST77 includes clear LED status indicators, permanent OFF and timed outputs, and a double pole switch for added control. An integral memory backup battery retains programmes during power loss, making it ideal for replacing single gang connection units or fixed appliance outlets.
Key Features
- 7 day digital fused spur timeswitch
- Easy-view 24 hour digital display
- Optional 1 or 2 hour boost facility
- Automatic summer / winter time changeover
- Permanent OFF and timed output modes
- Red LED mains ON and green LED output indicators
- Self-cancelling override and programme review
- Double pole switch
- Front-accessible replaceable BS1362 fuse
- Integral memory backup battery
Lighting Load Ratings
- 750W incandescent / halogen
- 500W fluorescent
- 200W LED
- 100W CFL
(Not suitable for discharge lighting)
