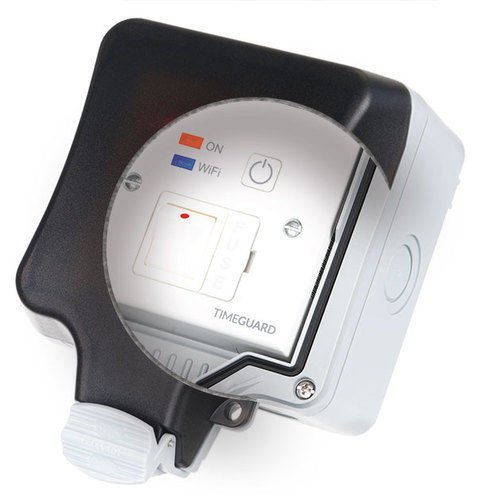

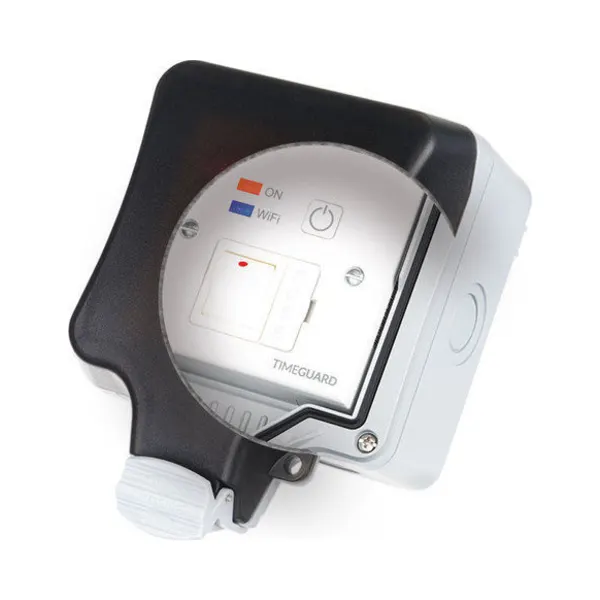

Timeguard IP66 Wi-Fi Controlled Fused Spur Timeswitch – Tuya Edition

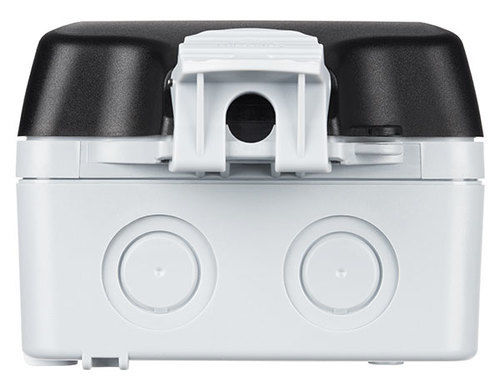

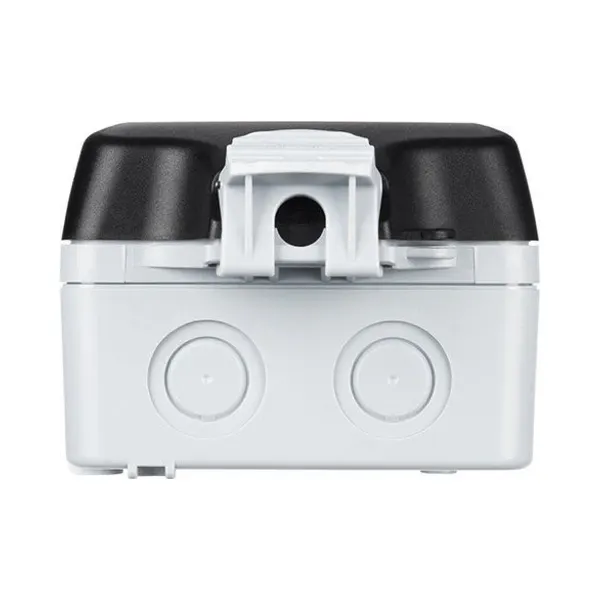

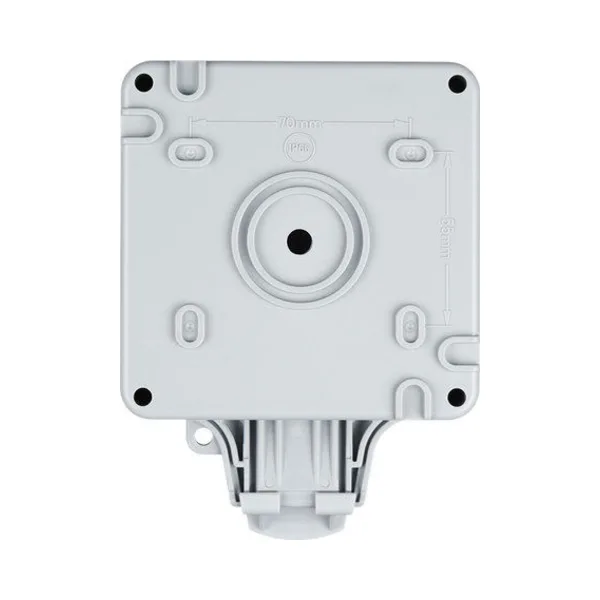

Timeguard take Wi-Fi automation to the next level with the NEW FSTWIFITUTGV. New features include Amazon Alexa and Google Assistant support, smart automation/triggering with other Timeguard products using the Tuya Smart App and a brand new enclosure design to finish things off, supported with multiple M20 knockouts and a padlock hole for a more secure tamperproof locking facility if required. Replaceable 13 Amp BS1362 fuse.
- Works with the Tuya Smart App, available for Android & iOS platforms.
- Ideal for heating, water feature pumps, towel rails as well as both internal & external lighting setups.
- Programmes can run as a one time only operation or repeat on a daily or weekly basis.
- Supports smart automation with other Tuya Smart compatible products.
- Manual override facility by a physical button press or via the App direct.

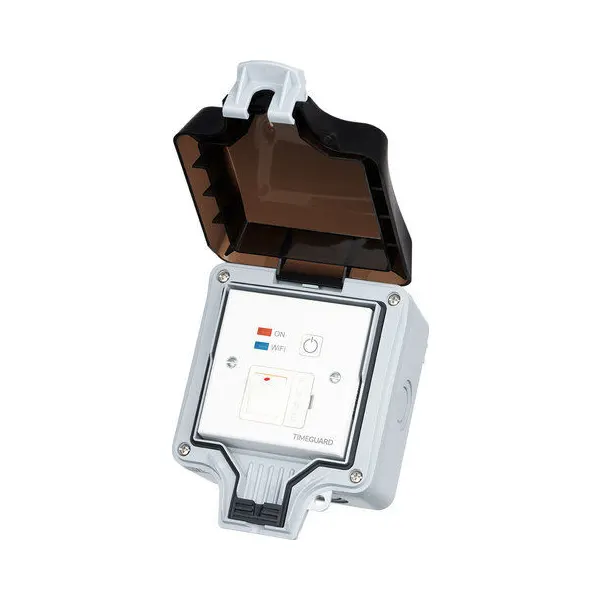

- Red output light to indicate the load is getting mains power.
- Blue output light to indicate Wi-Fi connectivity is active to your network.
- Custom timed boost option from either the ON or OFF position.
- Mutlple units can be paired to a single account and shared with multple users who have a Tuya Smart account.
- Double pole isolating switch.
| Operating Voltage | 230V AC 50Hz (Socket Strip) |
|---|---|
| Operating Temperature | -0ºC to +40ºC |
| Earth Class | Class II |
| IP Rating | IP66 (suitable for restricted external applications) |
| Fused | Supplied with BS1362 13A Fuse |
| Rocker Switch | 2 Pole, providing isolation |
| Wi-Fi Specification | 2.4GHz b/g/n only |
| Switch Rating | 13A Resistive (3kW), 1000W Incandescent, Halogen lighting, 500W Fluorescent, 500W LED or 100W CFL lighting |
| Operation Modes | ON or OFF, Timed , Countdown, Smart Automation (Tuya App Feature) |
| Status Indicator | Lights Yes |
| Dimensions | Height 160mm, Width 115mm, Depth 90mm |
