Description
Timeguard 7 Day Fused Spur Timeswitch with Digital Programming

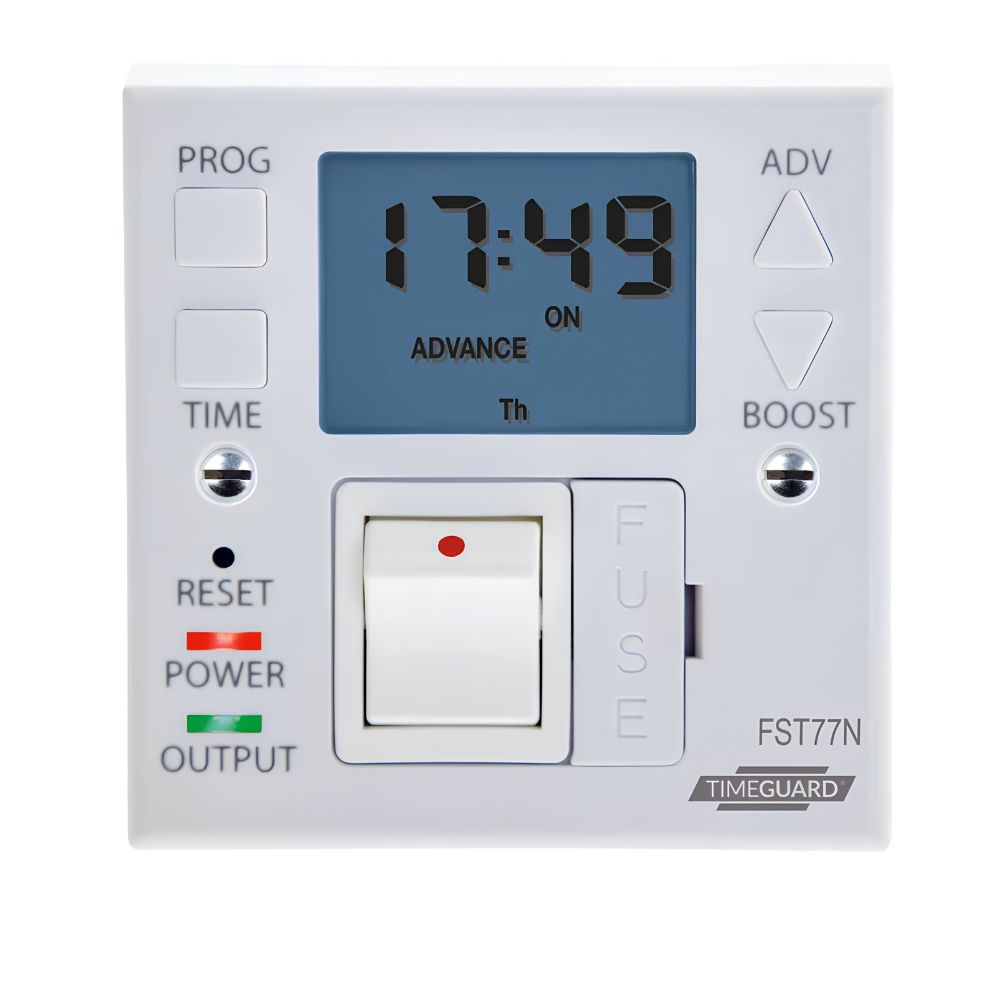

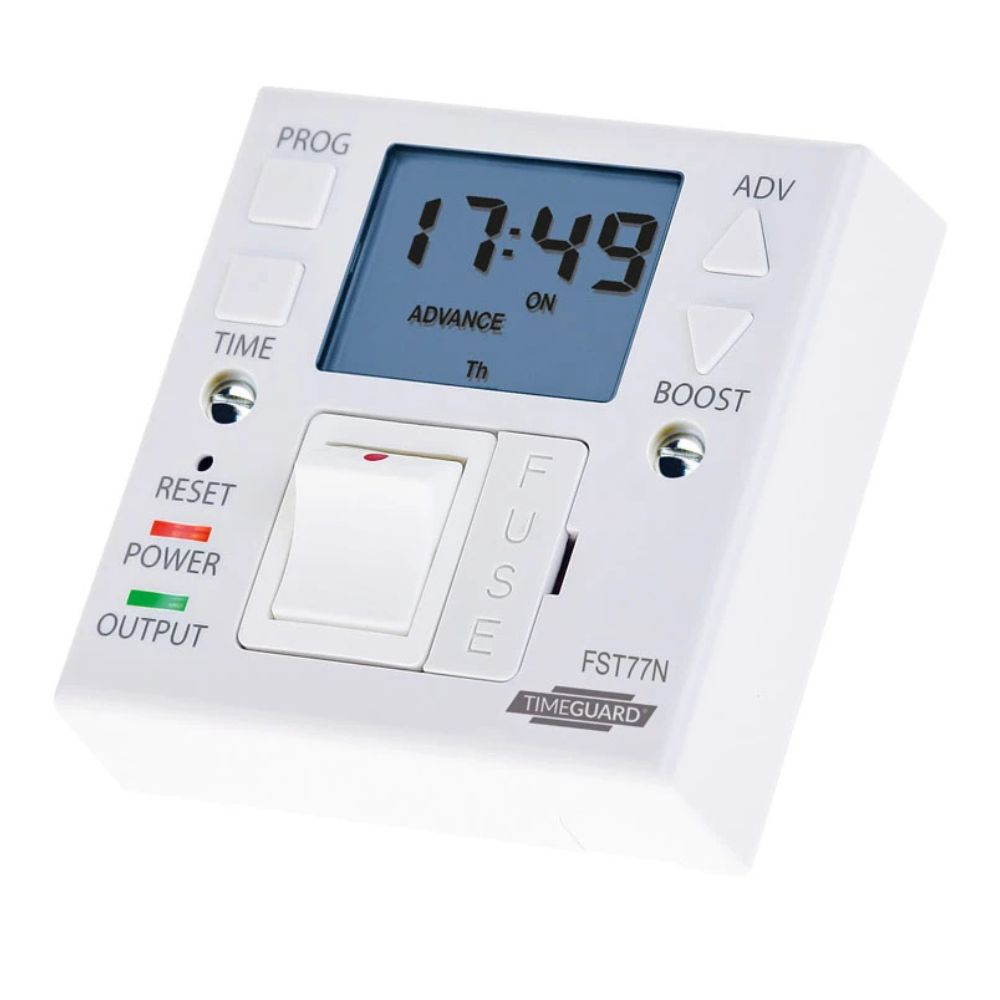

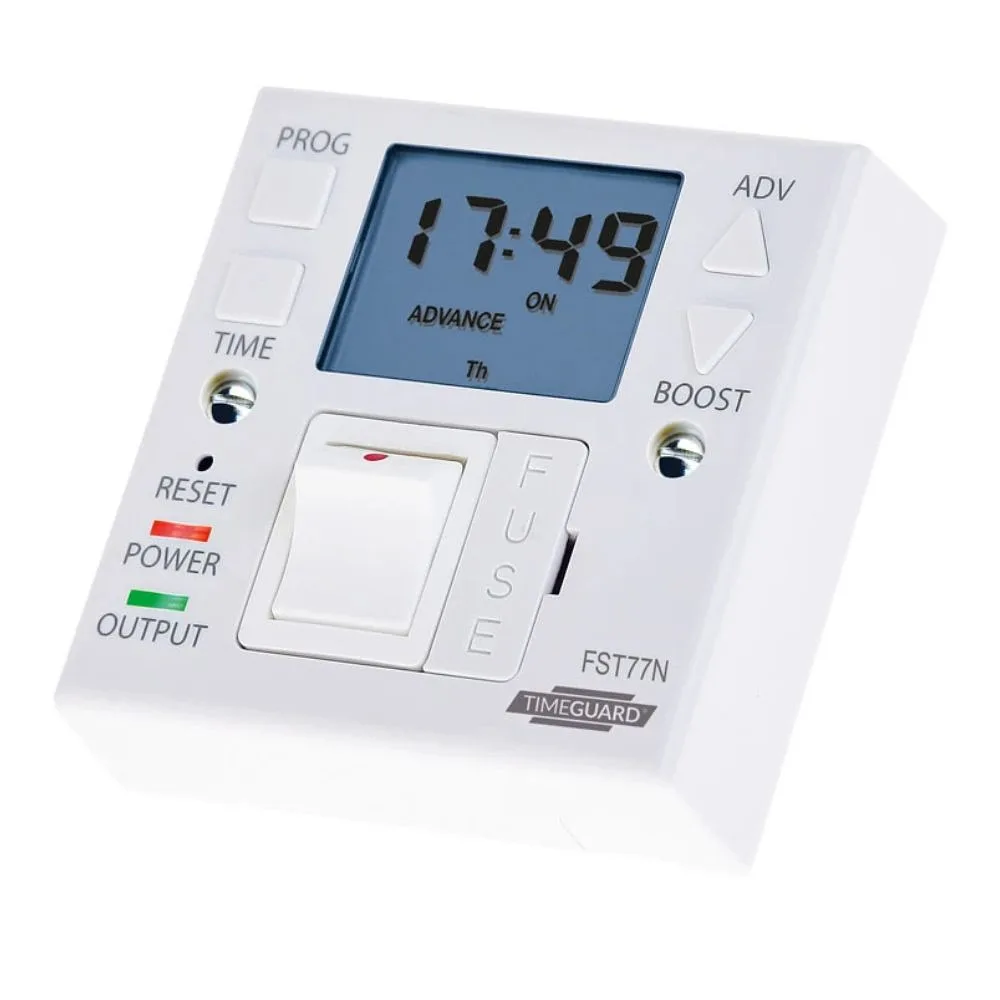

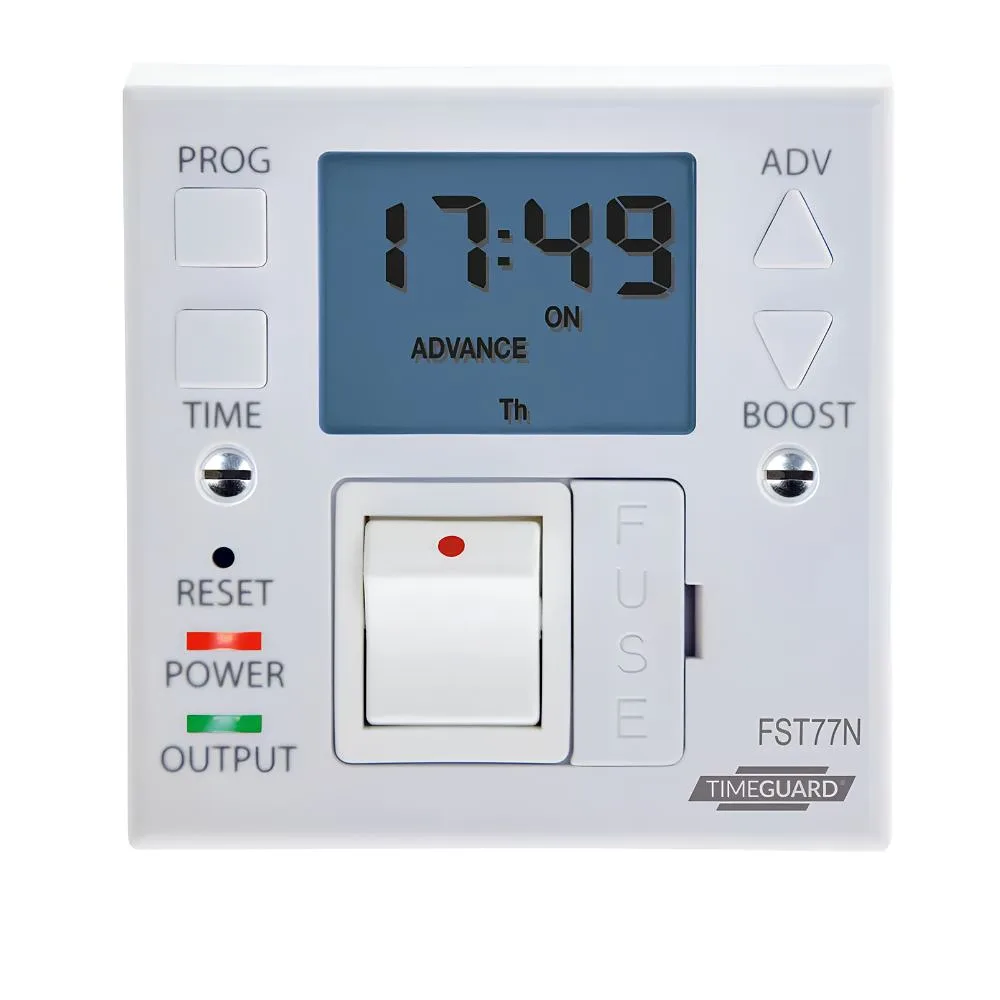

Timeguard FST77N 7 Day Fused Spur Timeswitch
The Timeguard FST77N 7 Day Fused Spur Timeswitch provides flexible digital control for immersion heaters and fixed appliances up to 3kW. Designed for domestic and commercial installations, this programmable fused spur timer offers up to 56 ON and OFF switching events per week with simple digital programming and clear LED status indication.
Featuring permanent ON/OFF modes, timed operation and selectable boost functions, the FST77N delivers convenient energy management while maintaining reliable appliance isolation through its integrated double pole switching design.
Key Features – Timeguard FST77N 7 Day Fused Spur Timeswitch
- 7 day programmable fused spur timer
- Up to 8 ON and 8 OFF programmes per day grouping
- Supports up to 56 switching events per week
- Suitable for immersion heaters up to 3kW
- 30, 60, 90 and 120 minute boost timer functions
- Permanent ON, OFF and timed operating modes
- Automatic summer/winter time adjustment
- Self-cancelling override function
- Double pole isolation switching
- Digital LCD timer display
- Integral rechargeable battery backup memory
- Front replaceable BS1362 fuse access
- Red mains LED and green output status LED
Technical Specifications – Timeguard FST77N 7 Day Fused Spur Timeswitch
- SKU: FST77N
- Operating Voltage: 230V AC
- Frequency: 50Hz
- Switch Rating: 13A Resistive
- Immersion Heater Rating: Up to 3kW
- LED Load Rating: 200W
- CFL Load Rating: 100W
- Incandescent/Halogen Rating: 750W
- Programming Type: 24 Hour / 7 Day Digital Timer
- Minimum Switching Time: 1 Minute
- Power Reserve: 672 Hours (28 Days)
- Battery Type: NiMH Rechargeable
- Ingress Protection: IP20
- Operating Temperature: 0°C to 40°C
- Material: Polycarbonate
- Colour: White
- Dimensions: 85mm x 85mm x 43mm
- Minimum Back Box Depth: 67mm
Applications – Timeguard FST77N Digital Fused Spur Timer
The Timeguard FST77N is ideal for immersion heaters, towel rails, fixed heating appliances and other permanently connected electrical loads requiring scheduled control and timed operation.
