Switchtec CURDP2 20 Way Consumer Unit Relocation Kit
The Switchtec CURDP2 20 Way Consumer Unit Relocation Kit is a high-capacity circuit extension enclosure designed for electricians replacing or repositioning larger consumer units. Featuring 60 DIN rail push-in terminals arranged across two DIN rails, the CURDP2 provides an organised, screwless connection system within a 243 × 333 × 132mm thermoplastic enclosure.
Ideal for installations with numerous outgoing circuits, the Switchtec CURDP2 offers a practical way to extend suitable existing wiring when the original cables cannot reach the replacement consumer unit. Its 20-way configuration, spring-clamp terminal technology and twin-rail arrangement make it particularly useful during larger domestic upgrades, distribution board relocations and substantial refurbishment projects.
Why Choose the Switchtec CURDP2 20 Way Consumer Unit Relocation Kit?
Moving a large consumer unit is rarely as straightforward as removing the old board and fitting a new one. The incoming cables may approach from several directions, outgoing circuits may have very little spare length, and the replacement board may have a completely different layout.
When there are numerous circuits to extend, using separate junction boxes for every connection can quickly become awkward and difficult to organise.
The Switchtec CURDP2 provides one dedicated enclosure for suitable circuit extensions. Its 60 push-in terminals allow conductors to be connected using spring-clamp technology, eliminating the need to tighten conventional terminal screws.
For electricians handling a large number of circuit connections, this arrangement can simplify the termination process while helping maintain a logical, identifiable wiring layout.
60 DIN Push-In Terminals Across Two DIN Rails
The Switchtec CURDP2 uses Dinkle DP series push-in terminals, providing a screwless alternative to traditional DIN rail screw connections. Its 60-terminal configuration is arranged across two 200mm DIN rails, with each rail supporting a 10-way terminal arrangement.
The standard kit contains:
- 48 × 2.5mm² terminal types: 16 grey, 16 blue and 16 green earth terminals.
- 12 × 10mm² terminal types: 4 grey, 4 blue and 4 green earth terminals.
- 2 × 200mm DIN rails: 35mm top-hat mounting rails for the terminal assemblies.
- DIN rail accessories: Terminal endplates and end clamps for the supplied configuration.
The mixed terminal arrangement allows the CURDP2 to accommodate different conductor connection requirements within one enclosure, subject to the terminal manufacturer’s permitted conductor sizes and types.
Push-in terminals can provide convenient connections for compatible prepared conductors. Depending on conductor construction, ferrules or tools may still be required for insertion or release. Always follow the relevant terminal instructions.
Twin DIN Rail Layout for Larger Circuit Relocations
One of the main advantages of the Switchtec CURDP2 20 Way Consumer Unit Relocation Kit is the way its terminals are distributed across two DIN rails instead of being concentrated in one long terminal row.
When numerous outgoing cables need extending, this arrangement allows the electrician to plan the connections in two groups, making conductor identification and routing more manageable.
For example, circuits entering from different parts of the existing installation can be organised into suitable groups, reducing unnecessary cable crossing and helping maintain an orderly enclosure layout.
The 20-way configuration offers substantially more terminal positions than the compact 10-way CURDP and 11-way CURDP1 models.
243 × 333 × 132mm Thermoplastic Enclosure

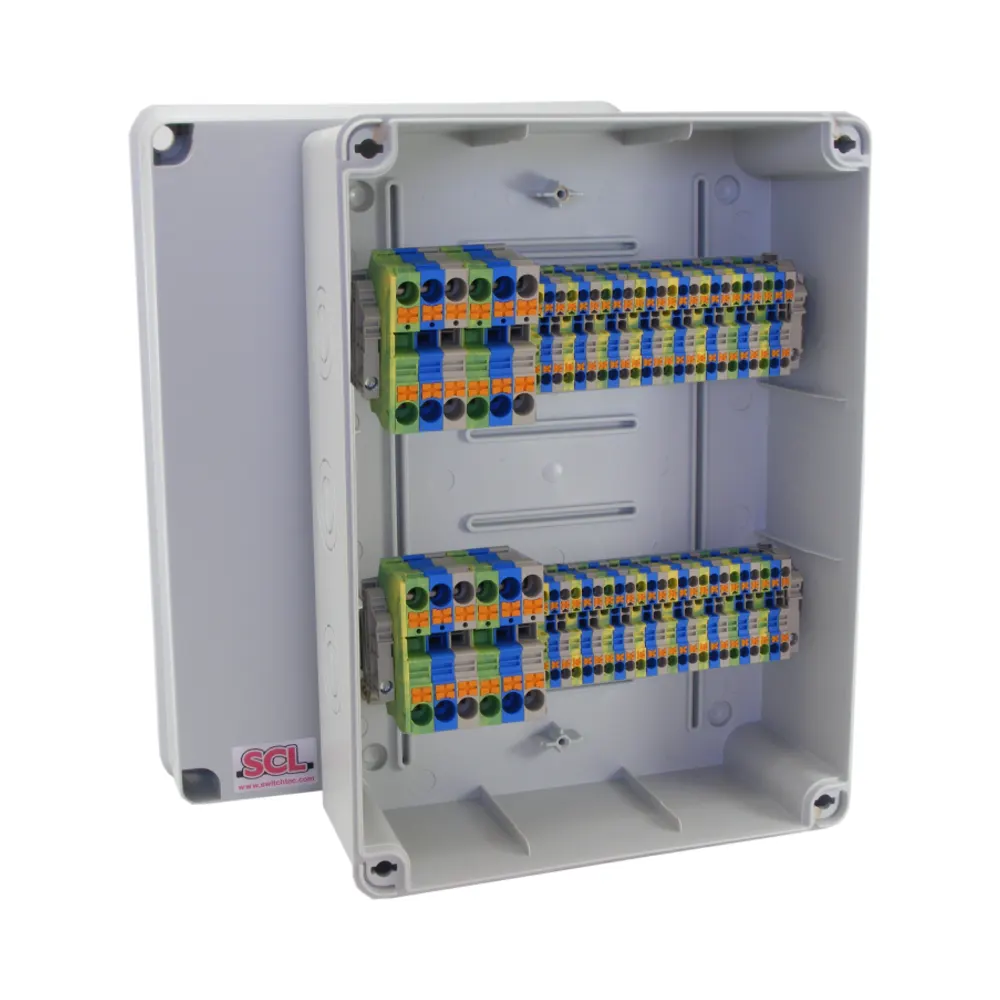

The CURDP2 is supplied in a grey RAL7035 thermoplastic enclosure measuring 243 × 333 × 132mm. Its dimensions provide room for the two DIN rails and their associated circuit connections.
The housing features a screw-down lid and multiple knockout positions, allowing the installer to select suitable cable-entry locations according to the wiring layout.
Switchtec specifies IP66/67 ingress protection and IK07 impact resistance for the CUR Series enclosure, together with halogen-free thermoplastic construction.
These enclosure ratings must be maintained through correct installation and compatible cable-entry accessories. The actual degree of protection of the completed assembly depends on the selected entries and installation method.
Switchtec CURDP2 20 Way Consumer Unit Relocation Kit – Key Features
- 20 Way Configuration: Suitable for installations requiring a high number of circuit extensions.
- 60 DIN Push-In Terminals: Organised spring-clamp connections without conventional terminal screws.
- Dual DIN Rail Design: Two terminal rows help electricians organise larger quantities of conductors.
- Dinkle DP Terminals: Screwless push-in connection technology for compatible conductors.
- Mixed Terminal Sizes: Includes 2.5mm² and 10mm² terminal types.
- Colour-Coded Terminals: Grey, blue and green earth terminal groups.
- Large Enclosure: 243 × 333 × 132mm dimensions.
- IP66/67 Protection: Manufacturer-stated enclosure ingress protection classification.
- IK07 Impact Resistance: Durable thermoplastic housing.
- Multiple Cable Knockouts: Allows suitable cable-entry positions to be selected.
- Screw-Down Lid: Provides an enclosed location for circuit connections.
- Centralised Jointing: Helps keep multiple circuit extensions together instead of using numerous separate joint boxes.
Technical Specifications
| Manufacturer | Switchtec |
|---|---|
| Product Code | CURDP2 |
| Product Type | Consumer Unit Relocation Kit |
| Configuration | 20 Way |
| Number of Terminals | 60 |
| Terminal Technology | Dinkle DP Push-In Spring Clamp |
| Terminal Types | 2.5mm² and 10mm² |
| DIN Rail Arrangement | 2 × 200mm DIN Rails |
| Terminal Colours | Grey, Blue and Green Earth |
| Enclosure Dimensions | 243 × 333 × 132mm |
| Enclosure Material | Halogen-Free Thermoplastic |
| Enclosure Colour | Grey RAL7035 |
| Ingress Protection | IP66/67 |
| Impact Protection | IK07 |
| Lid Type | Screw-Down |
| Primary Application | Consumer Unit Relocation and Circuit Extension |
| Technical Reference | Switchtec CUR Series |
Typical Applications for the Switchtec CURDP2
- Large Consumer Unit Replacements: Extending suitable existing circuits when fitting a larger or differently configured distribution board.
- Consumer Unit Relocation: Organising multiple circuit connections when moving a consumer unit to another suitable position.
- Multi-Circuit Domestic Installations: Providing a dedicated jointing point for installations with numerous outgoing circuits.
- Property Refurbishments: Retaining suitable existing cable runs while altering electrical distribution layouts.
- Light Commercial Electrical Upgrades: Supporting appropriate distribution board relocation projects.
- Organised Circuit Extensions: Bringing multiple conductor connections together in one identifiable enclosure.
CURDP2 Push-In Terminals vs CURDK2 Screw Terminals
The Switchtec CURDP2 and CURDK2 are both 20-way consumer unit relocation kits featuring 60 DIN rail terminals within a 243 × 333 × 132mm enclosure.
The main difference is their termination method. The CURDP2 uses Dinkle DP push-in spring-clamp terminals, while the CURDK2 uses traditional screw terminals.
For installers who prefer screwless connections, the CURDP2 offers a convenient alternative, particularly when numerous suitable conductors need extending. The CURDK2 provides a conventional screw terminal arrangement for electricians who prefer that method.
Both offer a twin-rail layout, but the correct model should be selected according to conductor compatibility, installation requirements and installer preference.
Additional Materials for Consumer Unit Relocation
The Switchtec CURDP2 provides an organised circuit connection enclosure, but you may also need short cable extensions and suitable cable-entry accessories to complete the installation.
- Twin & Earth Cable Cut Per Metre for Circuit Extensions – when existing cables are just a little too short to reach the replacement consumer unit, order only the required length in a suitable cable size rather than purchasing another full drum.
- Membrane Grommets for Neat Consumer Unit Cable Entries – useful for individually positioned cable entries, often directly behind the corresponding RCBOs, helping achieve an organised wiring layout. The range also includes the WISKA TKS32 cable retention grommet for suitable meter-tail entries.
- Twin & Earth Cable Glands for Flat Cable Retention – designed to secure compatible flat T&E cables where they enter suitable enclosures, providing cable restraint and helping reduce movement at the entry point.
- Replacement Consumer Units – browse main switch, RCBO and SPD-equipped consumer units for electrical upgrades.
Other Switchtec Consumer Unit Relocation Kits
The Switchtec CUR range includes compact and mid-size enclosures, as well as screw terminal alternatives for electricians who prefer conventional mechanical connections.
- Switchtec CURDK – 10 Way Screw Terminal Relocation Kit – compact enclosure with 30 screw terminals.
- Switchtec CURDP – 10 Way Push-In Terminal Relocation Kit – compact screwless alternative featuring 30 push-in terminals.
- Switchtec CURDK1 – 11 Way Screw Terminal Relocation Kit – 33 screw terminals for medium-sized circuit relocation projects.
- Switchtec CURDP1 – 11 Way Push-In Terminal Relocation Kit – 33 push-in terminals with additional nominal terminal sizes.
- Switchtec CURDK2 – 20 Way Screw Terminal Relocation Kit – 60 traditional screw terminals in a twin-rail configuration.
Frequently Asked Questions
What is the Switchtec CURDP2 20 Way Consumer Unit Relocation Kit used for?
The Switchtec CURDP2 20 Way Consumer Unit Relocation Kit provides an organised connection point for extending suitable existing electrical circuits when moving or replacing a larger consumer unit. It features 60 DIN rail push-in terminals arranged across two DIN rails.
How many terminals does the Switchtec CURDP2 contain?
The CURDP2 contains 60 push-in terminals. The standard arrangement includes 48 terminals of the 2.5mm² type and 12 terminals of the 10mm² type, supplied in grey, blue and green earth groups.
What is the advantage of the twin DIN rail design?
The dual DIN rail arrangement allows the terminal connections to be distributed across two rows, helping electricians organise larger numbers of conductors and plan cable routing within the enclosure.
What is the difference between Switchtec CURDP2 and CURDK2?
Both models are 20-way relocation kits with 60 terminals. The CURDP2 uses push-in spring-clamp terminals, whereas the CURDK2 features traditional screw terminals.
What is the difference between CURDP1 and CURDP2?
The CURDP1 is an 11-way relocation kit with 33 push-in terminals, including 2.5mm², 4mm², 6mm² and 10mm² terminal types. The CURDP2 has a 20-way configuration with 60 push-in terminals, using 2.5mm² and 10mm² terminal types across two DIN rails.
Are the CURDP2 terminals completely tool-free?
Compatible prepared conductors may be inserted without tightening terminal screws. However, conductor preparation, ferrules or a suitable tool may be needed depending on conductor type and the manufacturer’s connection and release instructions.
Can the CURDP2 be used to extend existing electrical circuits?
Yes. The CURDP2 provides a purpose-designed connection enclosure for extending suitable existing circuits during consumer unit relocation or replacement. Conductor compatibility, circuit protection and installation requirements must be verified before use.
Does the CURDP2 replace the consumer unit?
No. The CURDP2 is a circuit extension and jointing enclosure. It does not contain the protective devices normally provided by the consumer unit and must be used alongside a suitable distribution board.
Installation and Safety Considerations
The Switchtec CURDP2 should be installed by a competent electrician. Before extending circuits, assess existing conductor sizes, cable condition, terminal suitability, circuit protection and available enclosure space.
Follow the manufacturer’s instructions for conductor stripping, insertion and release. Confirm that each conductor is compatible with the chosen terminal and that all cable entries provide the necessary protection and retention.
The completed installation must comply with applicable BS 7671 requirements and the manufacturer’s instructions. The relocation enclosure must remain appropriately accessible where required for inspection, testing and maintenance.
Buy Switchtec CURDP2 20 Way Consumer Unit Relocation Kit from Electrical4Less
Electrical4Less is an independent electrical wholesaler based in Fulham, London, supplying professional electricians and electrical contractors throughout the UK.
Order the Switchtec CURDP2 20 Way Consumer Unit Relocation Kit alongside the cable and installation accessories needed for your consumer unit replacement or relocation project. We offer competitive trade pricing, collection from our Fulham trade counter and UK delivery on available stock.
Explore our complete Consumer Unit Relocation Boxes & Kits range or browse Twin & Earth Cable for additional wiring materials.
For further manufacturer information, visit Switchtec’s Official Website. If you require another Switchtec product or a customised terminal arrangement, contact Electrical4Less with the relevant manufacturer part number.
For detailed product information, refer to the official Switchtec CUR Series Consumer Unit Relocation Kits technical data sheet.
