Switchtec | CURDP | 10 Way Consumer Unit Relocation Kit | 30 DIN Push-In Terminals | 2.5–10mm

SKU: CURDP
Available to Order
Estimated Lead Time:
Usually 1 - 3 Working Days
Read More

The Switchtec CURDP 10 Way Consumer Unit Relocation Kit features 30 DIN push-in spring terminals in a compact 185 × 246 × 100mm IP66/67 thermoplastic enclosure. Designed for extending suitable existing circuits when replacing or moving a consumer unit, it provides organised screwless connections as an alternative to traditional screw-terminal relocation kits.

£ 46 .48 EX VAT
£ 55 .78 IN VAT
OR

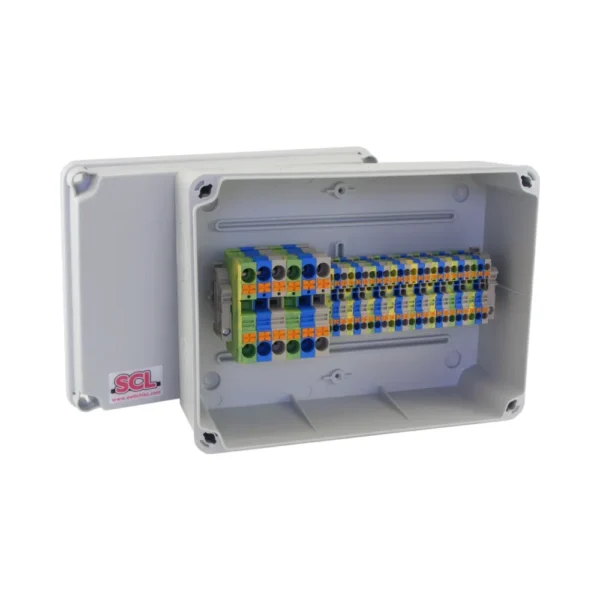

Switchtec CURDP 10 Way Consumer Unit Relocation Kit

The Switchtec CURDP 10 Way Consumer Unit Relocation Kit provides a practical screwless connection solution for extending existing electrical circuits when replacing, upgrading or moving a consumer unit. Featuring 30 DIN rail push-in terminals in a compact 185 × 246 × 100mm enclosure, it offers an organised jointing point for existing wiring and new cable extensions.

Designed for professional electricians, the CURDP combines a space-saving enclosure with spring-clamp terminal technology, making it a convenient alternative to traditional screw-terminal relocation kits. It is particularly useful where existing circuit cables cannot reach the replacement consumer unit or need to be rerouted during refurbishment work.

Why Choose the Switchtec CURDP 10 Way Consumer Unit Relocation Kit?

Changing a consumer unit isn’t always a simple straight swap. Older fuse boards often have cables entering from awkward positions, while modern consumer units can be larger or have terminals in completely different locations. Sometimes there simply isn’t enough spare cable to reach the new board.

The Switchtec CURDP provides a dedicated connection enclosure for extending suitable existing circuits without unnecessarily replacing complete cable runs.

What makes this model different is its push-in spring terminal arrangement. Instead of tightening individual terminal screws, compatible prepared conductors are connected using the spring-clamp mechanism in accordance with the terminal manufacturer’s instructions.

For electricians handling several circuit extensions during a consumer unit replacement, this can simplify the termination process while keeping connections organised on a DIN rail.

30 DIN Push-In Terminals for Screwless Circuit Connections

The Switchtec CURDP features 30 DIN rail push-in terminals arranged in a 10-way configuration. The terminal selection includes grey, blue and green/yellow earth connections, helping installers organise different circuit conductors within the enclosure.

The standard terminal composition includes:

  • 24 × 2.5mm² Terminal Types: Eight grey, eight blue and eight green earth terminals.
  • 6 × 10mm² Terminal Types: Two grey, two blue and two green earth terminals.
  • DIN Rail Mounting: Terminals are mounted on a supplied 200mm section of 35mm top-hat DIN rail.
  • Spring-Clamp Connections: Push-in terminal technology provides a screwless connection method for suitable conductors.

Unlike traditional screw terminals, spring-clamp connections do not require routine tightening of terminal screws. However, conductor preparation, insertion and removal must follow the manufacturer’s instructions, and tools may still be required for certain conductor types or release operations.

The stated 2.5mm² and 10mm² sizes identify the terminal types supplied. Always confirm the permitted conductor range, type and preparation requirements before installation.

Compact Enclosure with Multiple Cable Entry Options

Measuring 185 × 246 × 100mm, the CURDP is suited to consumer unit relocation projects where a smaller connection enclosure is preferred.

The grey RAL7035 thermoplastic enclosure features a screw-down lid and multiple knockout positions, allowing the electrician to plan cable entries around the existing wiring and the route towards the replacement consumer unit.

With manufacturer-stated IP66/67 ingress protection and IK07 impact resistance, the enclosure offers a robust housing for the terminal arrangement. The applicable protection rating must be maintained through suitable cable-entry accessories and correct installation.

The Switchtec CURDP 10 Way Consumer Unit Relocation Kit keeps circuit extensions together within one identifiable enclosure, helping reduce the need for multiple separate joint boxes.

Switchtec CURDP 10 Way Consumer Unit Relocation Kit – Key Features

  • 10 Way Configuration: Designed for suitable consumer unit relocation and circuit extension applications.
  • 30 DIN Push-In Terminals: Provides organised screwless connection points for circuit conductors.
  • Spring-Clamp Technology: Alternative to traditional screw-terminal connections.
  • 2.5mm² and 10mm² Terminal Types: Supplied in grey, blue and green earth configurations.
  • Compact Enclosure: Dimensions of 185 × 246 × 100mm.
  • Thermoplastic Housing: Grey RAL7035, halogen-free plastic enclosure.
  • IP66/67 and IK07 Ratings: Manufacturer-stated enclosure protection classifications.
  • Multiple Knockouts: Provides cable-entry options for suitable installation arrangements.
  • Supplied DIN Rail: Includes terminal mounting rail and associated terminal accessories.
  • Centralised Cable Jointing: Keeps multiple circuit extensions in one dedicated enclosure.

Technical Specifications

Manufacturer Switchtec
Product Code CURDP
Product Type Consumer Unit Relocation Kit
Configuration 10 Way
Number of Terminals 30
Terminal Technology Push-In Spring Clamp
Terminal Types 2.5mm² and 10mm²
Terminal Colours Grey, Blue, Green Earth
Enclosure Dimensions 185 × 246 × 100mm
Enclosure Material Thermoplastic
Enclosure Colour Grey RAL7035
Ingress Protection IP66/67
Impact Protection IK07
DIN Rail 35mm Top-Hat, 200mm
Primary Application Consumer Unit Relocation and Circuit Extension
Technical Reference Switchtec CUR Series

Typical Applications for the Switchtec CURDP

  • Consumer Unit Replacement: Extending suitable existing circuit cables that are too short to reach the replacement board.
  • Consumer Unit Relocation: Providing an organised jointing point when moving a distribution board to another suitable location.
  • Domestic Electrical Upgrades: Supporting circuit extensions during the installation of modern RCBO consumer units.
  • Property Refurbishments: Extending and rerouting existing wiring during building alterations.
  • Compact Installation Areas: Providing a dedicated connection enclosure where available mounting space is limited.
  • Multiple Circuit Extensions: Bringing several suitable conductor connections together on one DIN rail.

CURDP Push-In Terminals vs CURDK Screw Terminals

Switchtec offers two different terminal connection options in its compact 10-way relocation kits.

The CURDP uses push-in spring-clamp terminals, while the CURDK uses traditional screw terminals. Both provide 30 terminal positions within an enclosure measuring 185 × 246 × 100mm.

Push-in terminals can simplify the connection process for compatible conductors, particularly when several circuits require extension. Screw terminals may be preferred by installers who want a conventional mechanical termination method.

Choose the terminal system according to the conductor types, manufacturer specifications and installation requirements rather than speed alone.

Additional Materials for Consumer Unit Relocation

The Switchtec CURDP provides the connection enclosure, but a consumer unit replacement may also require short cable extensions and suitable cable-entry accessories.

Other Switchtec Consumer Unit Relocation Kits

If your installation requires a different terminal connection method or greater circuit capacity, the Switchtec CUR range includes the following alternatives:

Frequently Asked Questions

What is the Switchtec CURDP 10 Way Consumer Unit Relocation Kit used for?

The Switchtec CURDP 10 Way Consumer Unit Relocation Kit provides an enclosed connection point for extending suitable existing circuits when replacing or moving a consumer unit. It contains 30 DIN push-in terminals within a compact thermoplastic enclosure.

What are the advantages of push-in terminals?

Push-in terminals use spring-clamp technology instead of conventional terminal screws. For compatible conductors, they can simplify the connection process and eliminate the need to tighten each terminal screw. Correct conductor preparation and installation remain essential.

How many terminals does the Switchtec CURDP contain?

The CURDP contains 30 DIN push-in terminals, comprising 24 terminals of the 2.5mm² type and six of the 10mm² type, supplied in grey, blue and green earth configurations.

What is the difference between the Switchtec CURDP and CURDK?

Both models provide a 10-way configuration with 30 DIN terminals. The CURDP uses push-in spring terminals, whereas the CURDK features traditional screw terminals. Both have the same nominal enclosure dimensions.

Can existing circuit cables be extended using the CURDP?

Yes. Suitable existing circuit conductors can be extended through the CURDP, provided that the terminal specifications, conductor types, cable sizes and installation requirements are satisfied.

Does the CURDP replace a consumer unit?

No. The CURDP is a circuit connection and extension enclosure. It does not provide the circuit protective functions of a consumer unit and must be used alongside an appropriately selected distribution board.

Can push-in terminals accept stranded or flexible conductors?

Conductor compatibility depends on the particular terminal type. Some push-in terminal designs require ferrules or specific preparation for certain stranded or flexible conductors. Check the manufacturer’s instructions before installation.

Installation Considerations

The Switchtec CURDP should be installed by a competent electrician. Before extending circuits, verify the existing wiring condition, conductor sizes, terminal compatibility, circuit protection and available enclosure space.

Follow the terminal manufacturer’s instructions for stripping lengths, conductor insertion and removal. Where applicable, ensure flexible conductors are prepared using the specified ferrules or accessories.

All connections and cable-entry arrangements must comply with applicable BS 7671 requirements and the manufacturer’s instructions. The enclosure must remain appropriately accessible where required for inspection, testing and maintenance.
