Switchtec CURDK2 20 Way Consumer Unit Relocation Kit
The estimated lead time for the original green terminals is 8–10 weeks. If terminal colour is important for your installation, please contact us before ordering.
The Switchtec CURDK2 20 Way Consumer Unit Relocation Kit provides a high-capacity solution for extending existing circuits when replacing or relocating larger consumer units. Featuring 60 DIN rail screw terminals arranged across two DIN rails, it offers an organised connection point for multiple outgoing circuits within a 243 × 333 × 132mm enclosure.
Designed for electricians working on installations with numerous circuits, the CURDK2 helps overcome the problem of existing cables being too short to reach a replacement distribution board. Its 20-way configuration provides greater connection capacity than the smaller Switchtec relocation kits, making it particularly useful during extensive consumer unit upgrades and electrical refurbishments.
Why Choose the Switchtec CURDK2 20 Way Consumer Unit Relocation Kit?
Replacing a large consumer unit can quickly become a complicated job, particularly when dozens of existing conductors enter the enclosure from different directions. The replacement board may have a completely different layout, the existing cables may have little spare length, or the new distribution board may need to be installed away from its original position.
Replacing otherwise serviceable cable runs throughout the property can mean unnecessary disruption, additional labour and extra material costs.
The Switchtec CURDK2 provides a dedicated location for extending suitable existing circuits using DIN rail mounted screw terminals. This allows electricians to organise circuit connections within a purpose-designed enclosure rather than relying on numerous separate joint boxes.
With capacity for a 20-way arrangement, the Switchtec CURDK2 20 Way Consumer Unit Relocation Kit is particularly suitable for larger domestic installations, multi-circuit refurbishments and appropriate light commercial distribution board relocations.
60 DIN Screw Terminals Across Two DIN Rails
One of the main advantages of the CURDK2 is its 60-terminal configuration. The enclosure contains two DIN rails, each supporting a 10-way terminal arrangement, providing a structured layout for larger numbers of circuit connections.
The terminal configuration includes grey, blue and green terminal groups in 2.5mm² and 10mm² terminal sizes, as specified in the manufacturer’s standard CUR Series configuration.
Traditional screw terminals provide a familiar mechanical connection method for professional electricians, while the DIN rail arrangement helps keep individual conductors and circuit groups organised.
This makes the Switchtec CURDK2 20 Way Consumer Unit Relocation Kit a practical choice where multiple outgoing circuits need extending together, particularly when circuit identification and future access to connections are important.
High-Capacity Consumer Unit Relocation Enclosure
The CURDK2 measures 243 × 333 × 132mm and uses a grey thermoplastic enclosure with a screw-down lid and multiple knockout positions.

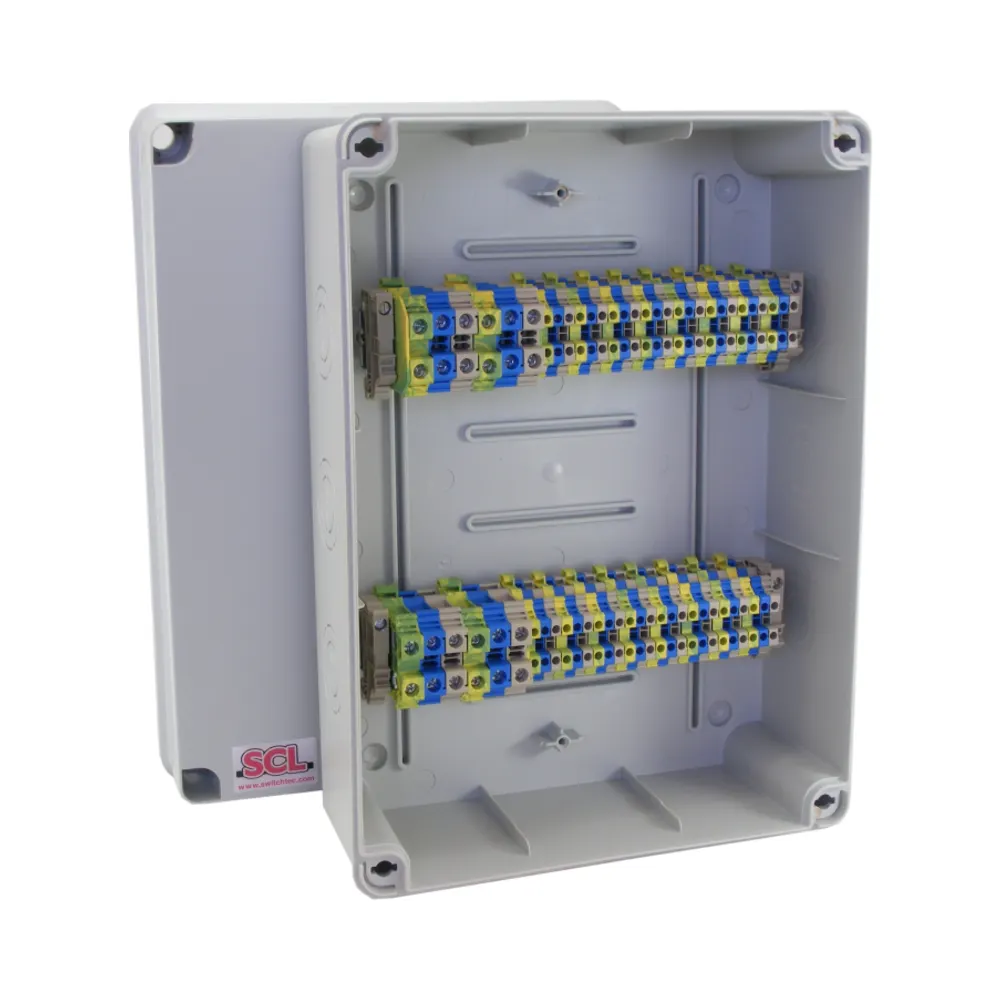

Its internal arrangement accommodates two DIN rails, allowing the 60 screw terminals to be distributed across separate rows rather than crowded onto a single rail.
According to Switchtec’s CUR Series technical documentation, the enclosure features an IP66/67 ingress protection classification and IK07 impact protection. These ratings depend on correct installation and suitable cable-entry arrangements.
The enclosure provides a dedicated location for circuit extensions while keeping the jointing arrangement separate from the replacement consumer unit.
Switchtec CURDK2 20 Way Consumer Unit Relocation Kit – Key Features
- 20 Way Configuration: Designed for consumer unit relocations involving numerous outgoing circuits.
- 60 DIN Screw Terminals: Provides a high-capacity, organised circuit connection arrangement.
- Dual DIN Rail Layout: Two DIN rails support the terminal configuration.
- Terminal Sizes: Standard configuration includes 2.5mm² and 10mm² terminal types.
- Large Enclosure: Measures 243 × 333 × 132mm.
- Thermoplastic Housing: Grey RAL7035 enclosure with screw-down lid.
- Enclosure Protection: IP66/67 and IK07 according to the manufacturer’s technical documentation.
- Screw Terminal Connections: Traditional mechanical termination method for professional electrical installations.
- Centralised Circuit Jointing: Keeps suitable circuit extensions together within one enclosure.
- Professional Applications: Suitable for appropriately designed domestic and light commercial electrical installations.
Technical Specifications
| Manufacturer | Switchtec |
|---|---|
| Product Code | CURDK2 |
| Product Type | Consumer Unit Relocation Kit |
| Configuration | 20 Way |
| Number of Terminals | 60 |
| Terminal Type | DIN Rail Screw Terminals |
| Terminal Sizes | 2.5mm² and 10mm² terminal types |
| DIN Rail Arrangement | 2 DIN Rails |
| Enclosure Dimensions | 243 × 333 × 132mm |
| Enclosure Material | Thermoplastic |
| Enclosure Colour | Grey RAL7035 |
| Ingress Protection | IP66/67 |
| Impact Protection | IK07 |
| Primary Application | Consumer Unit Relocation and Circuit Extension |
| Technical Reference | Switchtec CUR Series |
Typical Applications for the Switchtec CURDK2
- Large Consumer Unit Replacements: Extending suitable existing circuits where the replacement board has different dimensions or terminal positions.
- Consumer Unit Relocation: Providing a central jointing enclosure when moving a distribution board to another suitable location.
- Multi-Circuit Installations: Organising numerous outgoing circuit extensions within one dedicated enclosure.
- Major Property Refurbishments: Supporting the rearrangement of existing wiring during larger electrical upgrades.
- Domestic Distribution Upgrades: Helping retain suitable existing cable runs while accommodating a replacement consumer unit.
- Light Commercial Projects: Providing an organised connection point for suitable distribution board repositioning work.
Choosing Between 10, 11 and 20 Way Relocation Kits
The number of circuits requiring extension should be considered before selecting a relocation enclosure. Smaller installations may only require a compact 10-way kit, while installations with more outgoing circuits or additional connections may benefit from a larger configuration.
The Switchtec CURDK2 20 Way Consumer Unit Relocation Kit features 60 screw terminals, compared with 30 terminals in the 10-way CURDK and 33 terminals in the 11-way CURDK1.
The CURDK2 therefore offers a larger terminal capacity, although the actual number of circuits accommodated depends on conductor arrangements, terminal compatibility and the installation design.
Additional Materials for Consumer Unit Relocation
When installing the CURDK2, you may also require short cable extensions and suitable cable-entry accessories to complete the installation neatly and securely.
- Twin & Earth Cable Cut Per Metre for Circuit Extensions – ideal when existing circuit cables are just too short to reach the new consumer unit. Order only the required length in a suitable cable size rather than purchasing an entire drum.
- Membrane Grommets for Consumer Unit Cable Entries – useful for creating neat, individually positioned cable entries, often directly behind corresponding RCBOs. Suitable grommets protect cable sheaths at enclosure openings, while selected designs also offer cable retention.
- Twin & Earth Cable Glands for Flat Cable Retention – designed for securing compatible flat T&E cables where they enter metal enclosures, helping limit cable movement and mechanical strain at the entry point.
- Replacement Consumer Units – explore main switch, RCBO and SPD-equipped distribution boards for domestic electrical upgrades.
Other Switchtec Consumer Unit Relocation Kits
The Switchtec CUR range includes smaller screw terminal kits and push-in terminal alternatives. Choose the configuration that best suits the number of conductors requiring extension and your preferred connection method.
- Switchtec CURDK – 10 Way Screw Terminal Relocation Kit – compact enclosure with 30 DIN screw terminals.
- Switchtec CURDP – 10 Way Push-In Terminal Relocation Kit – 30 push-in terminals for a compact relocation arrangement.
- Switchtec CURDK1 – 11 Way Screw Terminal Relocation Kit – 33 DIN screw terminals for a mid-capacity installation.
- Switchtec CURDP1 – 11 Way Push-In Terminal Relocation Kit – 33 push-in terminals in an 11-way configuration.
- Switchtec CURDP2 – 20 Way Push-In Terminal Relocation Kit – a 60-terminal push-in alternative to the CURDK2.
Frequently Asked Questions
What is the Switchtec CURDK2 20 Way Consumer Unit Relocation Kit used for?
The Switchtec CURDK2 20 Way Consumer Unit Relocation Kit provides an organised connection point for extending suitable existing electrical circuits when moving or replacing a larger consumer unit. It features 60 DIN rail screw terminals within a dedicated enclosure.
How many terminals does the Switchtec CURDK2 contain?
The CURDK2 contains 60 DIN rail screw terminals arranged across two DIN rails in a 20-way configuration. The number of circuits accommodated depends on conductor requirements and the installation design.
What terminal sizes are included in the CURDK2?
The manufacturer’s standard CURDK2 configuration includes 2.5mm² and 10mm² terminal types in grey, blue and green groups. The actual conductors that may be connected must be checked against the individual terminal specifications.
Why are some green terminals replaced with black or grey?
The original green 10mm² screw terminals are temporarily unavailable. Depending on component availability, black or grey terminals will be supplied instead. All other components remain unchanged. The estimated lead time for the original green terminals is 8–10 weeks.
What is the difference between Switchtec CURDK2 and CURDP2?
Both are 20-way consumer unit relocation kits with 60 terminals. The CURDK2 uses traditional screw terminals, while the CURDP2 features push-in connections. The preferred version depends on conductor compatibility and the installer’s chosen termination method.
What is the difference between CURDK1 and CURDK2?
The CURDK1 is an 11-way relocation kit with 33 screw terminals, while the CURDK2 features a 20-way configuration with 60 screw terminals. Both use the same nominal enclosure dimensions of 243 × 333 × 132mm, but their internal terminal layouts and capacities differ.
Does the Switchtec CURDK2 replace a consumer unit?
No. The CURDK2 is a circuit connection and extension enclosure, not a distribution board containing the protective devices required for the installation. It is used alongside a suitable consumer unit.
Can the CURDK2 help avoid replacing existing cable runs?
Yes. Where existing circuit wiring is in satisfactory condition and suitable for continued use, the CURDK2 can provide a practical method of extending cables without replacing complete runs solely because they cannot reach the new distribution board.
Installation Considerations
The Switchtec CURDK2 must be installed by a competent electrician. Before extending circuits, verify existing conductor sizes, cable condition, terminal compatibility, circuit protection and available enclosure space.
All connections, cable entries and protective arrangements must comply with applicable BS 7671 requirements and the manufacturer’s instructions. Particular attention should be given to correct terminal identification, conductor compatibility and protective conductor continuity where substitute terminal colours are supplied.
Where connections require inspection, testing or maintenance access, the relocation enclosure must remain appropriately accessible.
