Switchtec | CURDP1 | 11 Way Consumer Unit Relocation Kit | 33 DIN Push-In Terminals | 2.5–10mm

SKU: CURDP1
Available to Order
Estimated Lead Time:
Usually 1 - 3 Working Days
Read More

The Switchtec CURDP1 11 Way Consumer Unit Relocation Kit features 33 DIN push-in terminals in 2.5mm², 4mm², 6mm² and 10mm² types, housed in a 243 × 333 × 132mm IP66/67 enclosure. Designed for extending existing circuits during consumer unit replacement and relocation, it provides organised screwless connections and additional wiring space for professional electricians.

£ 68 .76 EX VAT
£ 82 .51 IN VAT
OR

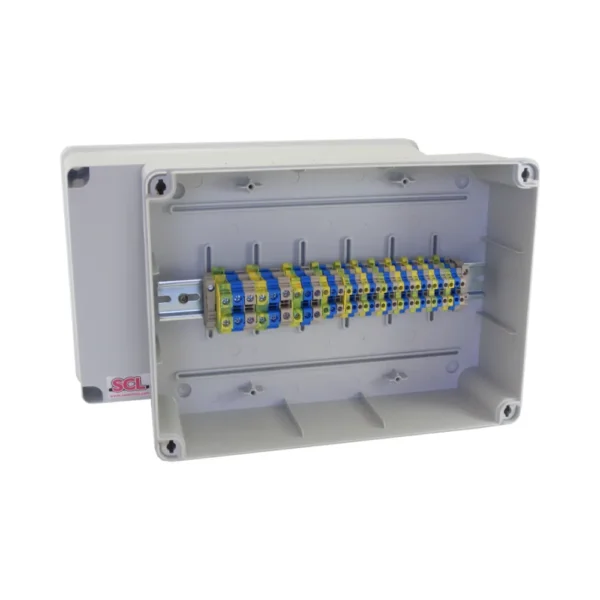

Switchtec CURDP1 11 Way Consumer Unit Relocation Kit

The Switchtec CURDP1 11 Way Consumer Unit Relocation Kit is designed for electricians who need to extend existing circuits when replacing or moving a consumer unit. Featuring 33 DIN rail push-in terminals in a 243 × 333 × 132mm enclosure, it provides a convenient screwless connection system for organising multiple circuit extensions without unnecessarily replacing suitable existing cable runs.

Unlike basic relocation kits with only two terminal sizes, the Switchtec CURDP1 includes 2.5mm², 4mm², 6mm² and 10mm² terminal types, giving installers a selection of connection options for different circuit conductor requirements. Its 11-way configuration makes it particularly useful for domestic consumer unit upgrades and suitable light commercial installations.

Why Choose the Switchtec CURDP1 11 Way Consumer Unit Relocation Kit?

You arrive on site to replace an ageing fuse board, remove the existing enclosure and discover that several outgoing circuit cables will not reach the replacement consumer unit. Some may enter from above, others from behind, and the new board may have completely different terminal positions.

Rather than disturbing finished walls and ceilings to replace otherwise serviceable wiring, the Switchtec CURDP1 provides a dedicated enclosure where suitable circuits can be extended towards the replacement board.

Its screwless push-in terminal system offers a practical alternative to conventional screw terminals, while the larger enclosure provides space for organising the connections and routing incoming and outgoing cables.

The result is a more structured jointing arrangement that helps electricians keep circuit extensions together in one identifiable enclosure.

33 DIN Push-In Terminals for Screwless Circuit Connections

The CURDP1 uses Dinkle DP range spring-clamp terminals mounted on a DIN rail. Compatible conductors can be connected using the push-in mechanism, avoiding the need to tighten individual terminal screws.

This connection method can be particularly useful when several circuits require extending during a consumer unit replacement. The terminals remain securely mounted on the DIN rail, helping maintain an organised arrangement instead of relying on multiple separate joint boxes.

Push-in technology does not mean every conductor can be connected without preparation or tools. Depending on the conductor type, ferrules or an appropriate release tool may be required. Always follow the terminal manufacturer’s instructions.

Four Terminal Sizes for Different Circuit Requirements

A key feature of the Switchtec CURDP1 11 Way Consumer Unit Relocation Kit is its combination of four terminal sizes rather than a single uniform terminal configuration.

The manufacturer specifies the following arrangement:

  • 21 × 2.5mm² Terminal Types: Seven grey, seven blue and seven green/yellow earth terminals.
  • 3 × 4mm² Terminal Types: One grey, one blue and one green/yellow earth terminal.
  • 3 × 6mm² Terminal Types: One grey, one blue and one green/yellow earth terminal.
  • 6 × 10mm² Terminal Types: Two grey, two blue and two green/yellow earth terminals.

This gives the CURDP1 a total of 33 DIN push-in terminals across four nominal terminal sizes, providing connection options for different conductors encountered during consumer unit relocation work.

The stated sizes identify the terminal types supplied, not necessarily the full permitted conductor range of every terminal. Check the relevant Dinkle terminal specifications before selecting the kit for a particular installation.

Spacious 243 × 333 × 132mm Relocation Enclosure

When several cables need extending, enclosure space matters just as much as terminal capacity. The Switchtec CURDP1 uses a 243 × 333 × 132mm thermoplastic enclosure, providing additional room compared with the compact 10-way CURDP model.

The extra space can help installers arrange incoming and outgoing cable runs, maintain suitable conductor routing and avoid unnecessary congestion around the terminal connections.

The enclosure features a screw-down lid and multiple knockouts, allowing cable entries to be selected according to the installation requirements.

Manufactured in grey RAL7035 thermoplastic, the enclosure has manufacturer-stated IP66/67 ingress protection and IK07 impact resistance. These ratings depend on correct installation and suitable cable-entry arrangements.

Switchtec CURDP1 11 Way Consumer Unit Relocation Kit – Key Features

  • 11 Way Configuration: Designed for consumer unit relocations involving multiple outgoing circuits.
  • 33 DIN Push-In Terminals: Provides organised screwless connections for suitable circuit conductors.
  • Four Terminal Sizes: Includes 2.5mm², 4mm², 6mm² and 10mm² terminal types.
  • Dinkle DP Spring-Clamp Technology: Alternative to conventional screw terminal connections.
  • Larger Enclosure: Measures 243 × 333 × 132mm for additional cable routing space.
  • DIN Rail Mounted: Keeps individual terminals securely positioned within the enclosure.
  • Colour-Coded Terminal Groups: Supplied with grey, blue and green/yellow earth terminal types.
  • IP66/67 Enclosure Rating: Manufacturer-stated ingress protection classification.
  • IK07 Impact Resistance: Durable thermoplastic enclosure construction.
  • Multiple Knockouts: Provides options for planning suitable cable entry positions.
  • Centralised Circuit Connections: Helps organise multiple cable extensions within one dedicated enclosure.

Technical Specifications

Manufacturer Switchtec
Product Code CURDP1
Product Type Consumer Unit Relocation Kit
Configuration 11 Way
Number of Terminals 33
Terminal Technology Push-In Spring Clamp
Terminal Manufacturer Dinkle – DP Range
Terminal Sizes 2.5mm², 4mm², 6mm² and 10mm²
Terminal Colours Grey, Blue and Green/Yellow Earth
Enclosure Dimensions 243 × 333 × 132mm
Enclosure Material Thermoplastic
Enclosure Colour Grey RAL7035
Ingress Protection IP66/67
Impact Protection IK07
Lid Type Screw-Down
Primary Application Consumer Unit Relocation and Circuit Extension
Technical Reference Switchtec CUR Series

Typical Applications for the Switchtec CURDP1

  • Consumer Unit Replacement: Extending suitable existing circuit cables that are too short to reach a new distribution board.
  • Consumer Unit Relocation: Providing an organised connection point when moving a consumer unit to another suitable location.
  • Domestic Electrical Upgrades: Supporting the installation of modern consumer units with different cable-entry and terminal arrangements.
  • Property Refurbishments: Retaining suitable existing wiring during alterations where circuit routes need to change.
  • Mixed Circuit Conductor Sizes: Providing multiple nominal terminal sizes within one relocation enclosure.
  • Light Commercial Installations: Organising suitable circuit extensions during distribution board upgrades.

CURDP1 Push-In Terminals vs CURDK1 Screw Terminals

The Switchtec CURDP1 and CURDK1 both provide an 11-way configuration with 33 DIN rail terminals housed in a 243 × 333 × 132mm enclosure.

The main difference is the connection method. The CURDP1 uses Dinkle DP push-in spring terminals, while the CURDK1 uses traditional screw terminals.

The push-in version is particularly attractive to electricians who prefer screwless terminations for compatible conductors. The screw terminal version provides a more conventional connection method.

Both kits are designed to provide an organised solution for extending existing circuits, but the final choice should be based on conductor compatibility, installation requirements and installer preference.

Useful Extras for Consumer Unit Relocation

The Switchtec CURDP1 provides the connection enclosure, but you may also need short lengths of cable and suitable cable-entry accessories to finish the installation.

Other Switchtec Consumer Unit Relocation Kits

Need a smaller enclosure, a larger terminal capacity or traditional screw connections? Compare the other models in the Switchtec CUR Series:

Frequently Asked Questions

What is the Switchtec CURDP1 11 Way Consumer Unit Relocation Kit used for?

The Switchtec CURDP1 11 Way Consumer Unit Relocation Kit provides an enclosed connection point for extending existing electrical circuits when replacing or relocating a consumer unit. It contains 33 DIN push-in terminals within a 243 × 333 × 132mm enclosure.

How many terminals does the Switchtec CURDP1 contain?

The CURDP1 contains 33 push-in terminals in an 11-way configuration. The standard kit includes terminal types in 2.5mm², 4mm², 6mm² and 10mm² sizes.

What makes CURDP1 different from CURDP?

The CURDP is a compact 10-way kit featuring 30 push-in terminals, while the CURDP1 provides 33 terminals in a larger enclosure. CURDP1 also includes additional 4mm² and 6mm² terminal types within its standard configuration.

What is the difference between CURDP1 and CURDK1?

Both kits have an 11-way configuration and 33 terminals. The CURDP1 features push-in spring-clamp terminals, whereas the CURDK1 uses conventional screw terminals.

Are the push-in terminals completely tool-free?

Push-in terminals allow compatible prepared conductors to be connected without tightening terminal screws. However, conductor stripping, ferrule preparation, insertion or release may require tools depending on the conductor type and terminal instructions.

Can the Switchtec CURDP1 be used to extend existing lighting and socket circuits?

The CURDP1 can be used for suitable circuit extensions where conductor sizes, terminal compatibility and installation requirements are met. Check the permissible conductor range of each supplied terminal, particularly for smaller lighting circuit conductors.

Does the CURDP1 replace the consumer unit?

No. The CURDP1 is a cable connection and extension enclosure. It does not replace the circuit protection provided by the consumer unit.

Installation and Safety Considerations

The Switchtec CURDP1 should be installed by a competent electrician. Before extending circuits, verify the condition of the existing wiring, conductor sizes, terminal compatibility, protective arrangements and enclosure location.

Follow the manufacturer’s instructions for preparing, inserting and releasing conductors. Select appropriate cable-entry accessories and ensure the completed installation complies with the applicable requirements of BS 7671.

Where connections require inspection, testing or maintenance access, the relocation enclosure must remain appropriately accessible.

Buy Switchtec CURDP1 11 Way Consumer Unit Relocation Kit from Electrical4Less

Electrical4Less is an independent electrical wholesaler based in Fulham, London, supplying electricians and electrical contractors across the UK.

Order the Switchtec CURDP1 11 Way Consumer Unit Relocation Kit alongside suitable cable and installation accessories for your consumer unit upgrade. We offer competitive trade pricing, collection from our Fulham trade counter and fast UK delivery on available stock.

Explore our Consumer Unit Relocation Boxes & Kits category or browse the wider Twin & Earth Cable range for additional wiring materials.

For additional products and technical information, visit Switchtec’s Official Website. If you require another Switchtec product, contact Electrical4Less with the manufacturer’s part number.

For detailed product specifications and terminal information, refer to the official Switchtec CUR Series data sheet available in the Downloads section.
