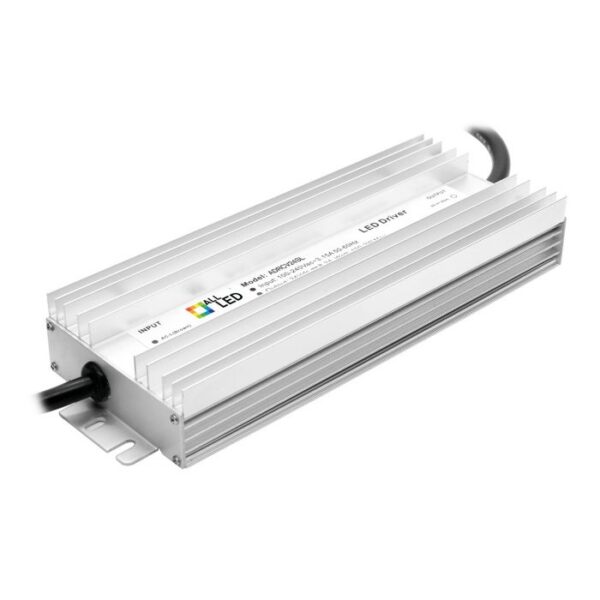

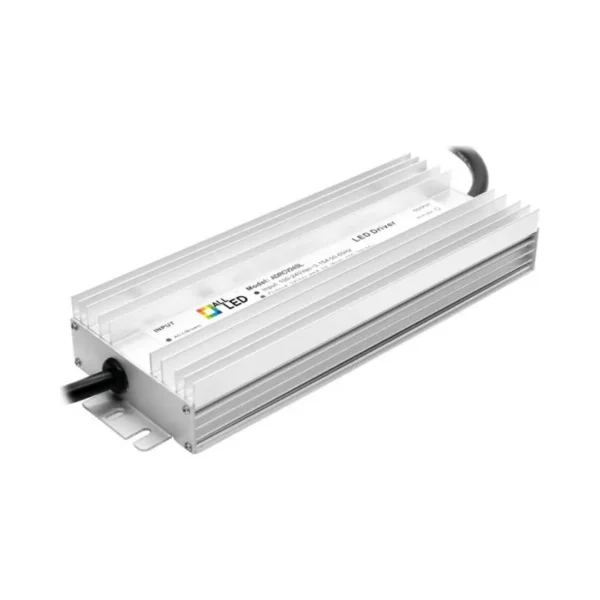

ADRCV24SL/400IP 400W LED Driver – ALL LED Drive24HP IP67
The ADRCV24SL/400IP 400W LED Driver is part of the ALL LED Drive24HP range, designed to provide a stable 24V DC constant voltage supply for higher-power LED lighting installations. With its 400W output capacity and IP67-rated construction, this driver is suitable for compatible indoor and outdoor lighting projects.
Unlike standard lower-wattage LED drivers, the Drive24HP is intended for installations requiring greater power capacity and environmental protection. Its slim aluminium housing assists with heat dissipation, while the tough rubber cables provide durable connections for demanding installation environments.
Key Features
- 24V DC constant voltage output
- 400W rated output power
- IP67-rated enclosure for protection against dust and water ingress
- Non-dimmable design for fixed-output LED lighting
- Zero-load operating capability
- Durable aluminium housing for effective heat dissipation
- Tough rubber cables for demanding environments
- Integrated short circuit protection
- Overload and overvoltage protection
- Overtemperature protection
- SELV-compliant low-voltage output
- Slim construction for flexible installation positioning
Technical Specifications
- Brand: ALL LED
- Manufacturer Part Number: ADRCV24SL/400IP
- Product Range: Drive24HP
- Product Type: High Power Constant Voltage LED Driver
- Output Voltage: 24V DC
- Rated Output Power: 400W
- Output Type: Constant Voltage
- Dimming: Non-Dimmable
- Ingress Protection: IP67
- Housing Material: Aluminium
- Cable Type: Rubber
- Zero-Load Function: Yes
- Safety Classification: SELV
- Protection: Short Circuit, Overload, Overvoltage and Overtemperature
High-Power Supply for 24V LED Lighting
The Drive24HP provides the power capacity required for larger compatible 24V LED lighting systems. Its 400W rating makes it an option for extended LED strip installations, commercial lighting arrangements and architectural projects where a higher-capacity constant voltage supply is necessary.
The ADRCV24SL/400IP 400W LED Driver is specifically designed for fixed-output lighting applications and does not support dimming. Installers should confirm the total connected lighting load and account for the manufacturer’s operating requirements when selecting the driver.
IP67 Protection and Aluminium Housing
The IP67-rated enclosure provides complete dust ingress protection and resistance to temporary immersion under specified test conditions. Combined with the aluminium construction and durable rubber cables, this makes the driver suitable for appropriately designed indoor and outdoor lighting installations.
For installations exposed to weather or moisture, cable joints, connectors and other associated components must also have suitable environmental protection.
Integrated Electrical Protection
The Drive24HP incorporates short circuit, overload, overvoltage and overtemperature protection to help safeguard the power supply during abnormal operating conditions. Its aluminium housing assists with thermal management, supporting reliable operation within the manufacturer’s specified installation conditions.
Installation and Compatibility
Before installation, confirm that the connected lighting requires a regulated 24V DC constant voltage supply and that the total connected load is within the driver’s 400W rating. Follow the manufacturer’s guidance regarding mounting, ventilation, wiring and environmental protection.
This is a non-dimmable constant voltage driver and must not be used with LED fittings requiring constant current operation.
