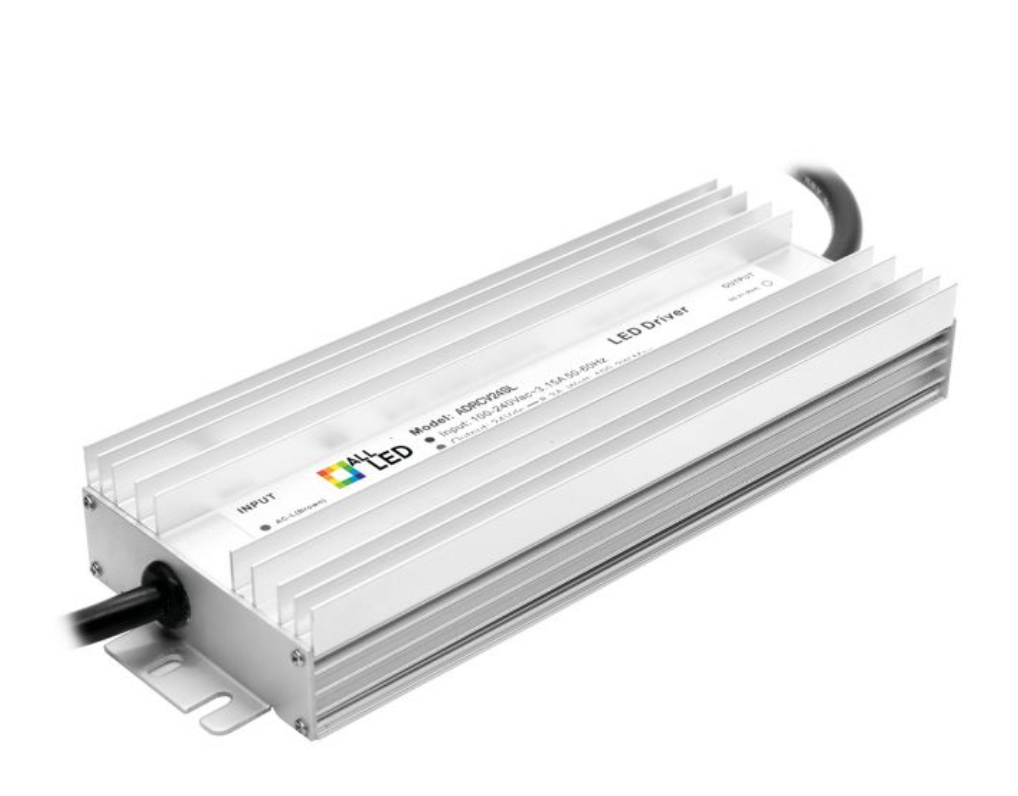

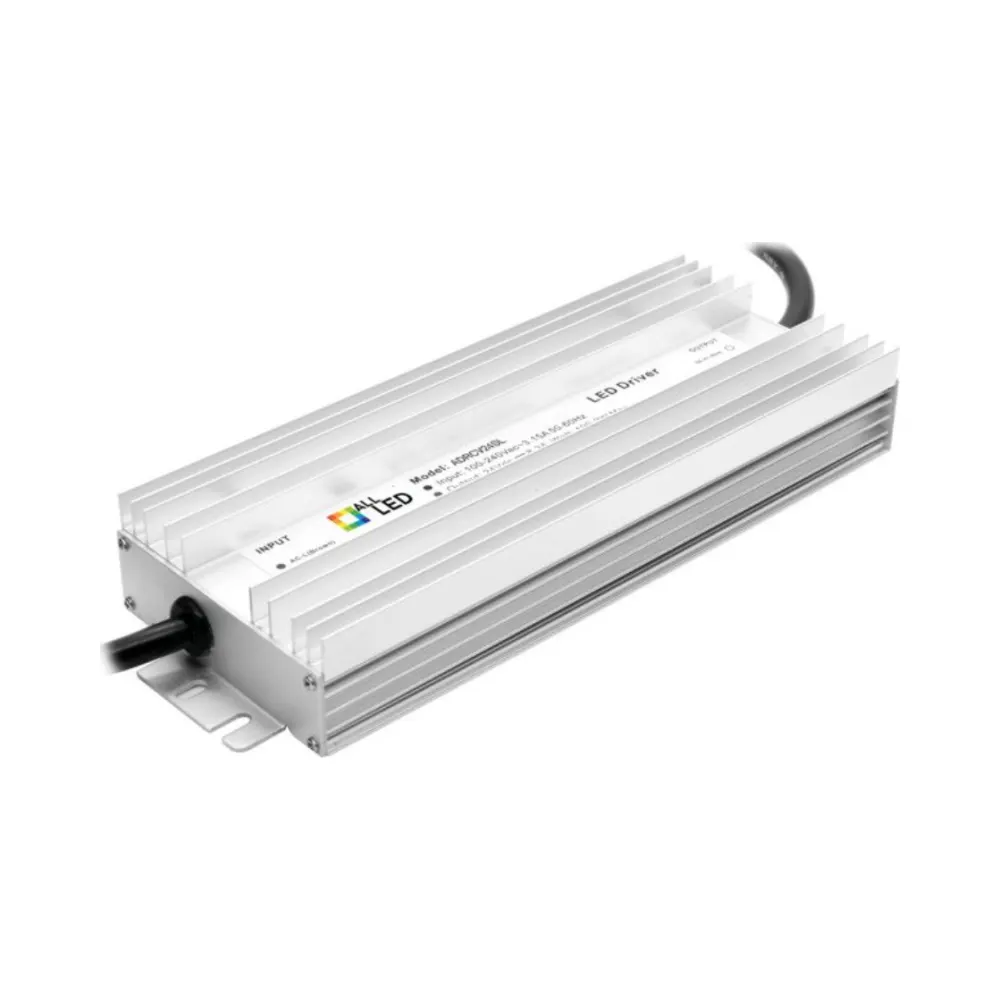

ALL LED ADRCV24SL/200IP 200W 24V LED Driver
The ALL LED ADRCV24SL/200IP 200W 24V LED Driver is an IP67-rated constant voltage power supply designed for demanding LED lighting installations. Delivering a regulated 24V DC output with a maximum capacity of 200W, this driver is suitable for compatible indoor and outdoor LED lighting systems requiring reliable power and protection against dust and water ingress.
Unlike standard indoor LED drivers, the ADRCV24SL/200IP features a durable aluminium enclosure and tough rubberised cable. Its IP67 rating makes it particularly suitable for outdoor architectural lighting, commercial installations and other applications where environmental protection is important.
Key Features
- 24V DC regulated constant voltage output
- 200W maximum rated output power
- IP67 protection against dust and temporary water immersion
- 0-200W operating load range with zero-load capability
- Maximum output current of 8.3A
- Durable aluminium housing for improved heat dissipation
- Tough rubberised cable for demanding installations
- Integrated overload protection and thermal cutout
- SELV-rated output for compatible low-voltage lighting
- Operating temperature range from -15°C to +60°C
- Suitable for indoor and outdoor LED lighting installations
Technical Specifications
- Brand: ALL LED
- Manufacturer Part Number: ADRCV24SL/200IP
- Product Type: IP67 Constant Voltage LED Driver
- Input Voltage: 220-240V AC
- Output Voltage: 24V DC
- Maximum Output Power: 200W
- Maximum Output Current: 8.3A
- Operating Load Range: 0-200W
- Output Type: Regulated Constant Voltage
- Ingress Protection: IP67
- Housing Material: Aluminium
- Cable: Tough Rubberised Cable
- Operating Temperature: -15°C to +60°C
- Safety Rating: SELV
- Electrical Protection: Overload Protection and Thermal Cutout
IP67 Protection for Outdoor LED Lighting
The ADRCV24SL/200IP provides a practical power solution for installations where conventional IP20 LED drivers may not offer sufficient protection. Its sealed IP67 aluminium enclosure provides complete protection against dust ingress and resistance to temporary water immersion under the relevant test conditions.
This makes the driver suitable for compatible outdoor LED strips, architectural lighting, landscape lighting and commercial illumination, provided the complete installation and cable connections are appropriately protected.
200W Output and Zero-Load Capability
With a maximum output of 200W, the driver can supply compatible 24V constant voltage LED loads requiring higher power capacity. Its zero-load function allows operation without a minimum connected load, offering flexibility across different lighting configurations.
The ALL LED ADRCV24SL/200IP 200W 24V LED Driver also includes overload protection and a thermal cutout to help safeguard the power supply during abnormal operating conditions.
Installation and Compatibility
Before installation, confirm that the connected LED lighting requires a 24V DC constant voltage supply and that the total connected load does not exceed 200W or 8.3A. Follow the manufacturer’s guidance for electrical connections, ventilation and mounting.
For outdoor installations, ensure all connections and accessories have suitable environmental protection. The IP67 rating of the driver does not automatically extend to external joints or connected equipment.
This product is a constant voltage LED driver and must not be used with LED fittings requiring a constant current supply. Dimming compatibility is not specified for this model.
