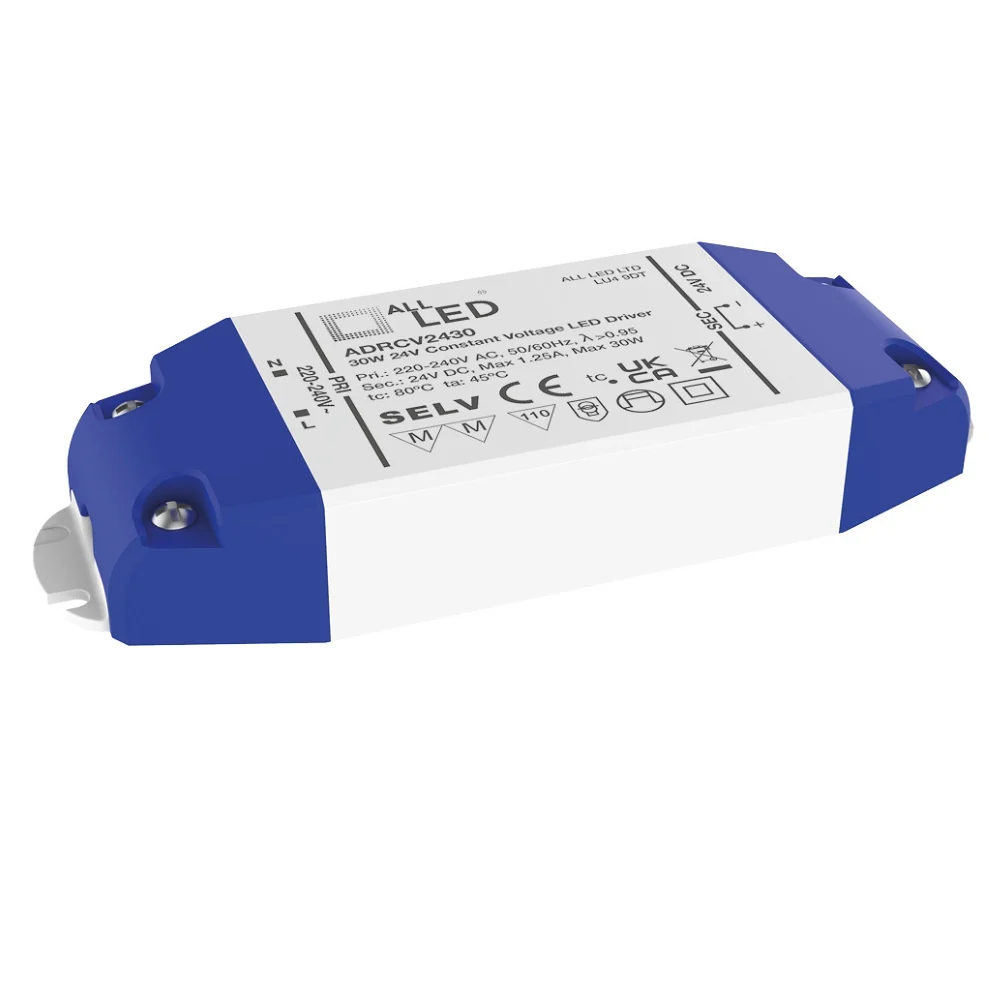

ALL LED ADRCV2430 24V 30W LED Driver
The ALL LED ADRCV2430 24V 30W LED Driver is a compact, non-dimmable constant voltage power supply for compatible low-wattage LED lighting systems. Delivering a regulated 24V DC output with a maximum power rating of 30W, it provides dependable power for residential and commercial lighting installations requiring fixed brightness.
Its moulded polycarbonate housing offers a durable enclosure, while the compact design and generously sized connection terminals help simplify installation in restricted spaces. With zero-load capability and integrated electrical protection, the ADRCV2430 is a practical choice for smaller LED lighting projects.
Key Features
- 24V DC regulated constant voltage output
- 30W maximum rated output power
- Non-dimmable design for fixed-output lighting
- 0-30W operating load range
- Zero-load function with no minimum connected load
- Maximum output current of 1.25A
- 220-240V AC input supply
- Integrated overload protection and thermal cutout
- SELV-rated output for compatible low-voltage lighting
- Durable moulded polycarbonate enclosure
- Large connection terminals for straightforward wiring
- Compact construction suitable for concealed installations
Technical Specifications
- Brand: ALL LED
- Manufacturer Part Number: ADRCV2430
- Product Type: Non-Dimmable Constant Voltage LED Driver
- Input Voltage: 220-240V AC
- Output Voltage: 24V DC
- Maximum Output Power: 30W
- Maximum Output Current: 1.25A
- Operating Load Range: 0-30W
- Dimming: Non-Dimmable
- Output Type: Regulated Constant Voltage
- Operating Temperature: -15°C to +45°C
- Enclosure Material: Moulded Polycarbonate
- Safety Rating: SELV
- Electrical Protection: Overload Protection and Thermal Cutout
Compact 24V Power Supply for Low-Wattage LEDs
The ADRCV2430 is particularly suitable for smaller LED lighting installations where a stable 24V DC supply is required. Its 30W output can support compatible low-voltage LED strips, decorative lighting and other constant voltage lighting equipment without the need for dimming functionality.
Zero-Load Operation and Electrical Protection
The ALL LED ADRCV2430 24V 30W LED Driver supports operation with no connected load, providing flexibility when planning or maintaining lighting installations. Its regulated output helps maintain a consistent supply voltage for compatible LED equipment.
Integrated overload protection and a thermal cutout help protect the driver against abnormal operating conditions. The durable polycarbonate body provides a protective enclosure, while its compact dimensions allow discreet positioning in suitable indoor locations.
Installation and Compatibility
Before installation, confirm that the connected lighting requires a 24V DC constant voltage supply and that the total load does not exceed 30W or 1.25A. Follow the manufacturer’s instructions for suitable positioning, ventilation and electrical connections.
This product is non-dimmable and must not be used with dimming controls unless specifically approved by the manufacturer. It is also unsuitable for LED fittings requiring a constant current driver.
