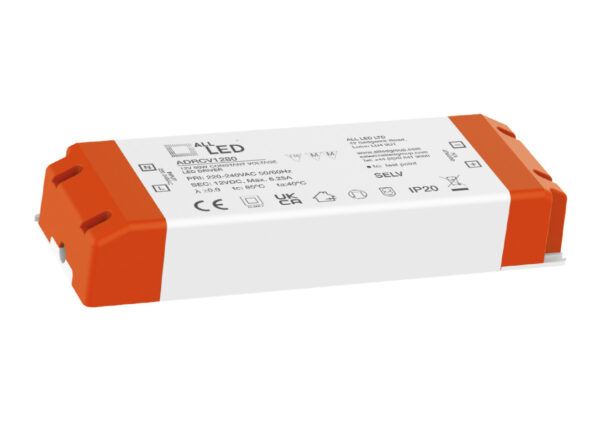

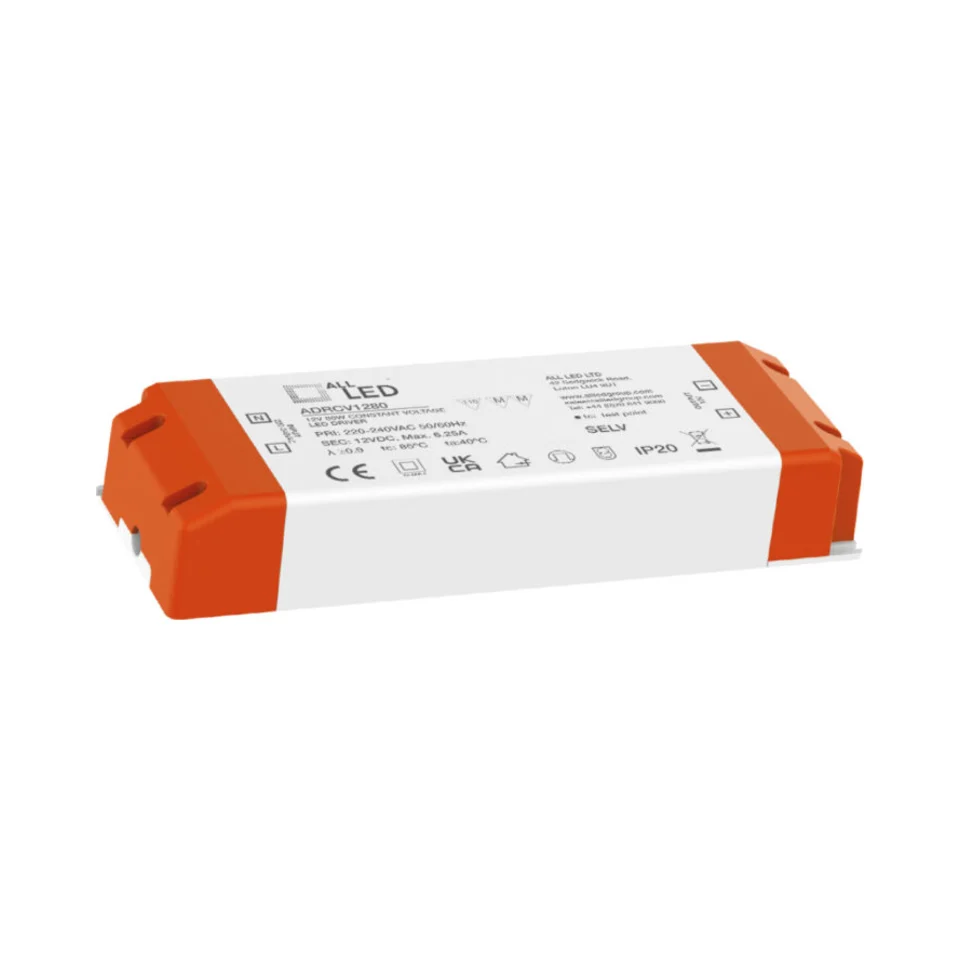

ALL LED ADRCV1280 12V 80W LED Driver – Drive12 Constant Voltage
The ALL LED ADRCV1280 12V 80W LED Driver is a non-dimmable constant voltage power supply from the Drive12 range. Designed for compatible 12V LED lighting systems, it delivers a stable DC output with a maximum power capacity of 80W, making it suitable for residential and commercial installations requiring reliable fixed-brightness lighting.
With an operating range of up to 80W and zero-load capability, the ADRCV1280 can accommodate a variety of compatible low-voltage lighting arrangements. Its compact construction and generously sized connection terminals make it practical for electricians installing LED drivers in restricted or concealed spaces.
Key Features
- 12V DC constant voltage output
- 80W maximum rated output power
- Non-dimmable design for fixed-brightness LED lighting
- 1-80W stated operating load range
- Zero-load capability
- 220-240V AC input supply
- IP20 enclosure for appropriately protected indoor installations
- Integrated overload protection
- Short circuit and overcurrent protection
- Thermal protection against overheating
- Large connection terminals for convenient wiring
- Compact construction suitable for concealed installation spaces
Technical Specifications
- Brand: ALL LED
- Manufacturer Part Number: ADRCV1280
- Product Range: Drive12
- Product Type: Non-Dimmable Constant Voltage LED Driver
- Input Voltage: 220-240V AC
- Output Voltage: 12V DC
- Maximum Output Power: 80W
- Stated Operating Load: 1-80W
- Zero-Load Function: Yes
- Dimming: Non-Dimmable
- Ingress Protection: IP20
- Electrical Protection: Overload, Short Circuit, Thermal and Overcurrent
Drive12 Power Supply for LED Lighting
The ADRCV1280 is designed to power compatible 12V constant voltage LED equipment. Its 80W capacity makes it suitable for lighting installations requiring more power than smaller 12V drivers, including LED strip lighting, illuminated displays and decorative lighting arrangements.
As a non-dimmable driver, it is intended for applications where a constant lighting level is required rather than adjustable brightness.
Zero-Load Capability and Electrical Protection
The ALL LED ADRCV1280 12V 80W LED Driver incorporates a zero-load function, allowing operation without a connected lighting load. This provides installation flexibility when connecting or maintaining compatible LED lighting systems.
Built-in overload, short circuit, thermal and overcurrent protection helps safeguard the power supply during abnormal operating conditions. Its compact housing also makes the driver suitable for discreet positioning where adequate installation space and ventilation are available.
Installation and Compatibility
Before installation, confirm that the connected LED fittings require a 12V DC constant voltage supply and that the total load remains within the manufacturer’s 80W maximum rating.
The IP20 rating means the driver must be installed in an appropriately protected indoor location. For outdoor lighting applications, position the driver inside a suitable weatherproof enclosure and follow the manufacturer’s installation instructions.
This product is non-dimmable and must not be connected directly to LED fittings requiring constant current operation.
