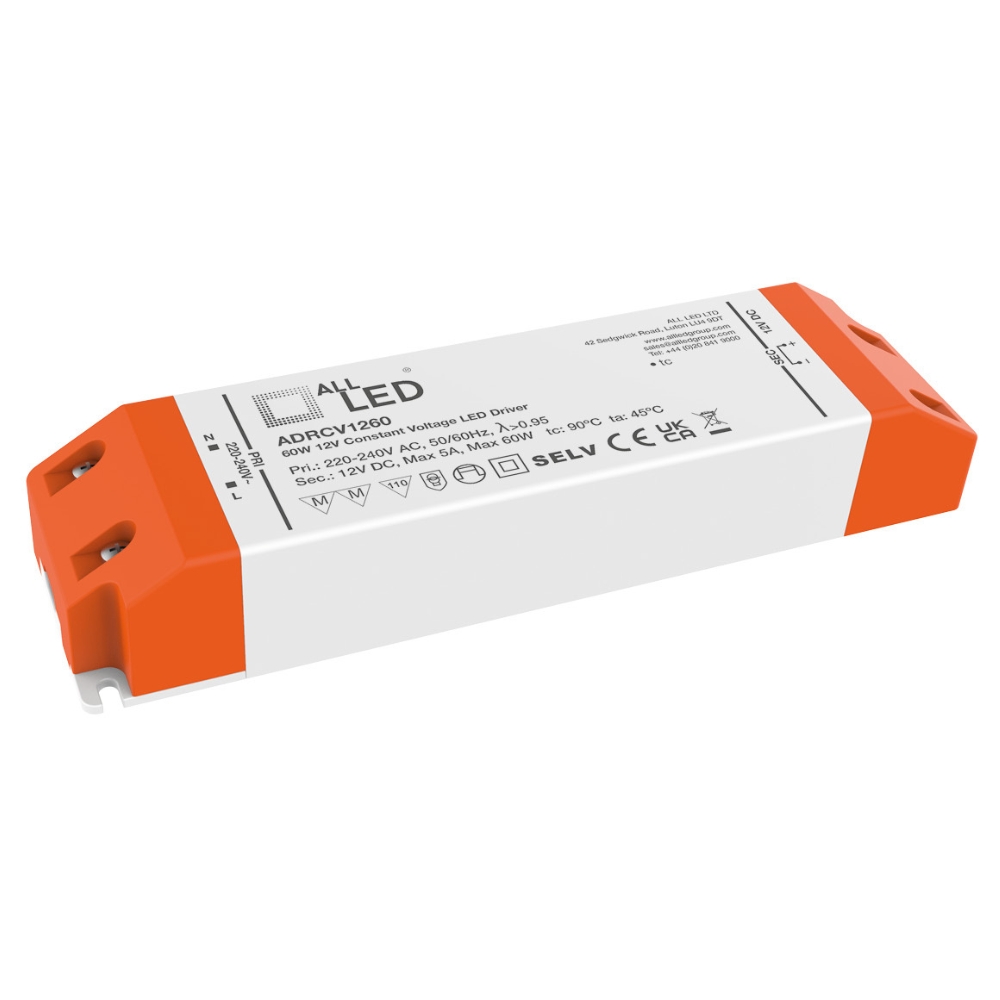

ALL LED ADRCV1260 12V 60W LED Driver
The ALL LED ADRCV1260 12V 60W LED Driver is a non-dimmable constant voltage power supply designed for compatible 12V LED lighting installations. With a regulated DC output and maximum power rating of 60W, it provides stable power for domestic and commercial low-voltage lighting applications.
Featuring a zero-load operating capability, this driver can function across a wide load range from 0W to 60W. Its moulded polycarbonate housing and compact construction make it suitable for discreet installation in appropriately protected indoor locations.
Key Features
- 12V DC regulated constant voltage output
- 60W maximum rated output power
- Non-dimmable design for fixed-output LED lighting
- 0-60W operating load range
- Zero-load function for flexible installation
- Maximum output current of 5A
- 220-240V AC input supply
- Integrated overload protection and thermal cutout
- SELV-rated output
- Durable moulded polycarbonate enclosure
- Compact design suitable for concealed installations
- IP20 protection rating for indoor use
Technical Specifications
- Brand: ALL LED
- Manufacturer Part Number: ADRCV1260
- Product Type: Non-Dimmable Constant Voltage LED Driver
- Input Voltage: 220-240V AC
- Output Voltage: 12V DC
- Maximum Output Power: 60W
- Maximum Output Current: 5A
- Operating Load Range: 0-60W
- Dimming: Non-Dimmable
- Output Type: Regulated Constant Voltage
- Operating Temperature: -15°C to +45°C
- Ingress Protection: IP20
- Enclosure Material: Moulded Polycarbonate
- Safety Rating: SELV
- Electrical Protection: Overload Protection and Thermal Cutout
Reliable Power for 12V LED Lighting
The ADRCV1260 is designed for LED installations requiring a consistent 12V DC supply without brightness adjustment. Its 60W output capacity makes it suitable for compatible low-voltage LED lighting, including decorative lighting, LED strips and architectural applications where a fixed light output is required.
Zero-Load Capability and Built-In Protection
The ALL LED ADRCV1260 12V 60W LED Driver incorporates a zero-load function, allowing the power supply to operate without a minimum connected load. This makes it a versatile option for lighting systems where the connected load may vary.
Overload protection and a thermal cutout help protect the driver against abnormal operating conditions. Its regulated output delivers a stable 12V DC supply, while the moulded polycarbonate enclosure provides a durable housing for the internal components.
Installation and Compatibility
Before installation, confirm that the connected LED lighting requires a 12V DC constant voltage supply and that the total load does not exceed 60W or 5A. Install the driver in an appropriate indoor location, following the manufacturer’s instructions for ventilation and electrical connections.
This driver is non-dimmable and must not be used with dimming controls unless the manufacturer specifically confirms compatibility. It is also unsuitable for LED fittings requiring a constant current power supply.
