Description

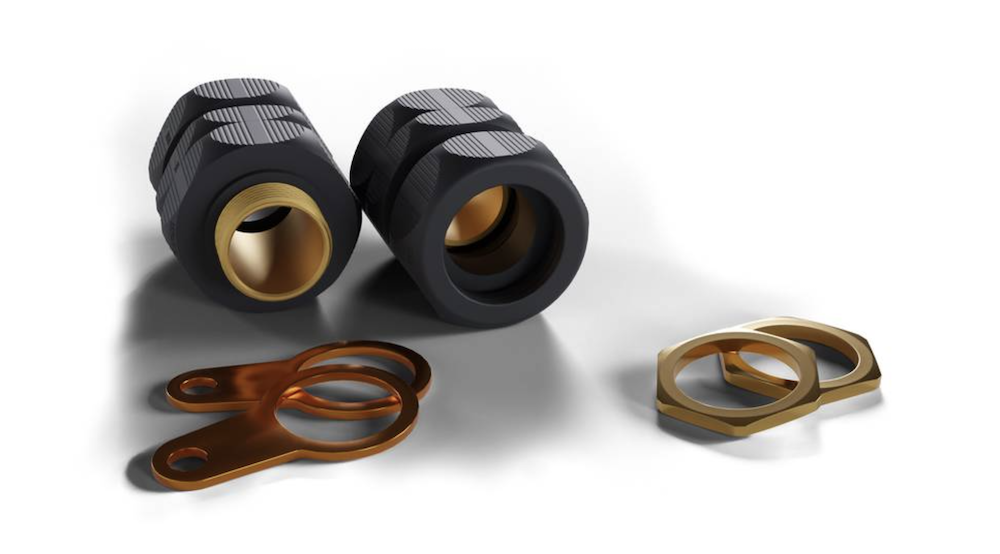

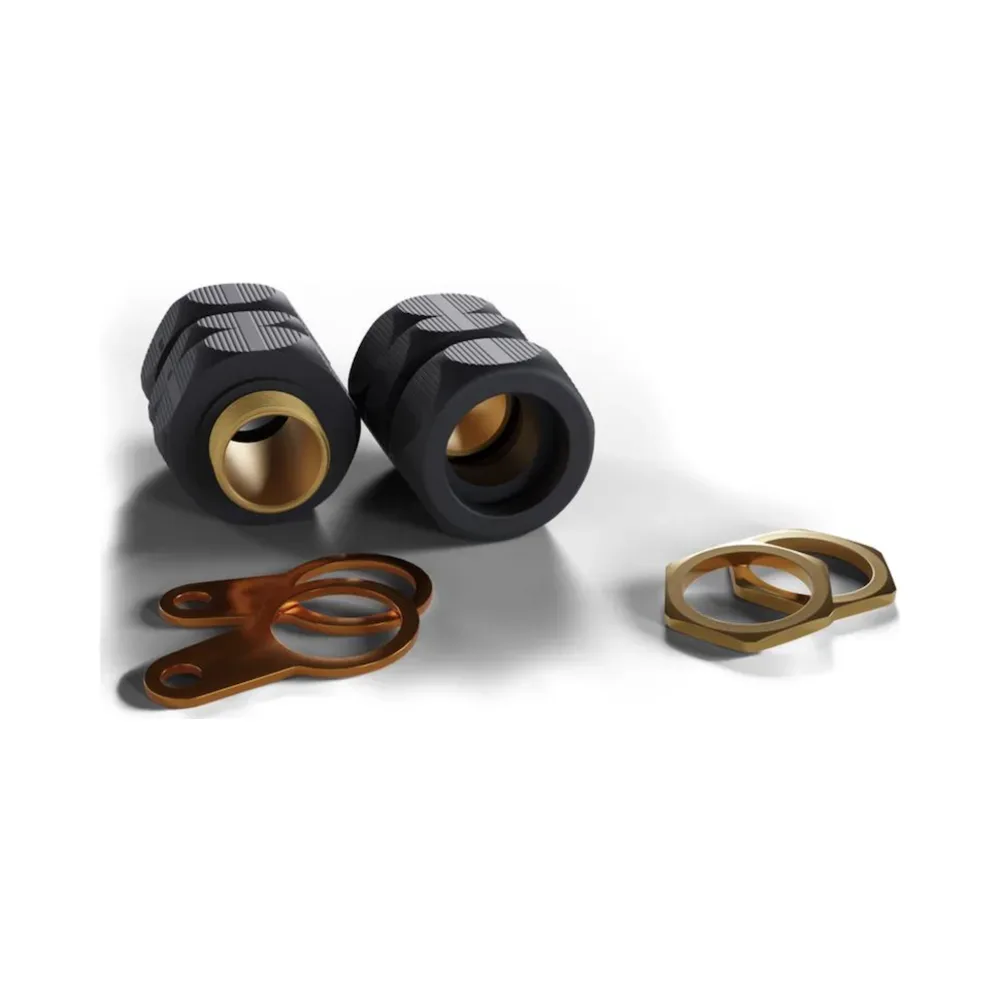

Wiska ShieldGLAND Standard M20L IP68 Cable Gland Brass Locknut Earth Tag – 2 Pcs
Introducing the ShieldGLAND®, an IP68 polyamide/brass hybrid cable gland suitable for armoured and SY cables.
The ShieldGLAND® replaces the use of the conventional BW/CW gland for cable termination. It offers superior protection (IP68) against dust, dirt and water. Furthermore the ShieldGLAND®’s polyamide outerbody eliminates the need for a shroud helping to save time and improve ease of installation. Finally the finished look creates a much cleaner final installation. The ShieldGLAND® has also been designed to work with our iconic COMBI junction box series and accessories.
- High protection class (IP68)
- High quality material: polyamide/brass
- No shroud required
- Suitable for armoured, non-armoured and SY/CY cables
- Complete with Brass locknut and earth tag
Thanks to its flexible design the ShieldGLAND® can be used with armoured, SY, CY and non-armoured cables. The ShieldGLAND®’s versatile clamping olive can simply be switched to take either armoured or SY, CY making installation quick and easy.
The ShieldGLAND®’s unique adaptable insert allows a wider range of cable acceptance due to its two part sealing gasket. Simply leave as is or remove inner sealing insert depending on your cable requirement.
| Material sealing gasket | TPE |
|---|---|
| Temp. range min | -40 °C |
| Temp. range max | 120 °C |
| Protection class | IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 20 |
| Lead | 1.5 |
| Length screw-in thread L | 11 mm |
| Ø cable diameter min | 11 mm |
| Ø cable diameter max | 21 mm |
| Ø cable below cable shield max | 12 mm – 17 mm |
| Key width SW | 32 mm |
| Collar diameter (E) | 36 mm |
| Total length TL | 57 mm – 63 mm |
