Description

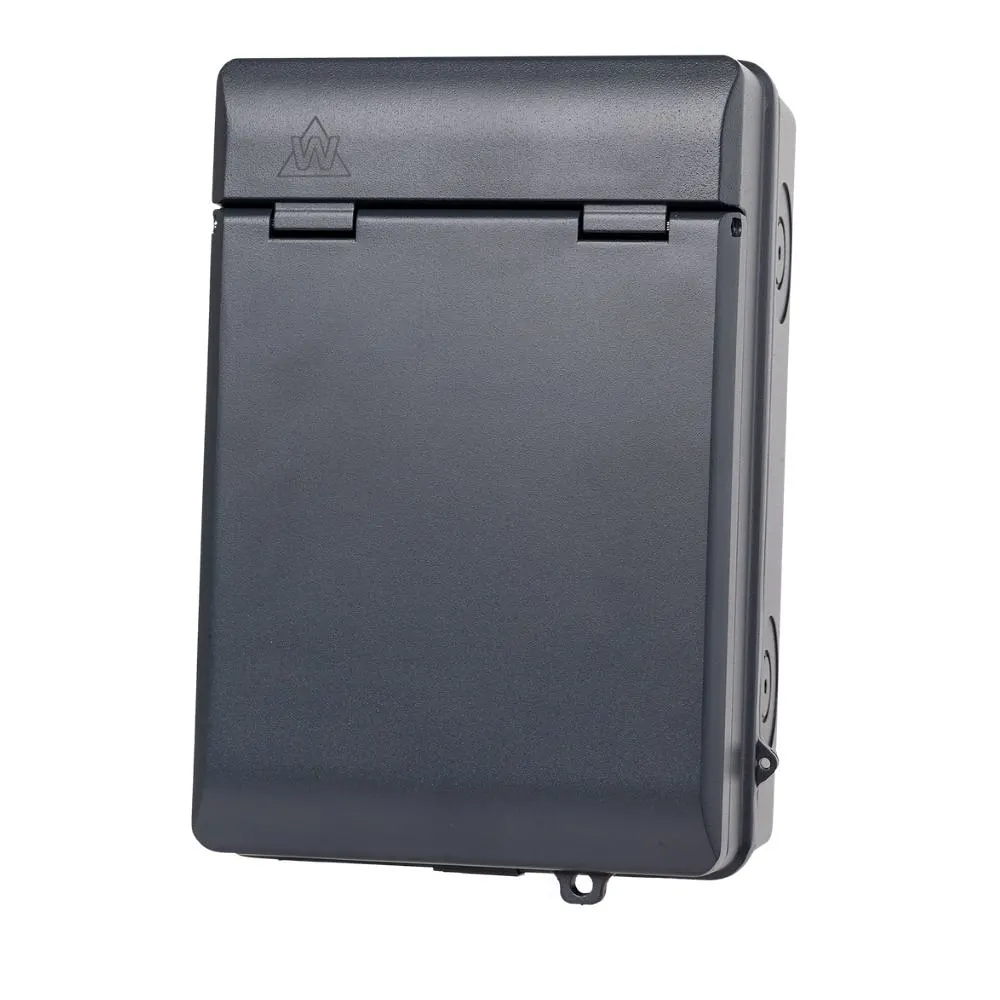

WCED IP65 Metal EV Protection Unit WMIP32BSP
WCED IP65 Metal EV Protection Unit WMIP32BSP is a robust electric vehicle charger protection unit designed for outdoor EV charging installations. Supplied with a Type A 32A B Curve RCBO and Type 2 SPD, this unit provides practical circuit and surge protection for domestic and light commercial EV charger setups.
The WCED IP65 Metal EV Protection Unit WMIP32BSP is housed in a non-combustible aluminium enclosure with an IP65 rating for protection against dust and water ingress. The unit is designed for demanding environments such as garages, workshops and outdoor applications, and should be selected, installed and tested by a qualified electrician.
Key Features
- WCED IP65 metal EV protection unit for outdoor EV charger installations
- Supplied with Type A 32A B Curve RCBO
- Type 2 SPD included for surge protection
- Non-combustible aluminium enclosure
- IP65 rated for protection against dust and water ingress
- Lockable design, suitable for padlock locking
- Large accessible wiring space with raised DIN rail for cable routing

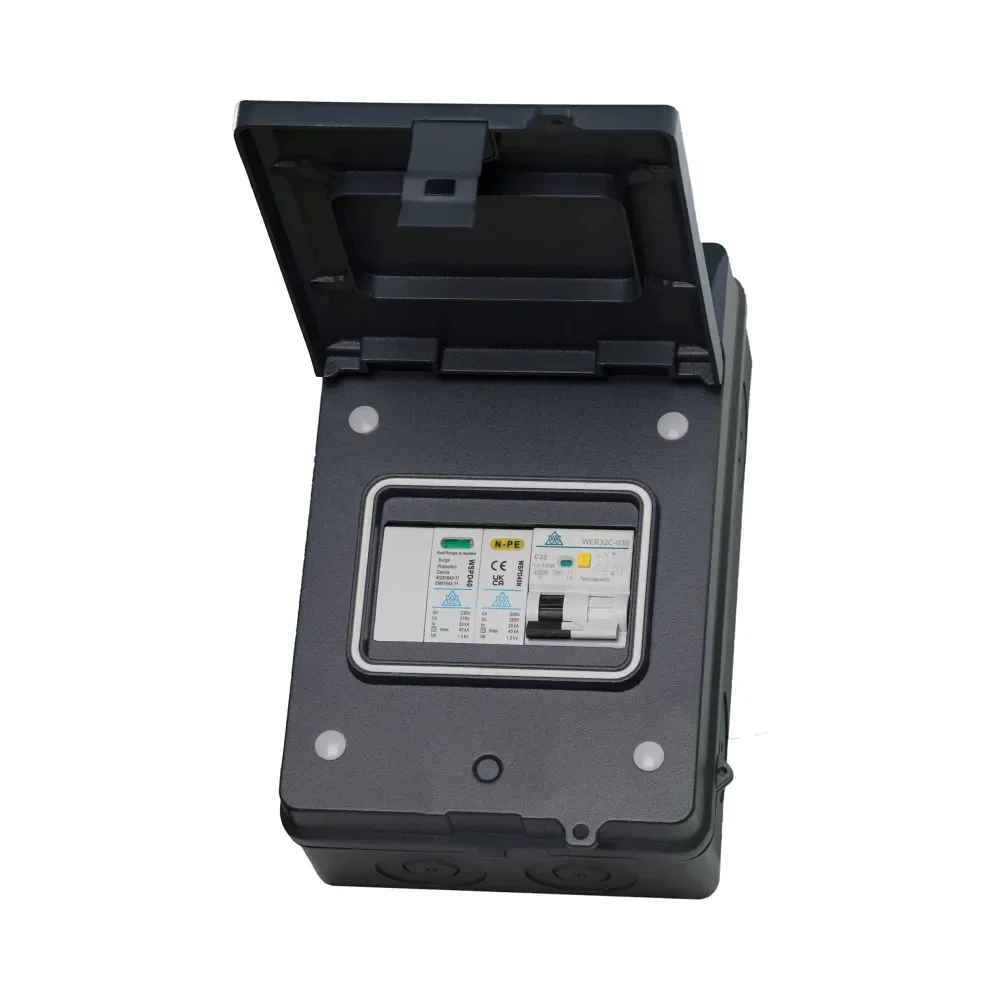

- Supplied complete with devices, DIN rail, neutral cable, neutral and earth terminals and busbar
- Visual SPD indication: green for good, red for replace
Technical Data
- Brand: WCED
- Model / SKU: WMIP32BSP
- Product type: IP65 metal EV protection unit
- RCBO type: Type A
- RCBO rating: 32A B Curve
- Surge protection: Type 2 SPD included
- Number of modules: 5
- Rated voltage: 230/400V
- Frequency: 50Hz
- Incoming terminal capacity: 35mm max
- Terminal type: Cage clamp
- Enclosure material: Non-combustible aluminium
- Enclosure rating: IP65
- Device mounting: 35mm DIN rail
- Ambient temperature: -25°C to +40°C
- Standard: BS EN 61439-3
Typical Applications
- Outdoor domestic EV charger installations
- Driveway and external wall mounted EV charging setups
- Garages, workshops and external electrical installations
- Small commercial EV charging points
- Installations requiring an IP65 metal EV protection unit with surge protection
Related EV Protection Units
Please see below other WCED IP65 metal EV protection unit options:
- WCED IP65 metal 32A C Curve EV protection unit with Type A RCBO and SPD
- WCED IP65 metal 40A B Curve EV protection unit with Type A RCBO and SPD
- WCED IP65 metal 40A C Curve EV protection unit with Type A RCBO and SPD
IP65 Plastic EV Consumer Unit Options
If you need a plastic IP65 EV consumer unit version, please check the options below:
- IP65 WCED 32A B Curve EV consumer unit with Type A DP RCBO and SPD
- IP65 WCED 32A C Curve EV consumer unit with Type A DP RCBO and SPD
- IP65 WCED 40A B Curve EV consumer unit with Type A DP RCBO and SPD
- IP65 WCED 40A C Curve EV consumer unit with Type A DP RCBO and SPD
