Description
Durable 12 Way Metal Main Switch Consumer Unit for Reliable Distribution

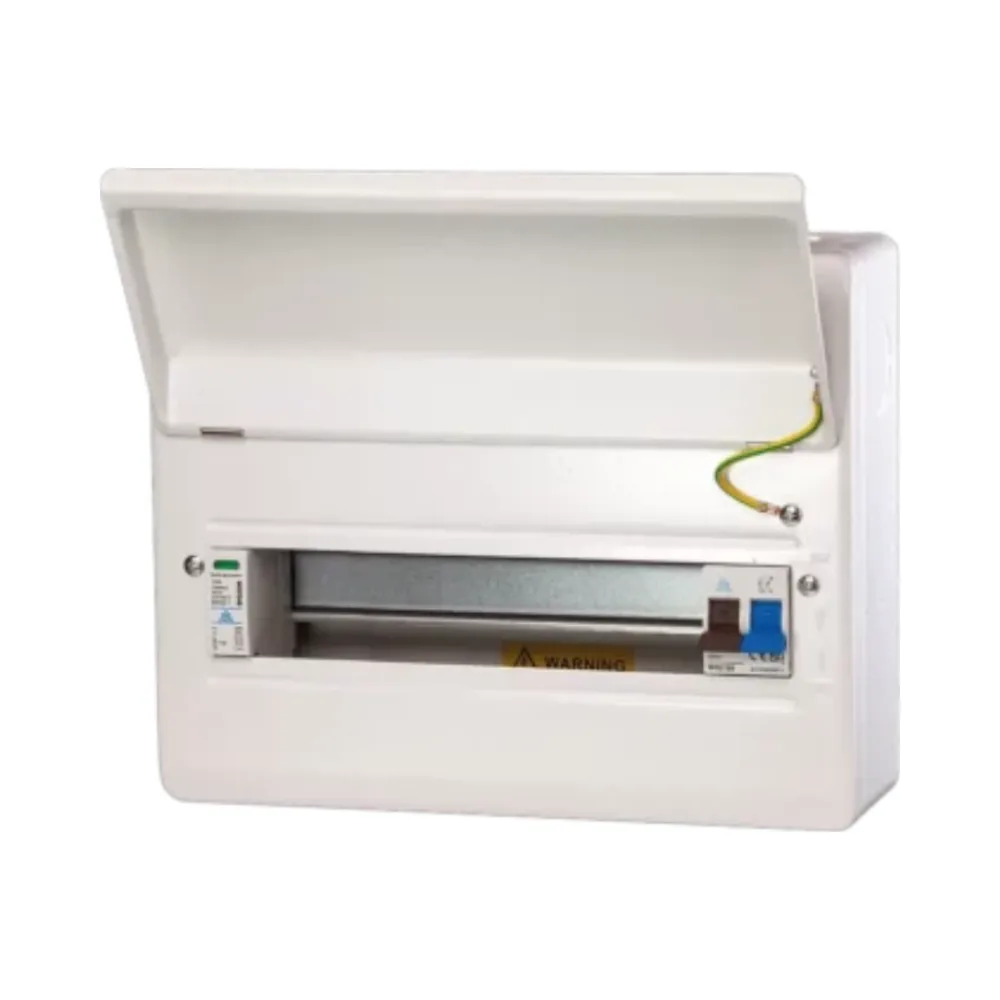

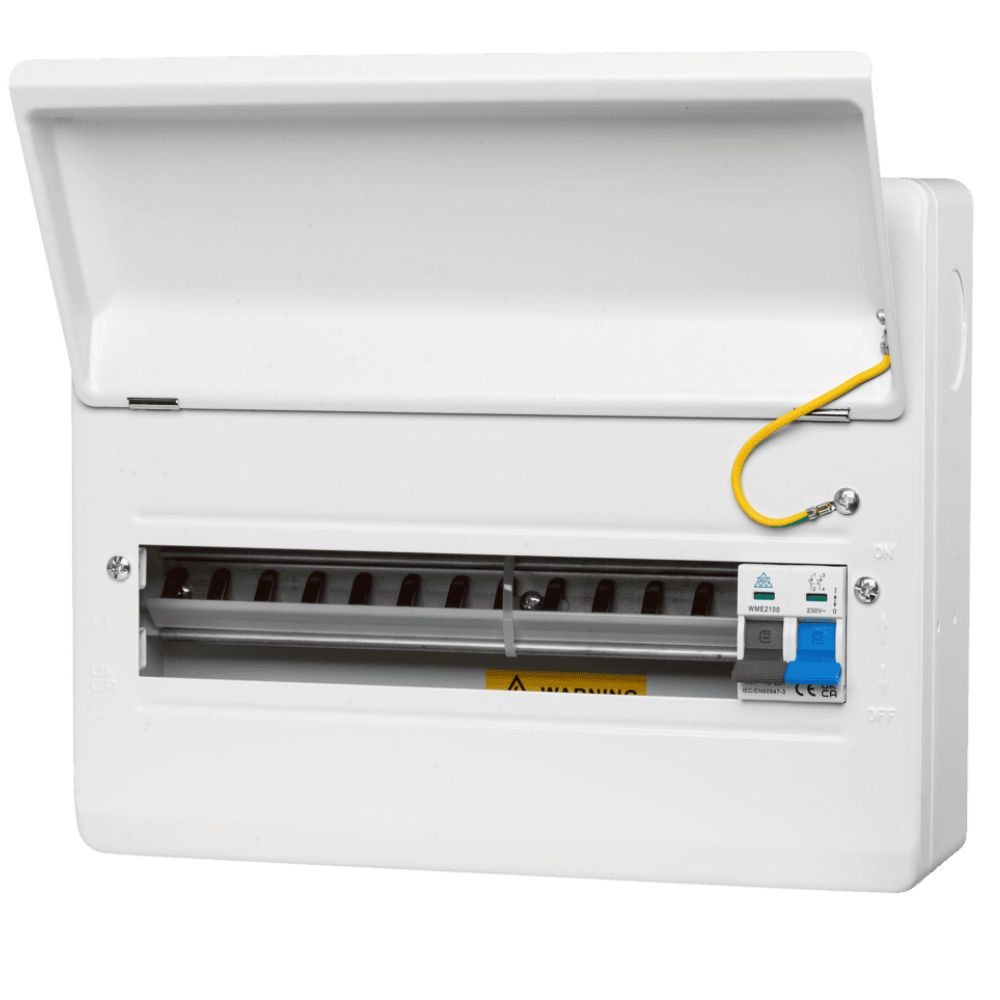

WCED 12 Way Main Switch Consumer Unit
Upgrade your electrical installation with the WCED 12 Way Main Switch Consumer Unit. Built with a durable metal enclosure, this consumer unit provides reliable circuit distribution for homes, garages, workshops and light commercial applications.
The 14 module design offers 12 usable ways, giving installers additional capacity for larger domestic and small commercial electrical systems. The factory-fitted 100A main switch includes twin screw terminals for secure incoming meter tail connections and dependable isolation.
Multiple circular cable entry knock-outs across the top, bottom, sides and rear help simplify installation and cable routing. Larger rear cable slots improve wiring access, helping installers create neat and efficient board layouts. With compact dimensions of 304mm x 240mm x 112mm, this unit provides strong protection while fitting neatly into a wide range of installation environments.
Key Features – WCED 12 Way Main Switch Consumer Unit
- Metal enclosure for durable and secure installation
- 14 module consumer unit with 12 usable ways
- Factory-fitted 100A main switch
- Twin screw terminals for secure meter tail connections
- 25mm and 32mm knock-outs on top and bottom
- 40mm knock-outs on sides and rear
- Larger rear cable slots for easier wiring access
- Compact design suitable for domestic and light commercial installations
Technical Overview – WCED 12 Way Main Switch Consumer Unit
- Product code: WME14/MS100
- Product type: Metal main switch consumer unit
- Ways: 12 usable ways
- Modules: 14 module enclosure
- Main switch rating: 100A
- Main switch terminals: Twin screw terminals
- Top and bottom knock-outs: 25mm and 32mm
- Side and rear knock-outs: 40mm
- Dimensions: 304mm (W) x 240mm (H) x 112mm (D)
- Application: Domestic and small commercial electrical distribution
Why Choose This Product?
Choose the WCED WME14/MS100 when you need a practical metal consumer unit with 12 usable ways, flexible cable entry options and a dependable 100A main switch for secure electrical distribution installations.
Related WCED Products
Please check below for other products from WCED that may be helpful to complete your project.
- Meter Supply Isolator with Surge Protection
- WCED Stand Alone Type 1 & 2 SPD with Main Switch
- WCED Metal Fused Main Switch with 3 Fuses
Other WCED Consumer Units
Check also other available sizes of consumer units from WCED with and without SPD.
- WCED 14 Way Main Switch Consumer Unit
- WCED 16 Way Main Switch Consumer Unit
- WCED 13 Way SPD Metal Consumer Unit
- WCED 15 Way SPD Metal Consumer Unit
About WCED
WCED supplies practical electrical distribution products designed for trade installations, offering reliable performance, straightforward installation and dependable protection for everyday electrical projects.
Guarantee & Compliance
Designed for safe and compliant electrical installations. Always install in accordance with current wiring regulations and manufacturer guidance.
