Description
Durable 14 Way Metal Main Switch Consumer Unit for Reliable Distribution

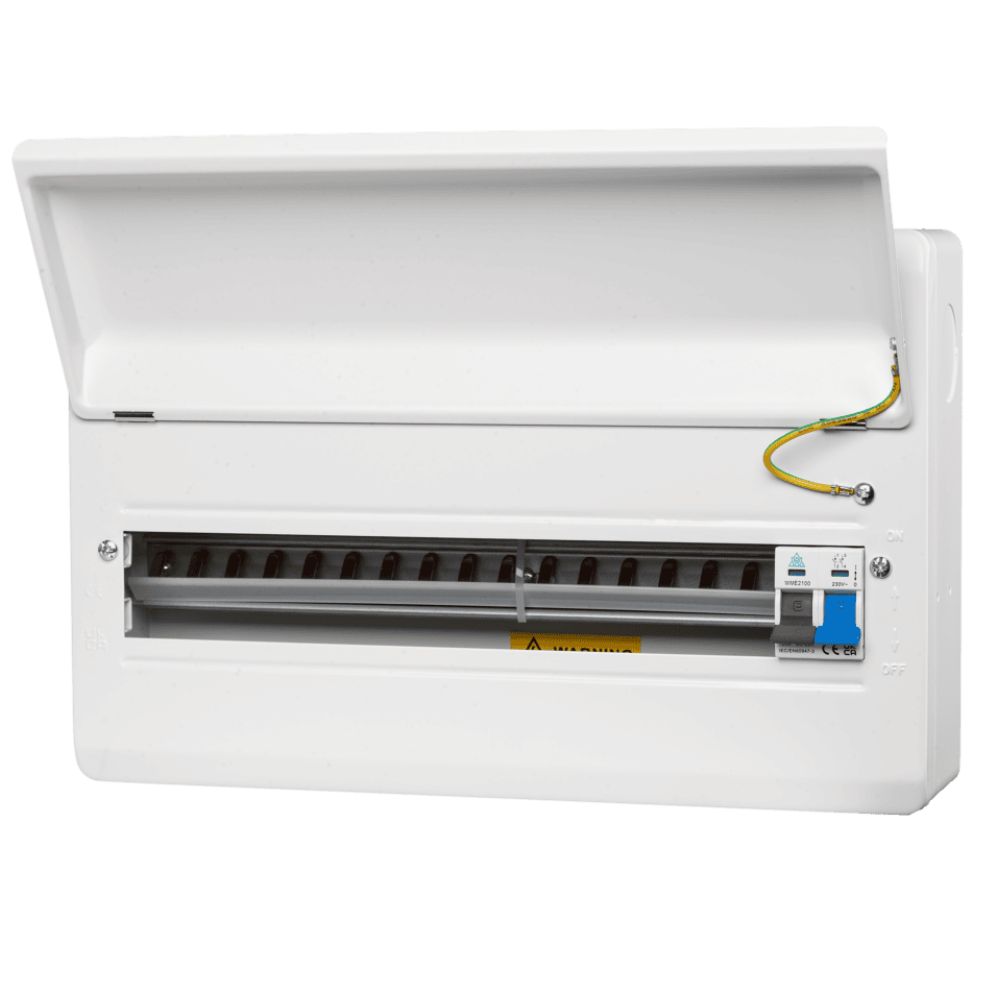

WCED 14 Way Main Switch Consumer Unit
Upgrade your electrical installation with the WCED 14 Way Main Switch Consumer Unit. Finished in white polyester powder coating, this metal consumer unit provides reliable circuit distribution for domestic and light commercial applications.
The 16 module enclosure offers 14 usable ways, providing additional capacity for larger installations. The factory-fitted 100A main switch features twin screw terminals for secure incoming meter tail connections and dependable isolation.
Designed with installer convenience in mind, the enclosure includes multiple circular cable entry knock-outs across the top, bottom, sides and rear. Raised key holes help simplify mounting, while the raised DIN rail improves cable routing and internal wiring layout.
Supplied complete with neutral and earth terminal bars, neutral cable and pin-style bus bar, this consumer unit provides a practical solution for safe and efficient electrical distribution. With compact dimensions of 376mm x 240mm x 112mm, it delivers durable protection while fitting neatly into a wide range of installation environments.
Key Features – WCED 14 Way Main Switch Consumer Unit
- Metal consumer unit finished in white polyester powder coating
- 16 module enclosure with 14 usable ways
- Factory-fitted 100A main switch
- Twin screw terminals for secure meter tail connections
- 25mm and 32mm knock-outs on top and bottom
- 40mm knock-outs on sides and rear
- Raised DIN rail for improved cable routing
- Raised key holes for easier and more secure installation
- Supplied with neutral and earth terminal bars, neutral cable and pin-style bus bar
Technical Overview – WCED 14 Way Main Switch Consumer Unit
- Product code: WME16/MS100
- Product type: Metal main switch consumer unit
- Ways: 14 usable ways
- Modules: 16 module enclosure
- Main switch rating: 100A
- Main switch terminals: Twin screw terminals
- Finish: White polyester powder coating
- Top and bottom knock-outs: 25mm and 32mm
- Side and rear knock-outs: 40mm
- Dimensions: 376mm (W) x 240mm (H) x 112mm (D)
- Included accessories: Neutral and earth terminal bars, neutral cable and pin-style bus bar
- Application: Domestic and small commercial electrical distribution
Why Choose WCED 14 Way Main Switch Consumer Unit?
Choose the WCED WME16/MS100 when you need a practical metal consumer unit with 14 usable ways, flexible cable entry options, raised DIN rail design and a dependable 100A main switch with twin screw terminals.
