Combined Power and Data Cable for EV Installations

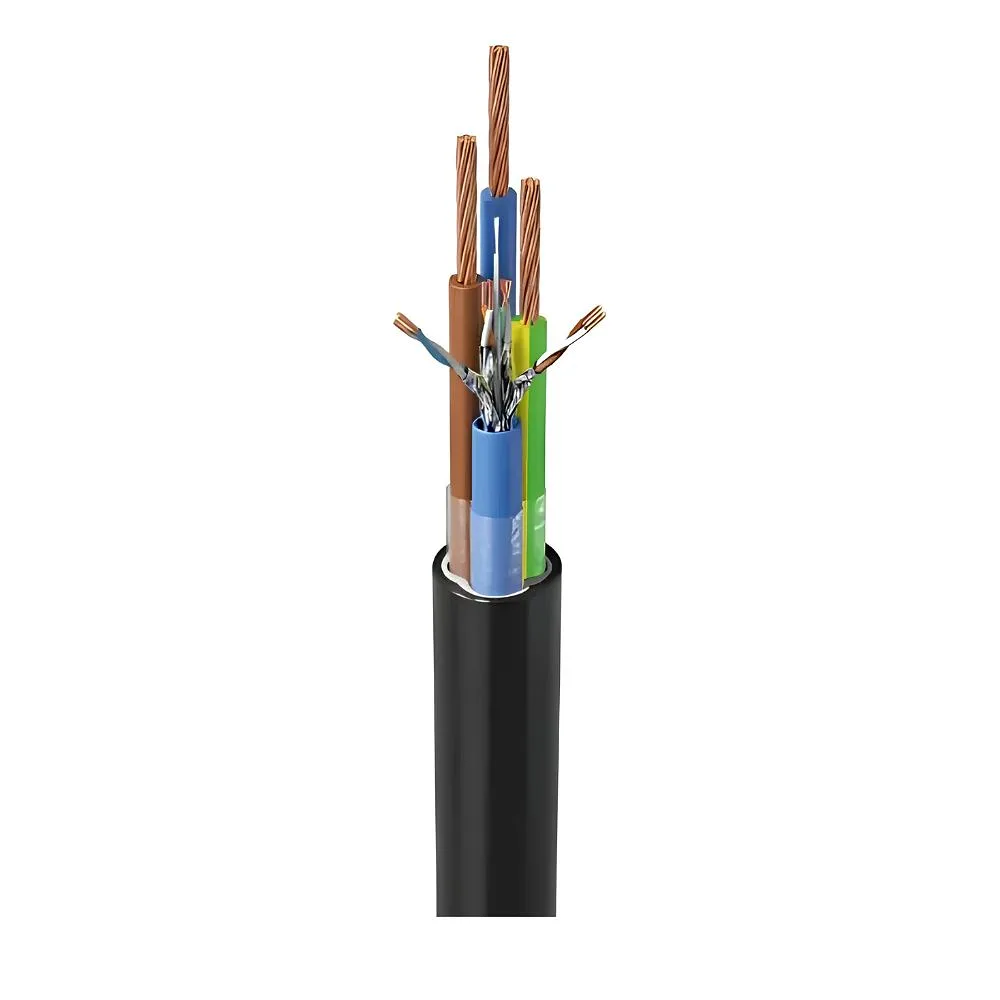

The Trident EV-Power 3 Core 6mm Cat6A FTP Cable combines 600/1000V power conductors with a screened Cat6A FTP data cable, allowing power and communication to be installed within a single cable. This integrated design can simplify EV charging and smart system installations, reduce the need for multiple cable runs and help create a neater installation where both power and data are required.
This product is supplied as one fixed 15 metre off-cut of the unarmoured UK Cables Trident Plus6 cable, making it suitable for installations where the required cable run closely matches this pre-cut length.
Key Features
- 3 core 6mm copper power conductors with Cat6A FTP data cable
- Fixed 15 metre off-cut
- Combined power and data cable for EV charger installations
- 600/1000V power cable rating
- Screened Cat6A FTP data connection within the same cable
- XLPE insulation and black PVC outer sheath
- Plain stranded Class 2 copper conductors
- Suitable where power and data are required in one cable run
- Well suited to EV chargers, CCTV, access control and temporary buildings
- Flame tested to IEC 60332-1-2
- Complies with IEC 60502-1, IEC 60228 and TIA/EIA 568-B standards
Technical Overview
- Brand: UK Cables
- Range: Trident Plus6 / Trident EV-Power
- Cable type: Combined power and data cable
- Construction: Unarmoured
- Power cores: 3 core
- Conductor size: 6mm
- Voltage rating: 600/1000V
- Test voltage: 3500V
- Temperature range: -15°C to +90°C
- Minimum installation temperature: 0°C
- Bending radius: 6 × O/D
- Conductor: Plain stranded copper, Class 2
- Insulation: XLPE
- Outer sheath: Black PVC
- Data cable: Cat6A FTP screened data cable
- Nominal overall diameter: 16.0mm
- Approximate weight: 446kg/km
- Flame propagation: IEC 60332-1-2
- Standards: IEC 60502-1, IEC 60228 and TIA/EIA 568-B
- Supplied length: 15 metres
Included
1 × UK Cables Trident Plus6 3 Core 6mm Cat6A FTP EV Cable – fixed 15 metre off-cut.
Why Choose This EV Cable?
This cable offers a single-run solution for both power and data, making it particularly useful for EV charger installations where communication cabling forms part of the system design. Combining the power conductors and screened Cat6A FTP data cable in one product can help reduce separate cable runs, simplify routing and support a cleaner finished installation.
The fixed 15 metre length can also be a cost-effective option where a full drum or longer cut length is not required.
Suitable Applications
- Domestic EV charger installations
- Commercial EV charging points
- Smart EV charging systems requiring data connectivity
- CCTV installations requiring combined power and communications
- Access control systems
- Temporary buildings and site installations
- Other fixed installations requiring power and screened data along the same route
Related EV Charging Products
If you are also choosing the charger itself, view our Ohme charger range, including Ohme Home Pro and Ohme ePod smart EV chargers.
For the rest of the installation, browse our EV cable clips, EV consumer units and EV circuit protection.
About UK Cables and Trident
Founded in 1987, UK Cables is a long-standing UK distributor of electrical cables, working closely with manufacturers to provide safe and approved cable products. The Trident range focuses on combined power and data cables designed to make modern electrical projects easier and more efficient.
Guarantee and Compliance
The Trident EV-Power 3 Core 6mm Cat6A FTP Cable follows IEC 60502-1, IEC 60228 and TIA/EIA 568-B standards. It is also flame tested to IEC 60332-1-2, supporting use in suitable domestic and commercial installations when correctly selected and installed.
Installation Notes
EV charging cable should be selected and installed by a qualified electrician in accordance with current UK wiring regulations, the EV charger manufacturer’s instructions and the requirements of the installation. The installer should confirm the required cable size, installation method, route, protection, glands, clips and associated circuit protection before installation.
Off-Cut Cable Information
This listing is for one fixed 15 metre cable off-cut. The cable is supplied at the stated length and is not sold by the metre under this product listing.
