Description

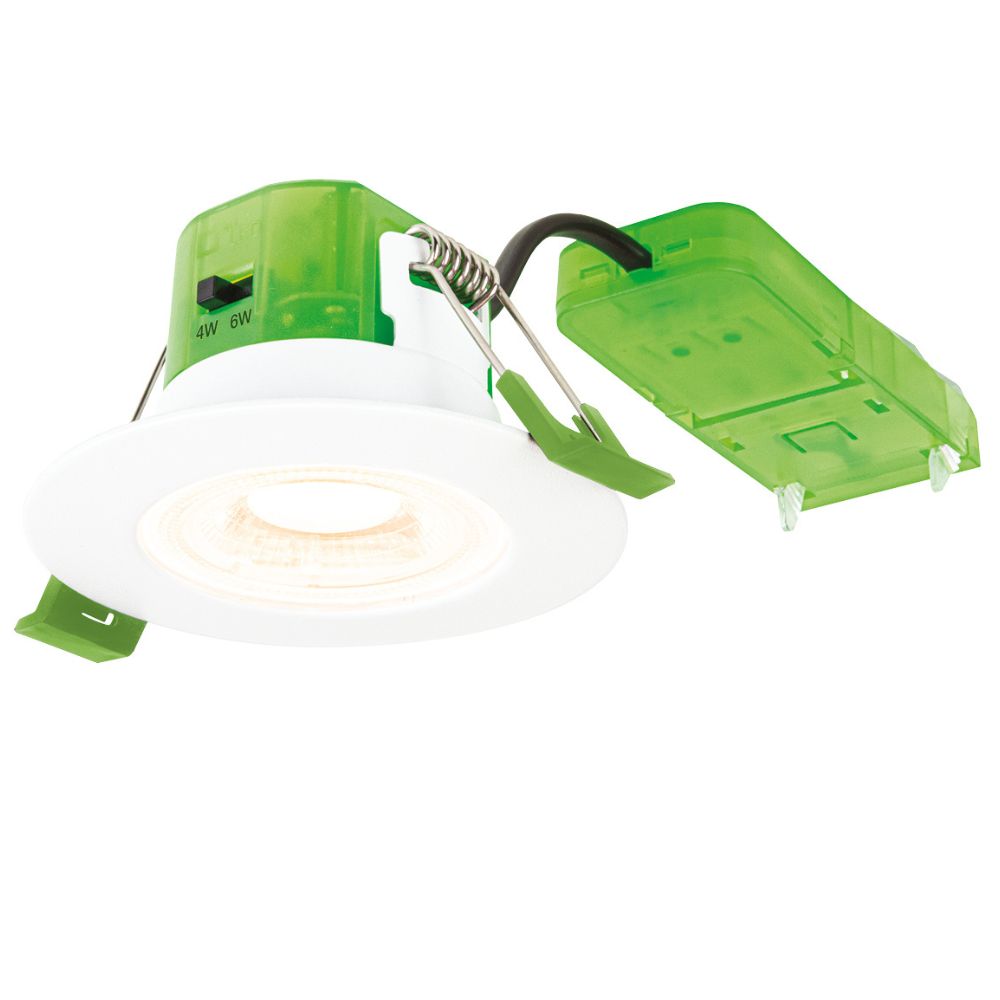

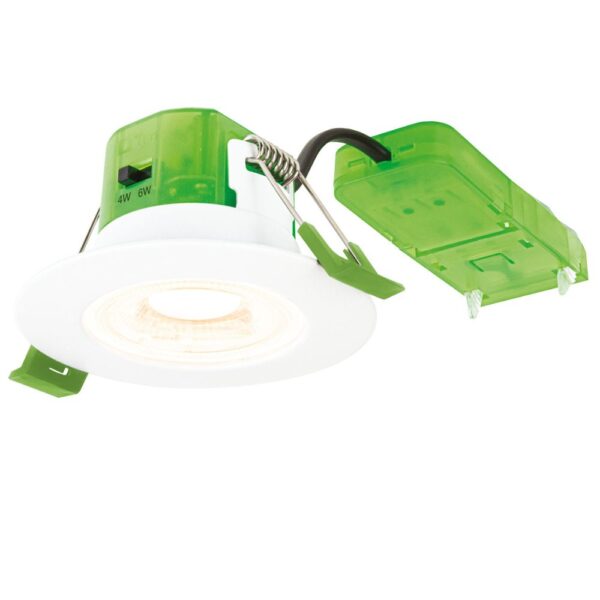

Spartan Pro AFD600D/PRO LED Downlight

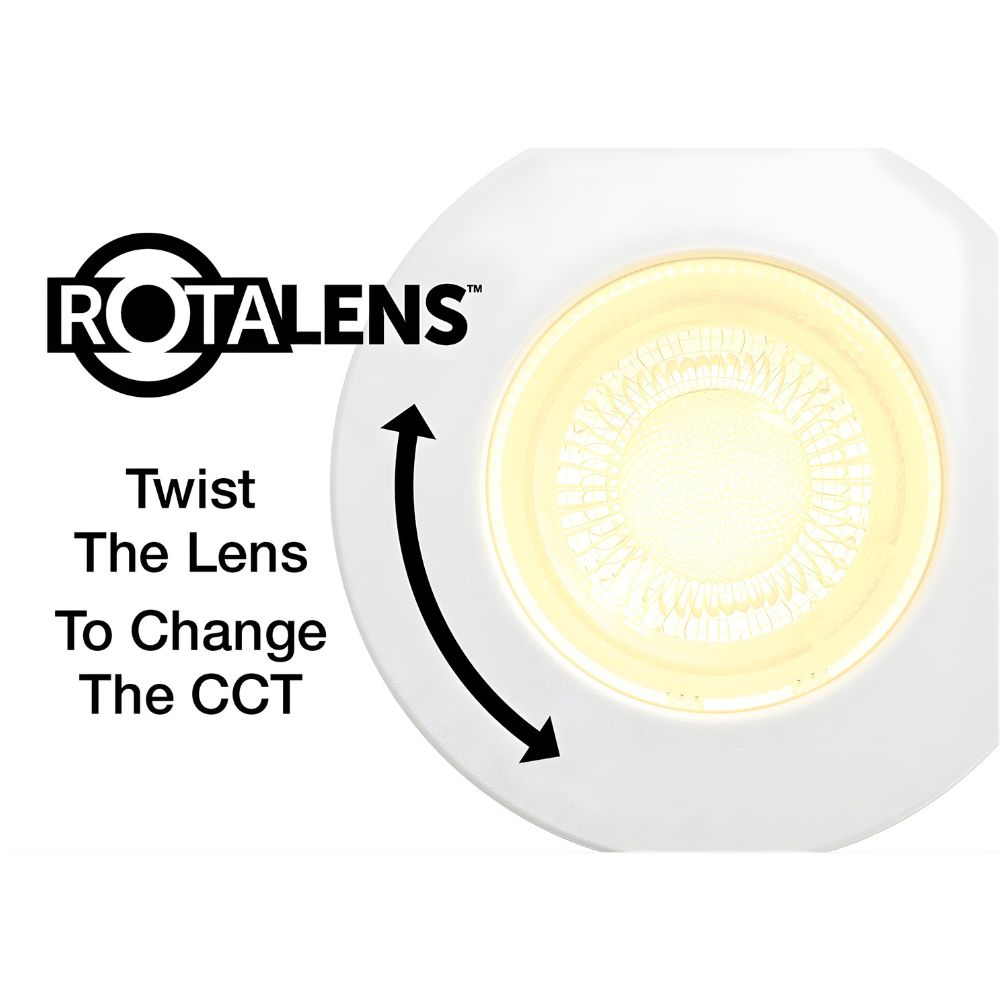

Spartan Pro is precision lighting, refined. Designed and engineered in the UK, the Spartan Pro AFD600D/PRO LED Downlight introduces patented RotaLens™ Technology that transforms installation on site. Simply twist the lens to change CCT—no removal, no tools, no delays. Just fast, seamless control exactly when you need it.
Built for flexibility, this LED downlight features 4W/6W wattage selectability and CCT switching between 3000K, 4000K and 6500K, delivering up to 755 lumens with high efficiency. A 2-part push-fit connector with loop-in/loop-out terminals ensures quick, clean installs, while the 40mm shallow depth makes it ideal for tight ceiling voids.
Fully fire rated across multiple joist types and compliant with Building Regulations Parts B, C, E and L, the Spartan Pro AFD600D/PRO LED Downlight is ready for professional use straight out of the box. Finished with a 0.8mm ultra-slim polar white bezel, it delivers a clean, modern look with optional snap-on bezel upgrades available.
Key Features
- RotaLens™ Technology – twist lens to change CCT without removing fitting
- Selectable wattage – 4W or 6W output
- CCT selectable – 3000K / 4000K / 6500K
- High output – up to 755 lumens
- Fire rated – 30, 60 & 90 minutes (joist dependent)
- IP44 rated – suitable for bathrooms and kitchens

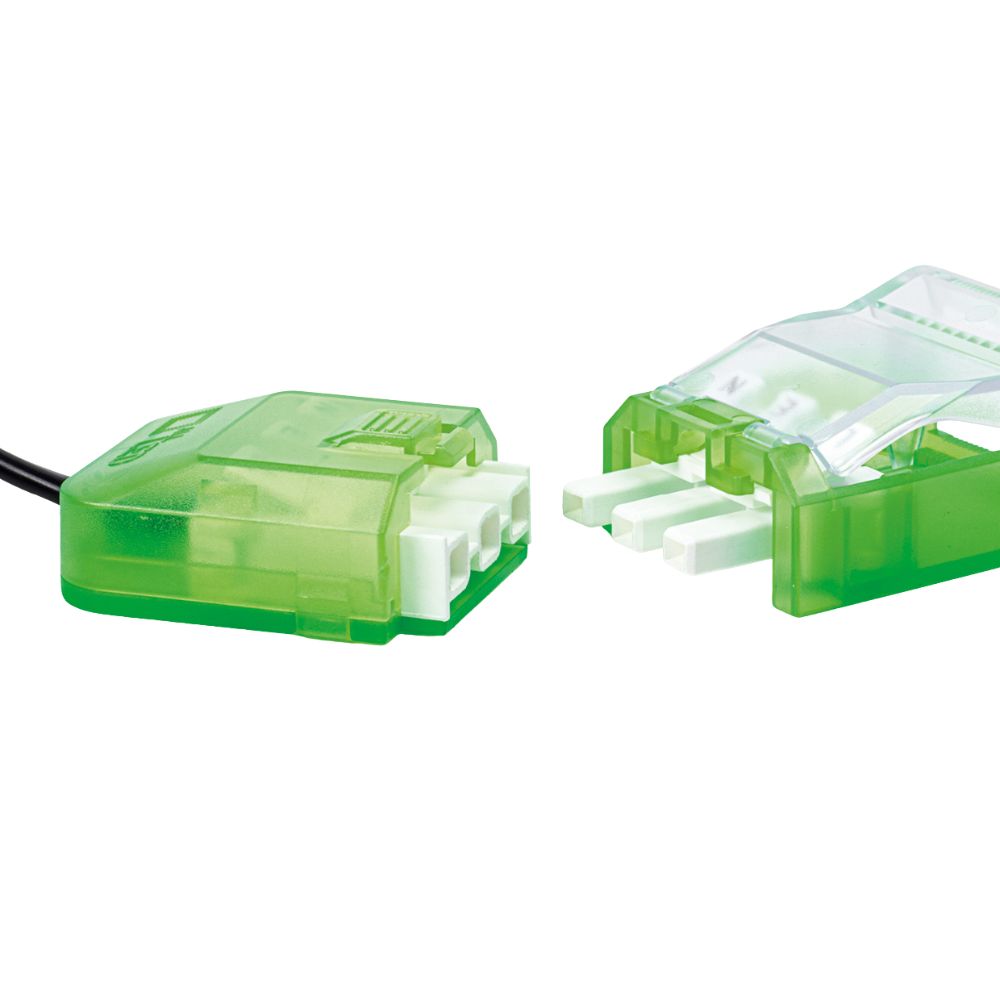

- 2-part push-fit connector with loop-in / loop-out terminals
- Ultra slim 0.8mm polar white bezel
- Dimmable – trailing edge compatible
- Insulation coverable
- Minimum 40mm ceiling void
- 36° beam angle
- 3 year guarantee
Technical Specifications
- Voltage: 220–240V AC
- Wattage: 4W / 6W selectable
- Luminous output: up to 755lm
- Efficiency: up to 126 lm/W
- Colour temperature: 3000K / 4000K / 6500K
- CRI: 80
- Beam angle: 36°
- IP rating: IP44
- Lifetime: 30,000 hours
- Dimming: trailing edge
- Cut-out: 55–75mm
- Diameter: 86mm
- Minimum void: 40mm
- Material: polycarbonate & pressed steel
- Class: II
