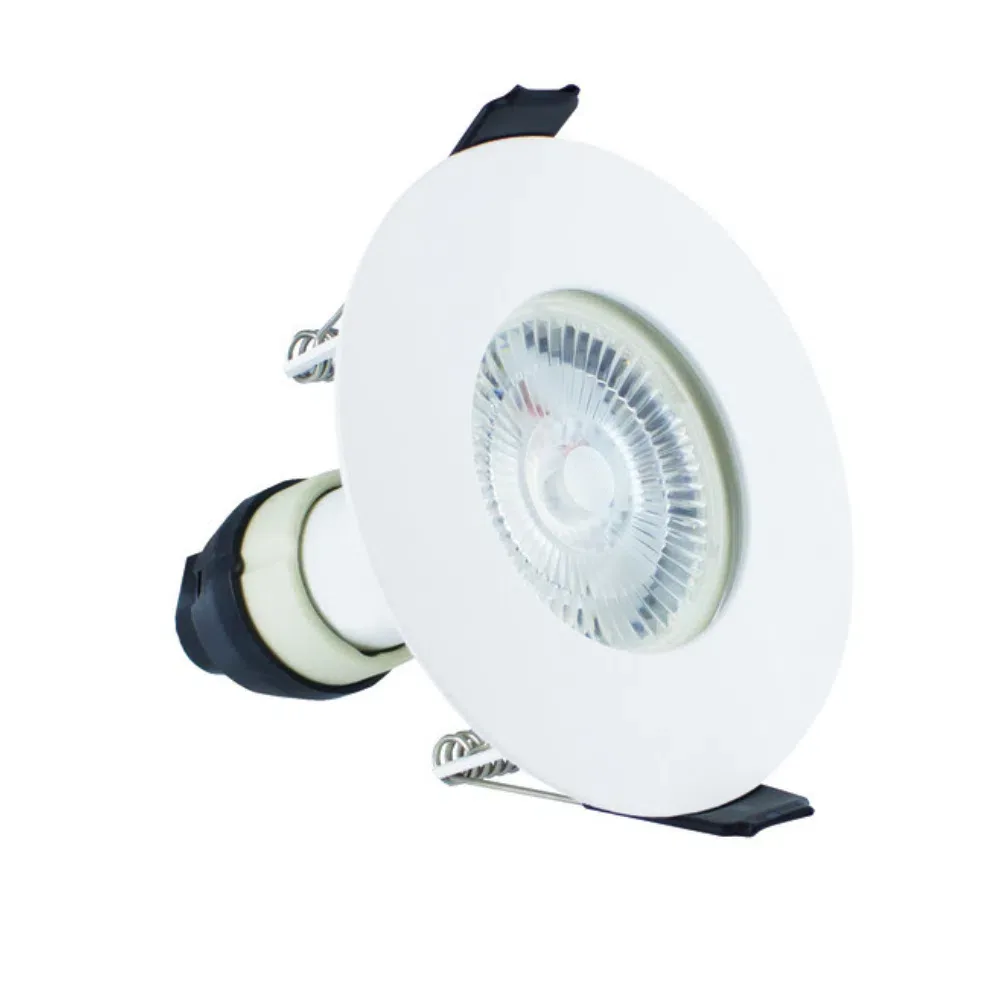

Integral ILDLFR70D001 Evofire Fire Rated IP65 GU10 Downlight – White
The Integral ILDLFR70D001 Evofire Fire Rated IP65 GU10 Downlight combines a discreet white finish with innovative canless fire-rated technology. Designed for domestic and commercial installations, this recessed downlight features a slim 1mm bezel, making it an attractive choice for modern ceilings.
Unlike traditional fire-rated fittings that rely on bulky metal canisters, the Evofire range uses intumescent fire protection. Its open-back construction improves ventilation around the LED lamp and helps reduce the space required above the ceiling.

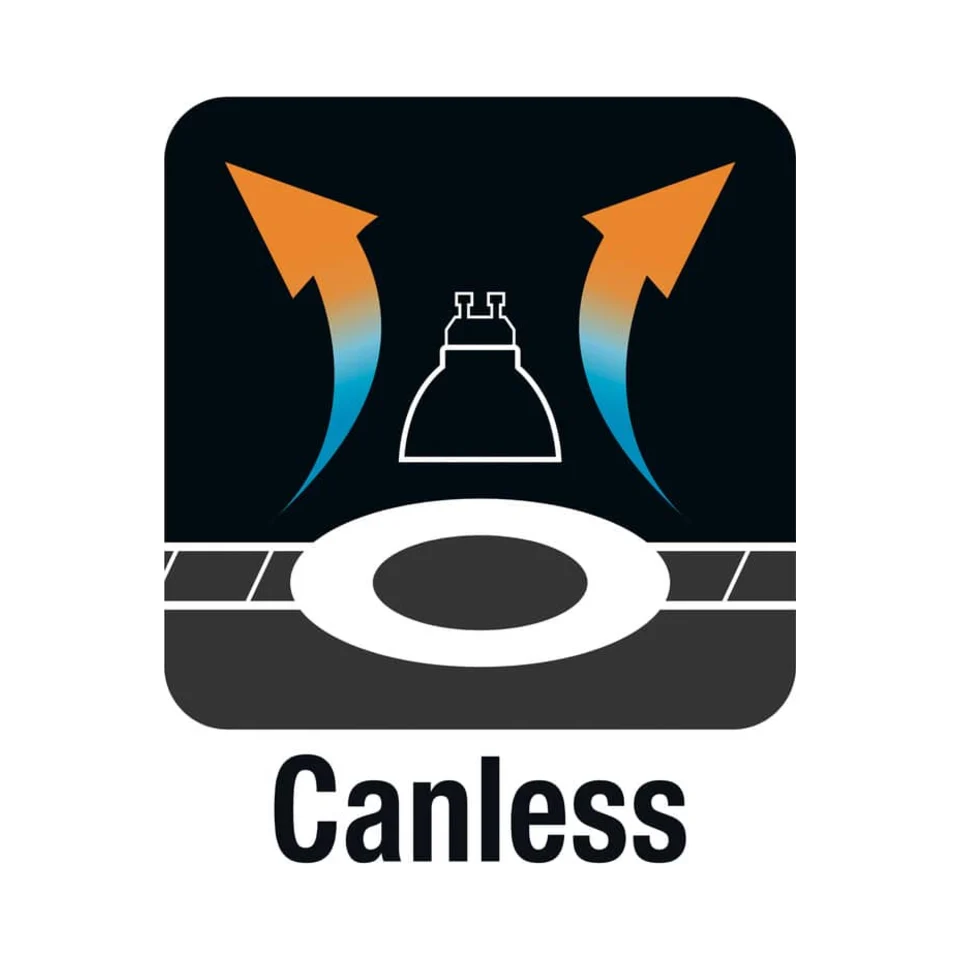

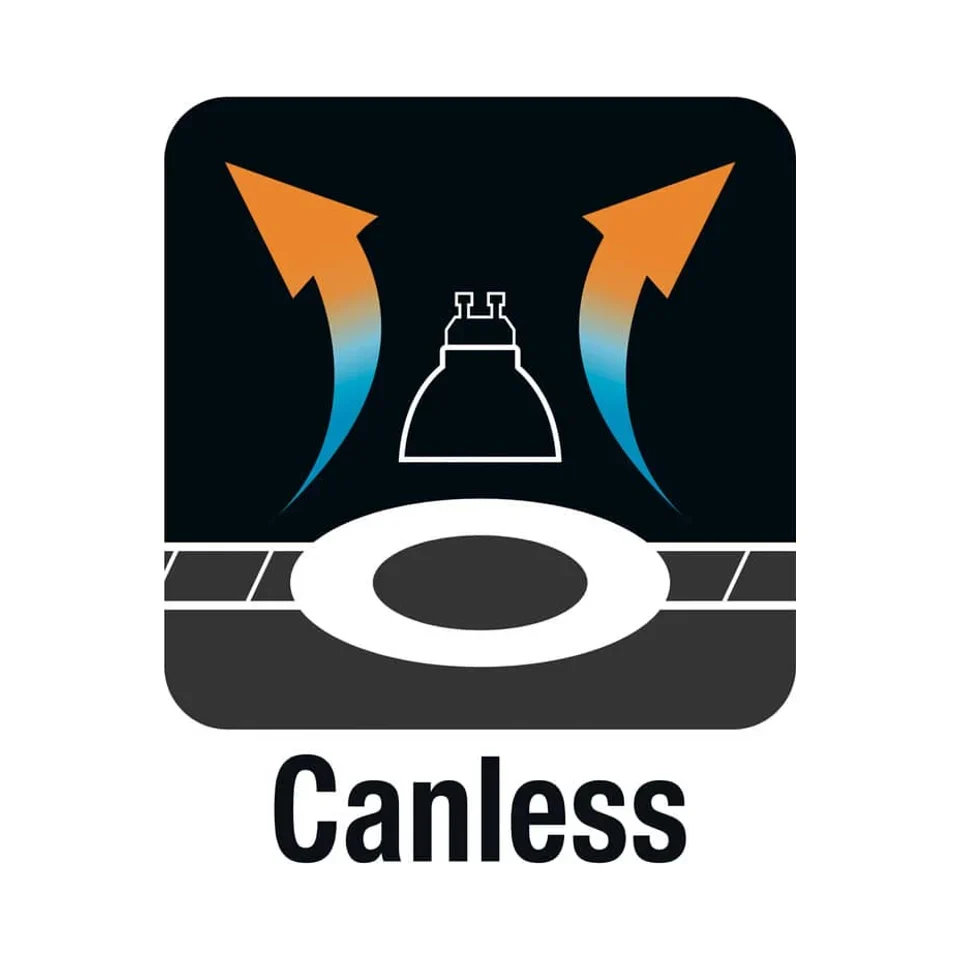

Canless Fire-Rated Technology
The Integral ILDLFR70D001 incorporates an intumescent fire protection system that expands when exposed to high temperatures. This design provides tested fire resistance without requiring a conventional enclosed metal canister.
- 30, 60 and 90-minute fire-rated construction
- Open-back design improves airflow around the lamp
- Can help LED lamps operate up to 10°C cooler compared with enclosed fittings
- Compact 39mm fitting depth
- Suitable for installations with restricted ceiling space

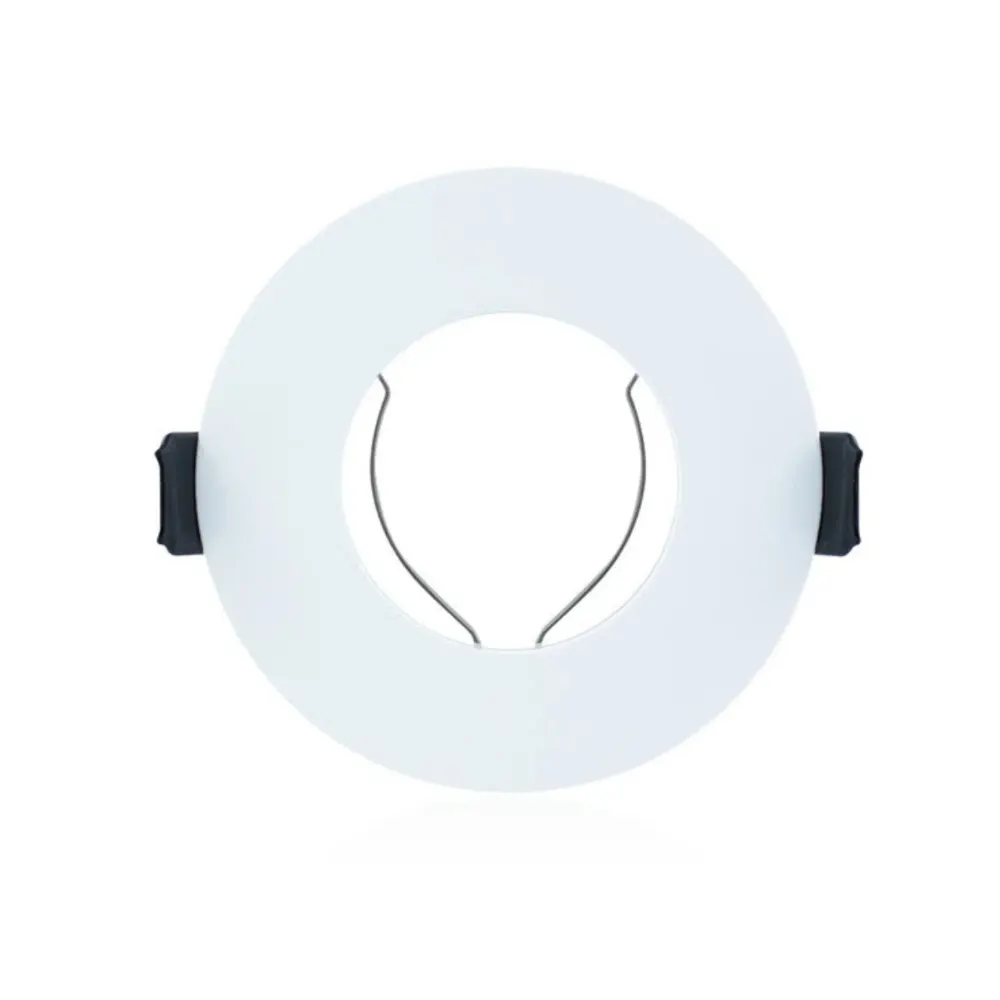

Ultra-Slim White Bezel
The powder-coated white finish blends naturally into light-coloured ceilings. With an ultra-slim 1mm bezel, the Evofire downlight provides a neat, understated appearance without the bulk of traditional recessed lighting fittings.
Its 85mm overall diameter and 70mm cut-out make it suitable for a wide range of residential lighting projects, including refurbishments and new installations.
IP65 Protection for Bathrooms and Kitchens
The Integral Evofire IP65 GU10 downlight features a protected front suitable for moisture-prone locations, including bathrooms, kitchens and utility rooms. Its IP65 rating provides protection against dust ingress and water jets when correctly installed.
Always check the applicable bathroom-zone requirements and installation instructions before fitting.
Compatible GU10 LED Lamps
The Integral ILDLFR70D001 uses a replaceable GU10 LED lamp, allowing you to select the preferred colour temperature, brightness and dimming characteristics for your installation.
GU10 LED lamps are sold separately. Explore these Integral LED lamp options:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 – ideal for bedrooms, living rooms and comfortable ambient lighting.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 – a versatile option for kitchens, hallways and general lighting.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 – suitable for task lighting, workspaces and contemporary interiors.
- Integral ILGU10DC121 – WarmTone 1800K–2700K Dimmable GU10 – changes from warm white to a softer, warmer light as brightness is reduced.
For more options, browse our complete GU10 LED lamps range.
When selecting a lamp, check its physical dimensions, wattage and suitability for the fitting. If dimming is required, use a compatible LED dimmer.
Key Features
- Integral LED Evofire range
- Product code: ILDLFR70D001
- White powder-coated finish
- Ultra-slim 1mm blend-in bezel
- 30, 60 and 90-minute fire rating
- IP65 rated front
- Canless fire-rated construction
- Open-back design for improved ventilation
- Replaceable GU10 LED lamp
- Suitable for residential and commercial applications
- GU10 lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire
- Part Number: ILDLFR70D001
- Product Type: Recessed Fire Rated Downlight
- Finish: White Powder Coating
- Material: Pressed Steel and Glass
- Overall Diameter: 85mm
- Ceiling Cut-Out: 70mm
- Fitting Depth: 39mm
- Bezel Thickness: 1mm
- Lamp Type: GU10 LED
- IP Rating: IP65
- Fire Rating: 30, 60 and 90 Minutes
- Fire Test Standard: BS 476 Part 21:1987
- Air Tightness: Part C and Part L
- Acoustic Performance: Part E
- Lamp Included: No
Suitable Applications
The Integral ILDLFR70D001 Evofire downlight is ideal for a variety of interior lighting applications:
- Bathrooms and shower rooms
- Kitchens and utility rooms
- Living rooms and bedrooms
- Hallways and corridors
- Offices and commercial premises
- Hotels and hospitality environments
- New builds and refurbishment projects
Why Choose Integral Evofire?
Integral Evofire downlights combine practical installation benefits with a slim, contemporary appearance. Their canless design allows improved ventilation around compatible LED lamps while maintaining tested fire resistance.
With its replaceable GU10 lamp, the Integral ILDLFR70D001 gives electricians and homeowners flexibility when choosing colour temperatures and future replacement lamps.
