Saxby ShieldECO CCT anti-glare White IP65 5W
Saxby 101342 ShieldECO CCT Selectable LED Downlight

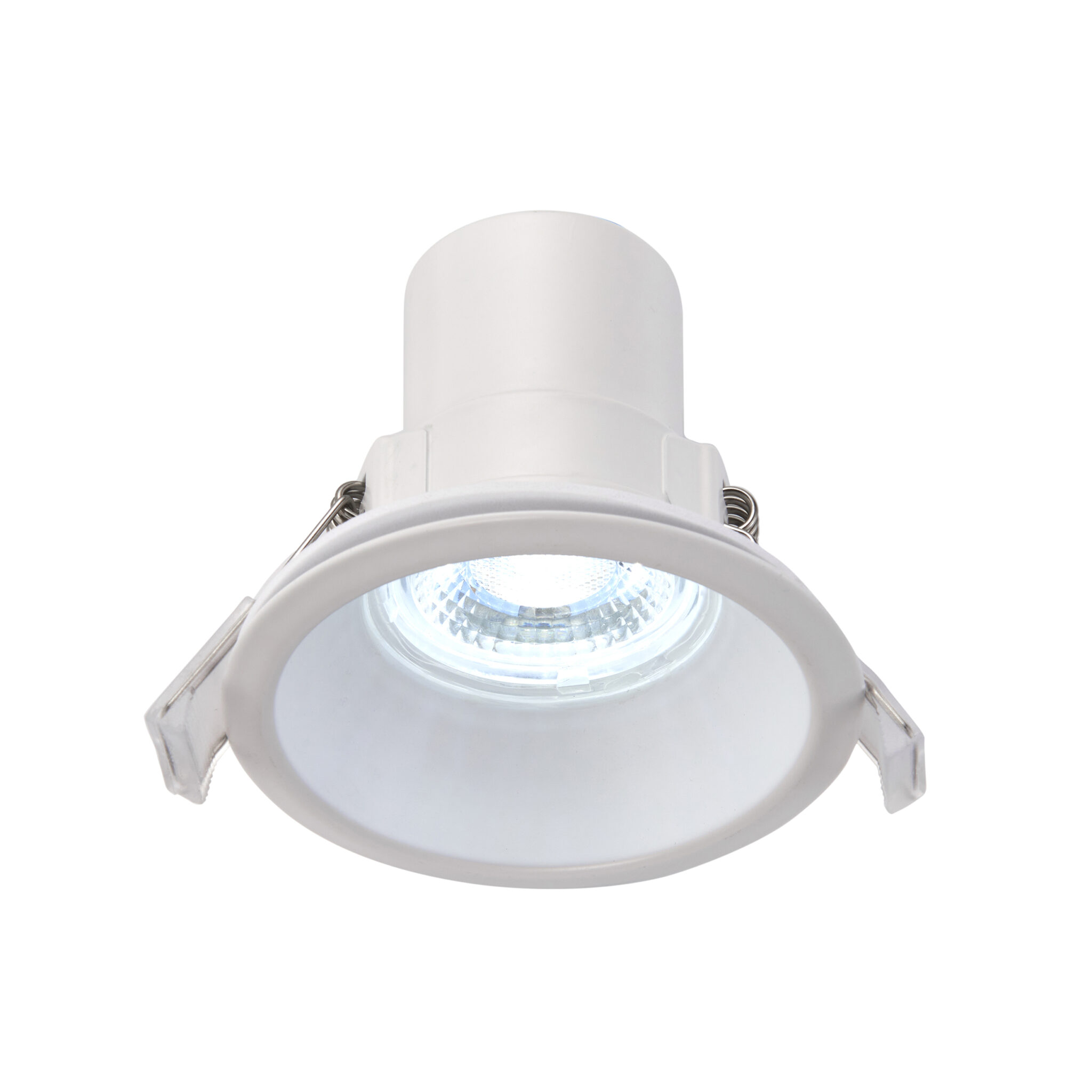

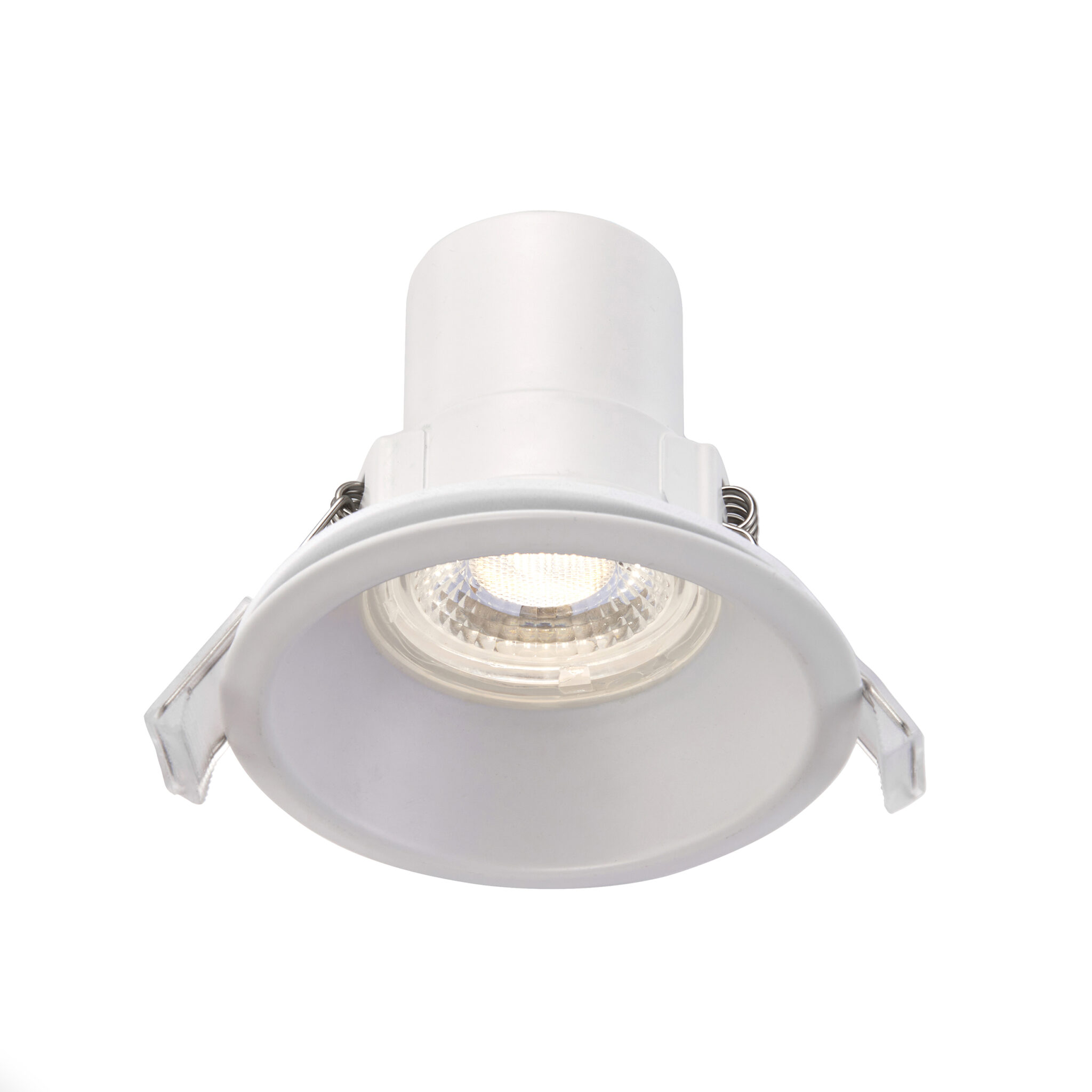

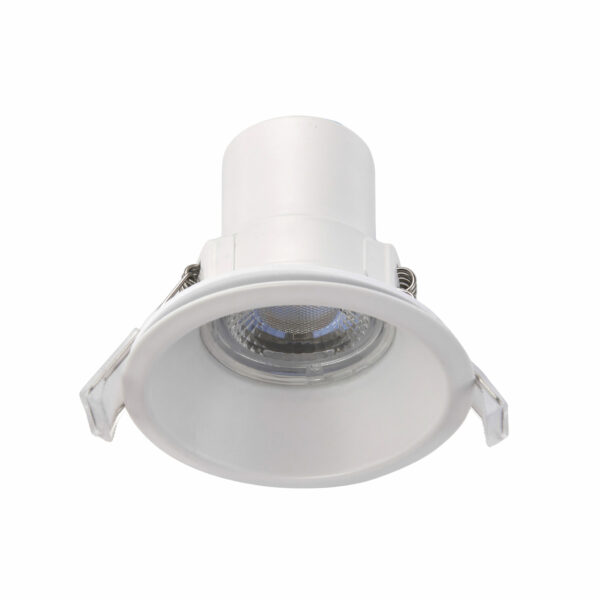

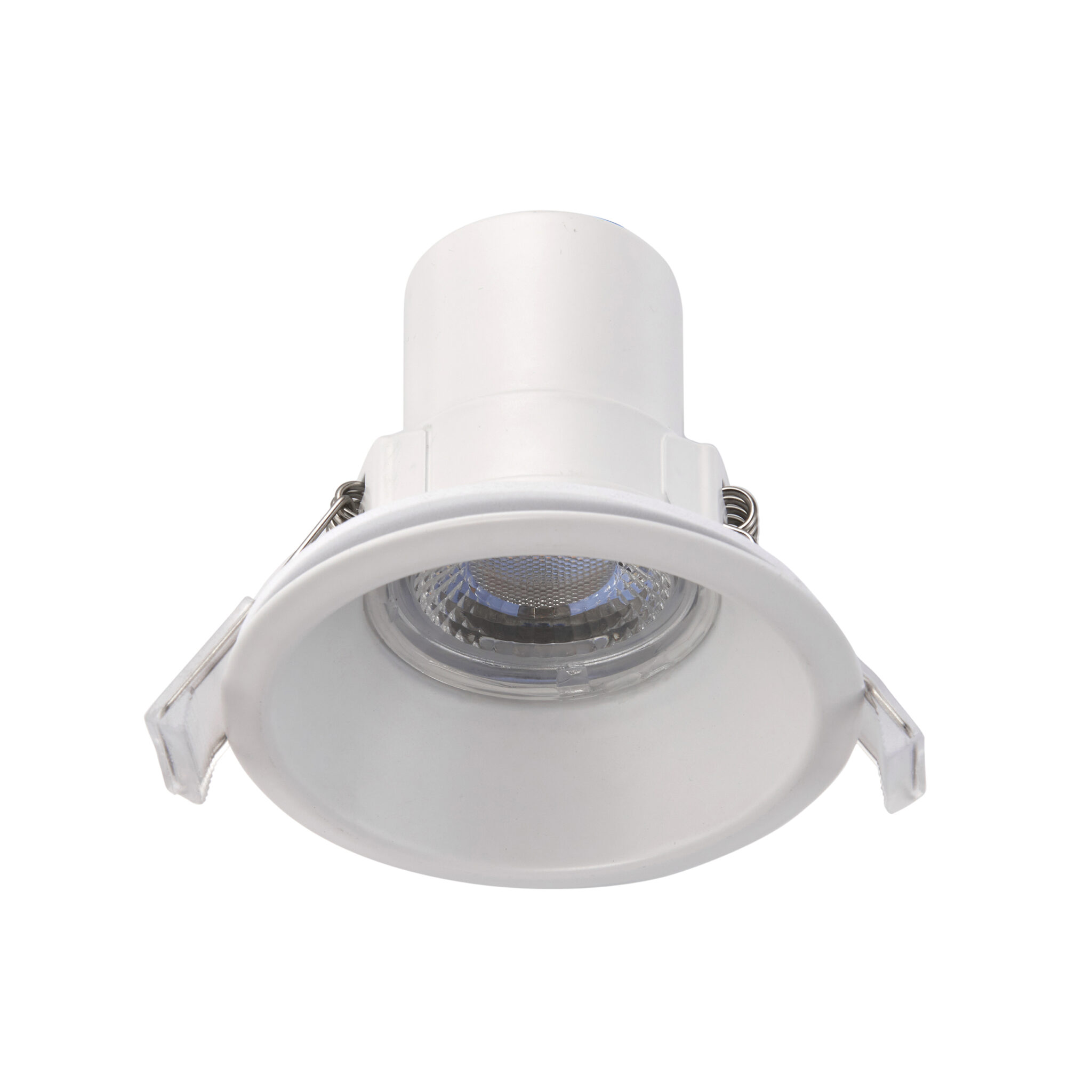

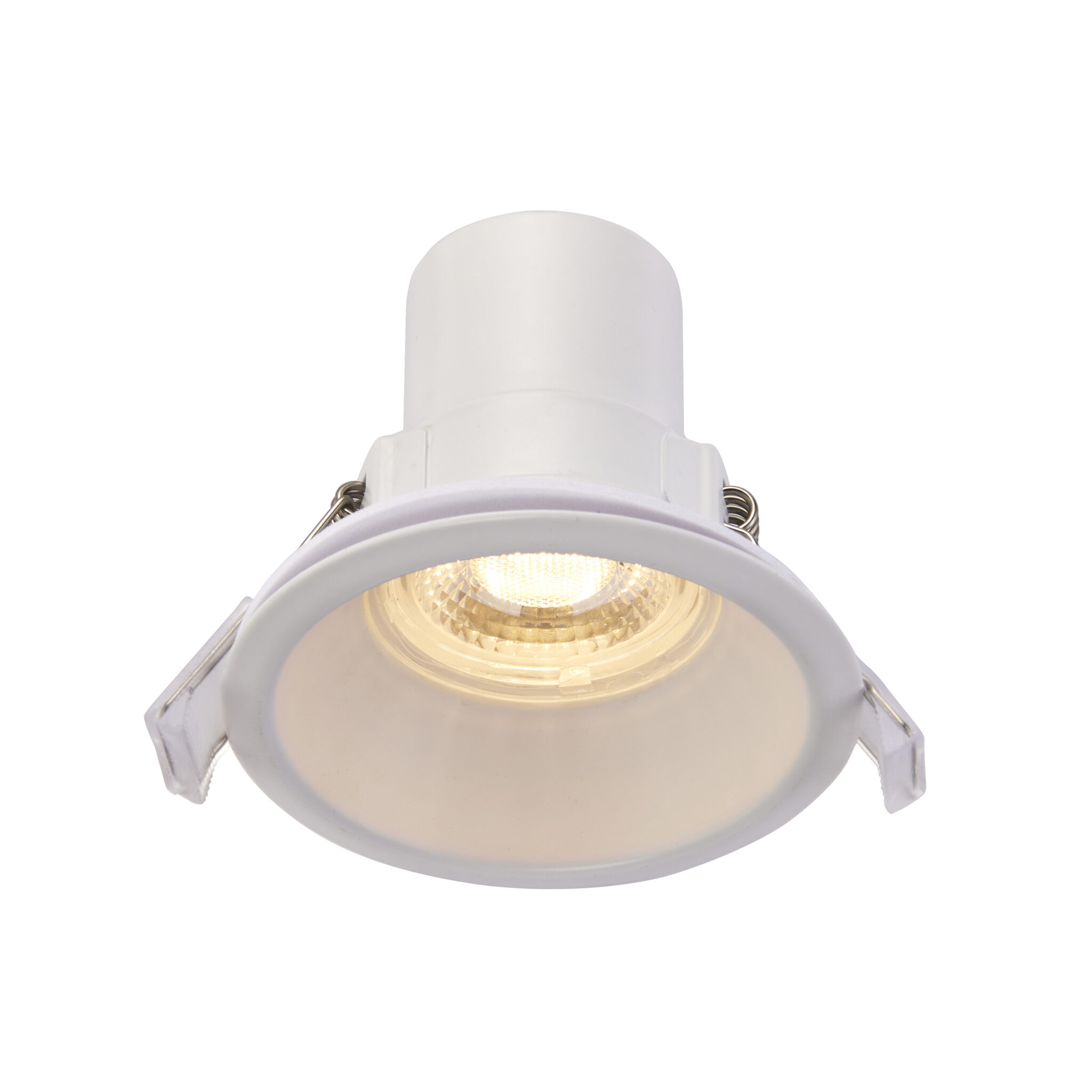

The Saxby ShieldECO CCT anti-glare White IP65 5W is a compact, fire-rated LED downlight designed for domestic and commercial lighting installations. This improved ShieldECO version incorporates an anti-glare design while retaining the practical features that make the range suitable for everyday installation.
Finished in matt white with a clear acrylic diffuser, the Saxby 101342 delivers up to 520 lumens from its efficient 5W integrated LED module. Three selectable colour temperatures allow the installer to choose between warm white, cool white and daylight white during installation.

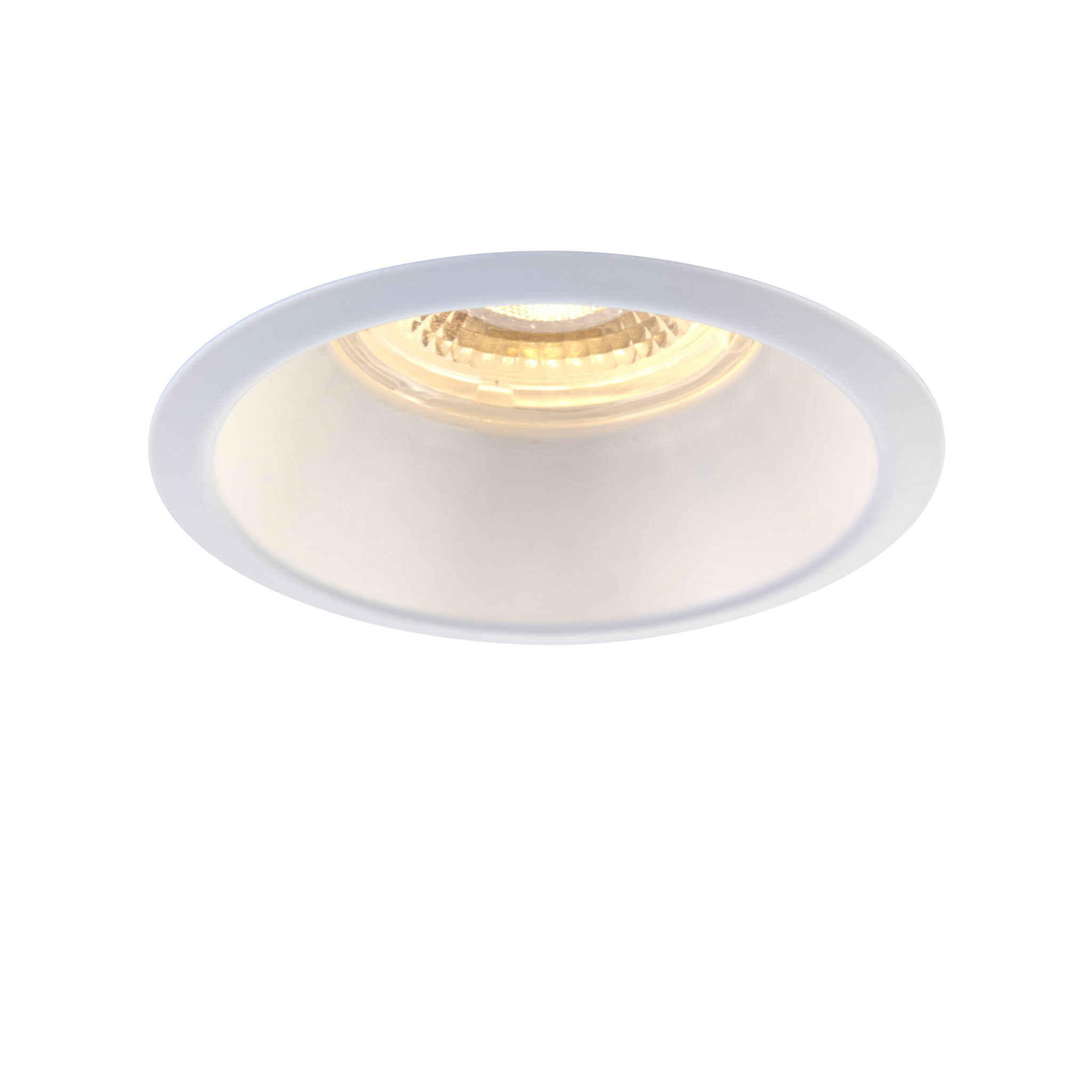

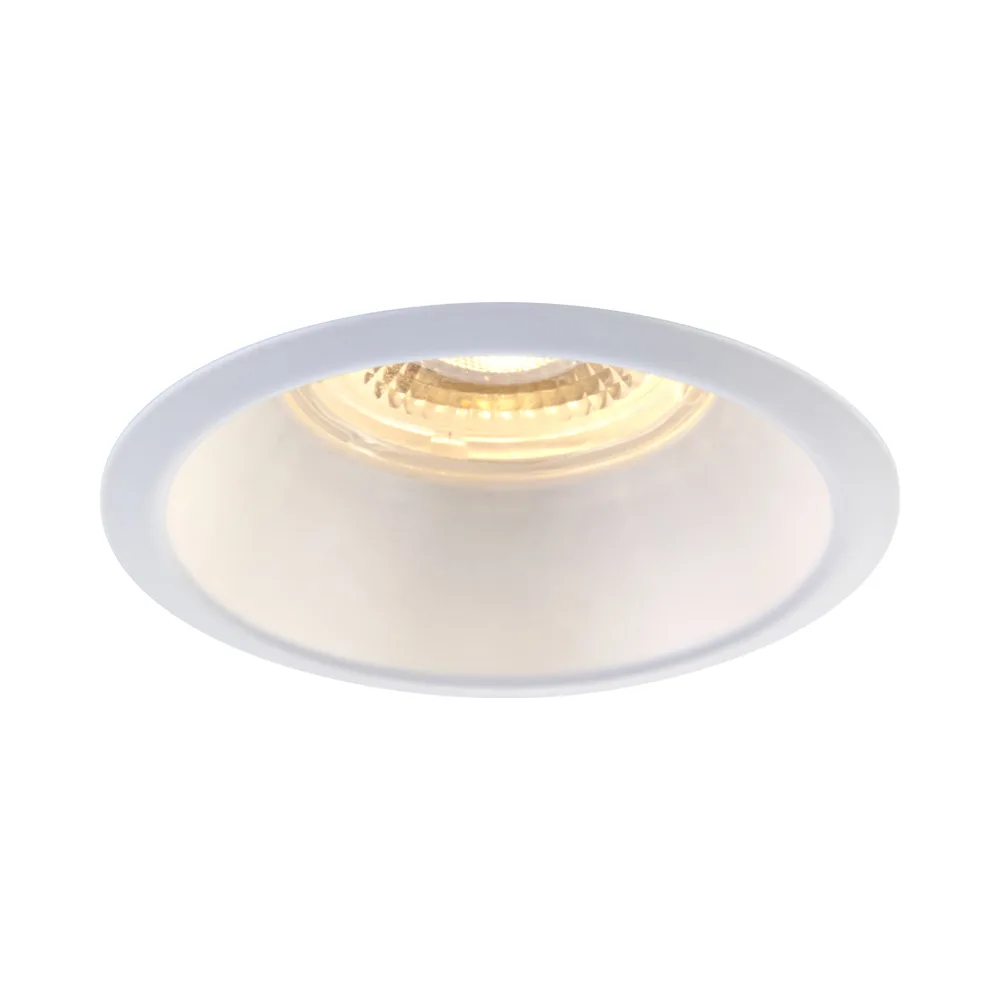

Anti-Glare ShieldECO Design
The updated ShieldECO design helps reduce direct glare from the LED light source, creating a more comfortable lighting effect without compromising output or versatility. It is ideal for applications where multiple recessed downlights are installed across ceilings in kitchens, bathrooms, hallways, living spaces and commercial interiors.

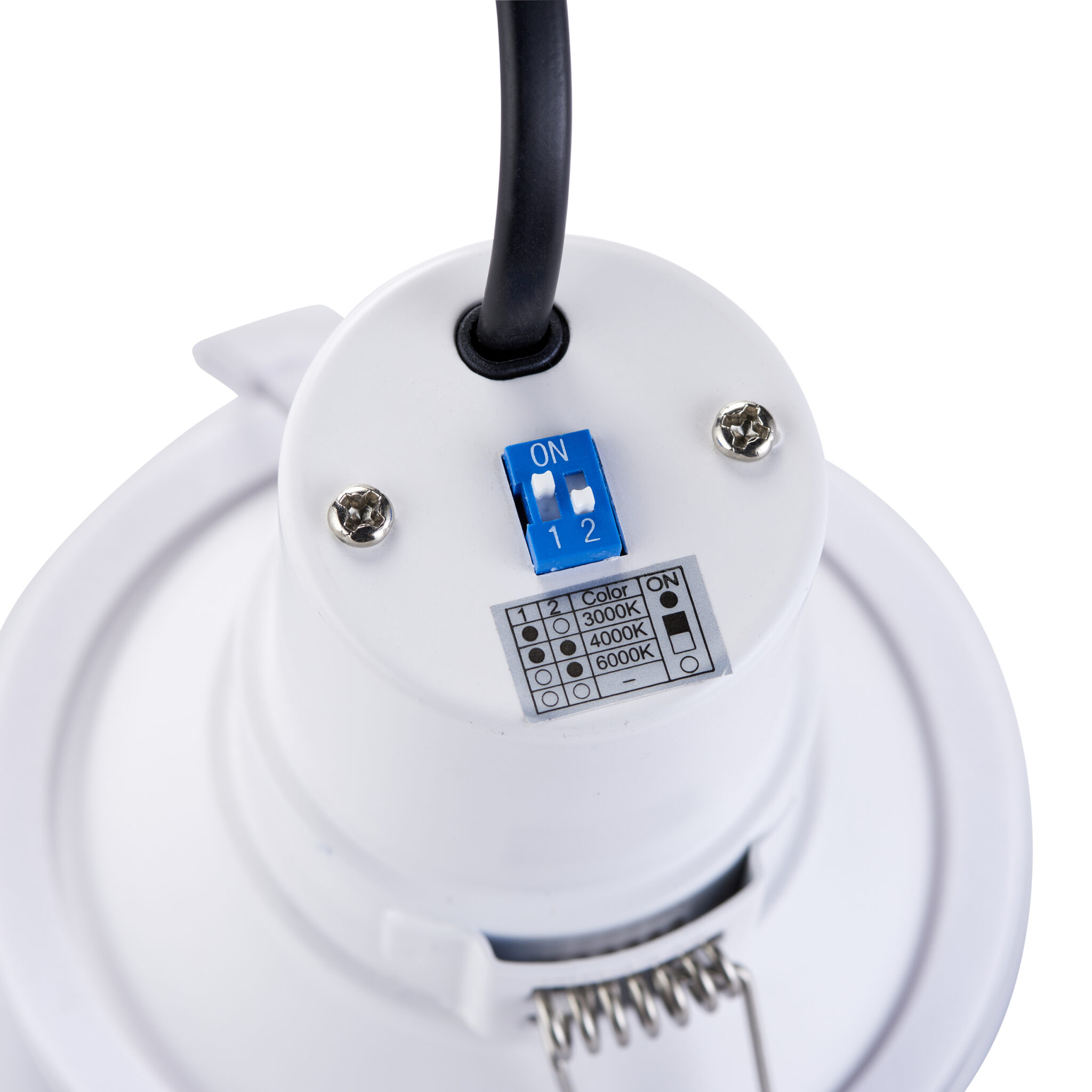

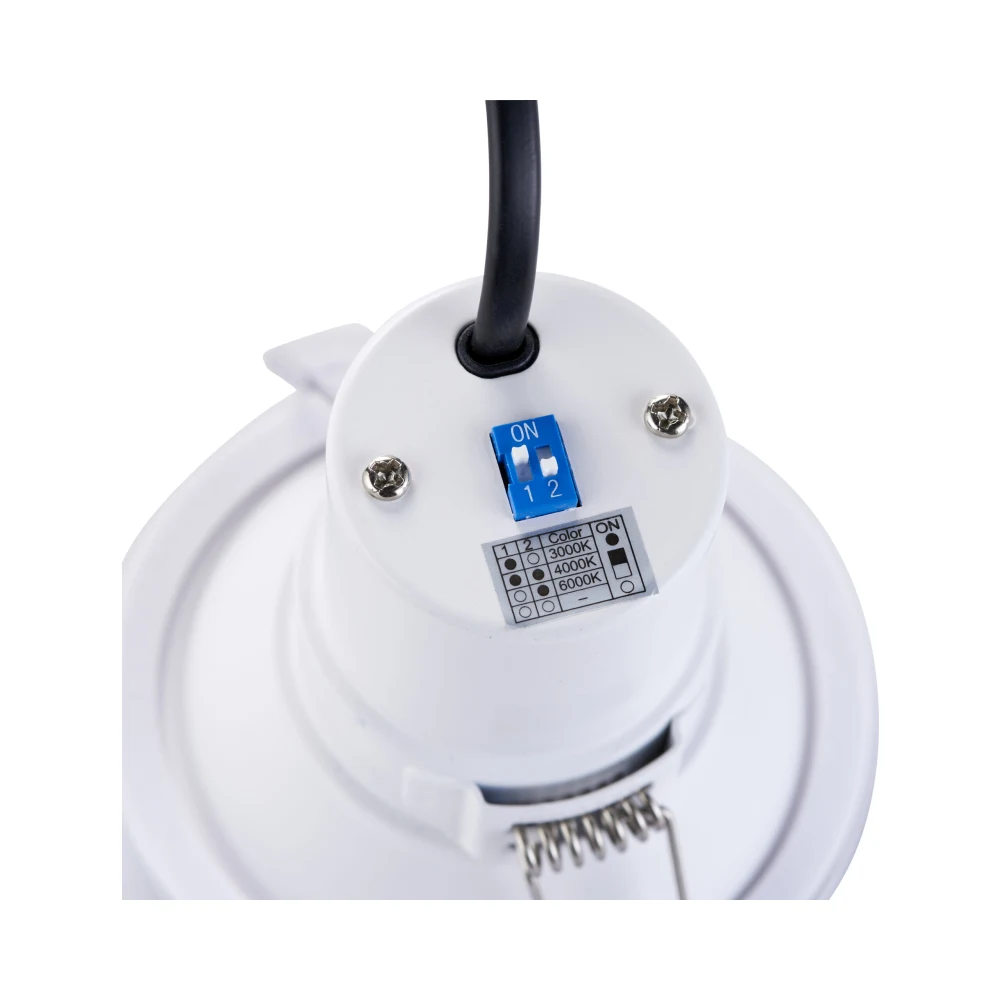

Selectable 3000K, 4000K & 6000K CCT
The Saxby ShieldECO CCT anti-glare White IP65 5W provides three selectable colour temperature settings:

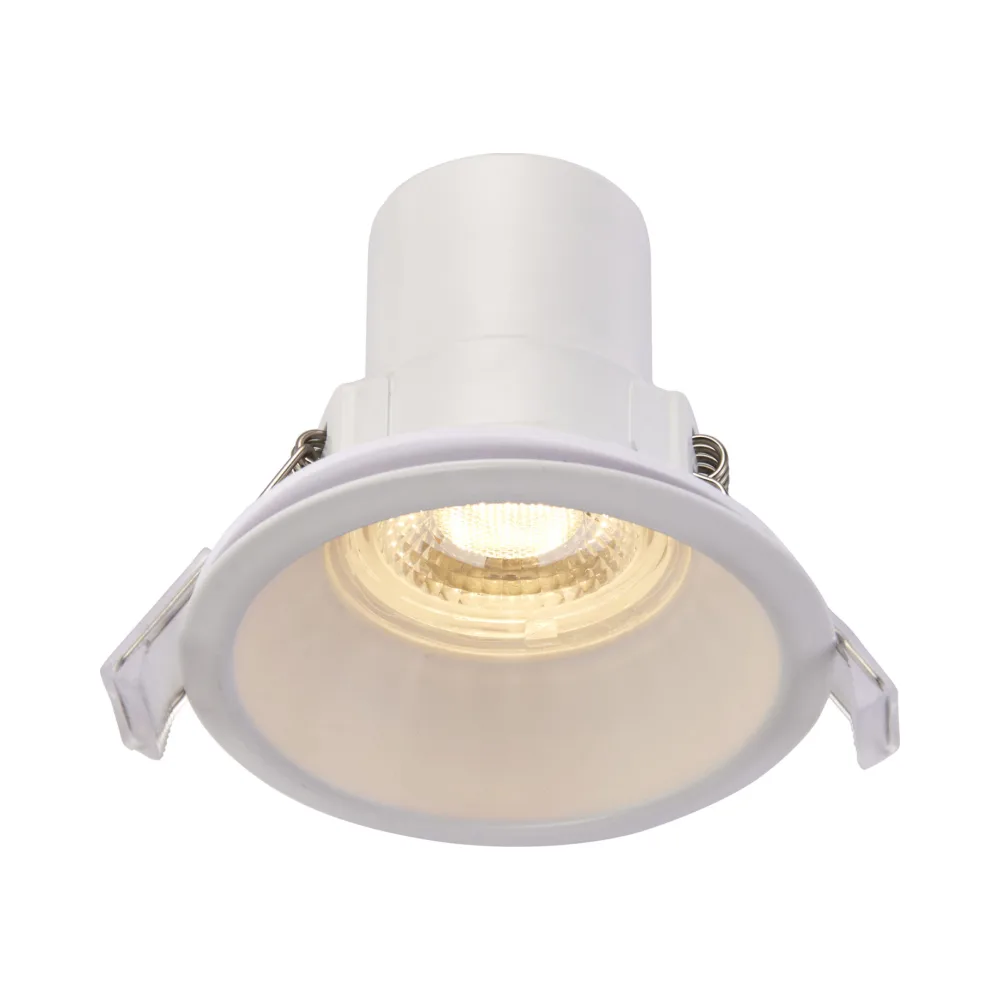

- 3000K – Warm White
- 4000K – Cool White

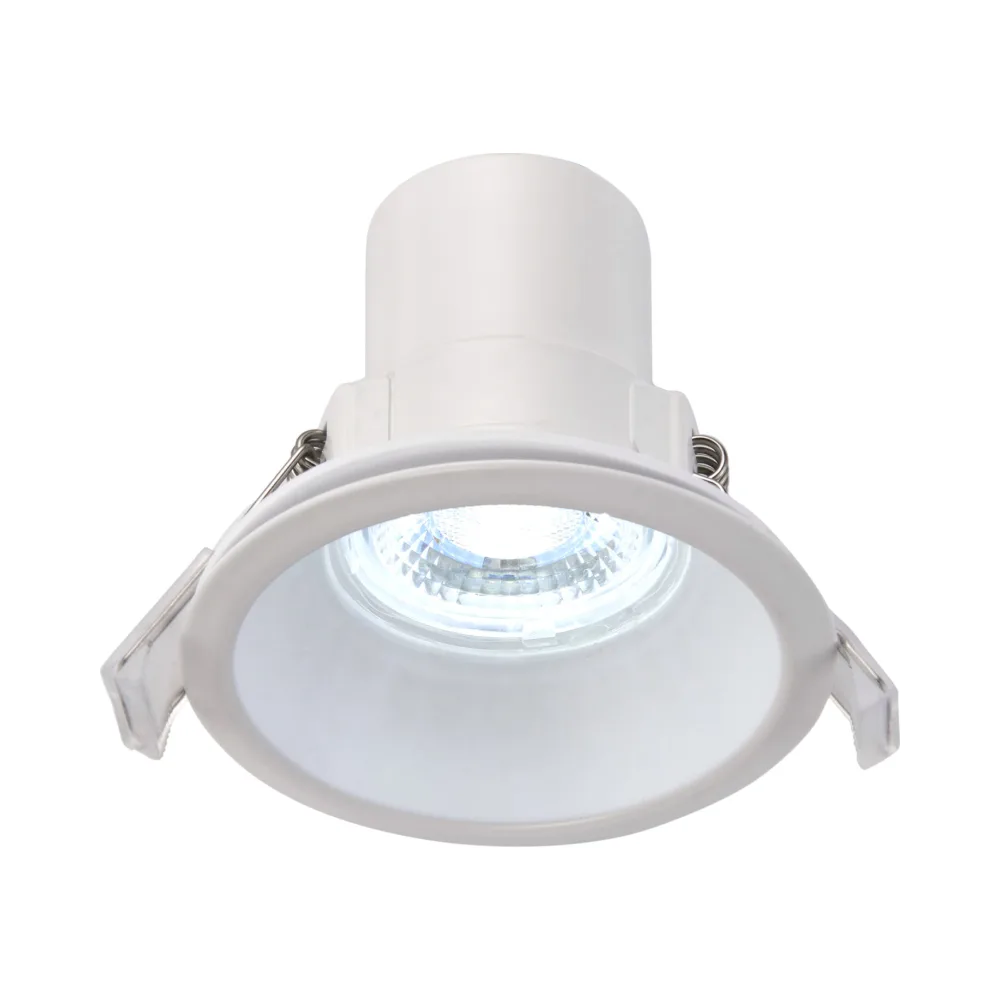

- 6000K – Daylight White
This CCT selectable design provides greater flexibility on site and reduces the need to stock separate fittings for different colour temperatures.
Key Features
- Brand: Saxby
- Product code: 101342
- Range: ShieldECO
- Anti-glare LED downlight
- Power: 5W
- Light output: 520 lumens
- Efficiency: 104 lm/W
- CCT selectable: 3000K / 4000K / 6000K
- Dimmable
- IP65 rated
- Fire rated for 30, 60 and 90 minutes
- Integrated LED control gear included
- SMD 2835 LED module
- Matt white and clear acrylic finish
- Constructed from steel and acrylic
- Class II construction
- 230V mains operation

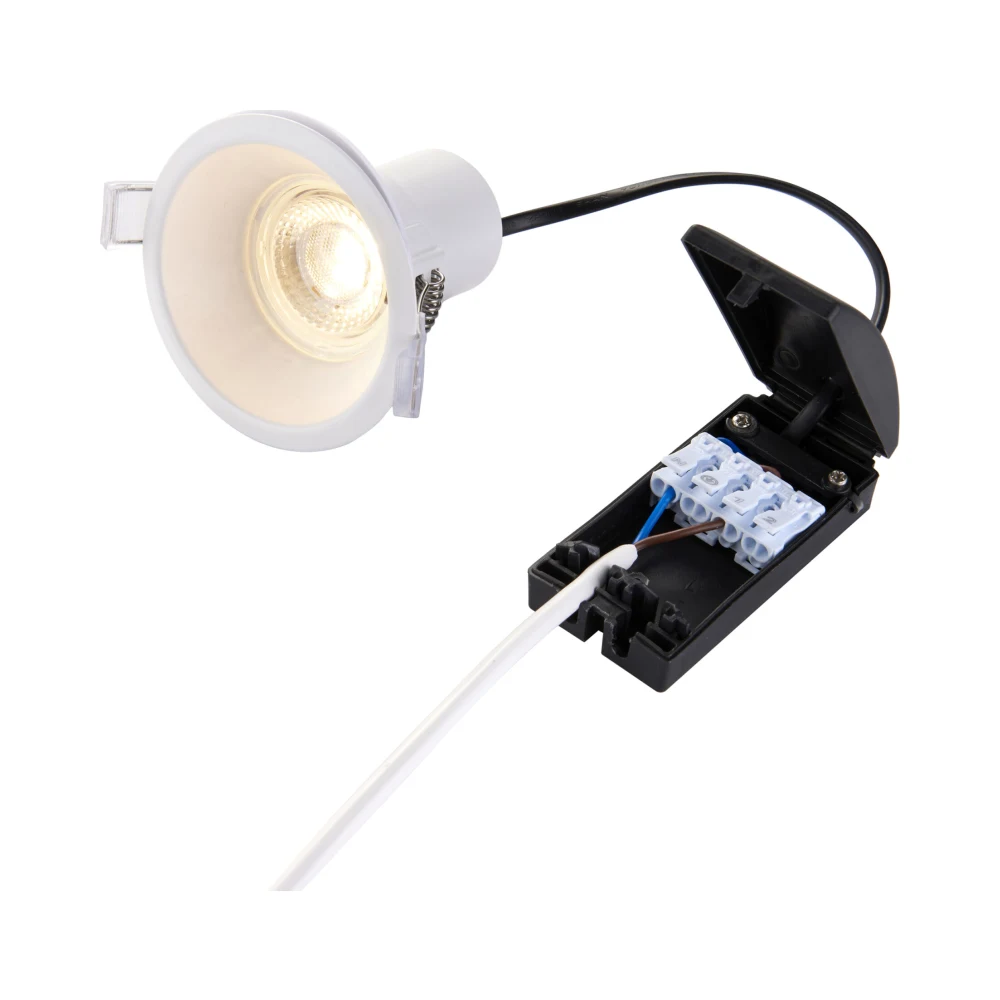

Quick & Tool-Less Installation

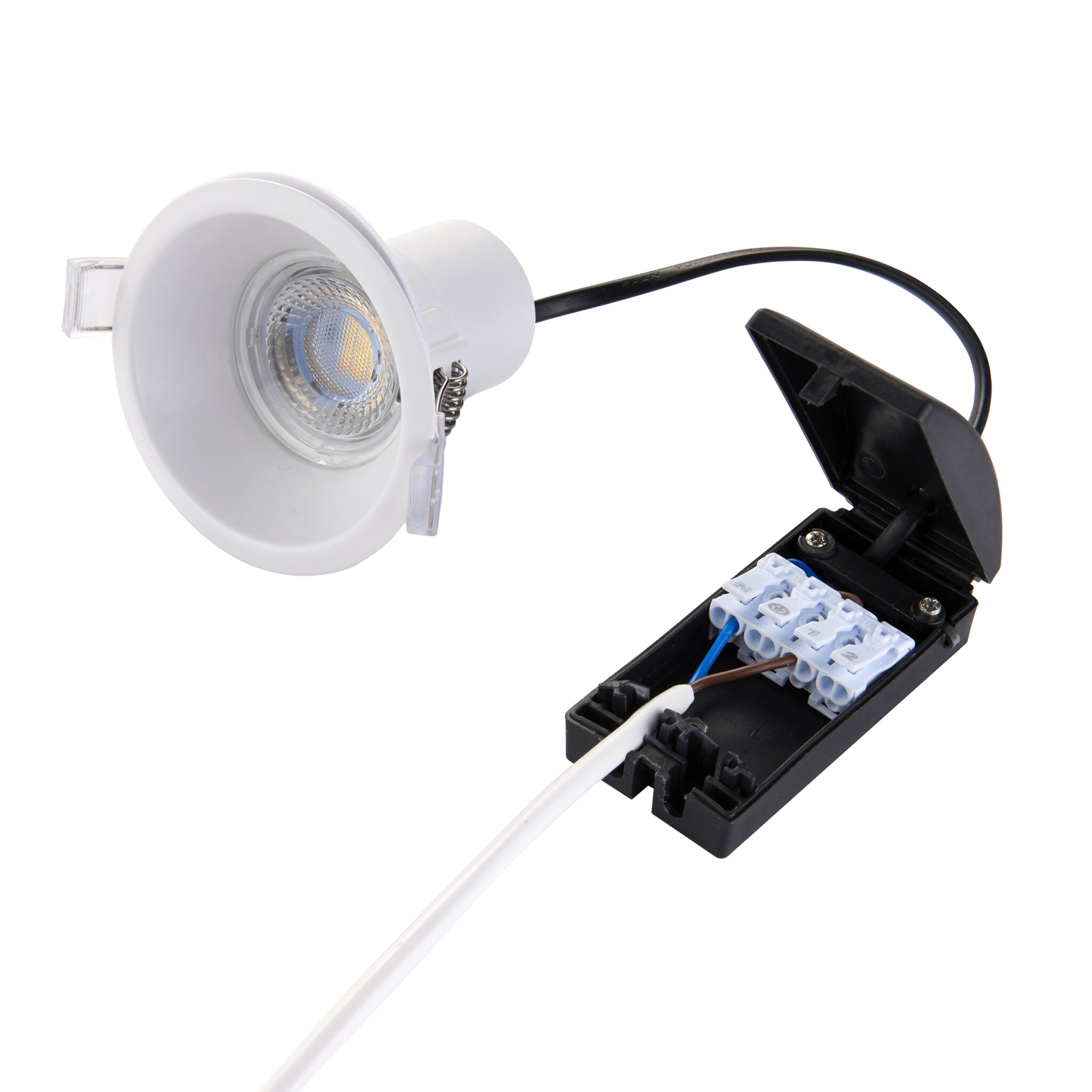

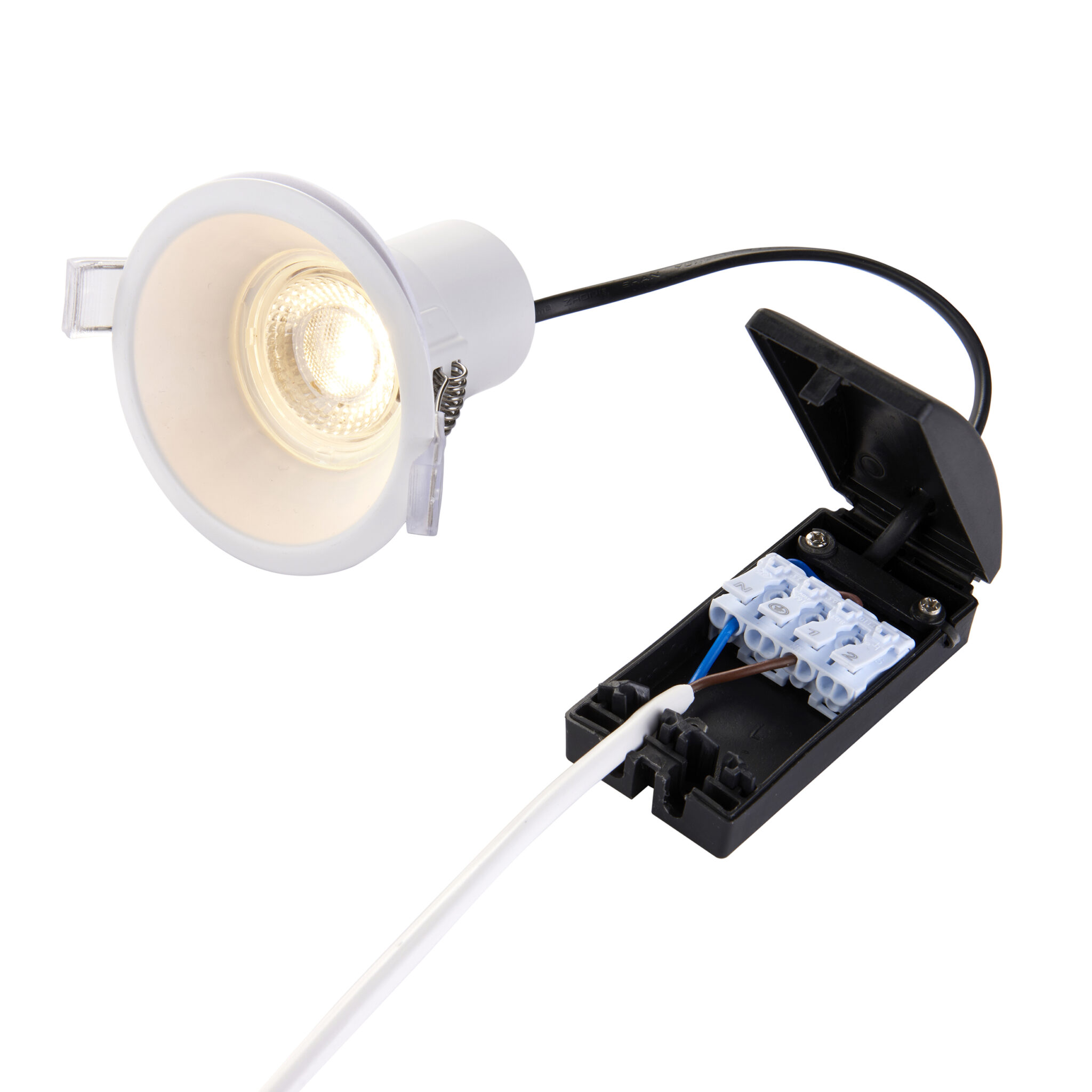

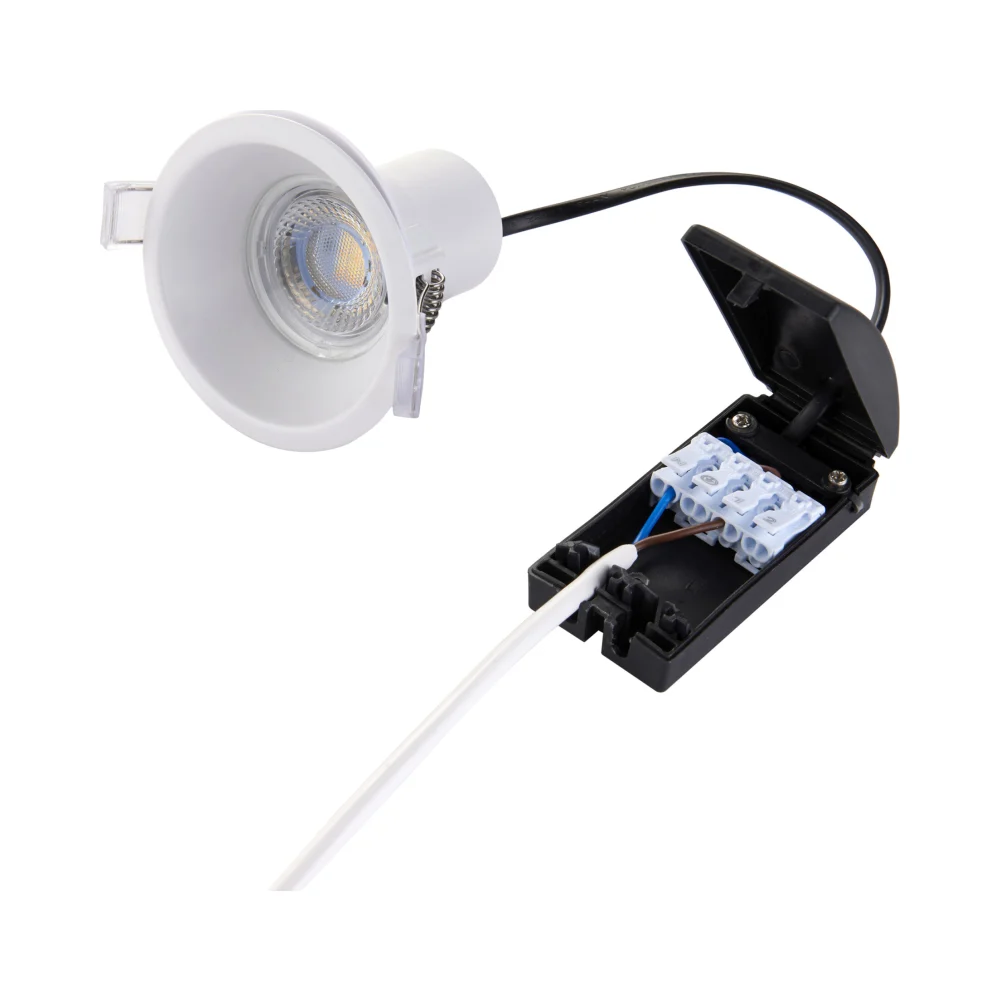

Designed with installers in mind, the Saxby 101342 ShieldECO features a 4-way push-fit screwless terminal block for fast and straightforward electrical connections. The tool-less connection system helps reduce installation time when fitting individual downlights or larger quantities across a project.
IP65 Bathroom Downlight
With its IP65 rating, this ShieldECO anti-glare downlight is suitable for areas where additional protection against moisture is required.
- Suitable for bathroom Zone 2
- Suitable for bathroom Zone 1 when used in conjunction with a 30mA RCD
Its combination of IP65 protection, fire rating and selectable colour temperature makes it particularly suitable for bathroom and general residential lighting projects.
Fire Rated 30, 60 & 90 Minutes
The Saxby ShieldECO CCT anti-glare White IP65 5W is fire rated for 30, 60 and 90 minute ceiling constructions, helping maintain the fire integrity of compatible ceilings following installation.
Dimensions
- Diameter: 90mm
- Height: 78mm
- Projection: 3mm
Ideal Applications
- Bathrooms
- Kitchens
- Hallways
- Living areas
- Bedrooms
- Residential developments
- Commercial interiors
- Refurbishment projects
The Saxby 101342 ShieldECO provides an efficient and flexible recessed lighting solution with anti-glare performance, selectable CCT, dimming capability, IP65 protection and 30, 60 and 90 minute fire rating in one compact fitting.
