Description

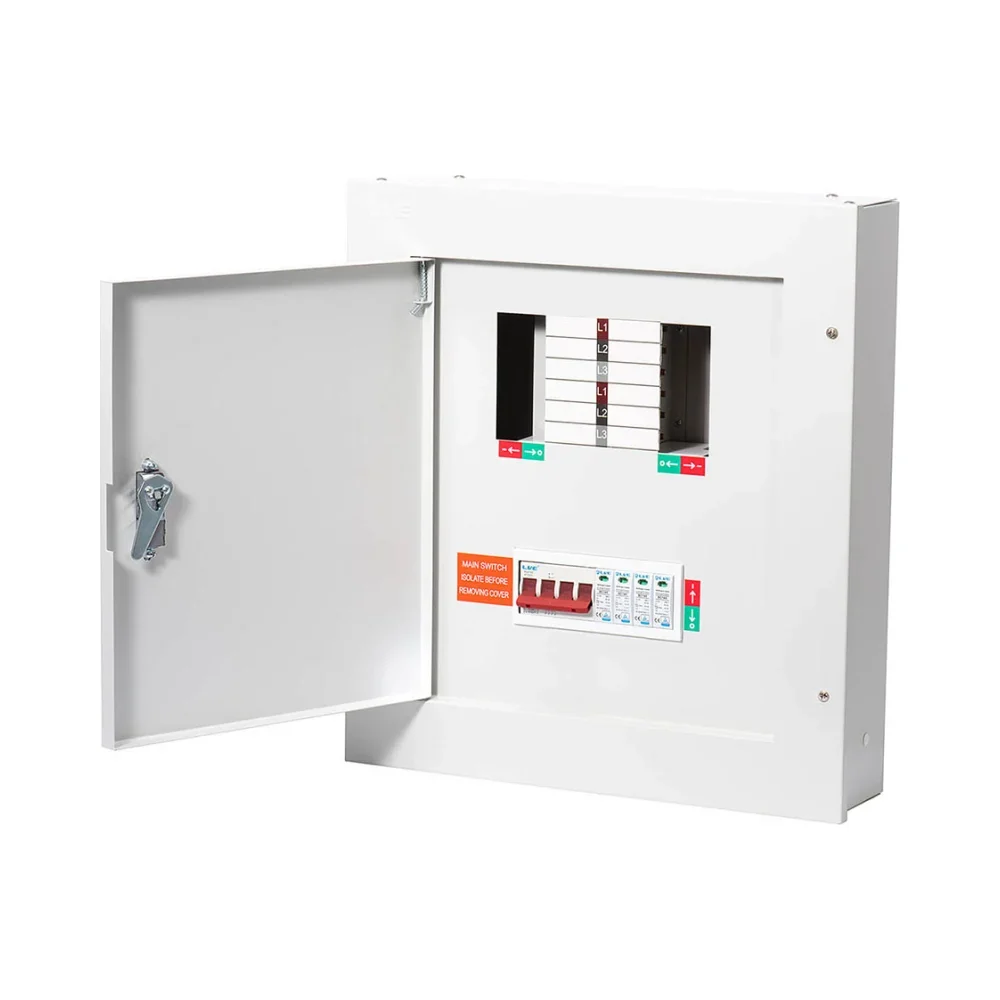

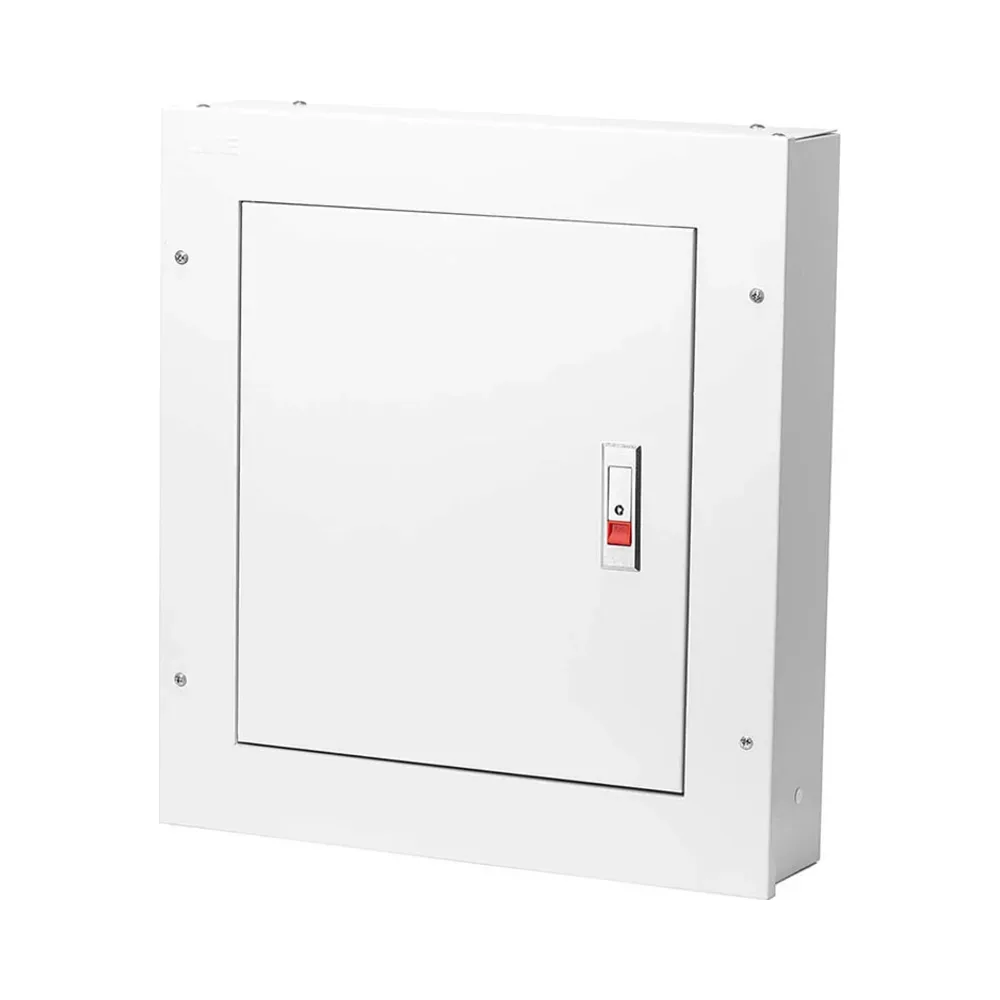

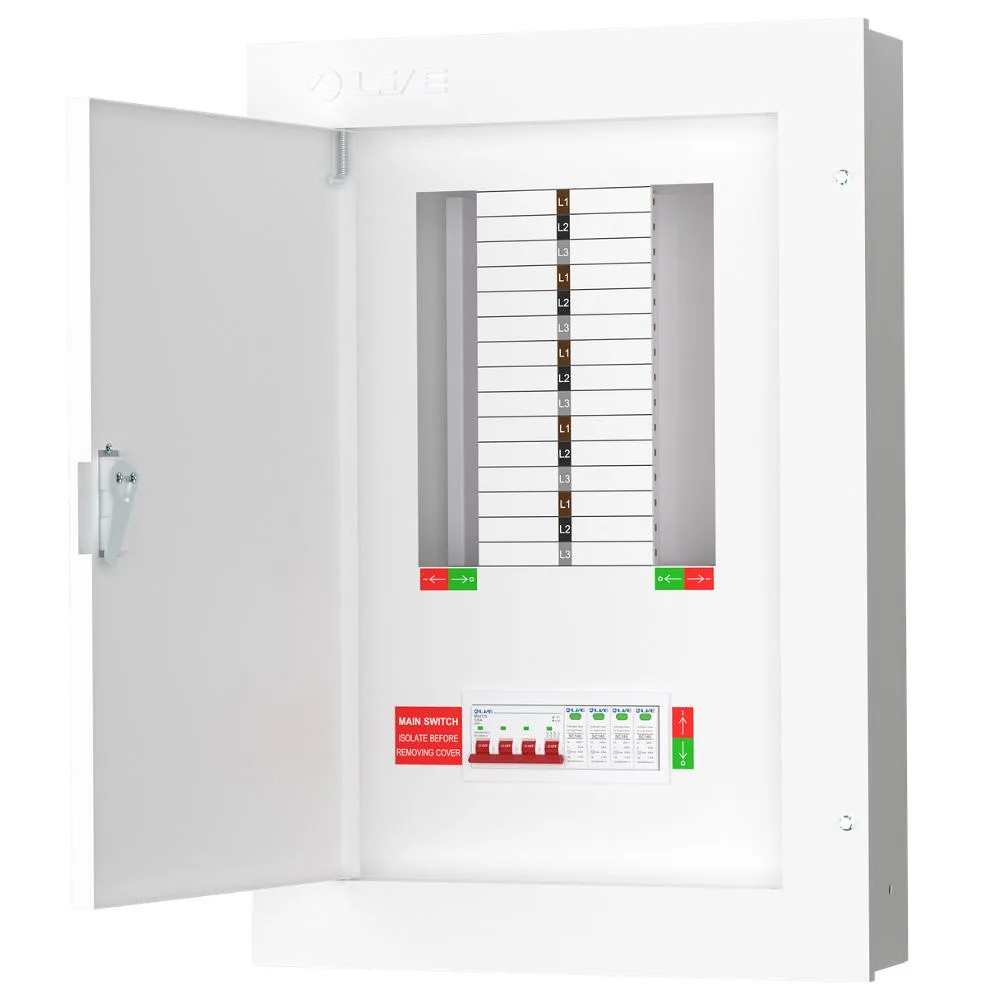

125 Amp 10 Way TPN Distribution Board with SPD
Live Electrical TPN10-125S
The Live Electrical 125 Amp 10 Way TPN Distribution Board comes equipped with a 125A Main Switch and Surge Protection Device (SPD). This distribution board ensures reliable performance and enhanced safety for both residential and commercial applications.
Key Features of 10 Way TPN SPD Distribution Board
- Capacity: Includes a 125A Main Switch and SPD for robust protection

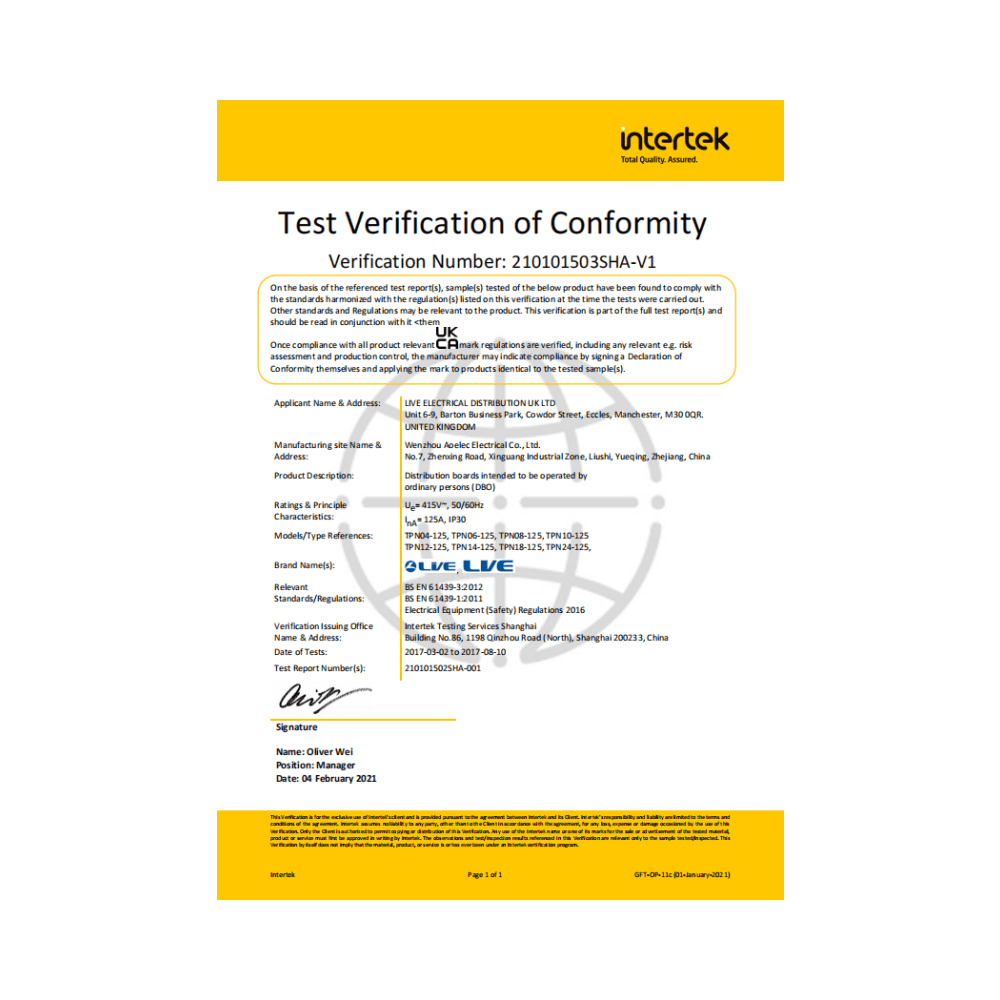

- Compliance: Meets BS EN 61439-3 standards, 18th Edition Compliant

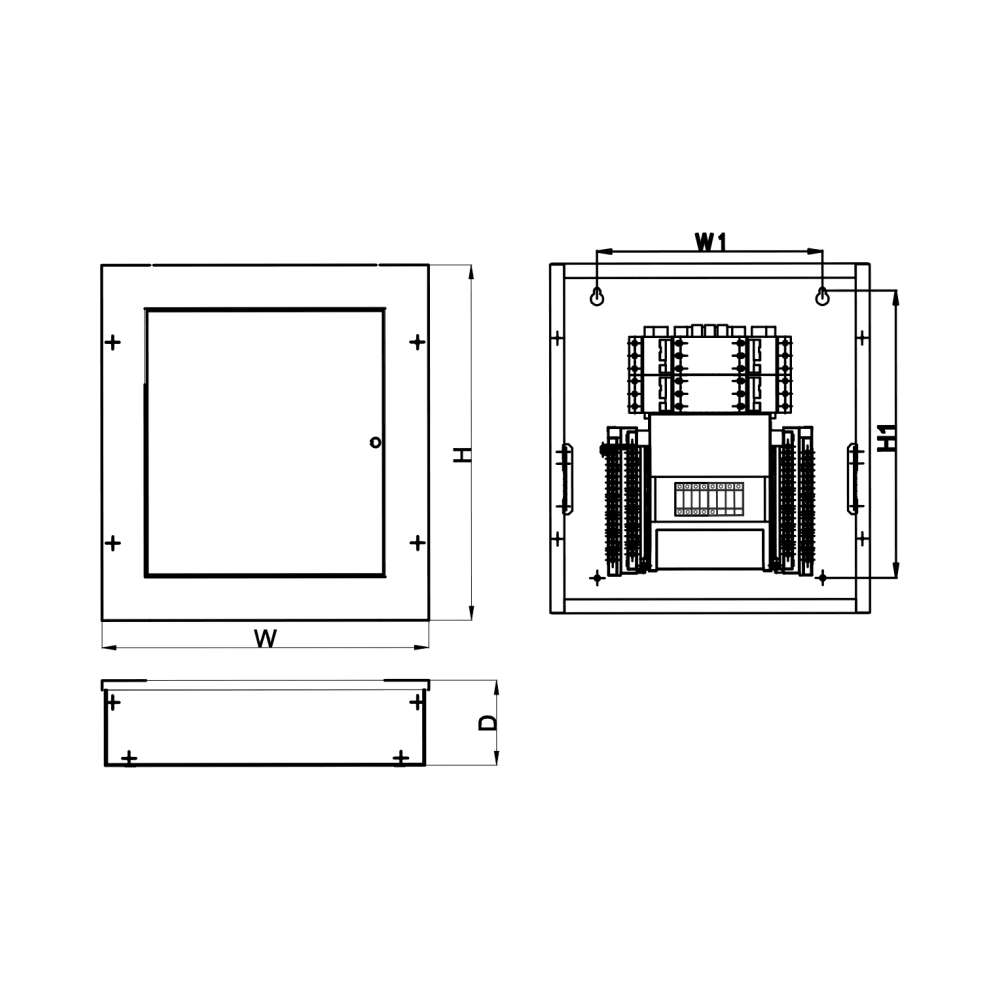

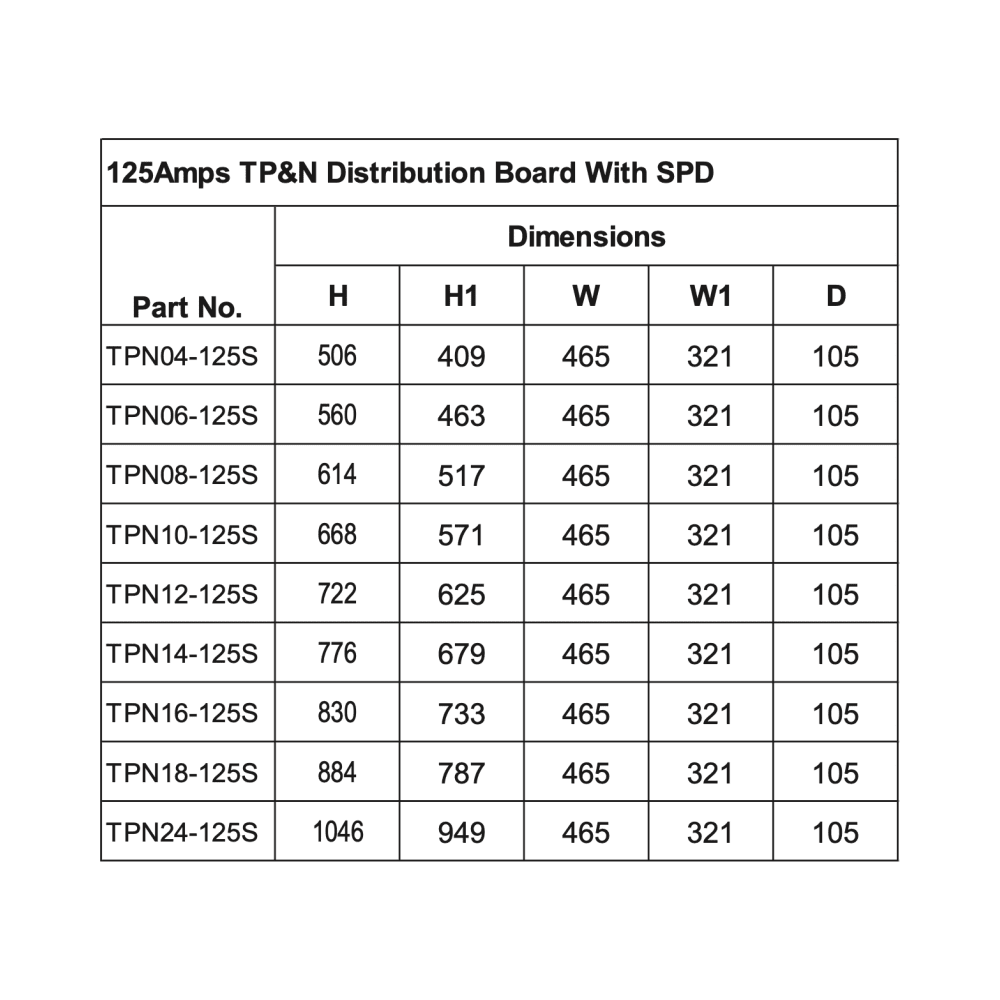

- Dimensions: H: 560mm, H1: 463mm, W: 465mm, W1: 321mm, D: 105mm (The images show TPN04-125S)
- Design: Modern style finished in epoxy powder paint to RAL7035
- Functionality: Section Neutral & Earth terminals fitted on both sides, complete shrouding for main incomer and link
- Convenience: Quick installation with earth & neutral terminals adjacent to the MCBs/RCBOs, removable gland plate for easy cable entry, keyhole fixing for simple wall mounting
- Safety: Fully enclosed busbar system
Specifications:
- Rated Voltage: AC380V/415V 50/60Hz
- Maximum Loading Currents: 125A
Additional Features:
- Faster and easier installation with adjacent earth and neutral terminals
- Complete with main switch and surge protection device
- Easy cable entry with removable gland plate
Scroll down to the bottom of the page to add the protective devices and accessories you need for a complete setup.
Choose the Live Electrical 10 Way TPN SPD Distribution Board for a reliable, compliant, and efficient electrical solution.
