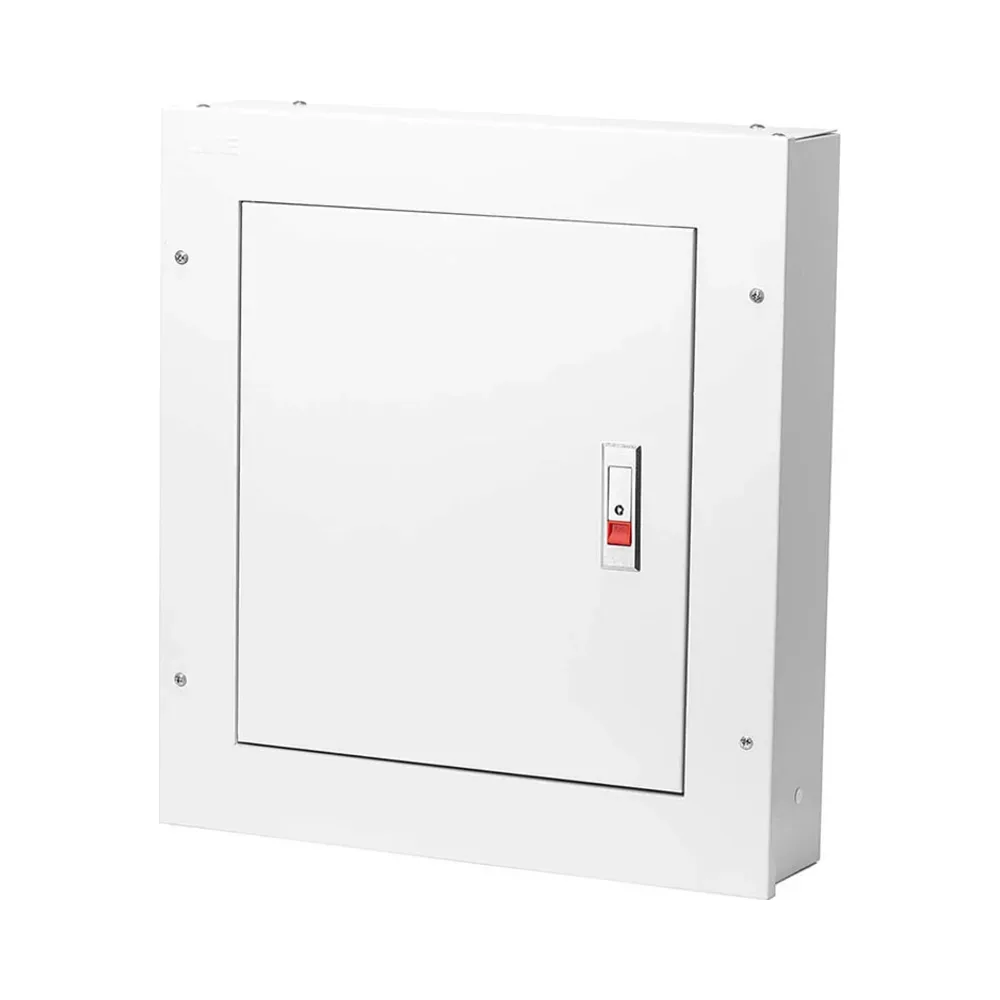

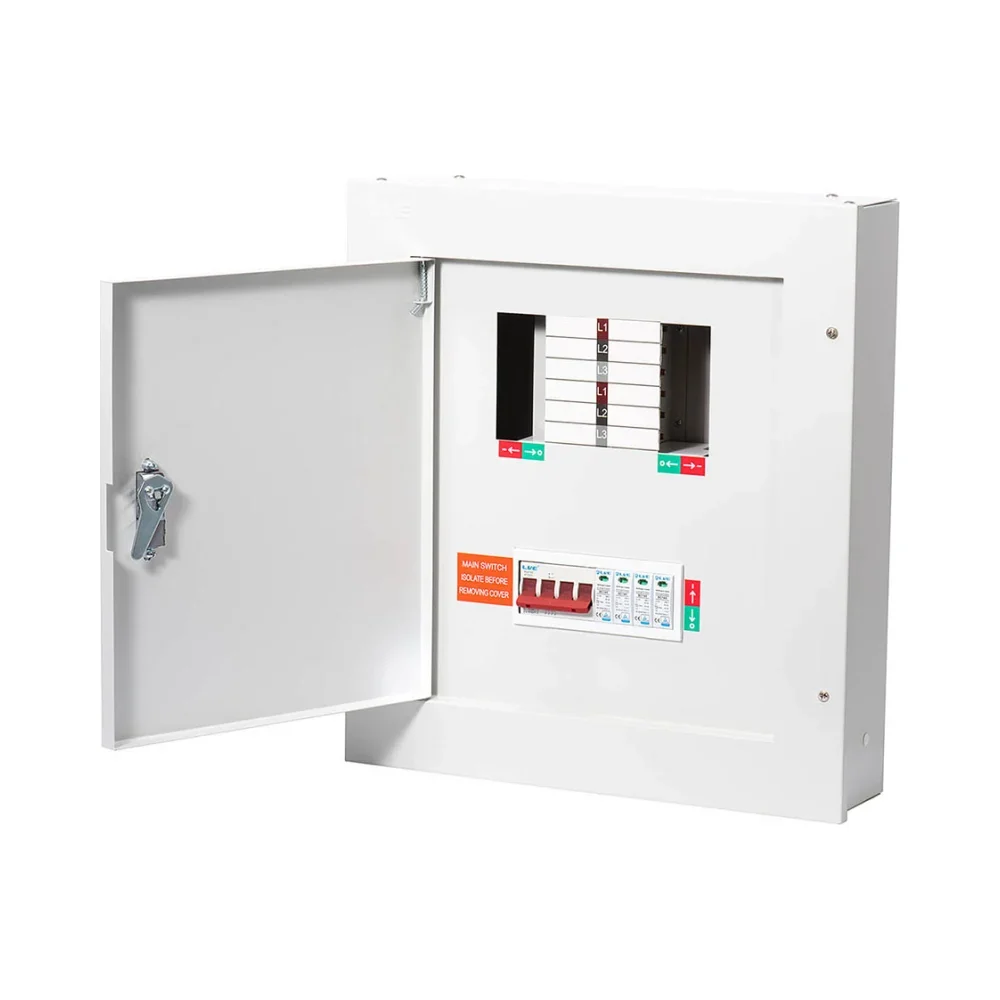

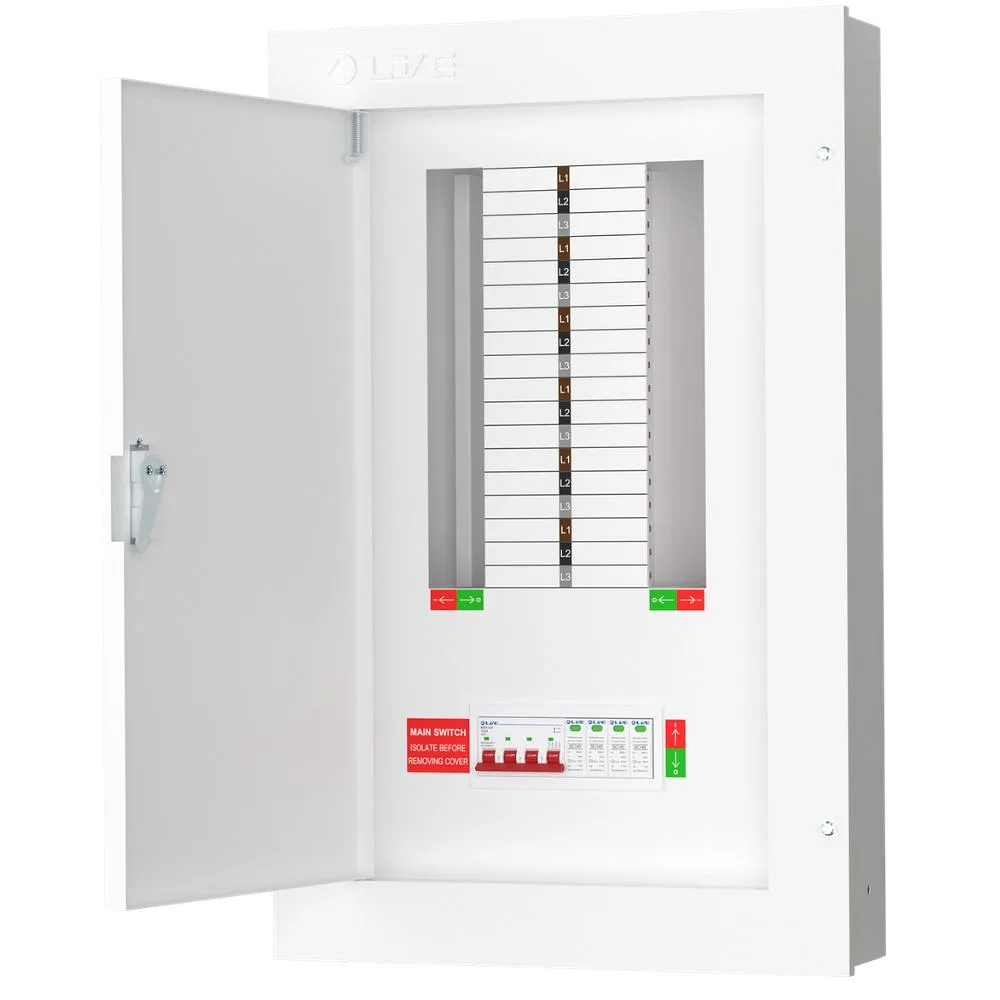

Live Electrical 12 Way SPD Distribution Board
The Live Electrical 12 Way SPD Distribution Board is a 125A TP&N distribution board supplied with a 125A 4 pole main switch and integrated Type 2 surge protection device. It provides 12 three pole ways or up to 36 single pole ways for compatible MCBs and RCBOs.
Designed for commercial, industrial and larger residential installations, the Live Electrical TPN12-125S combines substantial circuit capacity with practical installation features. Neutral and earth terminals are fitted on both sides and positioned close to the outgoing protective devices to support efficient wiring.
Key Features – Live Electrical 12 Way SPD Distribution Board
- 125A TP&N distribution board
- Supplied with a 125A 4 pole main switch
- Integrated Type 2 surge protection device
- 12 three pole ways or up to 36 single pole ways
- Neutral and earth terminals fitted on both sides
- Terminals positioned adjacent to compatible MCBs and RCBOs
- Fully enclosed busbar system
- Complete shrouding for the main incomer and link
- Removable gland plate for convenient cable entry
- Keyhole fixing points for straightforward wall mounting
- Epoxy powder-coated finish in RAL7035

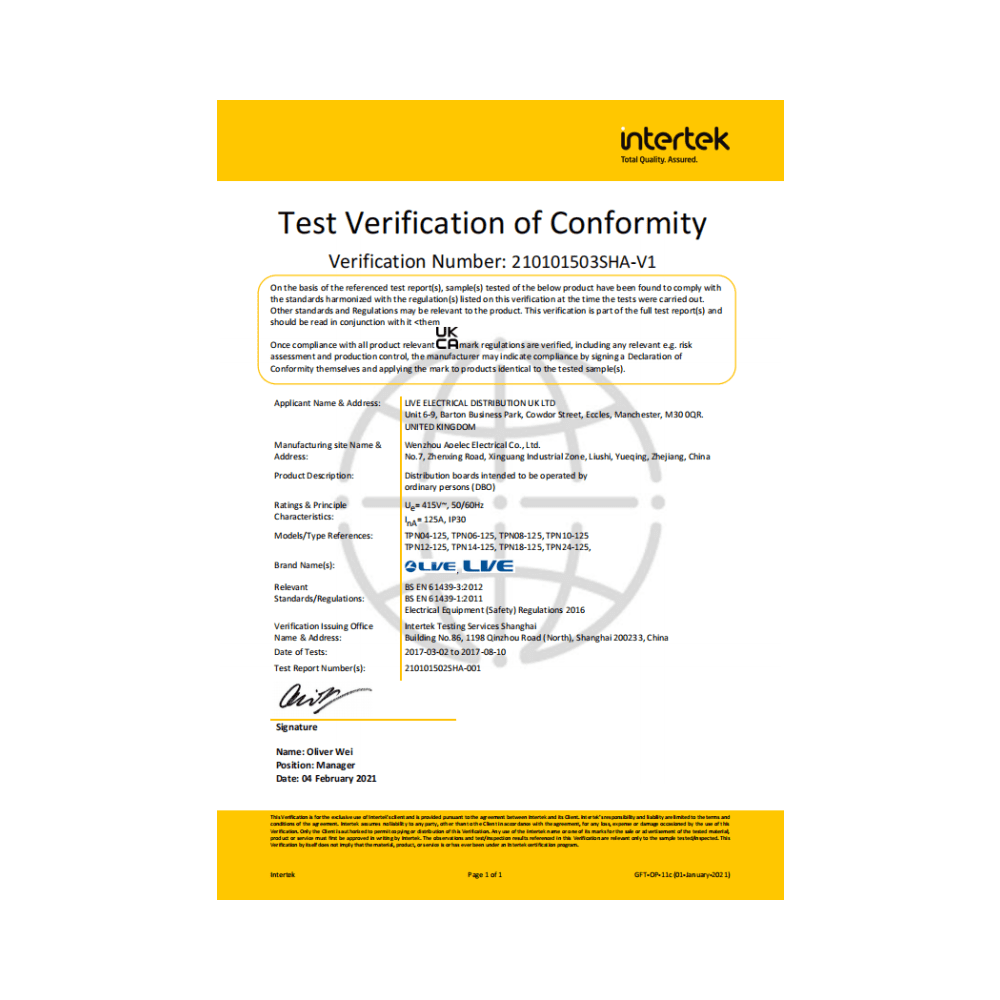

- Compliant with BS EN 61439-3
Technical Specifications – Live Electrical TPN12-125S
- Product code: TPN12-125S
- Rated current: 125A
- Rated voltage: 380V/415V AC, 50/60Hz
- Main switch: 125A 4 pole
- Surge protection: Type 2 SPD
- Three pole capacity: 12 ways
- Maximum single pole capacity: 36 ways

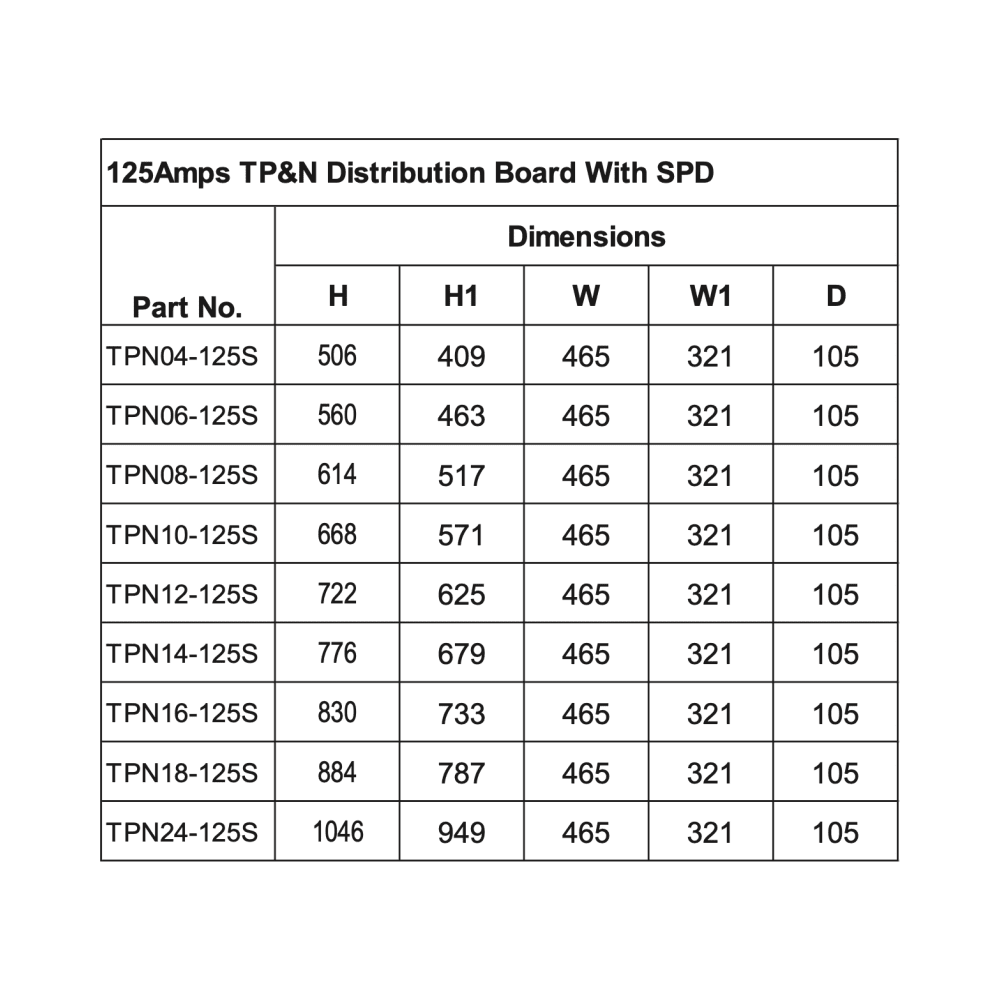

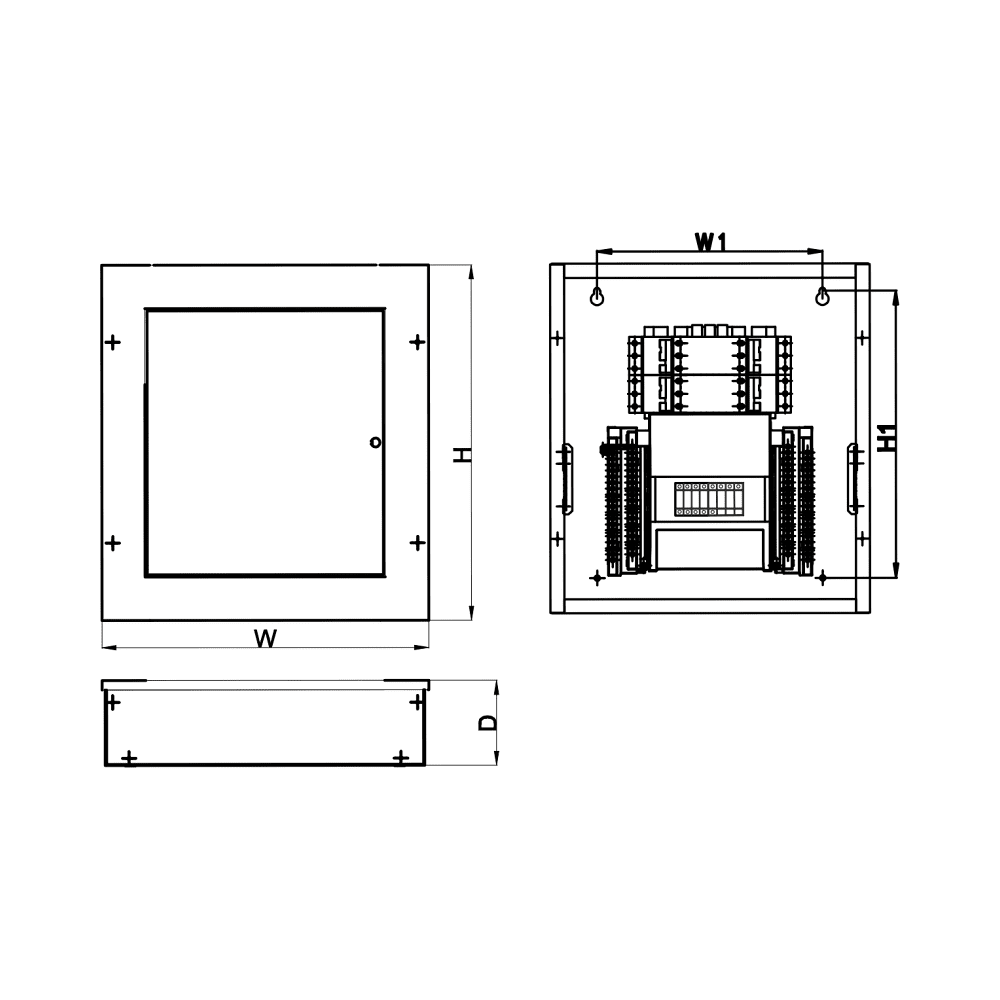

- Overall dimensions: 722mm high x 465mm wide x 105mm deep
- Internal dimensions: 625mm high x 321mm wide
- Finish: RAL7035 epoxy powder coating
- Standard: BS EN 61439-3
Reliable Three-Phase Circuit Distribution
With capacity for up to 12 three pole circuits, this distribution board is suitable for offices, retail premises, workshops, apartment buildings and other installations requiring organised three-phase power distribution. The integrated Type 2 SPD helps protect connected equipment against transient overvoltages.
Scroll to the bottom of the page to select compatible protective devices and consumer unit accessories for your installation.
