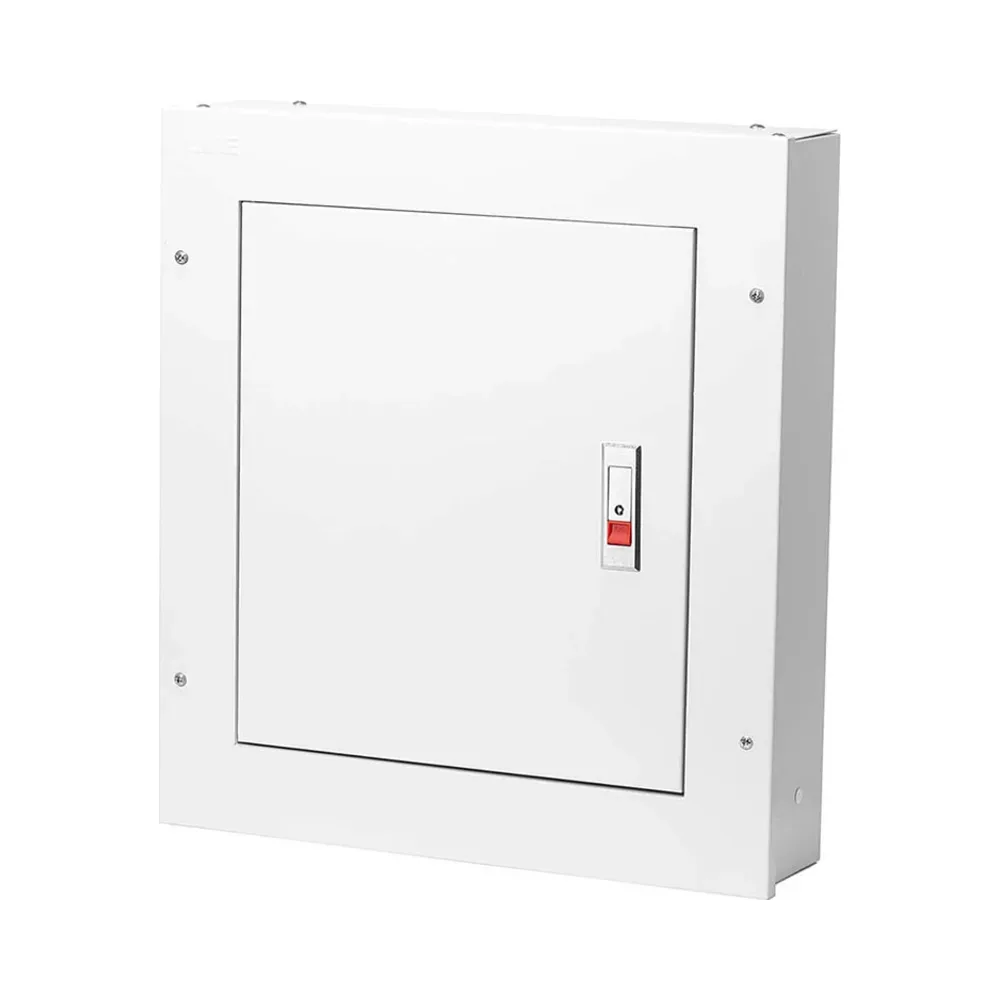

Live Electrical 4 Way SPD TPN Distribution Board

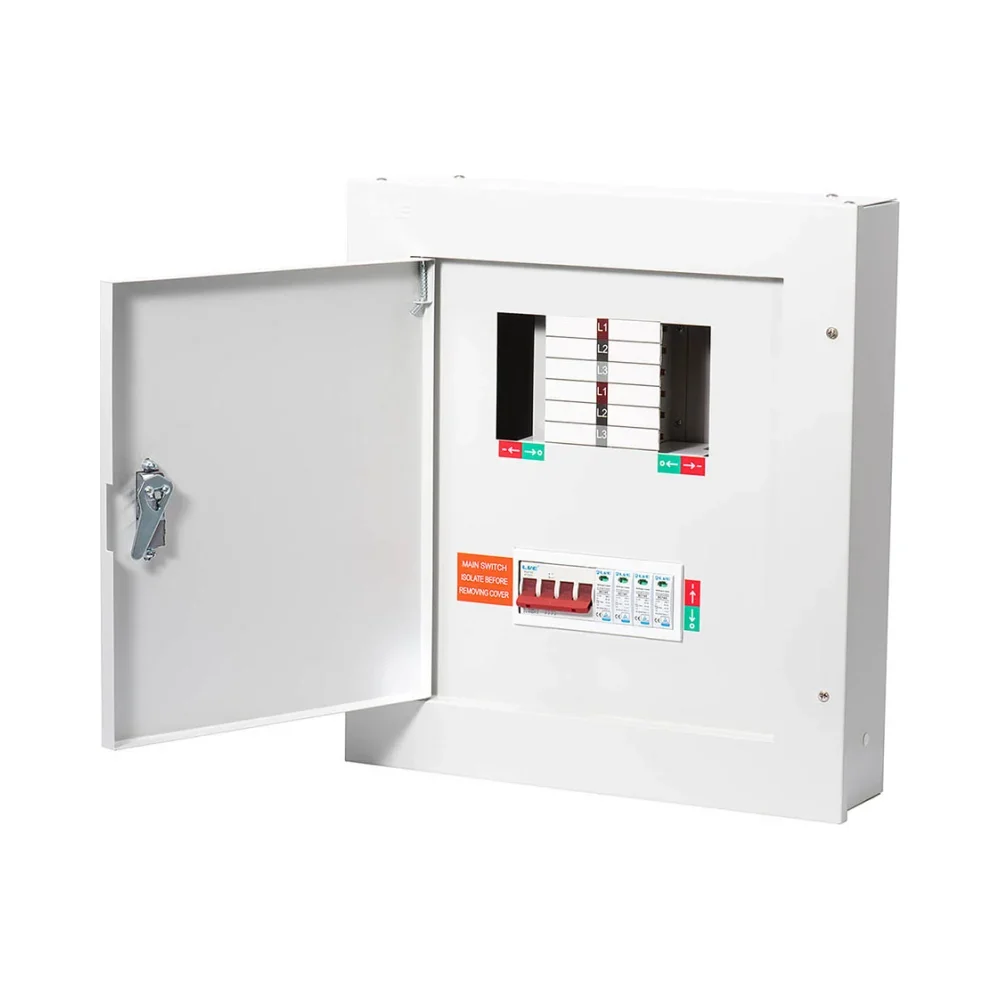

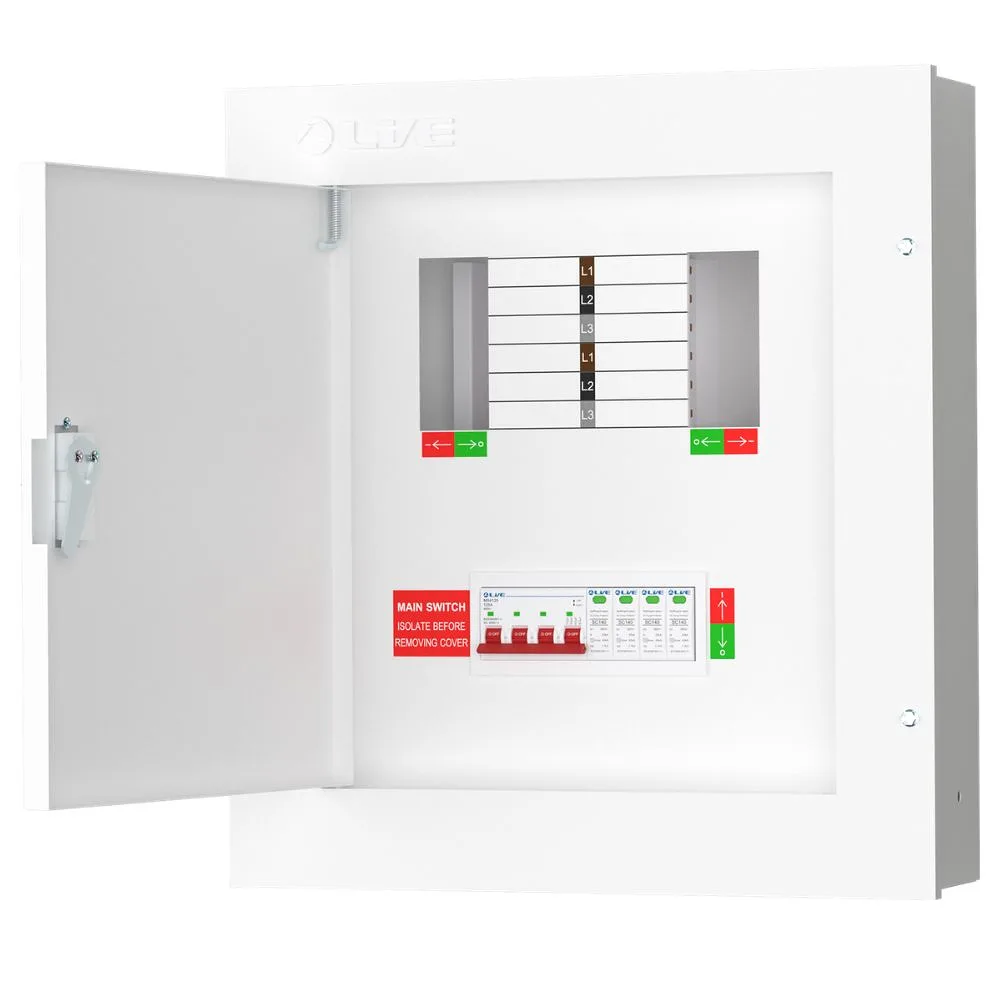

The Live Electrical 4 Way SPD TPN Distribution Board is a 125A three-phase distribution board supplied with a 4 pole main switch and Type 2 surge protection device. It provides 4 three pole ways or up to 12 single pole ways for compatible protective devices.
Designed for commercial, industrial and larger domestic installations, the Live Electrical TPN04-125S offers reliable circuit distribution and straightforward installation. It features a fully enclosed busbar system, complete incomer shrouding and neutral and earth terminals positioned on both sides for efficient wiring.
Key Features – Live Electrical 4 Way SPD TPN Distribution Board
- 125A TP&N distribution board
- Supplied with a 125A 4 pole main switch
- Includes Type 2 surge protection device
- 4 three pole ways or up to 12 single pole ways
- Fully enclosed busbar system
- Complete shrouding for the main incomer and link
- Neutral and earth terminals fitted on both sides
- Removable gland plate for easier cable entry
- Keyhole fixing points for simple wall mounting
- Epoxy powder-coated finish in RAL7035

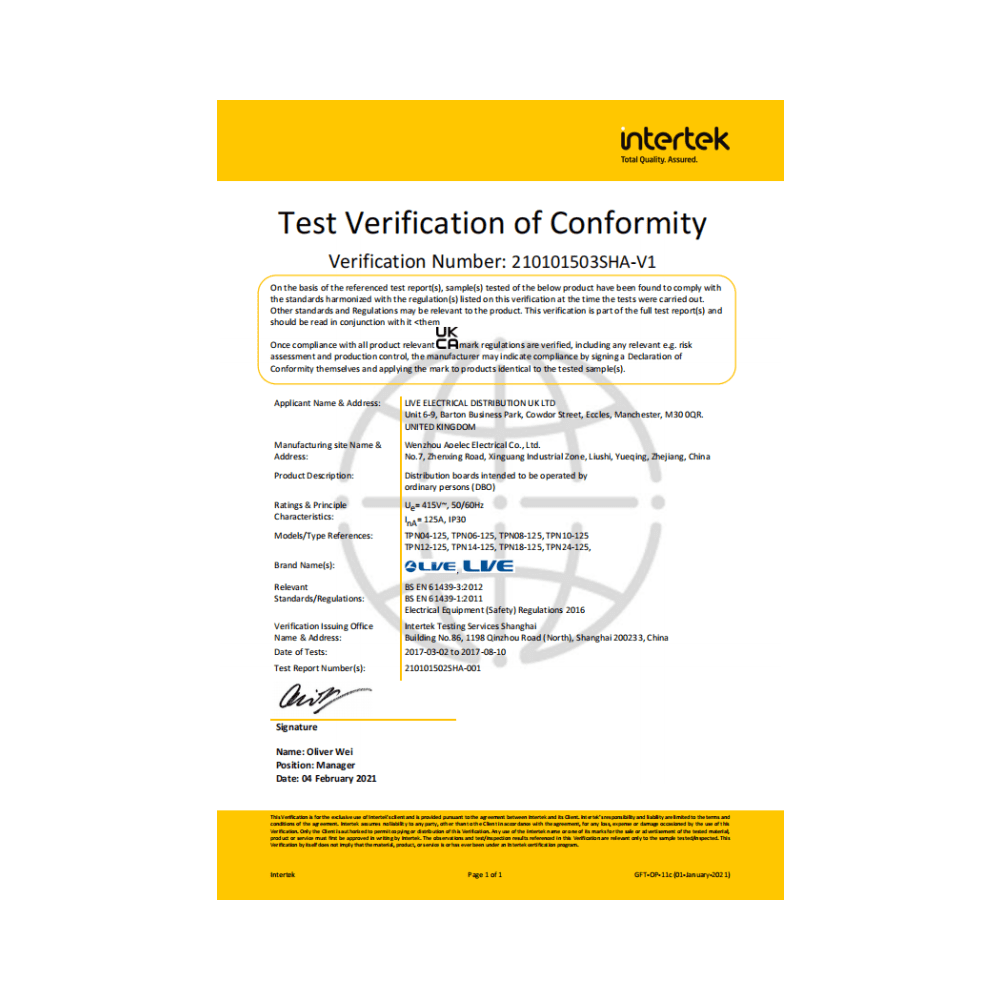

- Compliant with BS EN 61439-3
Technical Specifications
- Product code: TPN04-125S
- Rated current: 125A
- Rated voltage: 380V/415V AC, 50/60Hz
- Main switch: 125A 4 pole
- Surge protection: Type 2 SPD
- Number of ways: 4 three pole or 12 single pole

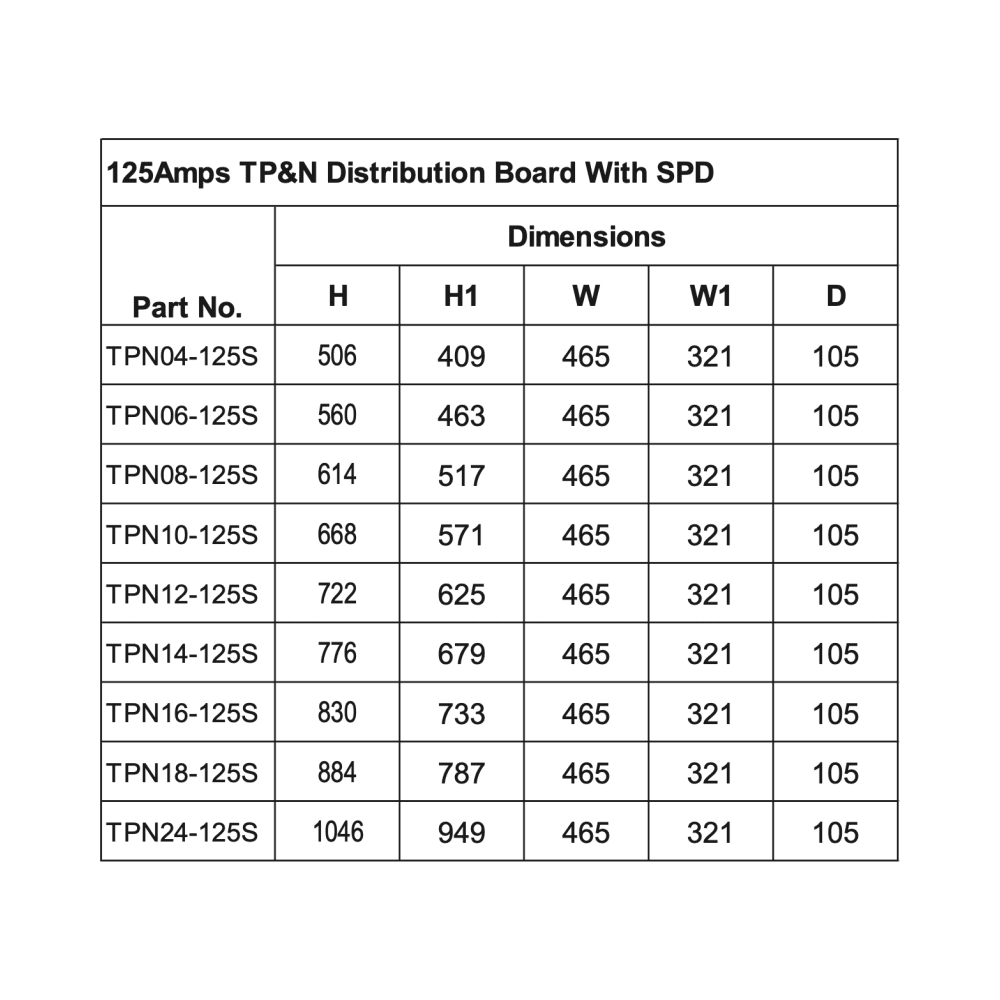

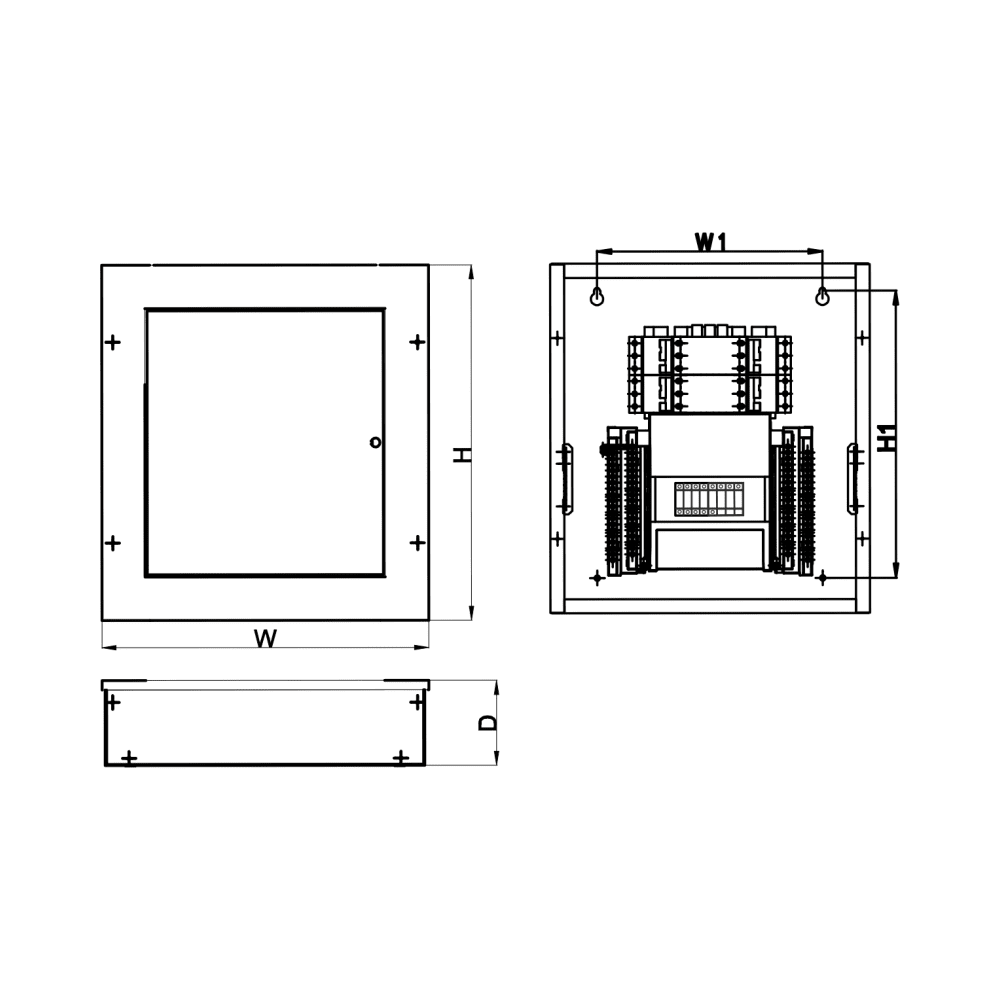

- Dimensions: 506mm high x 465mm wide x 105mm deep
- Internal height: 409mm
- Internal width: 321mm
- Finish: RAL7035 epoxy powder coating
- Standard: BS EN 61439-3
Scroll to the bottom of the page to select compatible protective devices and accessories for your installation.
