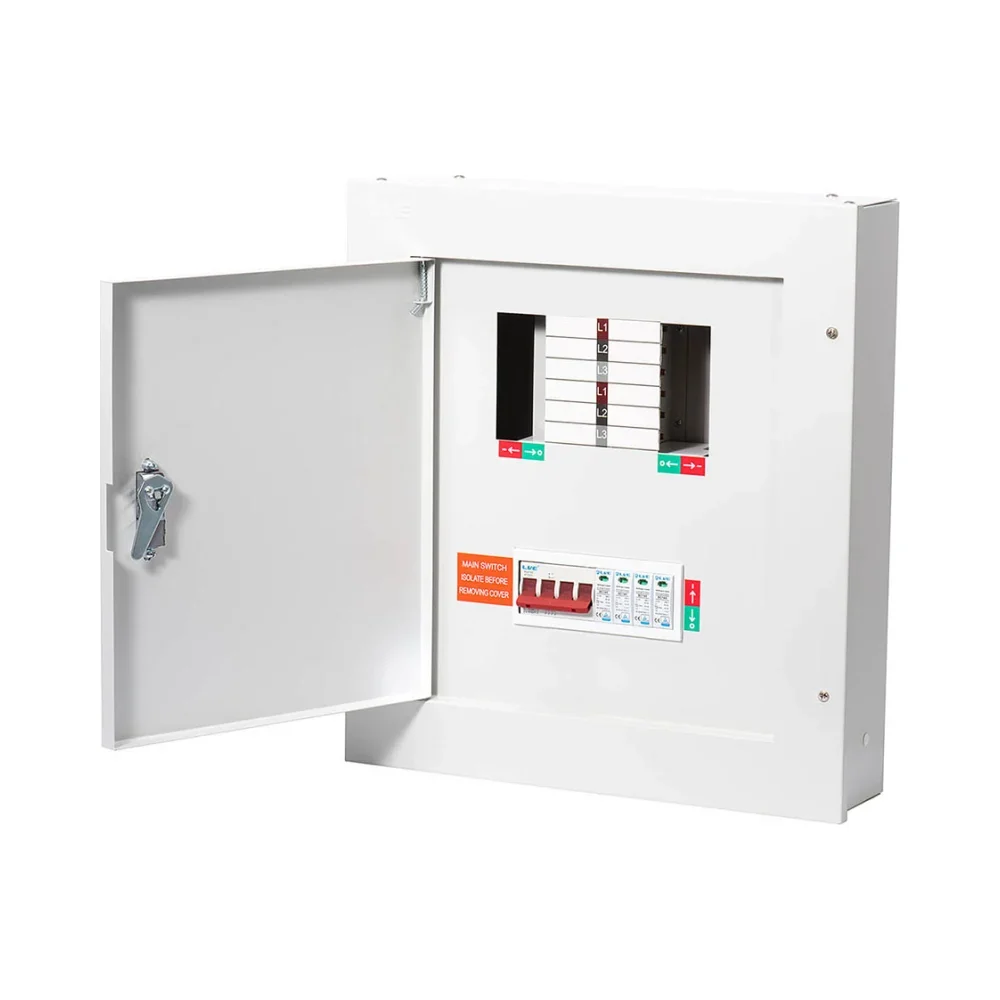

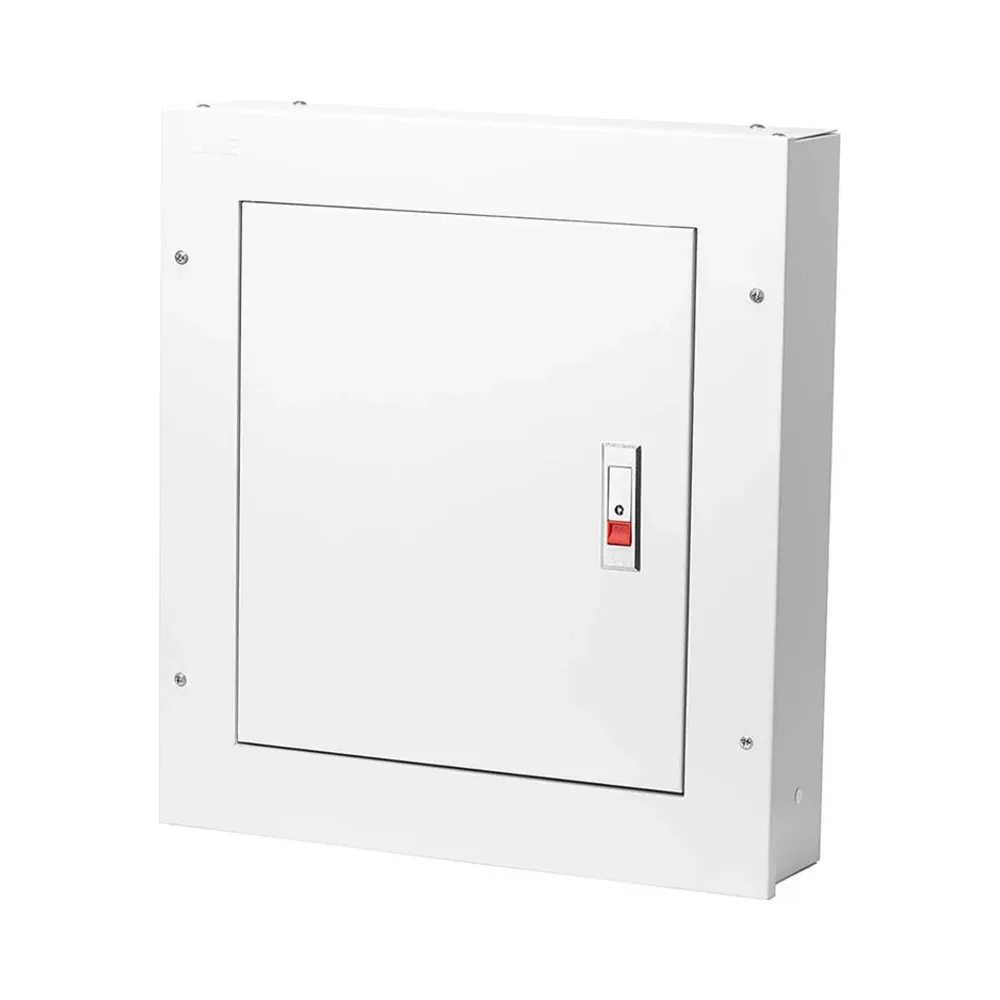

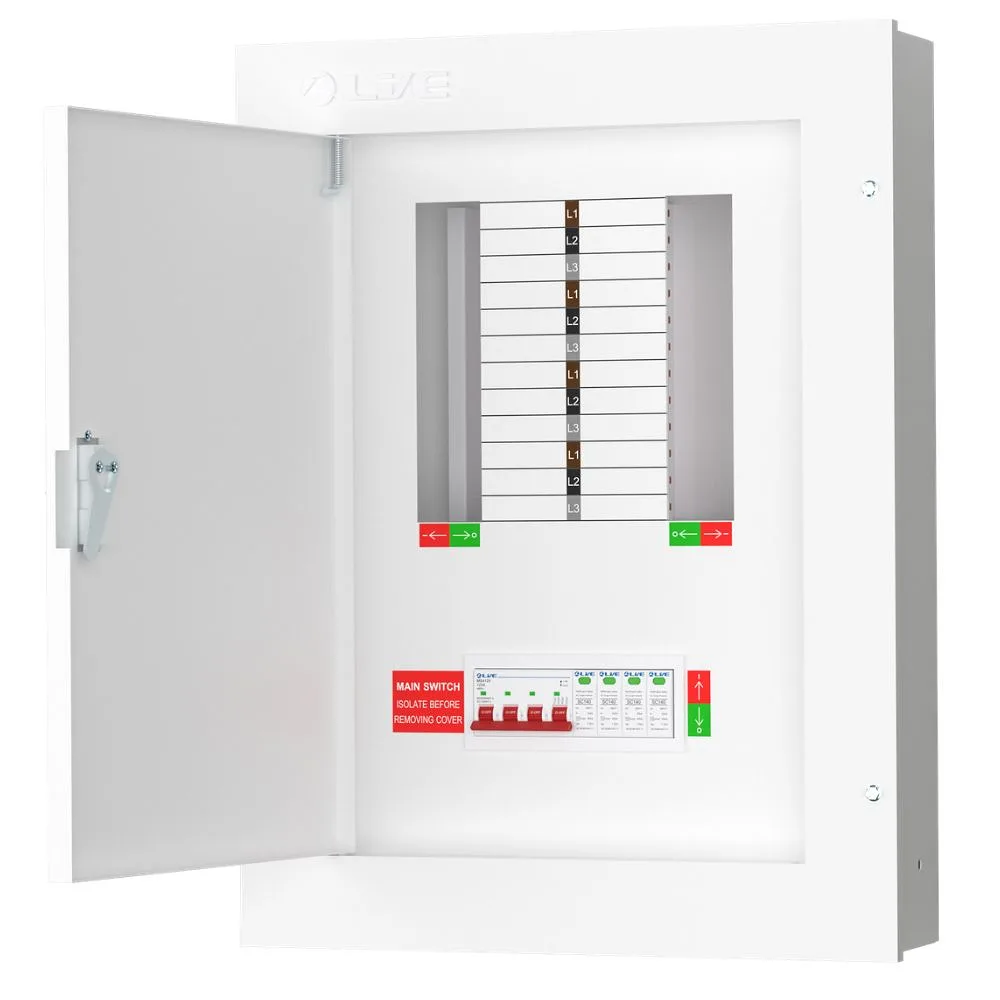

Live Electrical 125A 8 Way TPN Distribution Board SPD
The Live Electrical 125A 8 Way TPN Distribution Board SPD provides reliable three-phase circuit distribution for commercial, industrial and larger residential installations. Supplied with a 125A 4 pole main switch and integrated Type 2 surge protection device, it helps protect connected equipment against transient overvoltages.
The Live Electrical TPN08-125S provides 8 three pole ways or up to 24 single pole ways for compatible MCBs and RCBOs. Neutral and earth terminals are fitted on both sides of the enclosure and positioned close to the protective devices, helping installers organise wiring efficiently.
Installation Features – Live Electrical 125A 8 Way TPN Distribution Board SPD
- 125A TP&N distribution board
- Supplied with a 125A 4 pole main switch
- Integrated Type 2 surge protection device
- 8 three pole ways or up to 24 single pole ways
- Neutral and earth terminals fitted on both sides
- Terminals positioned adjacent to the MCBs and RCBOs
- Fully enclosed busbar system for additional protection
- Complete shrouding around the main incomer and link
- Removable gland plate for convenient cable entry
- Keyhole fixing points for easier wall mounting
- Durable RAL7035 epoxy powder-coated finish
Live Electrical TPN08-125S Specifications
- Product code: TPN08-125S
- Rated current: 125A
- Rated voltage: 380V/415V AC, 50/60Hz
- Main switch: 125A 4 pole
- Surge protection: Type 2 SPD
- Three pole ways: 8
- Maximum single pole ways: 24

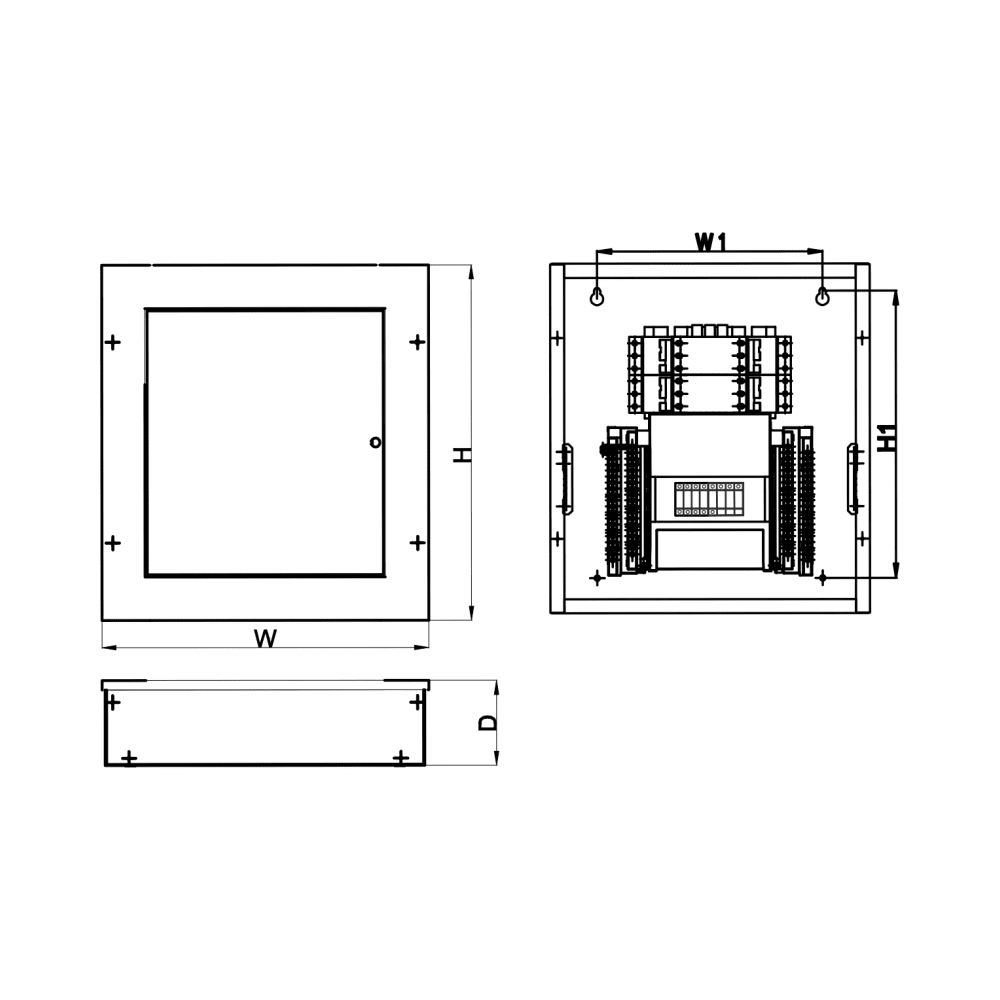

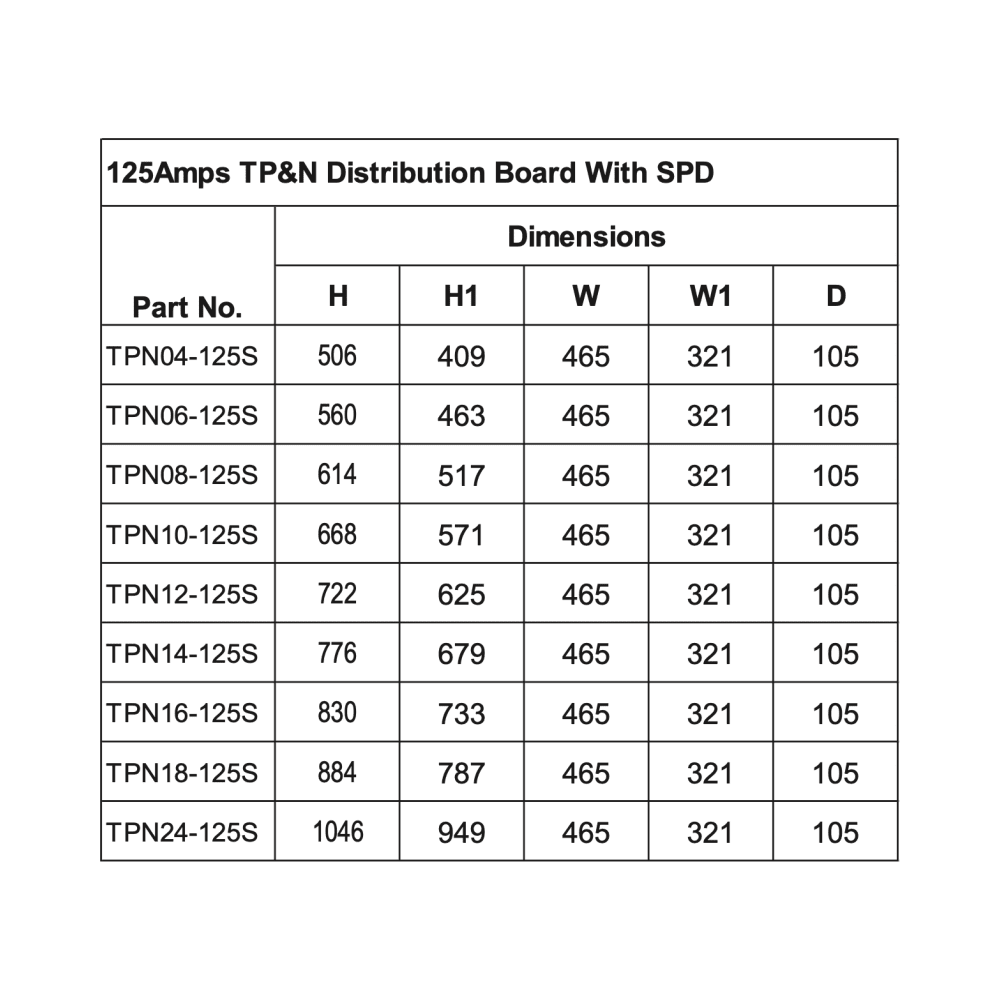

- Overall dimensions: 614mm high x 465mm wide x 105mm deep
- Internal dimensions: 517mm high x 321mm wide
- Finish: RAL7035 epoxy powder coating

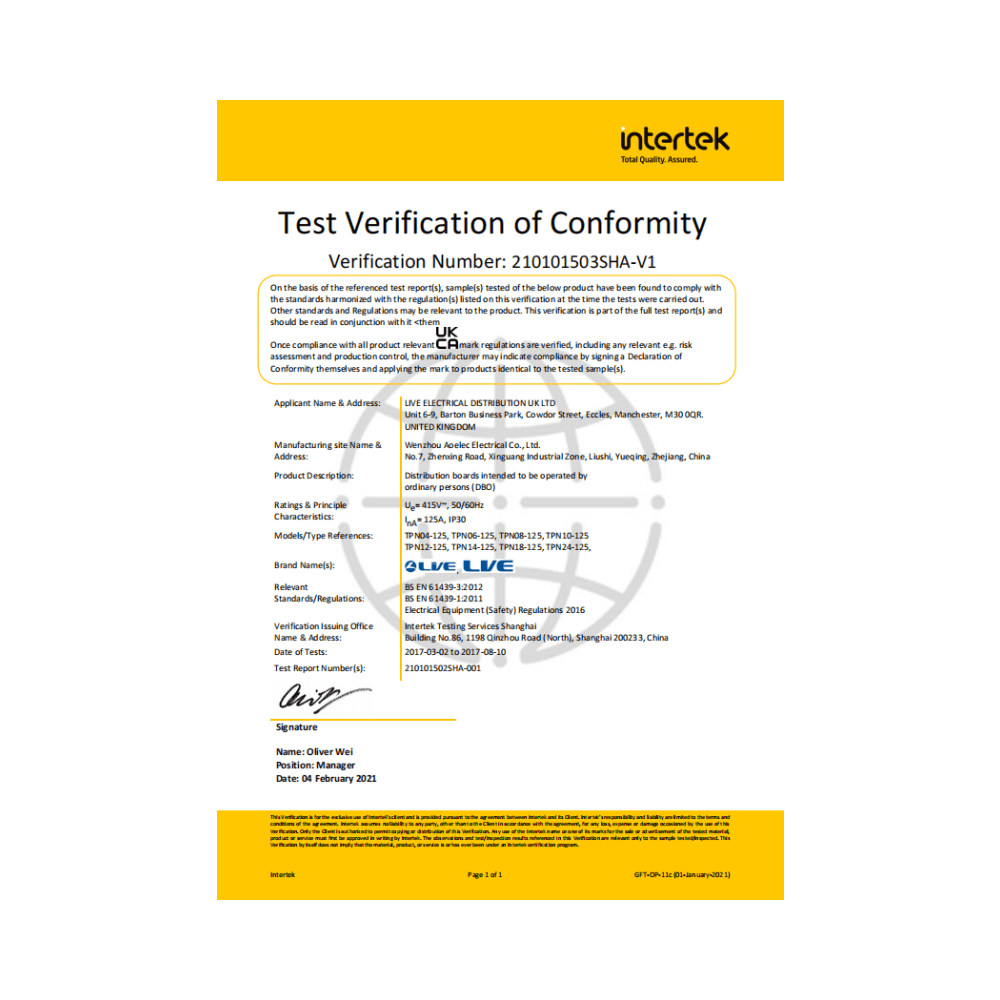

- Compliance: BS EN 61439-3
Suitable Applications
This 8 way TPN distribution board is suitable for offices, retail premises, workshops, warehouses, apartment buildings and other installations requiring dependable three-phase power distribution with integrated surge protection.
