High-Capacity RCBO for Live Electrical TPN Distribution Boards

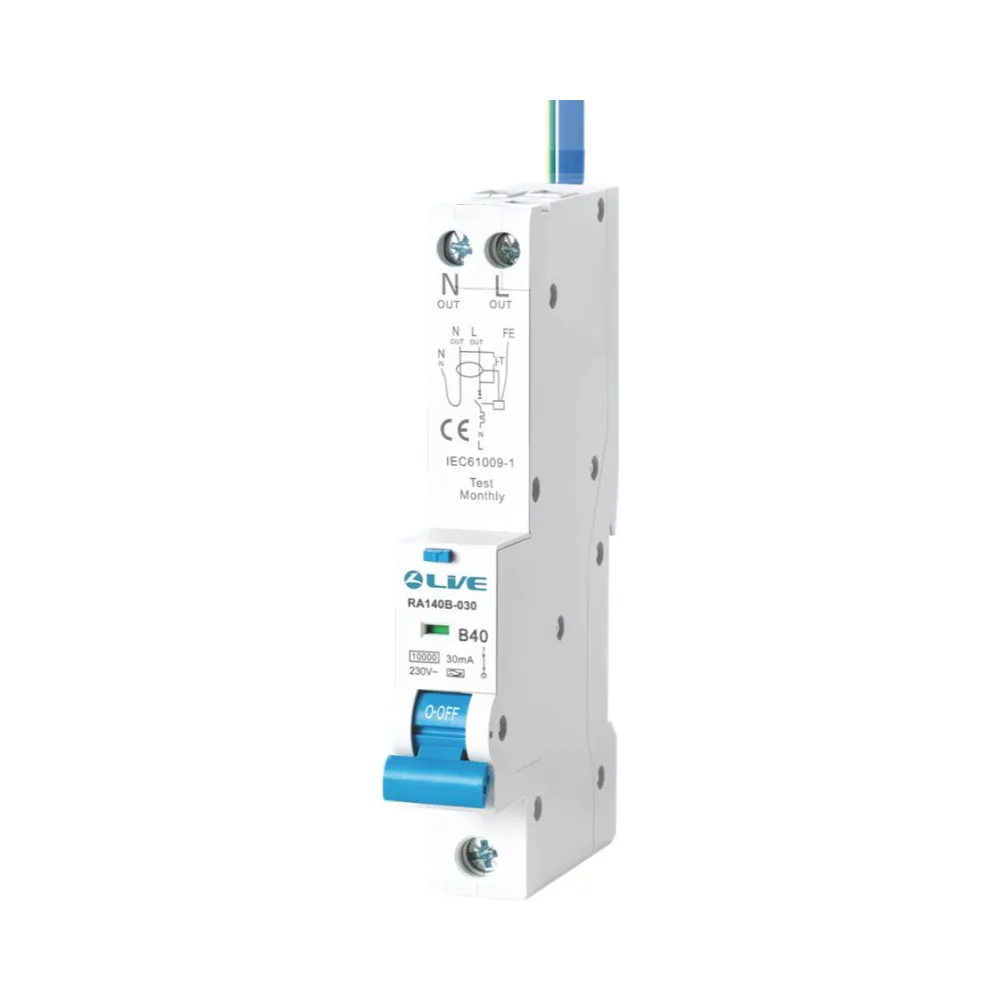

The Live Electrical 10kA RCBO 40A Curve B Type A 30mA 1P+N is a robust residual current circuit breaker with integrated overcurrent protection. Designed for use in Live Electrical TPN three-phase distribution boards, it safeguards circuits from overloads, short circuits, and residual current faults, including AC and pulsed DC leakage.
Fully compliant with BS EN 61009-1 and aligned with the 18th Edition Wiring Regulations, this RCBO is suitable for final circuits with higher current demands.
Electrical and Functional Properties
This device provides a rated current of 40A and uses a Curve B tripping characteristic, ideal for final circuits with resistive or low-inductive loads. It ensures 30mA Type A residual current protection, capable of detecting both AC and pulsating DC faults, improving overall electrical safety.
With a 10kA short-circuit breaking capacity, this RCBO is suitable for use in systems with high prospective fault currents.
Installation and Application
The unit features a 1P+N pole configuration for simultaneous disconnection of both phase and neutral conductors. It is DIN rail mountable, occupies a single module, and integrates seamlessly into Live Electrical TPN distribution boards.
Its terminal design supports cable sizes up to 16mm², making it practical for most final circuit wiring setups.
Key Features
- Designed for use with Live Electrical TPN distribution boards
- Fully compliant with BS EN 61009-1
- Rated current: 40A
- 30mA residual current sensitivity (Type A – detects AC and pulsed DC)
- Curve B tripping for general-purpose loads
- Breaking capacity: 10kA
- Pole configuration: 1P+N
- DIN rail mountable, 1 module wide
- Terminal capacity up to 16mm²
- High endurance and installation flexibility
Technical Specifications – RA140B-030
- SKU: RA140B-030
- Rated Current: 40A
- Voltage: 230V AC, 50Hz
- Tripping Curve: B
- Residual Sensitivity: 30mA, Type A
- Breaking Capacity: 10kA
- Poles: 1P+N
- Mounting: DIN rail, single module
- Terminal Capacity: Up to 16mm²
- Electrical Endurance: 4,000 operations
- Mechanical Endurance: 10,000 operations
- Operating Temp: -5°C to +40°C
- Ingress Protection: IP20 (when enclosed)
- Standard Compliance: BS EN 61009-1
Ideal for Higher Load Circuits
The Live Electrical 10kA RCBO 40A Curve B Type A 30mA 1P+N delivers reliable protection for circuits where both overload and residual current protection are essential. Engineered for compatibility with Live Electrical TPN distribution boards, this unit offers high performance and assured compliance in demanding installations.
