Description

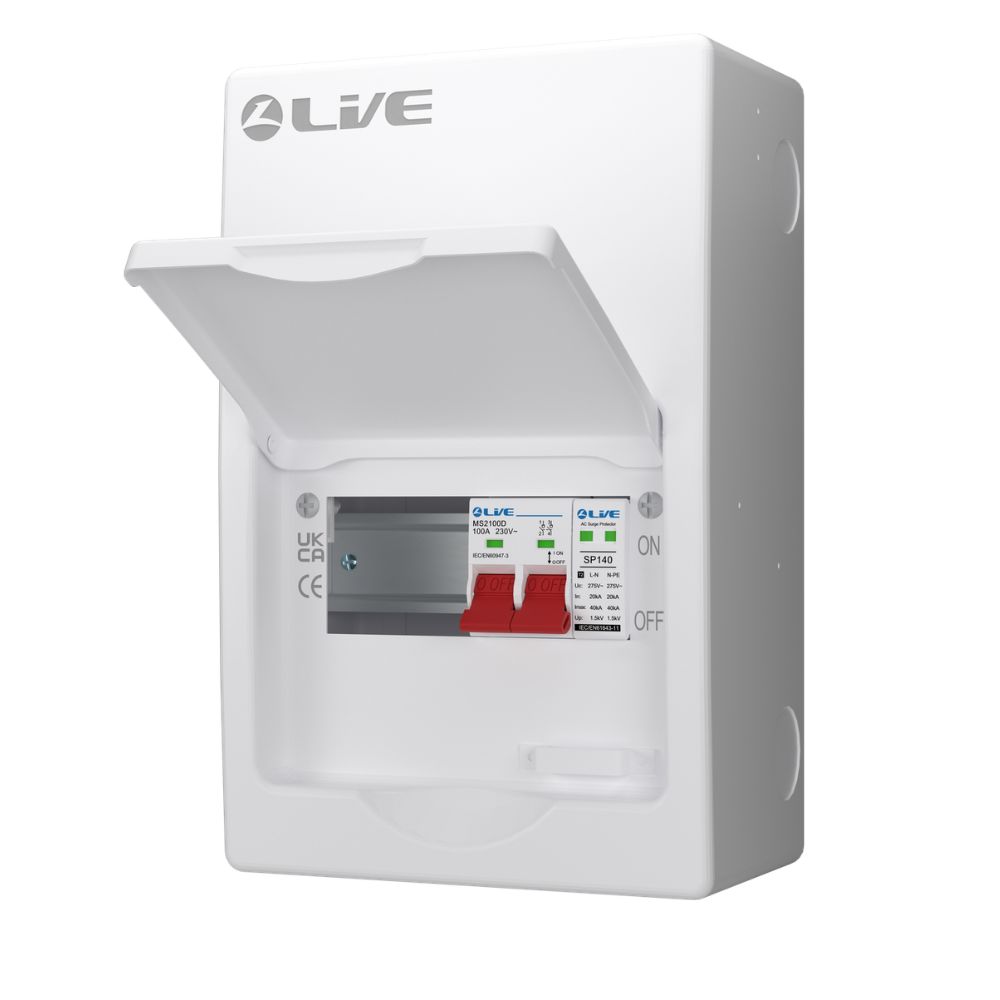

Live Electrical LSMC06S-SP SRN Consumer Unit
SRN Devices only: this consumer unit is only compatible with Live Electrical SRN RCBOs and MCBs due to its double pole busbar design. Standard RCBOs will not fit. View compatible SRN Devices.
Unpopulated board: RCBOs and MCBs are not included and must be ordered separately.

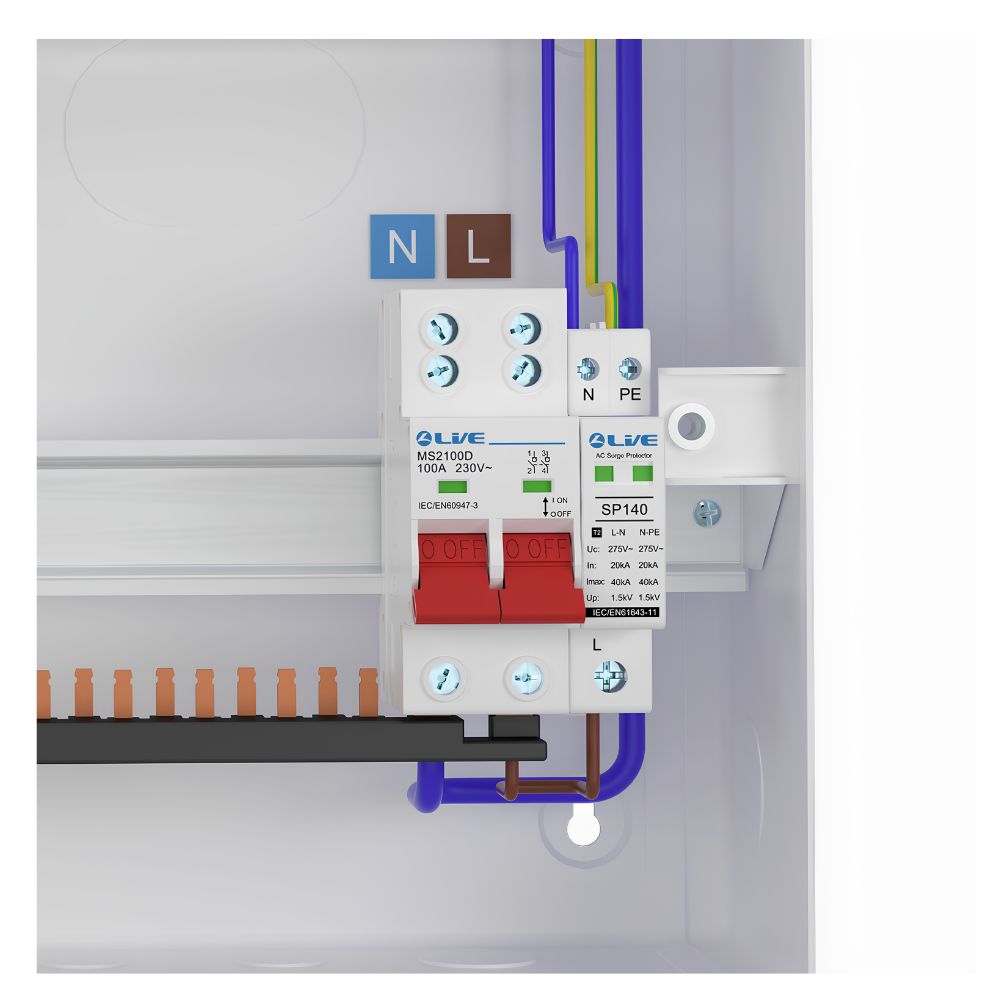

Live Electrical LSMC06S-SP SRN Consumer Unit is a 3 way double pole busbar consumer unit designed for fast, tidy electrical installations using the Live Electrical SRN system. The double pole busbar design helps eliminate neutral fly leads, reducing wiring clutter and improving cable management inside the board.
The LSMC06S-SP includes a 100A main switch and integrated Type 2 surge protection device, making it a compact solution for smaller domestic and light commercial installations where a clean, flexible SRN consumer unit is required.
LSMC06S-SP Consumer Unit Overview
The LSMC06S-SP is part of the Live Electrical SRN range and is supplied as an empty / unpopulated board. It is designed for use with compatible Live Electrical SRN RCBOs and MCBs only, allowing the installer to select the required circuit protection separately.
SRN Compatible Devices
This consumer unit must be used with compatible Live Electrical SRN devices due to its double pole busbar design. Standard RCBOs are not suitable for this board. For compatible RCBOs, MCBs and accessories, view the compatible range here: SRN Devices.
Key Features – Live Electrical LSMC06S-SP SRN Consumer Unit
- 3 way SRN double pole busbar consumer unit
- 100A main switch
- Integrated Type 2 SPD
- Empty / unpopulated board
- RCBOs and MCBs sold separately
- Double pole busbar system
- No neutral fly leads required when used with compatible SRN devices
- Compatible with Live Electrical SRN RCBOs and MCBs only
- Cleaner internal wiring layout
- Compact metal enclosure for modern consumer unit installations
Installation Benefits
- Faster installation with no neutral fly leads
- Cleaner and more organised internal wiring
- Improved cable management
- Flexible circuit configuration
- Professional, compact board layout
Typical Applications
Ideal for smaller domestic installations, garages, outbuildings and extensions where a compact SRN consumer unit with surge protection and flexible circuit configuration is required.
Why Choose the SRN Range?
The Live Electrical SRN range is designed to modernise consumer unit installations by eliminating traditional neutral fly leads and simplifying internal wiring layouts. Combined with compatible double pole RCBO and MCB protection, the SRN system helps electricians achieve faster installation times, cleaner finishes and improved accessibility for testing and maintenance.
Summary of the Live Electrical LSMC06S-SP SRN Consumer Unit
The Live Electrical LSMC06S-SP SRN Consumer Unit is a compact 3 way double pole busbar consumer unit supplied with a 100A main switch and integrated Type 2 SPD. Supplied unpopulated, it allows compatible Live Electrical SRN RCBOs and MCBs to be selected separately for the installation.
