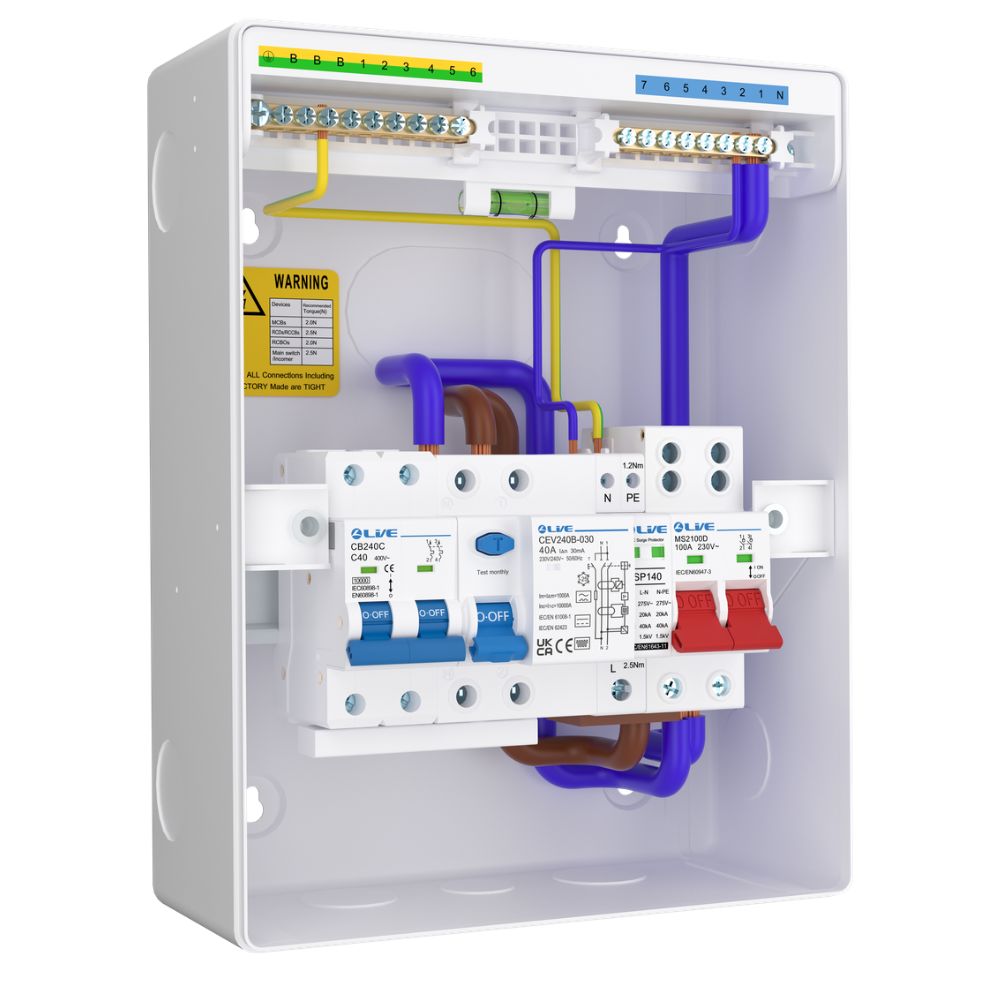

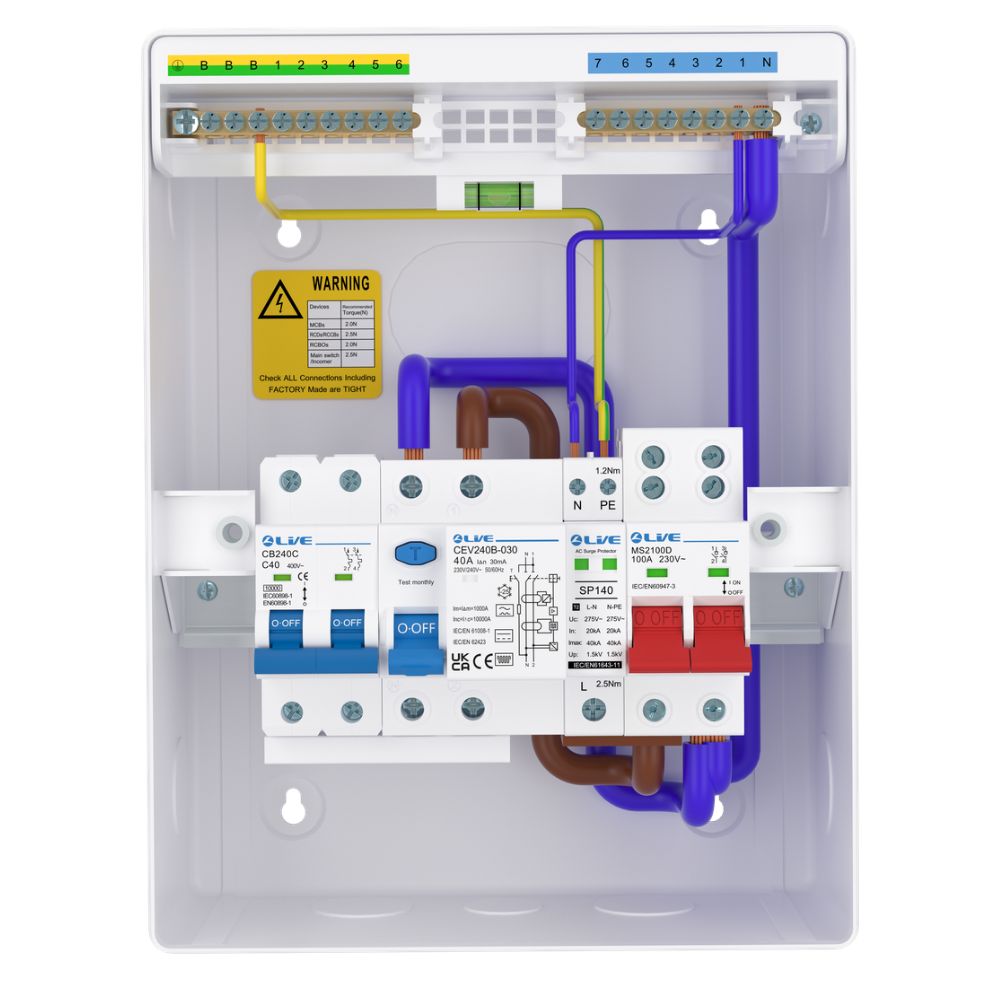

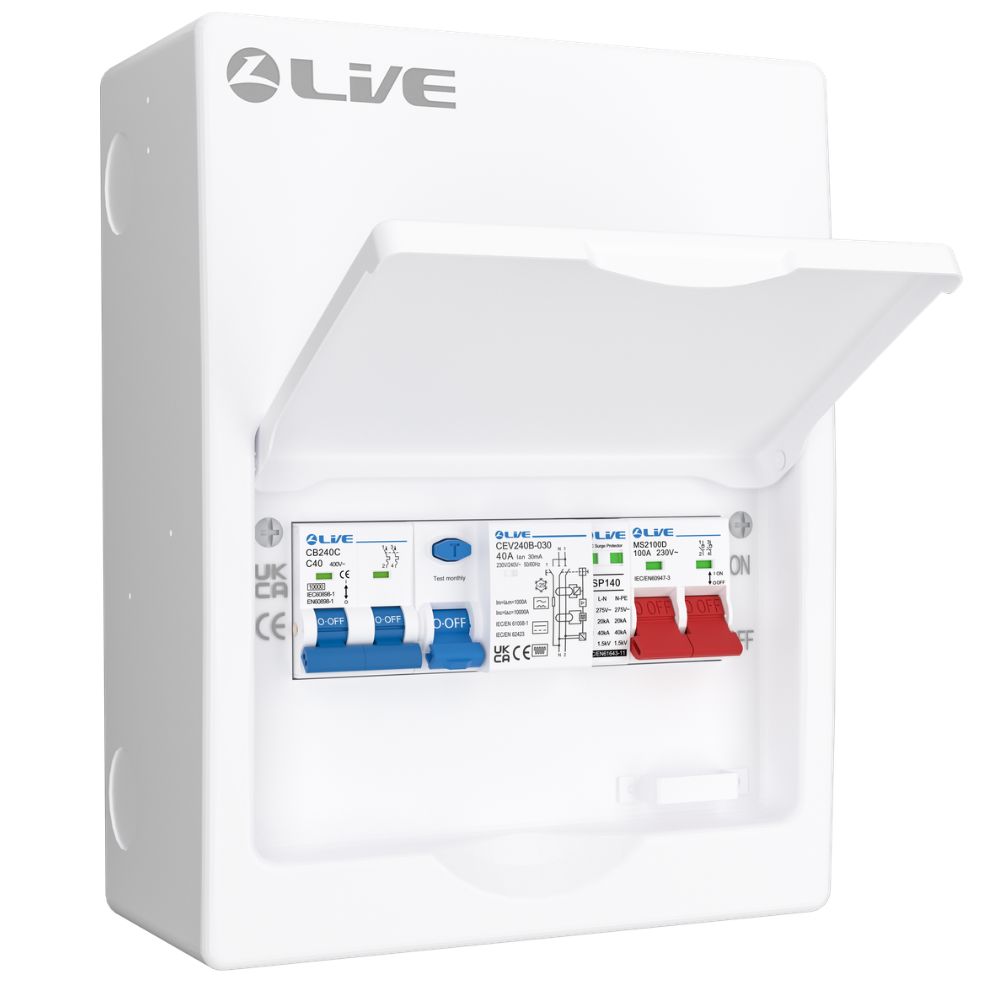

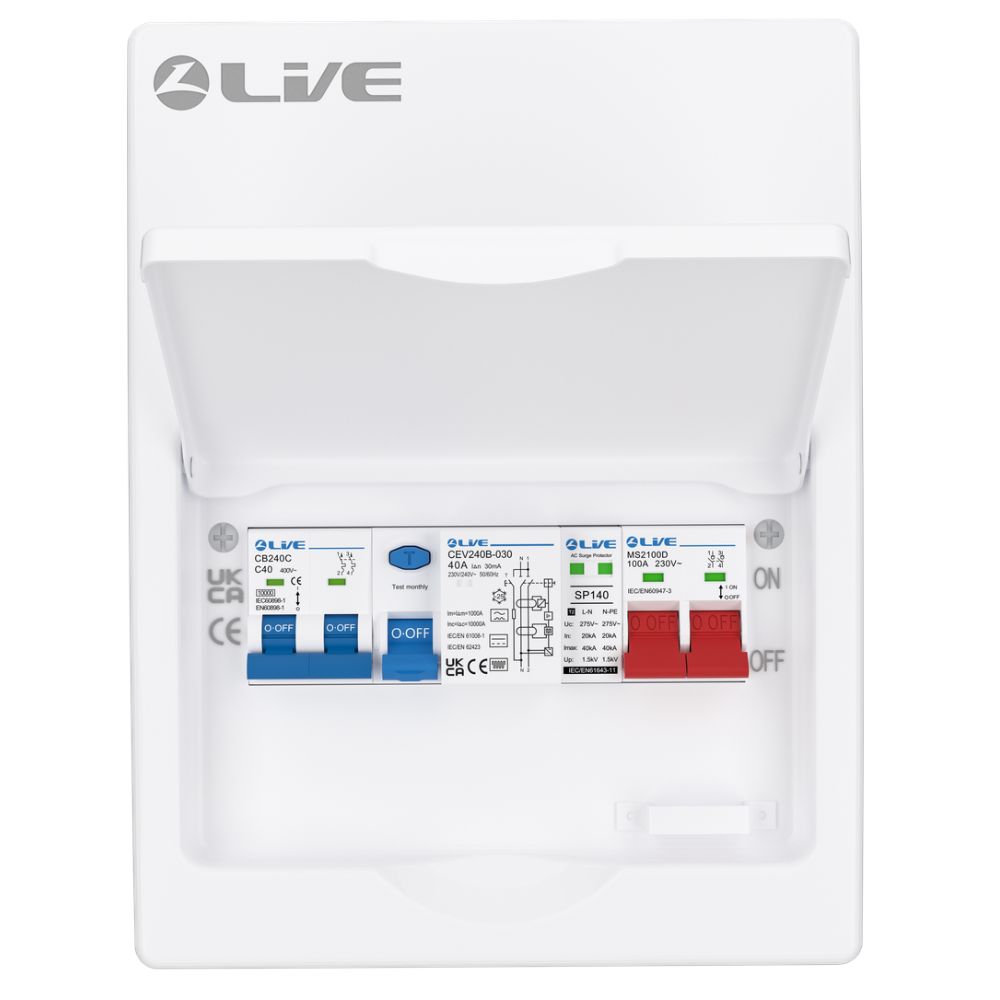

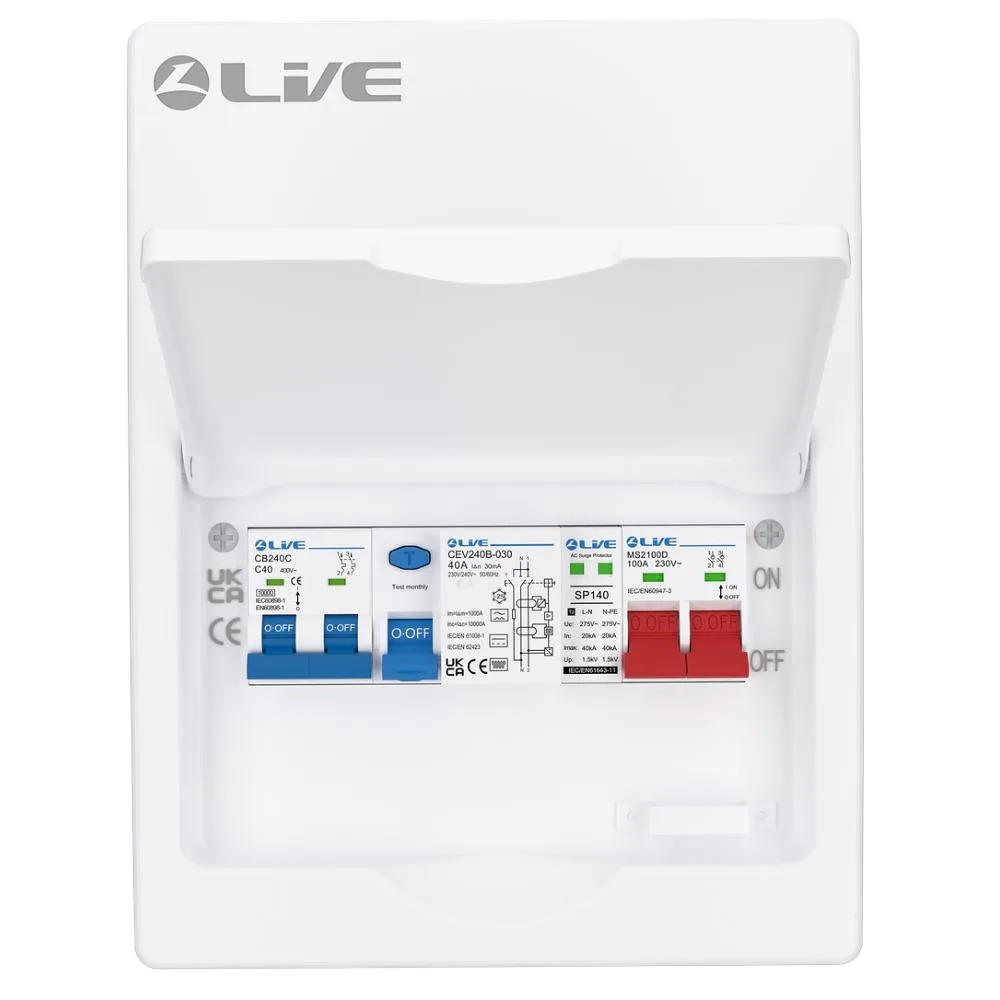

Live Electrical LHP840MSE Heat Pump Consumer Unit
The live electrical LHP840MSE heat pump consumer unit is a compact and purpose-built solution for modern installations requiring reliable protection for heat pumps and inverter-driven systems. Housed in an 8 module metal enclosure, this unit combines advanced safety devices with a space-saving design ideal for residential and light commercial applications.
Equipped with a 40A Type B HP RCD, a 40A C curve double pole MCB, a 100A main switch and a Type 2 surge protection device (SPD), this consumer unit delivers comprehensive protection against electrical faults, surges and high-frequency leakage currents.
Advanced Heat Pump Protection

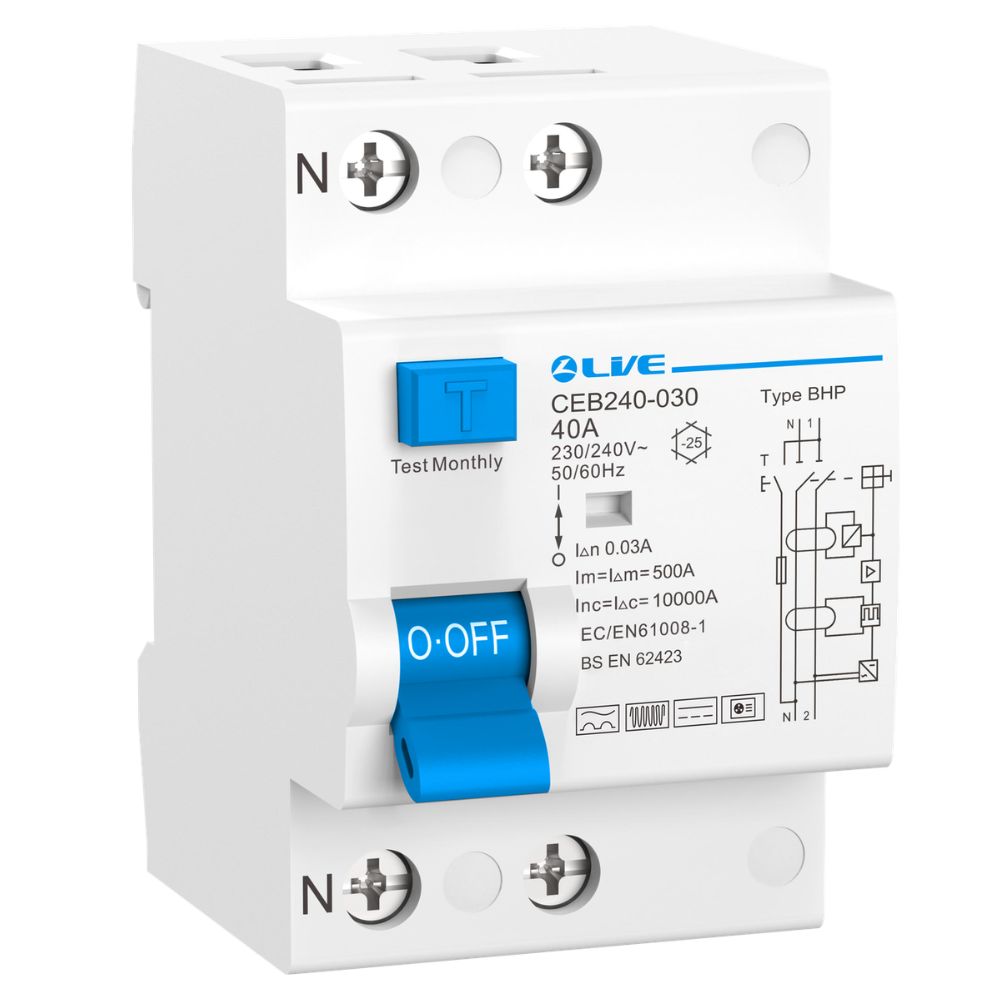

The included Live CEB240-030 40A Type B HP RCD is specifically engineered for installations where DC components and high-frequency leakage currents are present. Operating beyond 20kHz with a raised 150mA trip threshold above 1kHz, it helps reduce nuisance tripping while maintaining accurate fault detection.
This makes the unit ideal for heat pumps, EV chargers and inverter-based systems where standard RCDs may not provide sufficient protection.
Key Features
- 8 module metal consumer unit enclosure
- 40A Type B HP RCD (2 Pole, 30mA sensitivity)
- 40A double pole MCB, C curve
- 100A double pole main switch
- Type 2 surge protection device (SPD)
- High-frequency immunity for inverter systems
- Reduced nuisance tripping performance
- Compact design ideal where space is limited
- Suitable for modern electrical installations
Typical Applications
- Domestic heat pump installations
- Air source and ground source heat pumps
- EV charging circuits
- Solar PV systems
- Inverter-driven electrical systems
Technical Specifications
- Model: LHP840MSE
- Brand: Live Electrical
- Enclosure Size: 8 Module
- Main Switch: 100A Double Pole
- RCD: 40A Type B HP (CEB240-030)
- MCB: 40A C Curve Double Pole
- Sensitivity: 30mA
- Voltage: 230/240V AC
- Breaking Capacity: 10kA
- SPD: Type 2 Surge Protection Device
- Standards: BS EN 61008-1 & BS EN 62423
Why Choose the LHP840MSB?
The live electrical LHP840MSE heat pump consumer unit provides a complete, ready-to-install solution for heat pump protection. With advanced Type B HP RCD technology, integrated surge protection and a compact enclosure, it ensures compliance, safety and reliability in modern electrical installations.
