Description

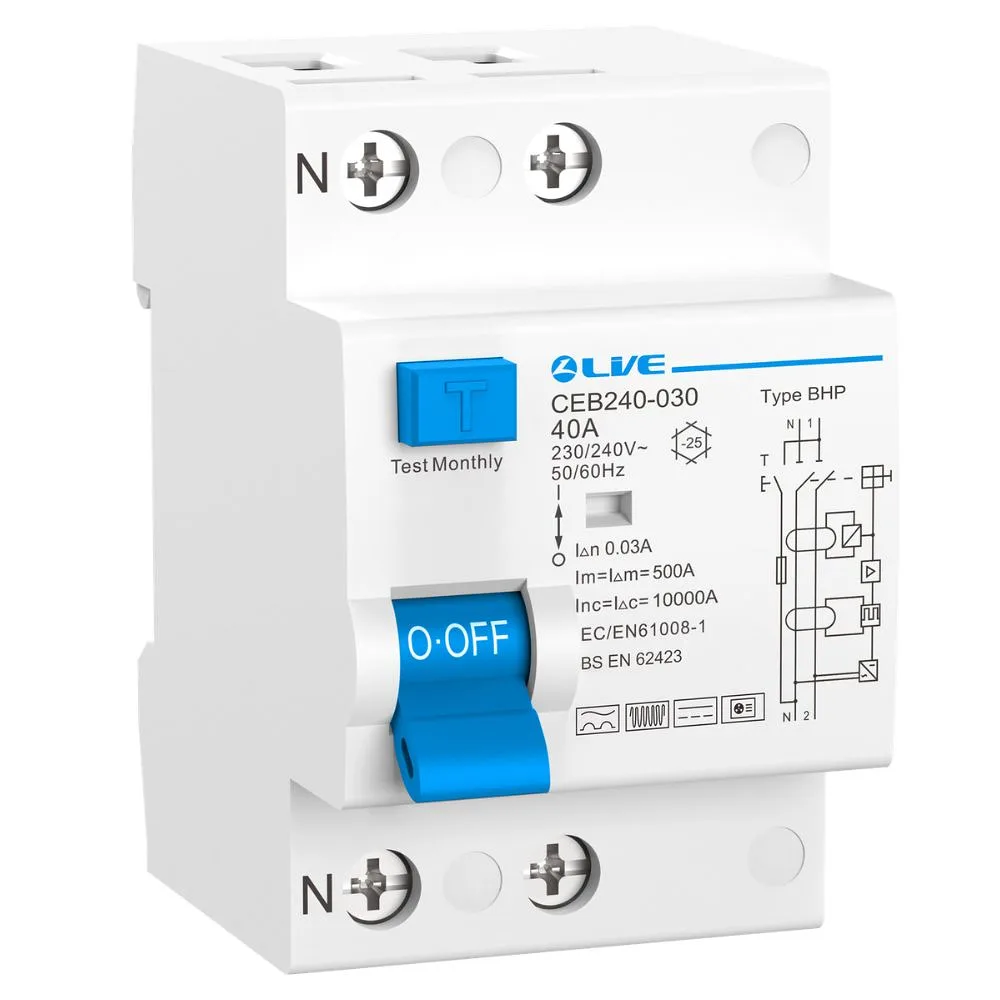

Live CEB240-030 40A 2 Pole Type B HP RCD for Heat Pumps
Operates beyond 20kHz with a raised 150mA trip threshold above 1kHz reducing nuisance tripping
The Live CEB240-030 40A 2 Pole Type B HP RCD is designed for modern electrical installations including heat pumps, EV charging points and inverter-driven systems. This device provides reliable protection against AC, pulsating DC and smooth DC leakage currents.
Also known as a Type BHP RCD or B-HP RCD, it is engineered to handle high-frequency leakage currents, reducing nuisance tripping while maintaining consistent performance in demanding environments.
Advanced Protection for Single-Phase Systems
The Live CEB240-030 40A 2 Pole Type B HP RCD is ideal for single-phase installations where accurate detection of DC and high-frequency leakage currents is required.
Key Features
- Operates beyond 20 kHz with a raised 150mA trip threshold above 1kHz reducing nuisance tripping
- 40A rated current
- 2 Pole (1P+N) configuration
- 30mA sensitivity for personal protection
- 10kA short-circuit capacity
- Detects AC, pulsating DC and smooth DC leakage currents
- High-frequency immunity for inverter systems
- Reduced nuisance tripping
- Compliant with BS EN 61008-1 & BS EN 62423
Typical Applications
- Domestic heat pump installations
- EV charging points
- Solar PV systems
- Residential distribution boards
- Inverter and electronic systems
Technical Specifications
- Part Number: CEB240-030
- Brand: Live Electrical
- Rated Current: 40A
- Poles: 2 Pole (1P+N)
- Rated Voltage: 230/240V AC
- Sensitivity: 30mA
- Breaking Capacity: 10kA
- Protection Degree: IP20
- Impulse Withstand Voltage: 4kV
- Terminal Torque: 2.5Nm
Why Choose a Type B HP RCD?
A Type B HP RCD is essential for installations where DC components and high-frequency leakage currents are present. The Live CEB240-030 40A 2 Pole Type B HP RCD ensures improved safety, accurate fault detection and compliance with modern electrical standards.
