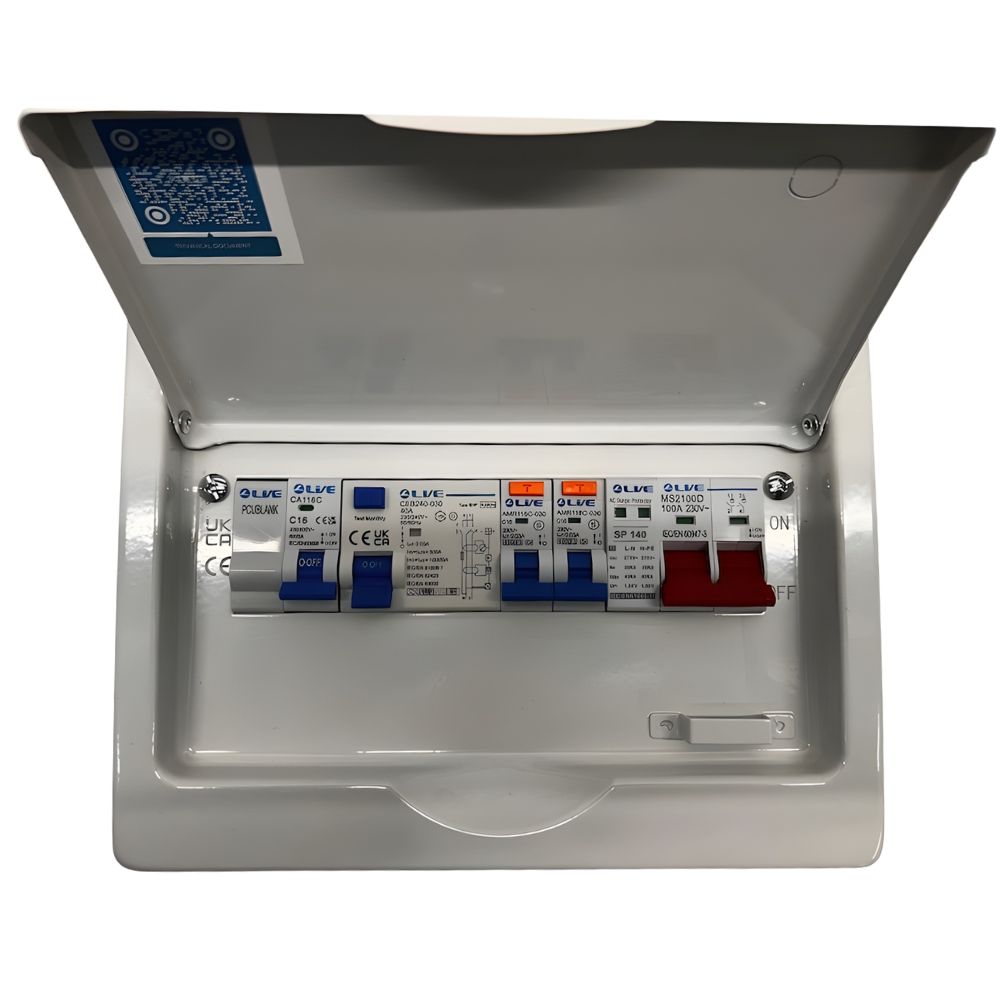

Heat Pump Consumer Unit with 2 x C16 RCBO and 1 x C16 MCB
Live Electrical Heat Pump Consumer Unit C16 RCBO
Protect dedicated heat pump installations with the Live Electrical Heat Pump Consumer Unit 2 x C16 RCBO 1 x C16 MCB. Designed specifically for heat pump circuits, this pre-configured unit combines a 40A Type B HP RCD, 2 x C16 RCBOs, 1 x C16 MCB, and a Type 2 SPD to deliver reliable protection against earth faults, overloads, short circuits, and transient surges.

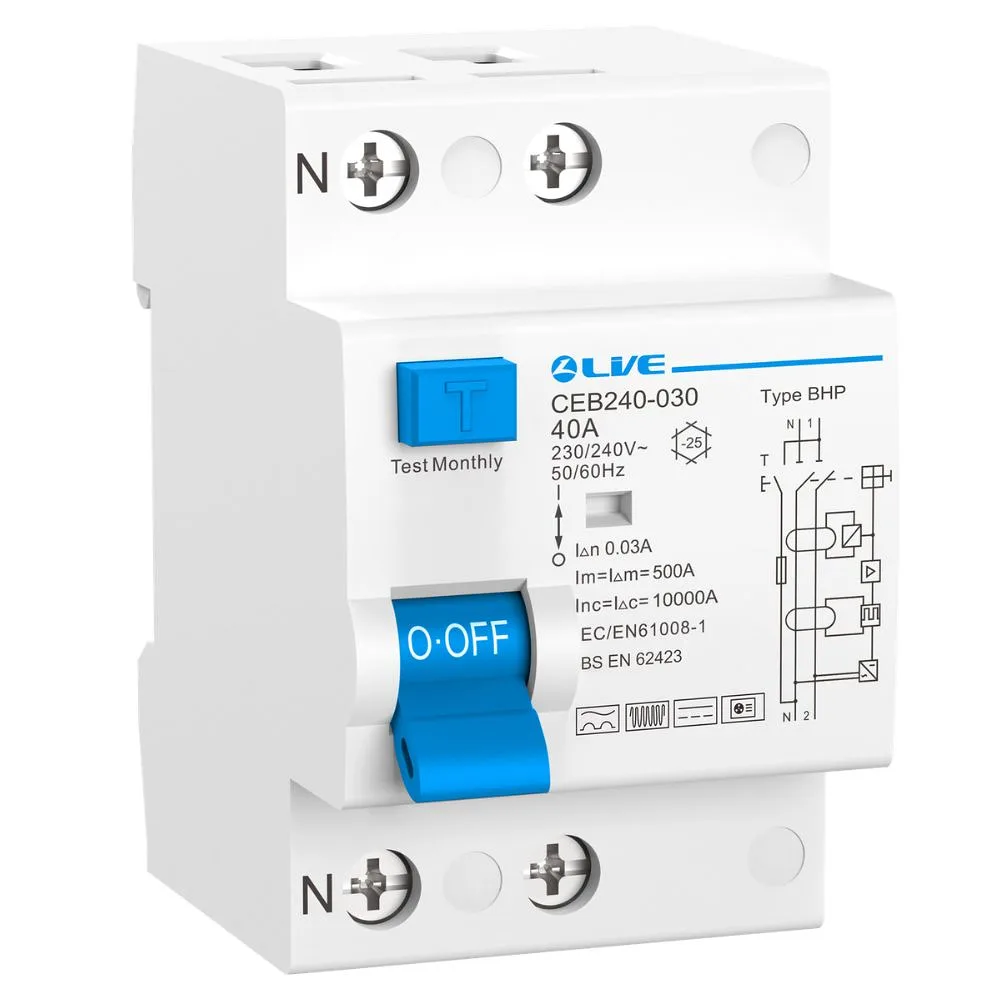

Built for modern heat pump systems, the included Live CEB240-030 40A 2 Pole Type B HP RCD operates beyond 20kHz and features a raised 150mA trip threshold above 1kHz, helping to reduce nuisance tripping while maintaining accurate detection of AC, pulsating DC, and smooth DC leakage currents.
This configuration offers additional circuit-level protection via RCBOs, making it ideal for more controlled and flexible heat pump installations.
Key Features – Live Electrical Heat Pump Consumer Unit C16 RCBO
- 8-module consumer unit designed for heat pump applications
- Fitted with Live CEB240-030 40A 2 Pole Type B HP RCD
- Includes 2 x C16 RCBOs and 1 x C16 MCB
- Enhanced circuit protection with individual RCBO protection
- Optimised for inverter-driven heat pump systems
- Operates beyond 20kHz for high-frequency environments
- 150mA trip threshold above 1kHz reduces nuisance tripping
- Detects AC, pulsating DC, and smooth DC leakage currents
- Integrated Type 2 SPD for surge protection
- Pre-configured for faster installation
Technical Overview – Live Electrical Heat Pump Consumer Unit C16 RCBO
- Product code: LHP1040MSE-2R
- Brand: Live Electrical
- Application: Heat pump circuit protection
- Enclosure size: 8 module
- RCD type: Type B HP
- RCD rating: 40A
- RCD poles: 2 Pole
- Frequency performance: Operates beyond 20kHz
- High-frequency threshold: 150mA above 1kHz
- RCBOs: 2 x C16
- MCBs: 1 x C16
- Surge protection: Type 2 SPD
Why Choose This Heat Pump Consumer Unit?
The Live Electrical Heat Pump Consumer Unit 2 x C16 RCBO 1 x C16 MCB is designed for installations requiring enhanced circuit separation and protection. With RCBO integration, it provides improved fault isolation while maintaining full protection against high-frequency and DC leakage currents common in heat pump systems.
Guarantee & Compliance
Designed specifically for heat pump installations. Always install in accordance with current wiring regulations and manufacturer guidelines.
