Description
Heavy-Duty Protection for Demanding Applications

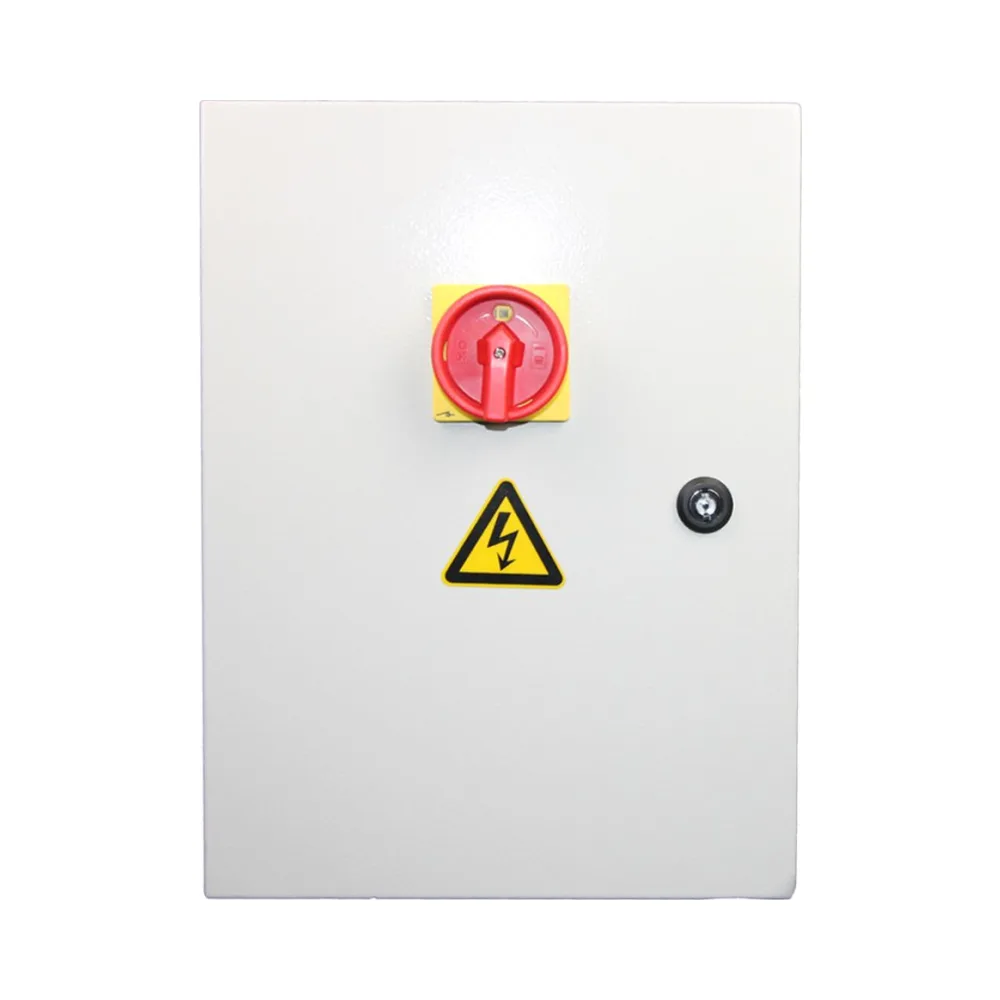

Garo GSF363N – 63A 3 Pole IP65 Metalclad Switch Fuse
The Garo 63A 3P Metalclad Switch Fuse is designed for reliable performance in commercial and industrial environments. Built into a robust IP65-rated metal enclosure, it provides long-lasting protection against dust and water ingress, ensuring durability in harsh conditions.
Rated at 63A with AC-23 operational performance at 400/415V, the GSF363N delivers 22kW switching capacity. Its endurance includes 2,000 electrical and 20,000 mechanical operations, while its high breaking capacity and 22x58mm fuse compatibility make it a versatile choice for demanding electrical circuits.
✨ Key Features – Garo GSF363N Switch Fuse
- 63A 3 pole enclosed switch fuse
- IP65-rated metalclad housing for robust protection
- Rated operational power: 22kW (AC-23, 400/415V)
- Electrical endurance: 2,000 operations | Mechanical endurance: 20,000 operations
- Fuse size: 22x58mm
- Short-circuit protection with 50A back-up fuse
- Conforms to EN 60947-1 and EN 60947-3 standards
- Fuses included
Technical Overview – Garo 63A 3P Metalclad Switch Fuse
- Rated insulation voltage: 1000V
- Rated current: 63A
- Operational currents: AC-21, AC-22, AC-23 (400/415V)
- Rated power: 22kW
- Short-circuit rating: 50kA with back-up fuse
- Impulse withstand voltage: 8kV
- Terminal capacity: 2.5–16mm² | Max torque: 2.2Nm
- Fuse type: 22 x 58mm
- Ingress protection: IP65
- Complies with LVD 2014/35/EU and RoHS 2011/65/EU
✅ Why Choose This Product?
The Garo 63A 3P Metalclad Switch Fuse is the professional choice for industrial-grade electrical protection. With high endurance, 22kW power handling, and a weatherproof metal enclosure, it delivers trusted performance for installers and end-users alike.
About Garo
Garo is a leading European supplier of electrical protection and distribution products. Their switch fuses and enclosures are engineered for reliability, safety, and compliance in challenging industrial and commercial environments.
️ Guarantee & Compliance
All Garo switch fuses meet the requirements of EN 60947 standards and comply with the Low Voltage Directive (2014/35/EU) and RoHS Directive (2011/65/EU). Certification details are available via the Garo website.
