High-Capacity Protection for Demanding Installations

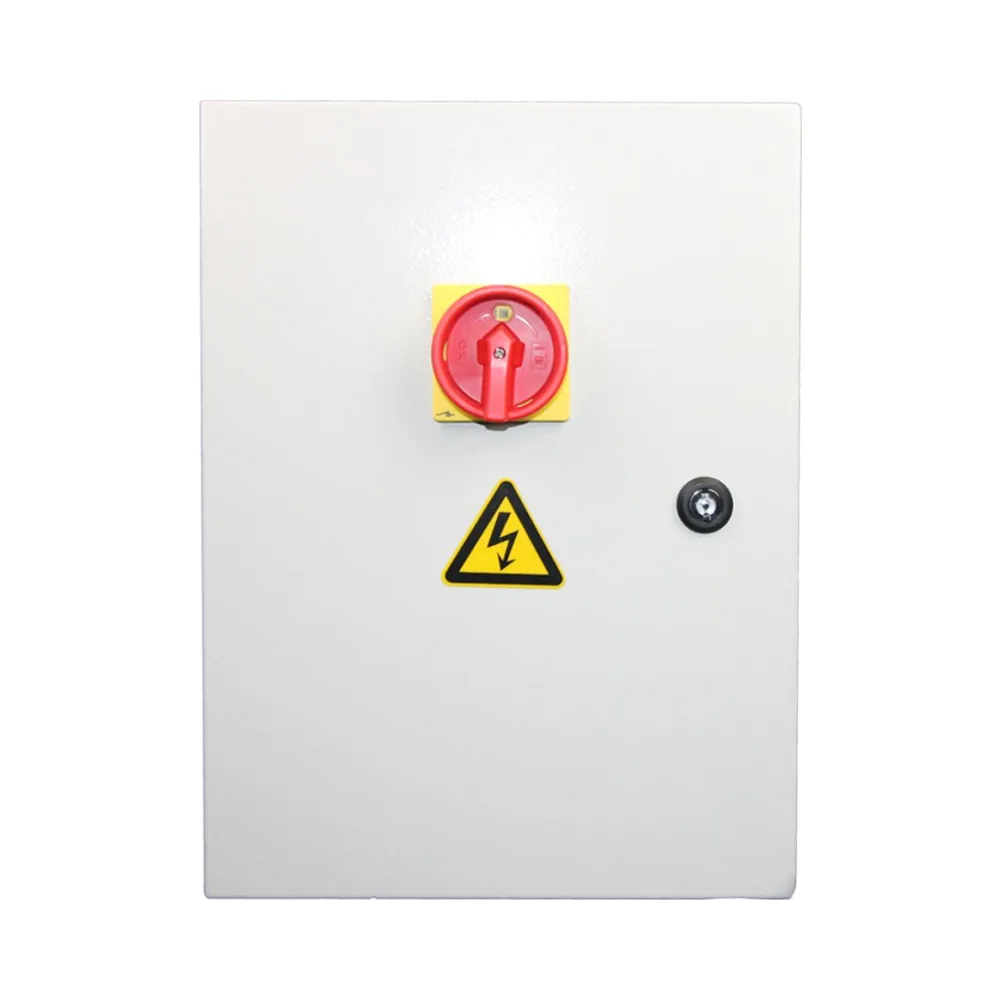

Garo GSF3100N – 100A 3 Pole IP65 Metalclad Switch Fuse
The Garo 100A 3P Metalclad Switch Fuse offers heavy-duty circuit protection in a robust IP65-rated enclosure. Designed for demanding commercial and industrial environments, it ensures safe, reliable, and long-term performance against dust, water, and physical impact.
Rated at 100A, this unit delivers 30kW operational switching power at 400/415V under AC-23 conditions. With 2,000 electrical and 20,000 mechanical endurance cycles, the GSF3100N is built for durability. It supports large 22x58mm fuses, ensuring effective high-capacity protection in tough applications.
✨ Key Features – Garo 100A 3P Metalclad Switch Fuse
- 100A 3 pole enclosed switch fuse
- Durable IP65 metalclad housing for dust and water resistance
- Rated operational power: 30kW (AC-23, 400/415V)
- Electrical endurance: 2,000 operations | Mechanical endurance: 20,000 operations
- Fuse size: 22x58mm
- Short-circuit rating: 50kA with back-up fuse
- Conforms to EN 60947-1 and EN 60947-3 standards
- Fuses included
Technical Overview – Garo 100A 3P Metalclad Switch Fuse
- Rated insulation voltage: 1000V
- Rated current: 100A
- Operational currents: AC-21, AC-22, AC-23 (400/415V)
- Rated power: 30kW
- Short-circuit rating: 50kA with back-up fuse
- Impulse withstand voltage: 8kV
- Terminal capacity: 2.5–35mm² | Max torque: 2.2Nm
- Fuse type: 22x58mm
- Ingress protection: IP65
- Complies with LVD 2014/35/EU and RoHS 2011/65/EU
✅ Why Choose This Product?
The Garo 100A 3P Metalclad Switch Fuse provides high-capacity, reliable protection for industrial and commercial circuits. Its 100A rating, robust housing, and superior endurance make it a trusted solution for installers managing large-scale electrical loads.
About Garo
Garo is a leading European manufacturer of electrical protection and distribution equipment. Their metalclad switch fuses are designed to deliver consistent performance, safety, and compliance across a wide range of commercial and industrial applications.
️ Guarantee & Compliance
All Garo switch fuses are manufactured to comply with EN 60947 standards, the Low Voltage Directive (2014/35/EU), and RoHS Directive (2011/65/EU). Full certification details can be found on the Garo website.
