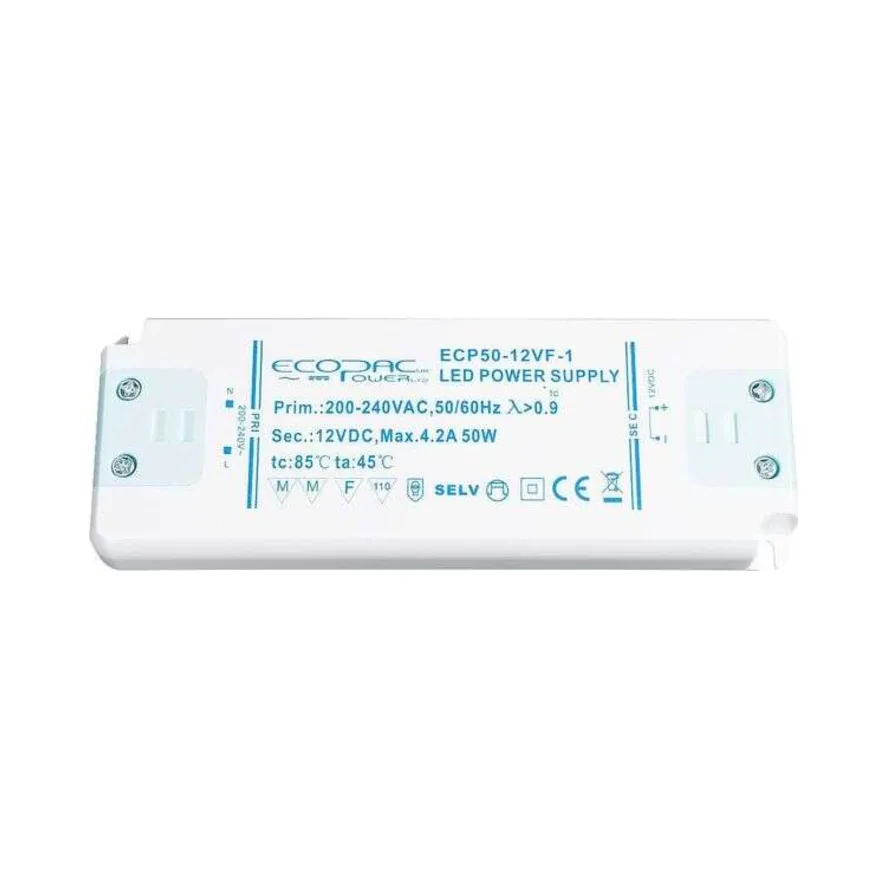

EcoPac 12V Constant Voltage LED Driver 50W
The Ecopac ECP50-12VF-1 50W 12V Constant Voltage Driver is a low-profile power supply designed for reliable 12V constant voltage lighting applications. Delivering up to 50W with a 4.16A output, it is particularly suited to LED profile lighting and lightboxes.
Designed for a 200-240V AC input, the ECP50-12VF-1 incorporates built-in power factor correction and provides flicker-free operation. Its slim plastic housing measures just 18mm in height, making it suitable for installations where available space is limited.
Key Features – EcoPac 12V Constant Voltage LED Drivers 50W
- 12V DC constant voltage output
- 50W rated output power
- 4.16A output current
- Low-profile LED driver design
- 200-240V AC input
- 50-60Hz input frequency
- Built-in PFC function
- Flicker-free operation
- Efficiency up to 85%
- IP20 rated
- Class II protection
- Cooling by free air convection
- Suitable for profile lighting and lightboxes
Built-In Electrical Protection
The Ecopac ECP50-12VF-1 50W 12V Constant Voltage Driver incorporates multiple protection functions to support dependable operation. Protection is provided against short circuits, overloading, over current and excessive temperature.
The driver is designed to shut down its output when specified fault conditions occur and can be re-powered once the fault has been removed.
Compact Low-Profile Design
With dimensions of 160 x 57.8 x 18mm, the ECP50-12VF-1 provides a slim solution for installations where driver space is restricted. The fully protected plastic housing is designed for straightforward installation, while free-air convection provides passive cooling without the need for a fan.
Applications
- 12V LED strip lighting
- LED profile lighting
- Lightboxes
- Interior constant voltage LED lighting systems
- Low-profile lighting installations
Technical Specifications
- Brand: Ecopac
- Manufacturer: Ecopac (UK) Power Ltd
- Model: ECP50-12VF-1
- Series: ECP50-VF-1
- Driver type: Constant voltage
- Rated power: 50W
- Output voltage: 12V DC
- Output current: 4.16A
- Input voltage: 200-240V AC
- Input frequency: 50-60Hz
- Maximum AC current: 0.3A
- Power factor: PF >0.9 at 240V AC full load
- Typical full-load efficiency: 85%
- Inrush current: <60A
- Protection class: Class II
- IP rating: IP20
- Operating temperature: -20°C to +45°C
- Maximum case temperature: +85°C
- Working humidity: 45-85%
- Dimensions: 160 x 57.8 x 18mm
- Weight: 0.19kg
