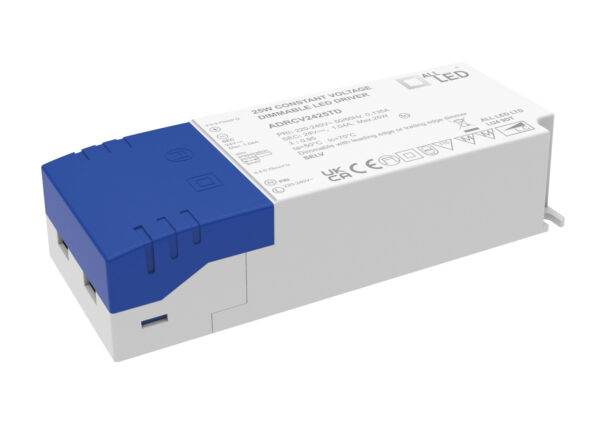

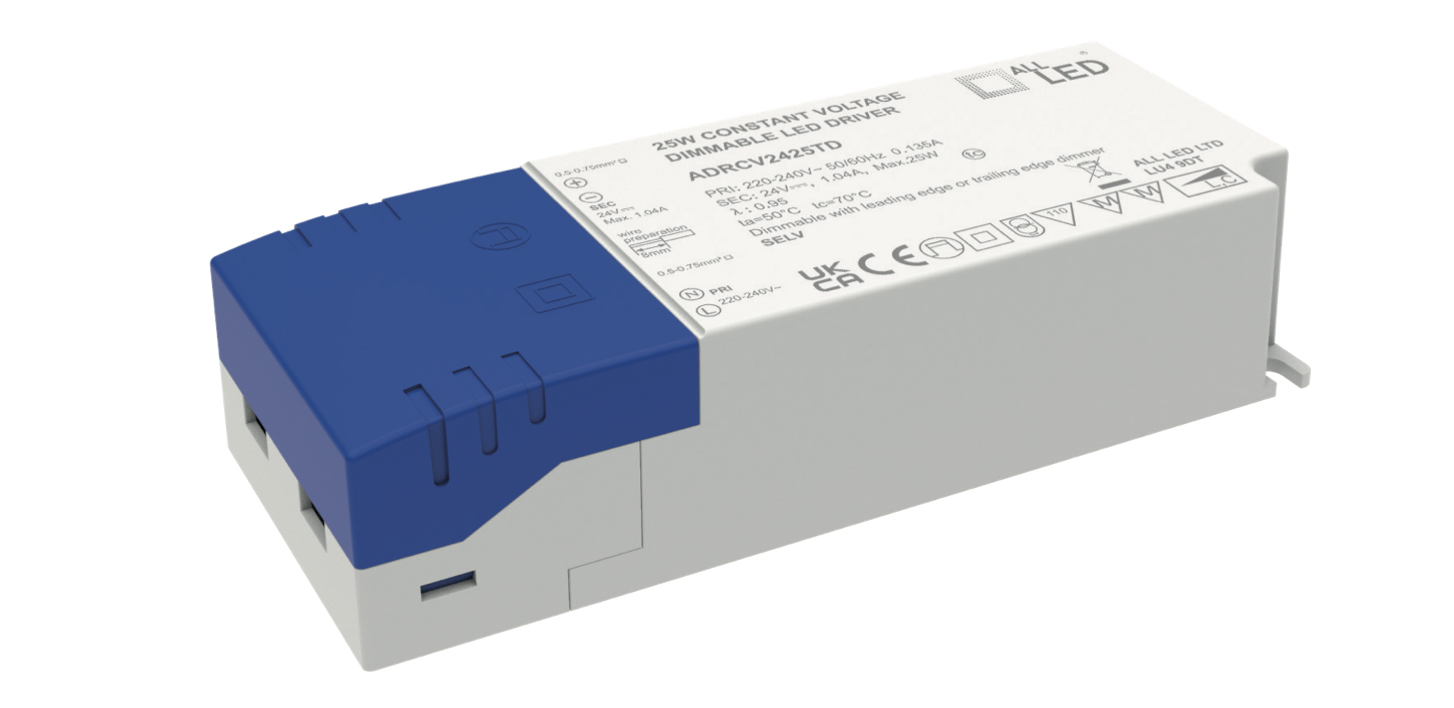

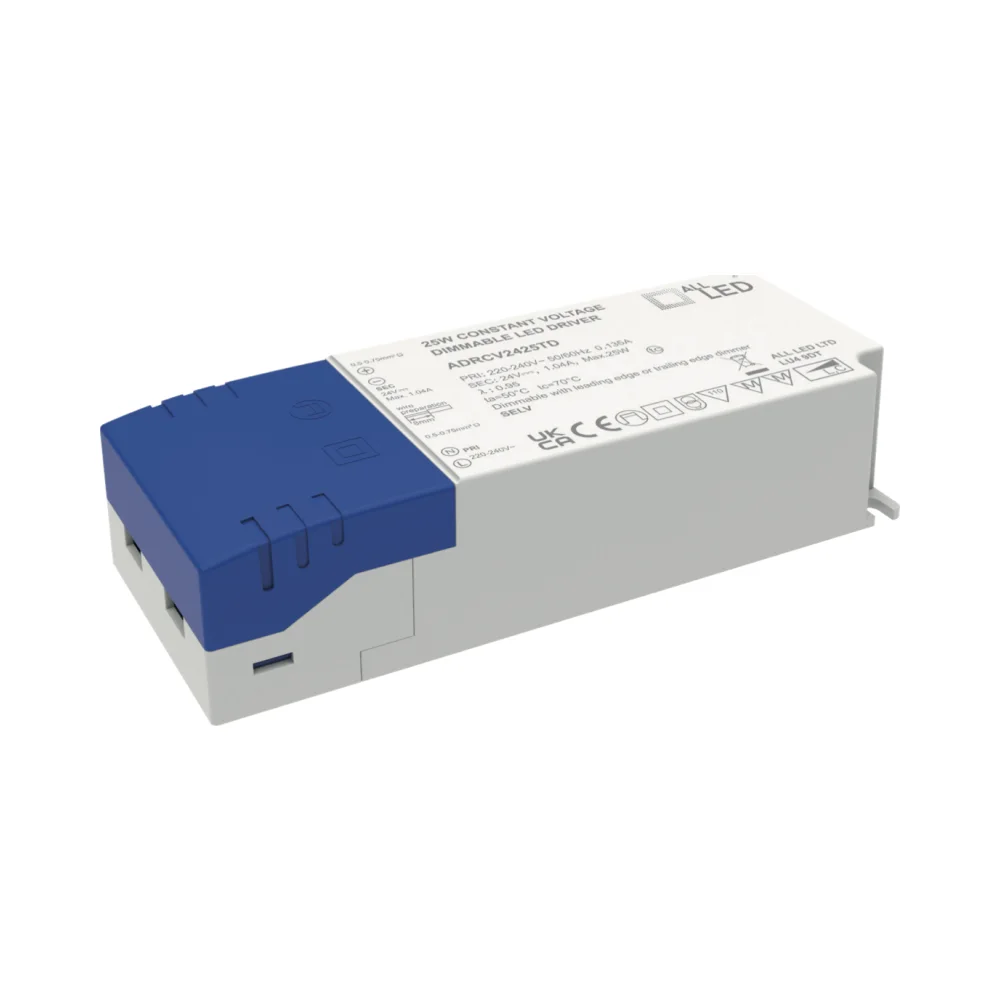

ALL LED ADRCV2425TD 24V 25W Dimmable Driver
The ALL LED ADRCV2425TD is a 24V 25W Dimmable LED Driver designed to deliver a stable constant voltage output for compatible LED lighting installations. Supporting both leading-edge and trailing-edge dimmers, it offers flexible lighting control in residential and commercial environments.
Manufactured with a durable polycarbonate enclosure, this LED driver features loop-in loop-out wiring connections and generously sized terminals to simplify installation. Its compact dimensions also make it suitable for installations where space is restricted.
Key Features
- 24V DC constant voltage output
- 25W maximum rated output power
- Compatible with leading-edge and trailing-edge dimmers
- Durable polycarbonate enclosure
- Loop-in loop-out connections for easier wiring
- Large terminals for secure cable connections
- Built-in overload, no-load, short circuit, thermal and overcurrent protection
- Compact design suitable for a 63mm diameter installation opening
Technical Specifications
- Brand: ALL LED
- Product Code: ADRCV2425TD
- Product Type: Dimmable Constant Voltage LED Driver
- Output Voltage: 24V DC
- Maximum Output Power: 25W
- Dimming Compatibility: Leading Edge and Trailing Edge
- Enclosure Material: Polycarbonate

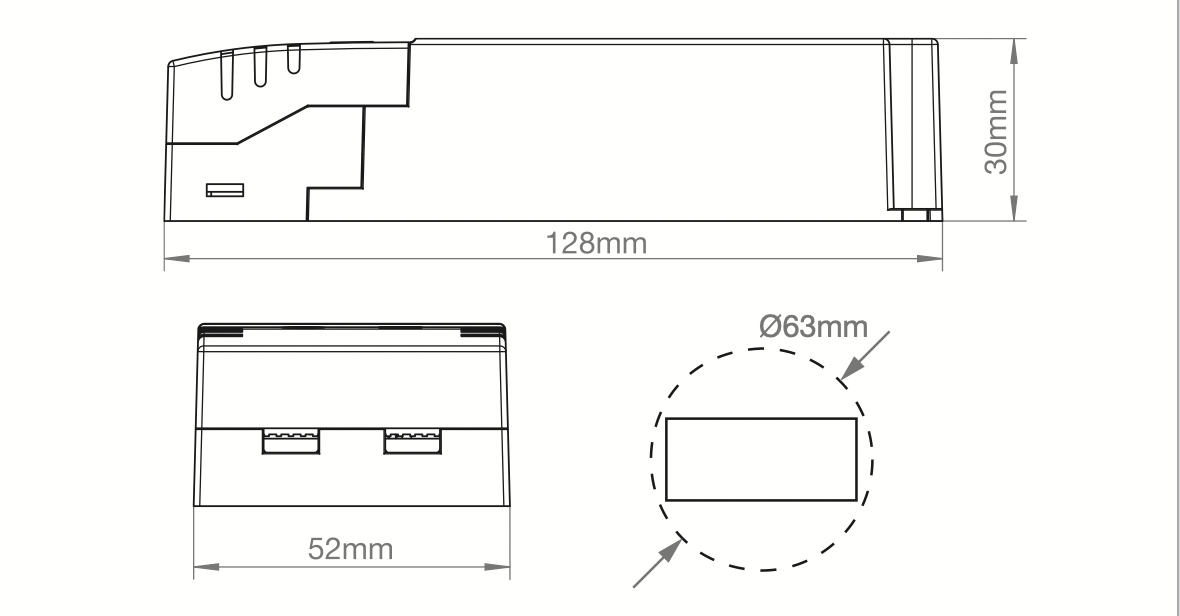

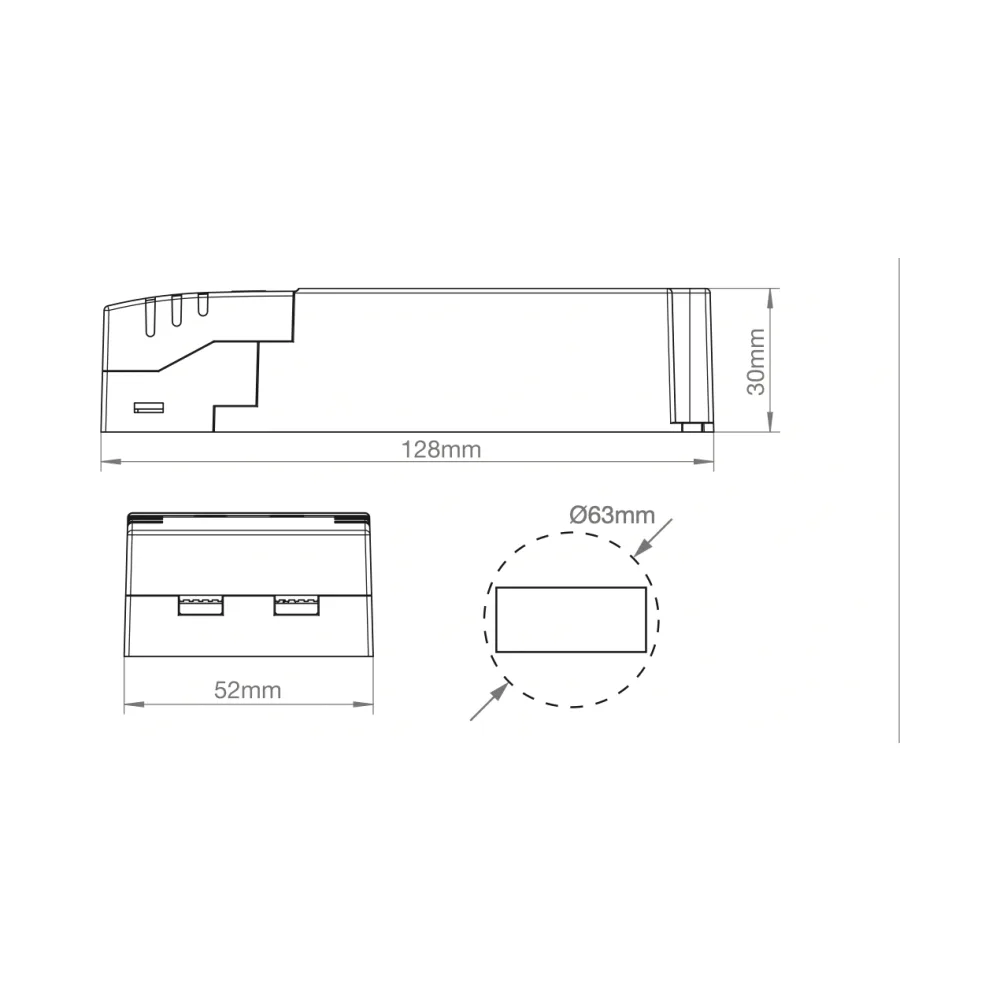

- Length: 128mm
- Width: 52mm
- Height: 30mm
- Installation Opening: 63mm diameter
Suitable Applications
The 24V 25W Dimmable LED Driver is suitable for powering compatible constant voltage LED lighting, including decorative lighting, architectural installations and low-voltage LED systems requiring dimming control.
Installation and Protection
The ADRCV2425TD incorporates multiple protection features to help safeguard connected lighting against electrical faults. Its loop-in loop-out design simplifies cable management, while the compact housing allows convenient positioning within suitable installation spaces.
Before installation, confirm that the connected LED load operates at 24V DC, does not exceed 25W and is compatible with the selected dimmer. This is a constant voltage driver and must not be used as a replacement for a constant current LED driver.
