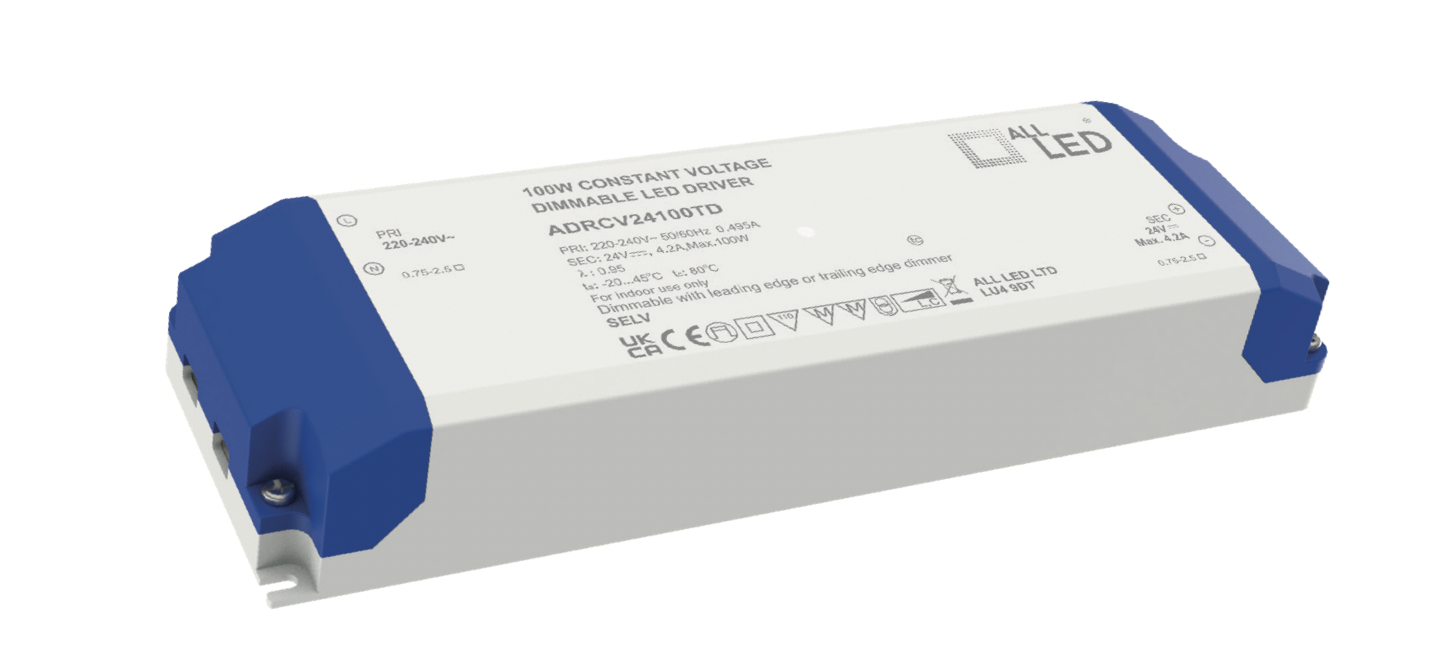

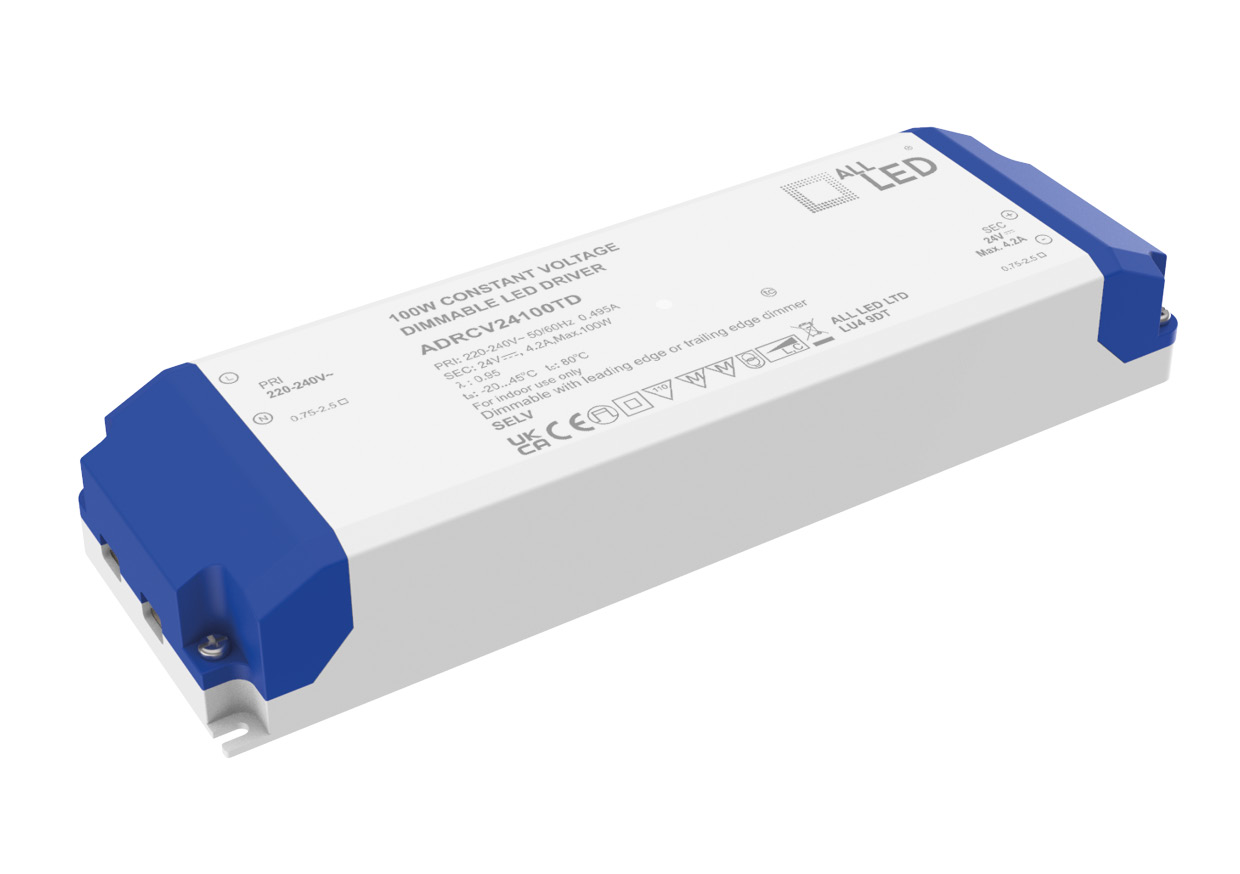

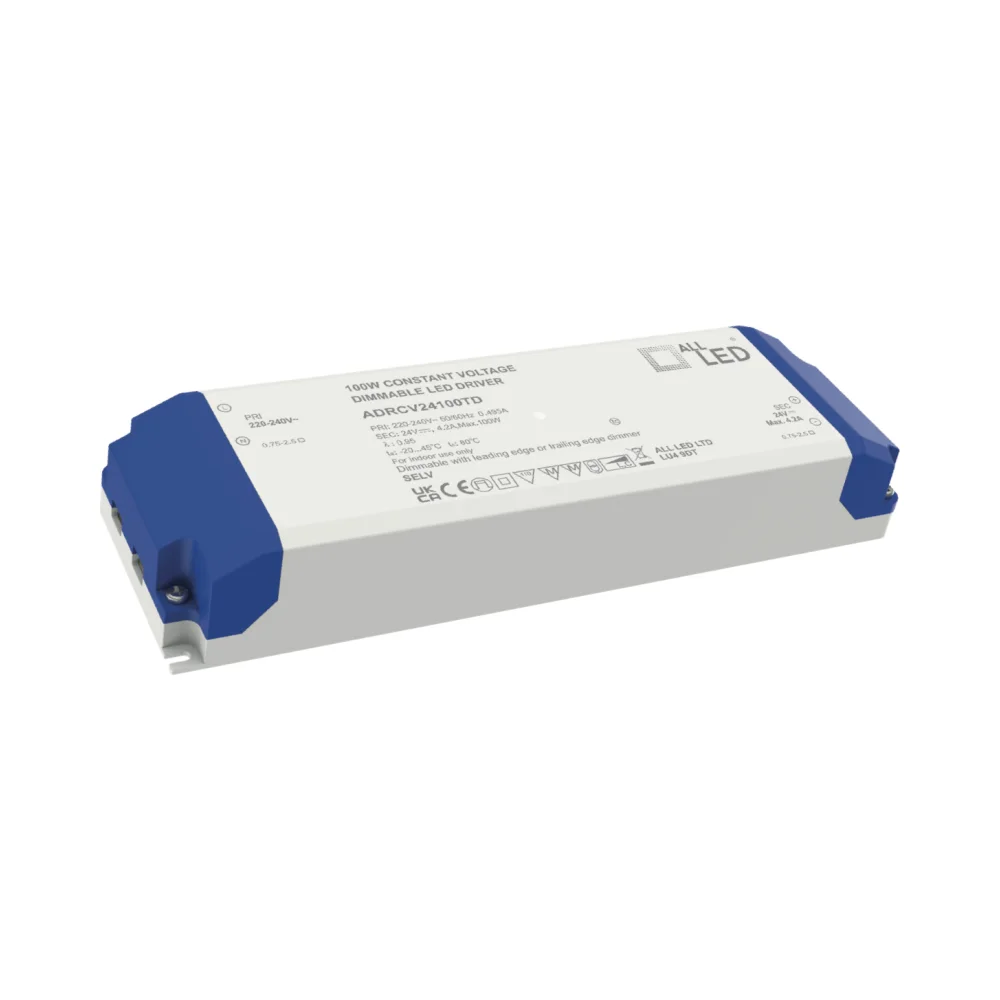

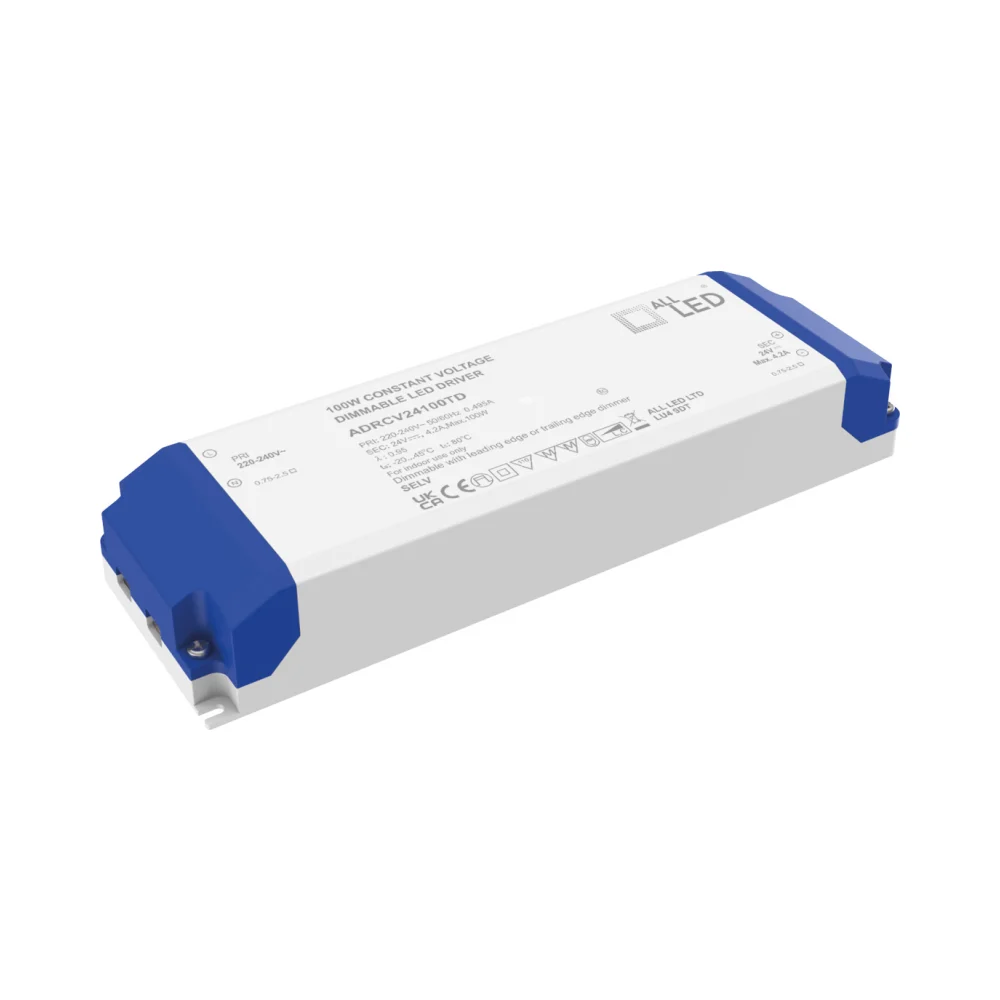

ALL LED ADRCV24100TD 24V 100W Dimmable Driver
The ALL LED ADRCV24100TD 24V 100W Dimmable Driver provides a constant voltage power supply for compatible 24V LED lighting systems. Designed for installations requiring higher power capacity and adjustable brightness, this driver is suitable for residential, commercial and architectural lighting applications.
With a maximum output of 100W, the ADRCV24100TD accommodates larger compatible LED loads than the lower-wattage models in the range. Its dimming functionality makes it a practical solution for lighting schemes where brightness adjustment is required.
Key Features
- 24V DC constant voltage output
- 100W maximum rated output power
- Dimmable design for compatible LED lighting systems
- Suitable for higher-capacity 24V LED installations
- Designed for use with compatible dimming controls
- Integrated electrical protection features
- Suitable for domestic and commercial lighting projects
Technical Specifications
- Brand: ALL LED
- Manufacturer Part Number: ADRCV24100TD
- Product Type: Dimmable Constant Voltage LED Driver
- Output Voltage: 24V DC
- Maximum Output Power: 100W
- Dimming Function: Yes
- Output Type: Constant Voltage
100W Capacity for Larger LED Lighting Loads
The ADRCV24100TD is designed for lighting projects requiring greater power capacity than standard low-wattage LED drivers. Its 100W output makes it suitable for compatible 24V LED lighting arrangements, including decorative installations, architectural lighting and extended LED strip configurations, subject to the connected load requirements.
Dimming Control and Installation
The ALL LED ADRCV24100TD 24V 100W Dimmable Driver supports adjustable lighting levels when used with an appropriate compatible dimming system. This allows installers to incorporate lighting control into a variety of interior lighting designs.
Before installation, verify that the connected LED equipment requires a 24V DC constant voltage supply and that the total connected load is within the driver’s 100W rating. Check the manufacturer’s instructions for dimmer compatibility, installation clearances and wiring requirements.
This product is a constant voltage LED driver and must not be used as a replacement for a constant current LED driver.
