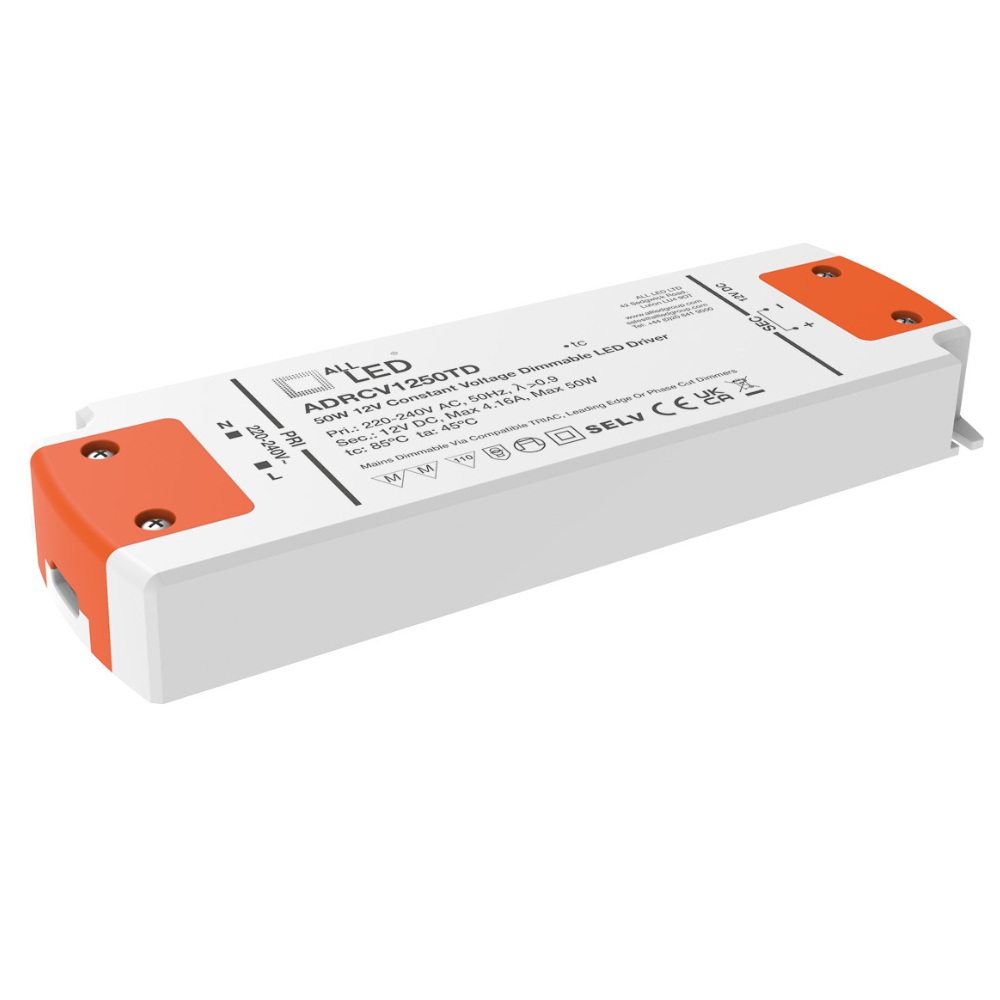

ALL LED ADRCV1250TD 12V 50W Dimmable Driver
The ALL LED ADRCV1250TD 12V 50W Dimmable Driver is a constant voltage LED power supply designed for compatible 12V lighting installations. Featuring TRIAC dimming technology, it supports both leading-edge and trailing-edge dimmers, providing flexible lighting control for residential and commercial indoor applications.
With a maximum output of 50W and a regulated 12V DC supply, this driver provides dependable performance for suitable low-voltage LED systems. Its durable polycarbonate enclosure, loop-in loop-out wiring arrangement and built-in protection features make it a practical choice for professional lighting installations.
Key Features
- 12V DC constant voltage output
- 50W maximum output power
- TRIAC dimming compatible with leading-edge and trailing-edge dimmers
- Maximum output current of 4.16A
- 87% operating efficiency
- Power factor of 0.95
- Durable polycarbonate enclosure
- Loop-in loop-out wiring arrangement for easier installation
- Overload, no-load, short circuit, thermal and overcurrent protection
- IP20 protection rating for indoor applications
- Rated lifetime of 50,000 hours
- 3-year manufacturer’s warranty
Technical Specifications
- Brand: ALL LED
- Manufacturer Part Number: ADRCV1250TD
- Product Type: TRIAC Dimmable Constant Voltage LED Driver
- Input Voltage: 220-240V AC
- Input Frequency: 50-60Hz
- Output Voltage: 12V DC
- Maximum Output Power: 50W
- Maximum Output Current: 4.16A
- Dimming Compatibility: Leading Edge and Trailing Edge
- Power Factor: 0.95
- Efficiency: 87%
- IP Rating: IP20
- Operating Temperature: -20°C to +50°C
- Enclosure Material: Polycarbonate
- Rated Lifetime: 50,000 Hours
- Rated Switching Cycles: Up to 100,000
- Warranty: 3 Years
TRIAC Dimming for 12V LED Lighting
The ADRCV1250TD supports compatible leading-edge and trailing-edge dimmers, allowing brightness adjustment without requiring a separate low-voltage dimming controller. It is suitable for 12V constant voltage lighting systems where mains-side dimming is required.
Electrical Protection and Installation
The ALL LED ADRCV1250TD 12V 50W Dimmable Driver incorporates overload, short circuit, thermal and overcurrent protection. Its loop-in loop-out connection arrangement simplifies wiring, while the polycarbonate housing provides a robust enclosure for indoor installation.
With 87% efficiency and a rated operating lifetime of 50,000 hours, this driver is designed for dependable use in compatible LED lighting installations.
Compatibility Information
Before installation, confirm that the connected LED lighting operates at 12V DC constant voltage and that the total load does not exceed 50W or 4.16A. Verify compatibility with the selected leading-edge or trailing-edge dimmer.
This is a constant voltage LED driver and is not suitable for LED fittings requiring a constant current supply. The IP20 enclosure is intended for appropriately protected indoor environments.
