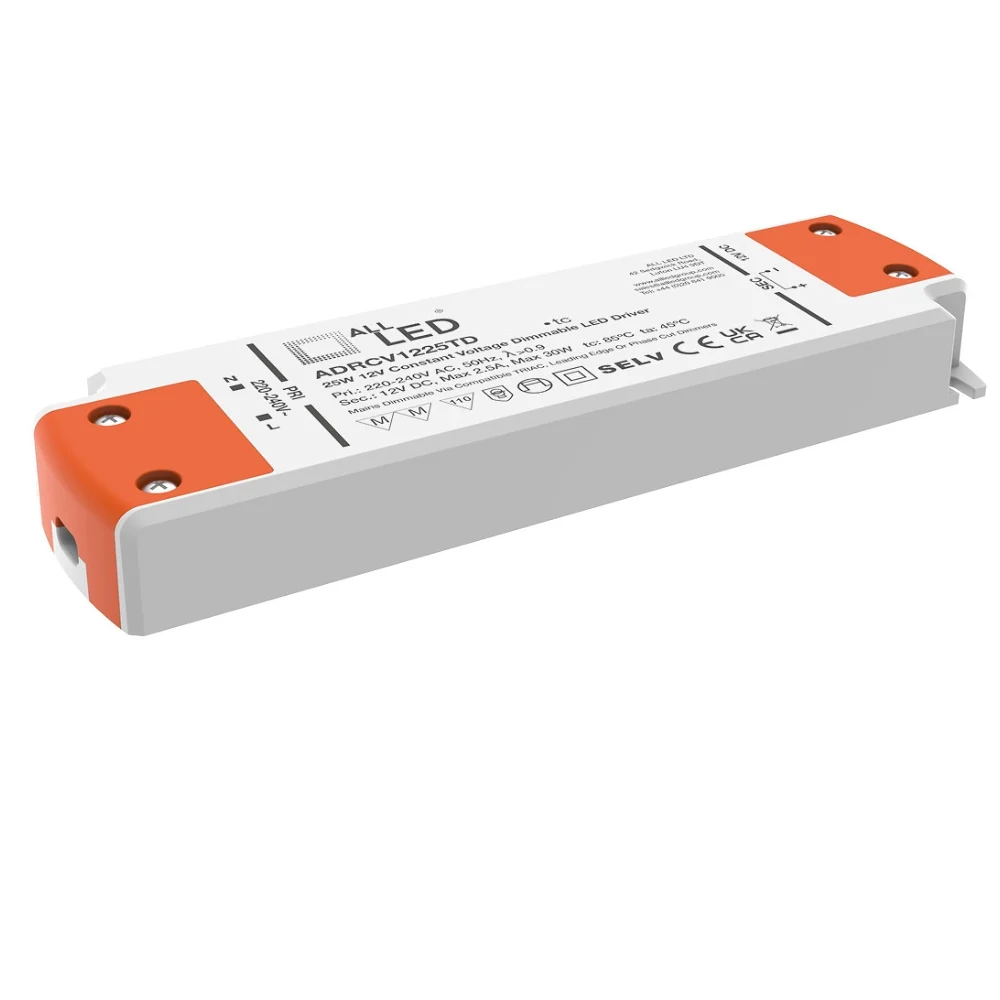

ALL LED ADRCV1225TD 12V 25W Dimmable Driver
The ALL LED ADRCV1225TD 12V 25W Dimmable Driver is a TRIAC dimmable constant voltage power supply designed for compatible 12V LED lighting installations. Supporting both leading-edge and trailing-edge dimmers, it offers flexible brightness control for residential and commercial indoor lighting applications.
With a maximum output of 25W and an efficiency rating of 82%, this driver is suited to smaller low-voltage lighting loads. Its durable polycarbonate enclosure, loop-in loop-out wiring arrangement and generously sized connection terminals help make installation straightforward for professional electricians.
Key Features
- 12V DC constant voltage output
- 25W maximum rated output power
- TRIAC dimming compatible with leading-edge and trailing-edge dimmers
- Maximum output current of 2.16A
- 82% operating efficiency
- Power factor of 0.95
- Loop-in loop-out wiring connections
- Durable polycarbonate enclosure with white frame
- Overload, no-load, short circuit, thermal and overcurrent protection
- IP20 protection rating for indoor installations
- Rated lifetime of 50,000 hours
- 100,000 switching cycles
Technical Specifications
- Brand: ALL LED
- Manufacturer Part Number: ADRCV1225TD
- Product Type: TRIAC Dimmable Constant Voltage LED Driver
- Input Voltage: 220-240V AC
- Output Voltage: 12V DC
- Maximum Output Power: 25W
- Maximum Output Current: 2.16A
- Dimming Compatibility: Leading Edge and Trailing Edge
- Power Factor: 0.95
- Efficiency: 82%
- No-Load Power Consumption: Less than 0.5W
- IP Rating: IP20
- Operating Temperature: -20°C to +50°C
- Enclosure Material: Polycarbonate
- Rated Lifetime: 50,000 Hours
- Switching Cycles: 100,000
- Start-Up Time: Less than 0.5 Seconds
- Inrush Current: 20A (100µs)
TRIAC Dimming for Compact 12V LED Installations
The ADRCV1225TD supports compatible mains-side leading-edge and trailing-edge dimming, making it suitable for lighting schemes requiring adjustable brightness. Its 25W output is intended for smaller 12V constant voltage LED loads, including suitable decorative lighting and compact LED installations.
Installation and Built-In Protection
The ALL LED ADRCV1225TD 12V 25W Dimmable Driver features loop-in loop-out wiring terminals, helping simplify connections where multiple drivers are installed. Its polycarbonate body provides a robust enclosure, while integrated overload, short circuit, thermal and overcurrent protection helps safeguard the driver during abnormal operating conditions.
With a rated lifetime of 50,000 hours and up to 100,000 switching cycles, this driver is designed for long-term operation in compatible indoor LED lighting applications.
Compatibility Information
Before installation, ensure the connected LED lighting requires a 12V DC constant voltage supply and that the total load does not exceed the manufacturer’s 25W rating. Verify compatibility with the selected leading-edge or trailing-edge dimmer and follow the manufacturer’s installation instructions.
This product is a constant voltage LED driver and must not be used with LED fittings requiring a constant current supply.
