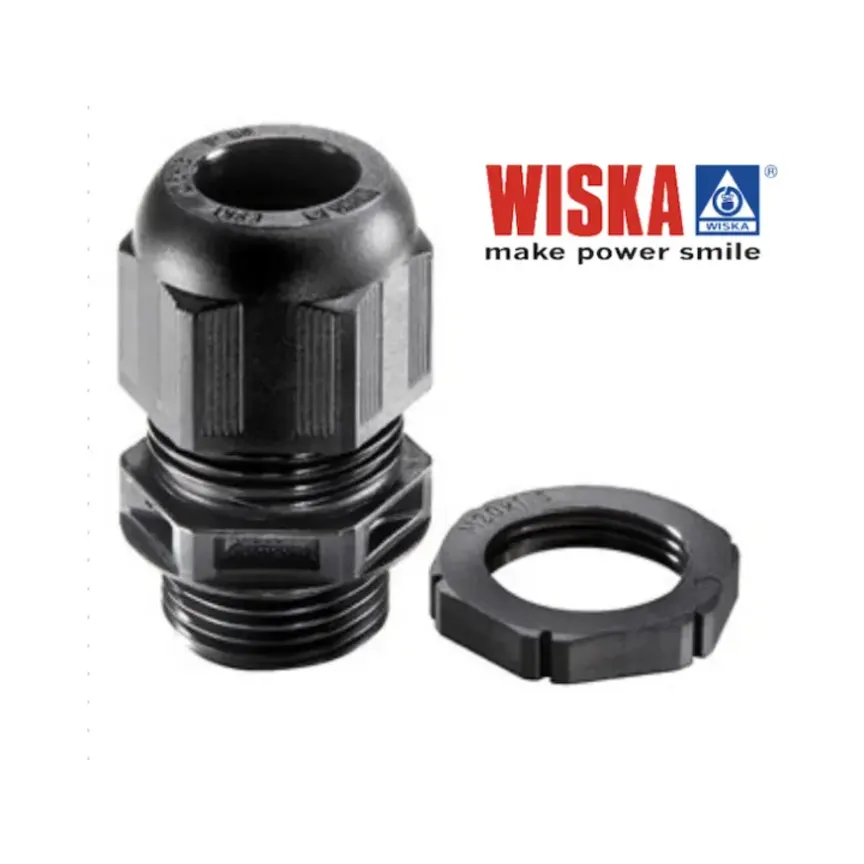

Wiska 25mm Black Cable Gland with Locknut
The Wiska 25mm Black Cable Gland with Locknut is designed for secure cable entry into electrical enclosures, junction boxes and equipment housings. Supplied as a convenient pack of 10 cable glands and 10 matching locknuts, it provides a practical solution for electricians working on domestic, commercial and industrial installations.
Manufactured from durable polyamide with EPDM sealing components, these M25 cable glands offer IP68 and IP69 protection when correctly installed in a suitable enclosure. The clamping range of 13–17.5mm accommodates a variety of cable diameters while helping maintain a reliable seal.
Key Features
- Pack quantity: 10 black M25 cable glands and 10 locknuts
- Thread size: M25 x 1.5
- Clamping range: 13–17.5mm cable diameter
- Material: Durable polyamide with EPDM sealing gasket
- Ingress protection: IP68 (5 bar for 30 minutes) and IP69
- Thread length: 10mm
- Operating temperature: -40°C to +100°C
- Glow wire tested to 750°C
- Colour: Black
- Wiska product code: 10100613
Wiska SPRINT Cable Gland System
Part of the Wiska SPRINT cable gland range, the GLP25+ uses a modular construction designed for straightforward assembly and secure cable sealing. The system combines compatible fittings and sealing components to suit different installation requirements.
The Wiska 25mm Black Cable Gland with Locknut provides a practical option where a metric M25 threaded cable entry is required, including electrical distribution equipment, control panels and suitable outdoor enclosures.
Installation and Cable Entry
Each gland features a 10mm connection thread and is supplied with a matching locknut for securing the gland to a suitable enclosure entry. The EPDM seal provides cable sealing within the specified diameter range.
For installations requiring conversion from an M25 threaded entry to an M20 fitting, see our Wiska M25 to M20 Black Reduction Adaptor. Check the thread arrangement and enclosure requirements before selecting an adaptor.
Technical Specifications
- Manufacturer: Wiska
- Model: GLP25+ / ESKV 25 PLUS IP68
- Product code: 10100613
- Connection thread diameter: 25mm
- Thread pitch: 1.5mm
- Thread length: 10mm
- Cable clamping diameter: 13–17.5mm
- Total length: 38–47mm
- Spanner width: 29mm
- Collar diameter: 32mm
- Body material: Polyamide
- Seal material: EPDM
- Protection rating: IP68 (5 bar / 30 min), IP69
- Operating temperature: -40°C to +100°C
- Glow wire test: 750°C
- Colour: Black
- Pack contents: 10 cable glands and 10 locknuts
Why Choose Wiska Cable Glands?
Wiska cable glands are designed to provide reliable mechanical cable retention and protection at enclosure entry points. The SPRINT range offers a consistent installation system, with different materials, thread sizes and sealing arrangements available for specific applications.
Choose this Wiska 25mm Black Cable Gland with Locknut pack for installations requiring multiple M25 cable entries, dependable sealing and convenient pack quantities. Available from Electrical4Less, your UK electrical wholesaler.
