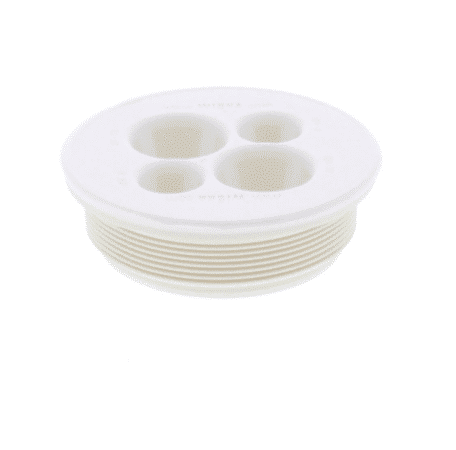

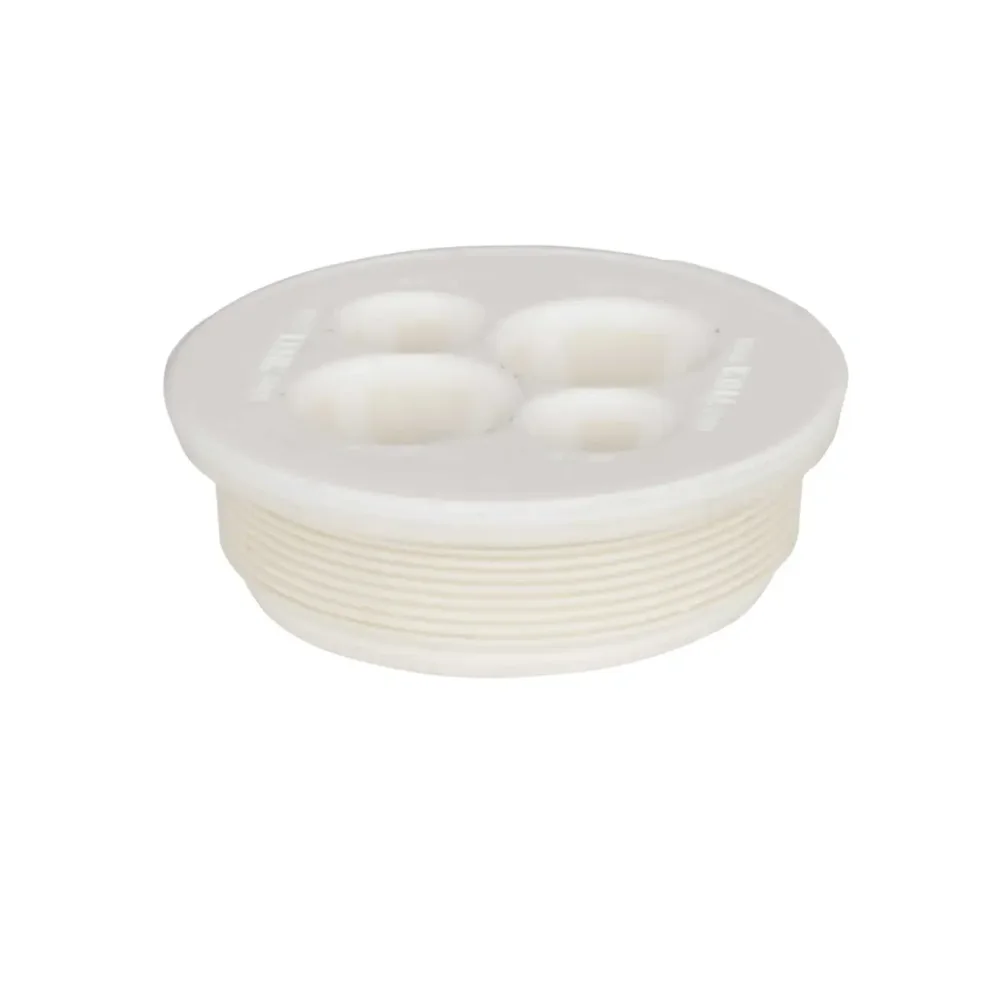

Wiska TKS 32 Cable Retention Amendment 3 Grommet
The Wiska TKS 32 Cable Retention Amendment 3 Grommet is designed for secure entry and retention of meter tails and protective earth conductors in consumer units and electrical enclosures. Featuring four dedicated membrane openings, integrated strain relief and IP66 protection, this 32mm push-in fitting provides a practical solution for professional electrical installations.
Designed for Meter Tails and Earth Conductors
The WISKA TKS 32 accommodates two meter tails and two earth conductors through a single enclosure entry, helping electricians achieve a neat and organised cable arrangement.
- Meter tails: Suitable for 16mm² or 25mm² conductors.
- Earth conductors: Suitable for 10mm² or 16mm² conductors.
- Four membrane entries: Two openings for 7–12mm cable diameters and two for 4–8mm diameters.
- 32mm fitting: Designed for a suitable 32mm enclosure opening.
Integrated Cable Retention and IP66 Protection
Unlike conventional cable entry grommets, the TKS 32 incorporates cable retention in accordance with EN 62444, helping to restrain incoming cables at the enclosure entry point.
The IP66-rated construction offers protection against dust and powerful water jets when correctly fitted to a compatible enclosure. Its durable polypropylene body and flexible TPE membrane provide a practical combination of strength and flexibility.
Quick Push-In Installation
The WISKA TKS 32 features a push-in design that allows installation without a separate locknut. Its compact, low-profile construction helps maintain a tidy appearance around the cable entry point.
Always follow WISKA’s installation instructions and verify conductor compatibility, cable retention and enclosure requirements before installation.
Key Features and Benefits
- Amendment 3 cable retention: Designed to provide cable restraint for meter tails and earth conductors entering consumer units.
- Four cable entries: Accommodates two meter tails and two protective earth conductors.
- IP66 protection: Dust-tight and protected against powerful water jets when correctly installed.
- Integrated strain relief: Cable retention in accordance with EN 62444.
- Push-in fitting: Quick installation without a separate locknut.
- Durable construction: Polypropylene body with flexible TPE membranes.
- Flame-retardant properties: UL94 V-0 classification and 960°C glow-wire tested.
- Compact design: Suitable for space-conscious consumer unit installations.
- Supplied individually: Pack contains one grommet.
Technical Specifications
- Manufacturer: WISKA
- Product code: TKS 32
- Manufacturer order number: 10108617
- Product type: Membrane cable entry with integrated cable retention
- Nominal size: M32
- Drilling diameter: 32mm
- External diameter: 37mm
- Total length: 12mm
- Body material: Polypropylene
- Membrane material: TPE
- Protection rating: IP66
- Cable entry ranges: 2 x 7–12mm and 2 x 4–8mm
- Meter tails: 16mm² or 25mm²
- Earth conductors: 10mm² or 16mm²
- Temperature range: -30°C to +80°C
- Glow-wire test: 960°C
- Flammability classification: UL94 V-0
- Cable retention: EN 62444
- Colour: RAL 9001 (cream-white)
- Quantity supplied: 1 grommet
Related Membrane Grommets and Consumer Units
The WISKA TKS 32 is specifically intended for meter tails and earth conductors. For outgoing circuit cables, explore our membrane grommet range, including options used by electricians to create customised cable entry positions behind individual RCBOs.
For new installations or upgrades, browse our consumer units and associated accessories to complete your installation.
